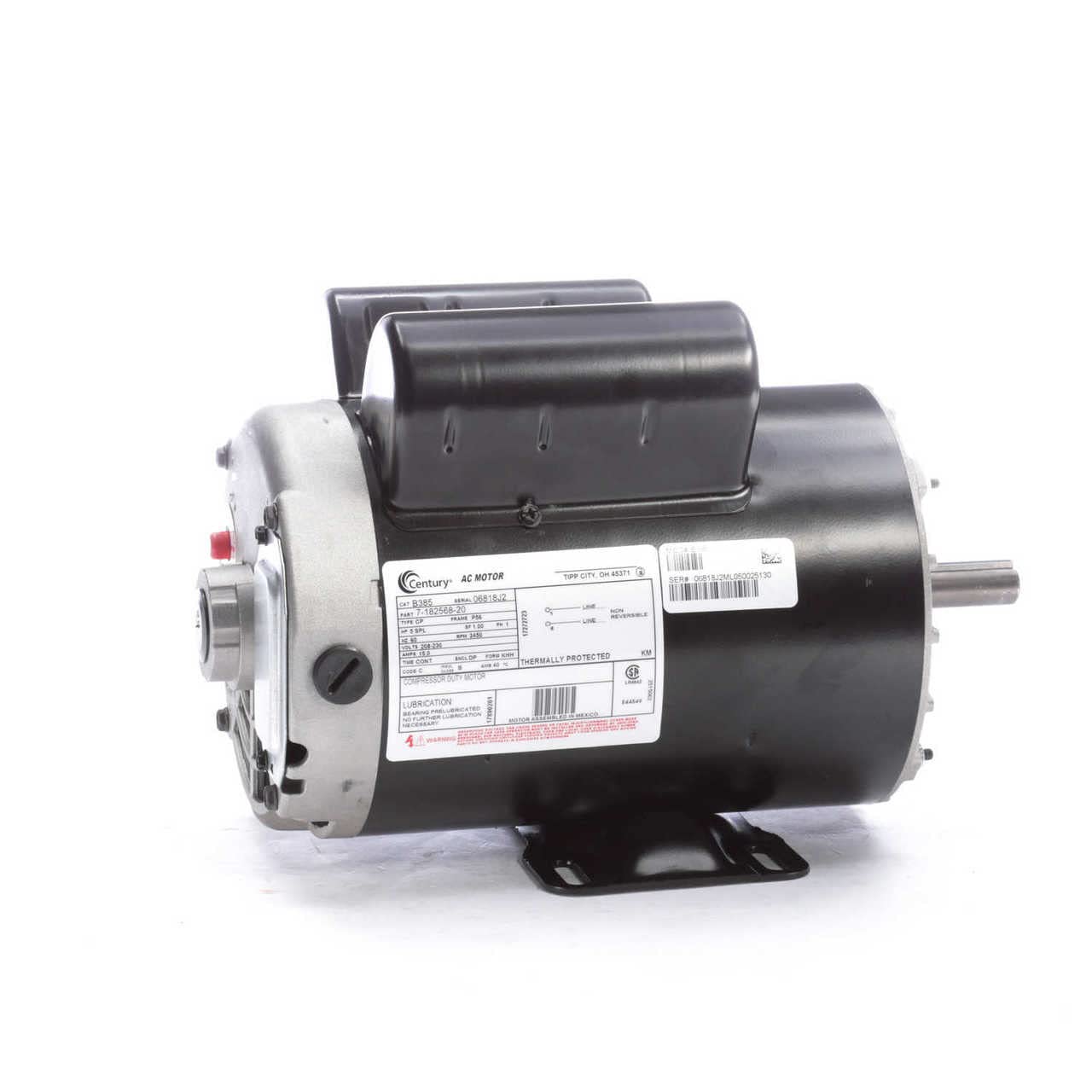

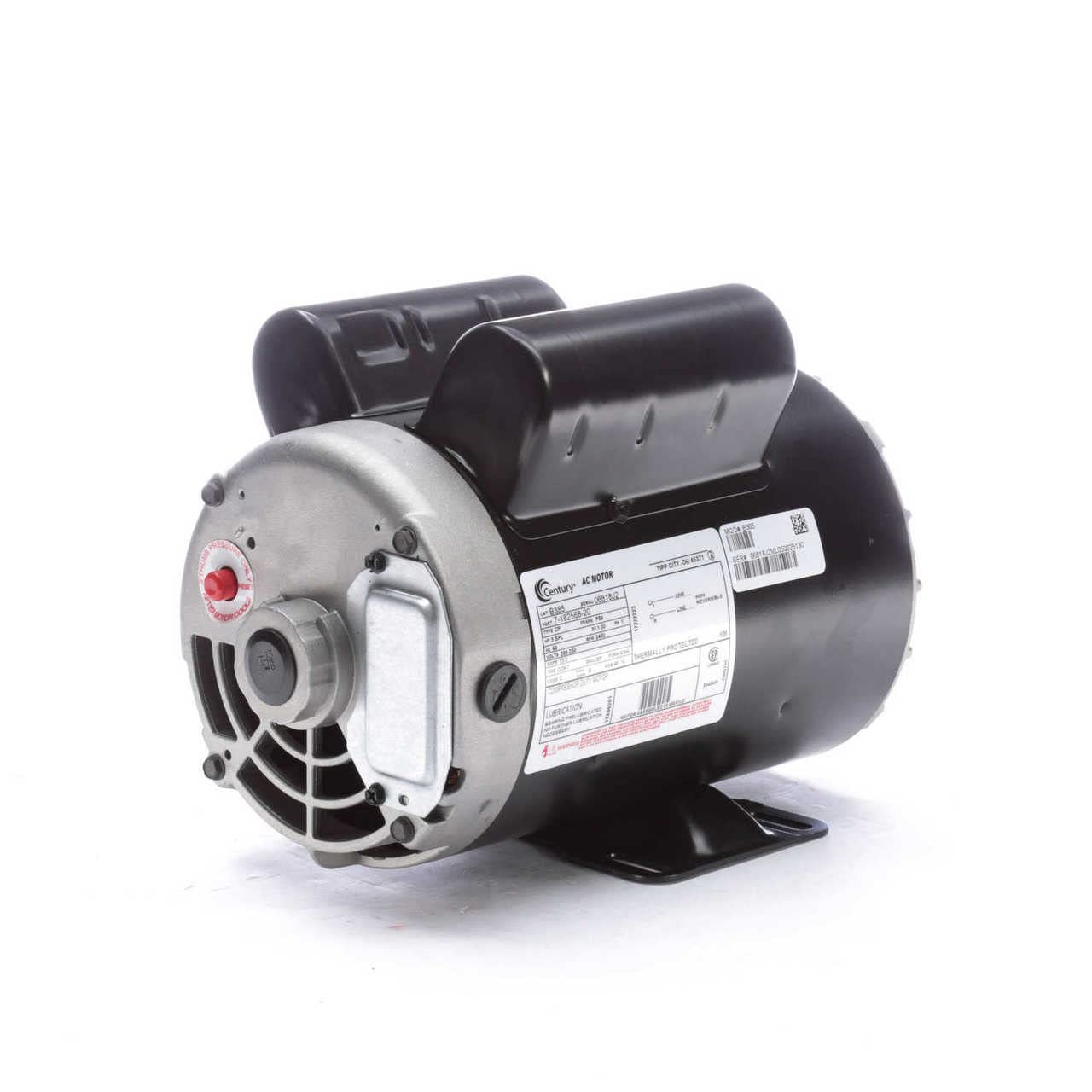

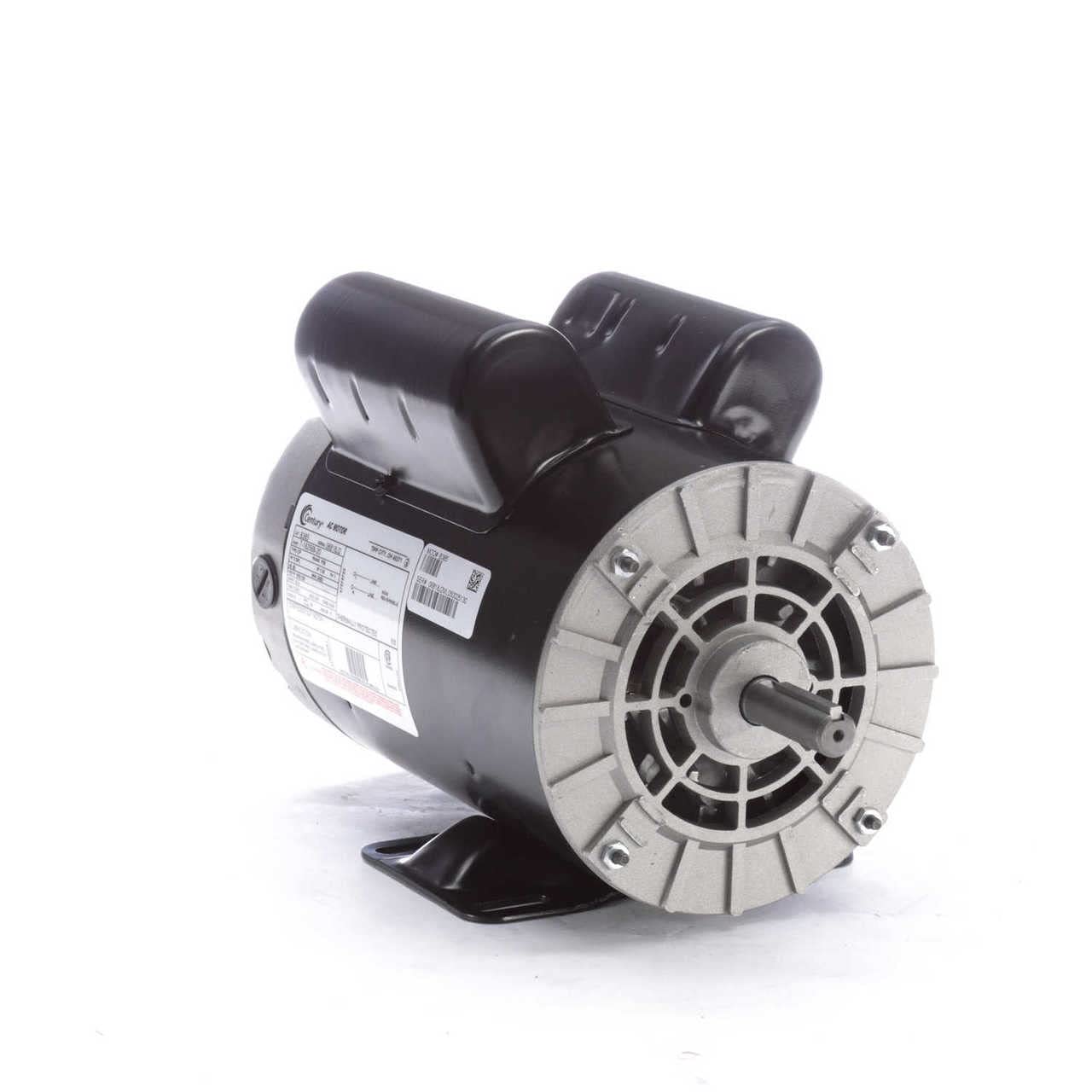

5 HP SPL 3450rpm P56 Frame 230 Volts Replacement Air Compressor Motor - Century Motor # B3

Brand: Century Electric Motor

Features:

• 5 HP SPL 3450 RPM, 15.0 amps 230V 60hz
• Open Drip Proof - Ball Bearings - Service Factor 1.0
• Non-Reversible - CCW Rotation facing the shaft
• P56 Frame; NEMA 56 Frame - Flat Rigid base mount
• Shaft: 5/8" diameter x 1 7/8"

model number: B385

Part Number: B385

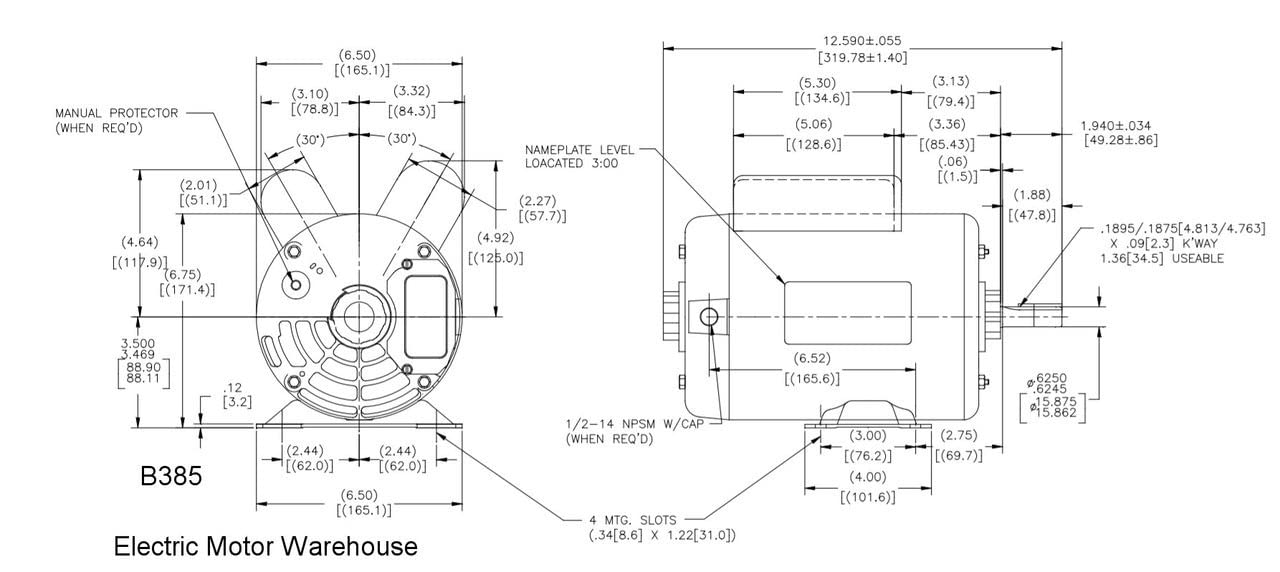

Details: This replacement compressor motor is commonly used on the small"home/shop" air compressors. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3" x 5" bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Overall motor length 12.59"; Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run.

EAN: 0663001193135

Package Dimensions: 16.0 x 10.5 x 8.5 inches
