660LBS Load Electric Adjustable Lifting Scaffolding, Electric Scaffolding Lift Platform,Customizable Scaffold Equipment for Construction（9.8FT Lifting Height）

Brand: JIN YANG HU

Features:

• 【CUSTOMIZATION SUPPORTED】JIN YANG HU electric scaffolding offers extensive customization options, including various specifications, colors, load capacities, and attributes. Additionally, customers can choose from different types of motors, anti-fall devices, remote controls, and plugs to meet your specific needs.

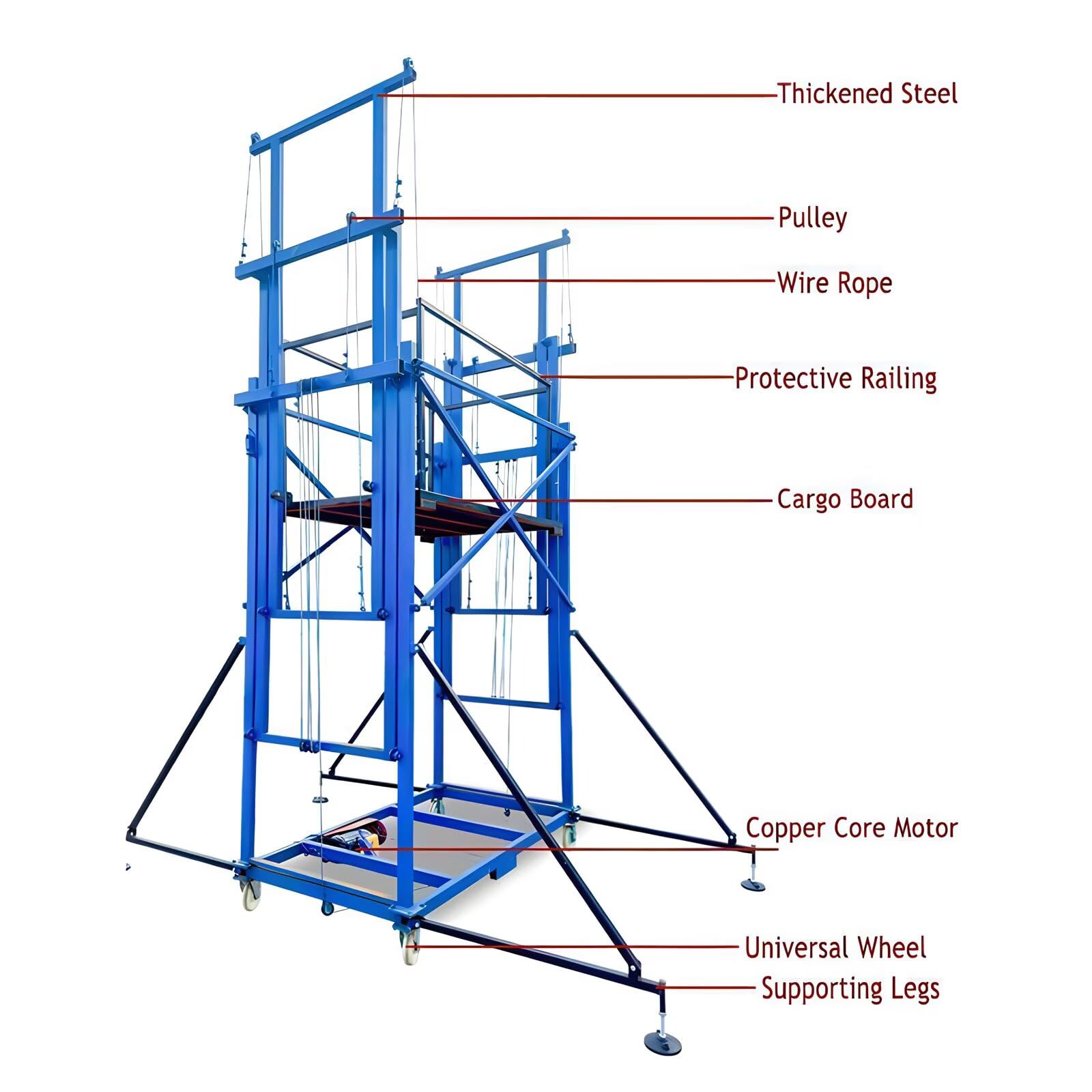

• 【MATERIAL AND PROCESS】JIN YANG HU scaffold equipment is constructed using thickened steel pipes, ensuring exceptional strength and durability. The surface is galvanized, providing long-lasting protection and preventing paint from peeling even after extended use.

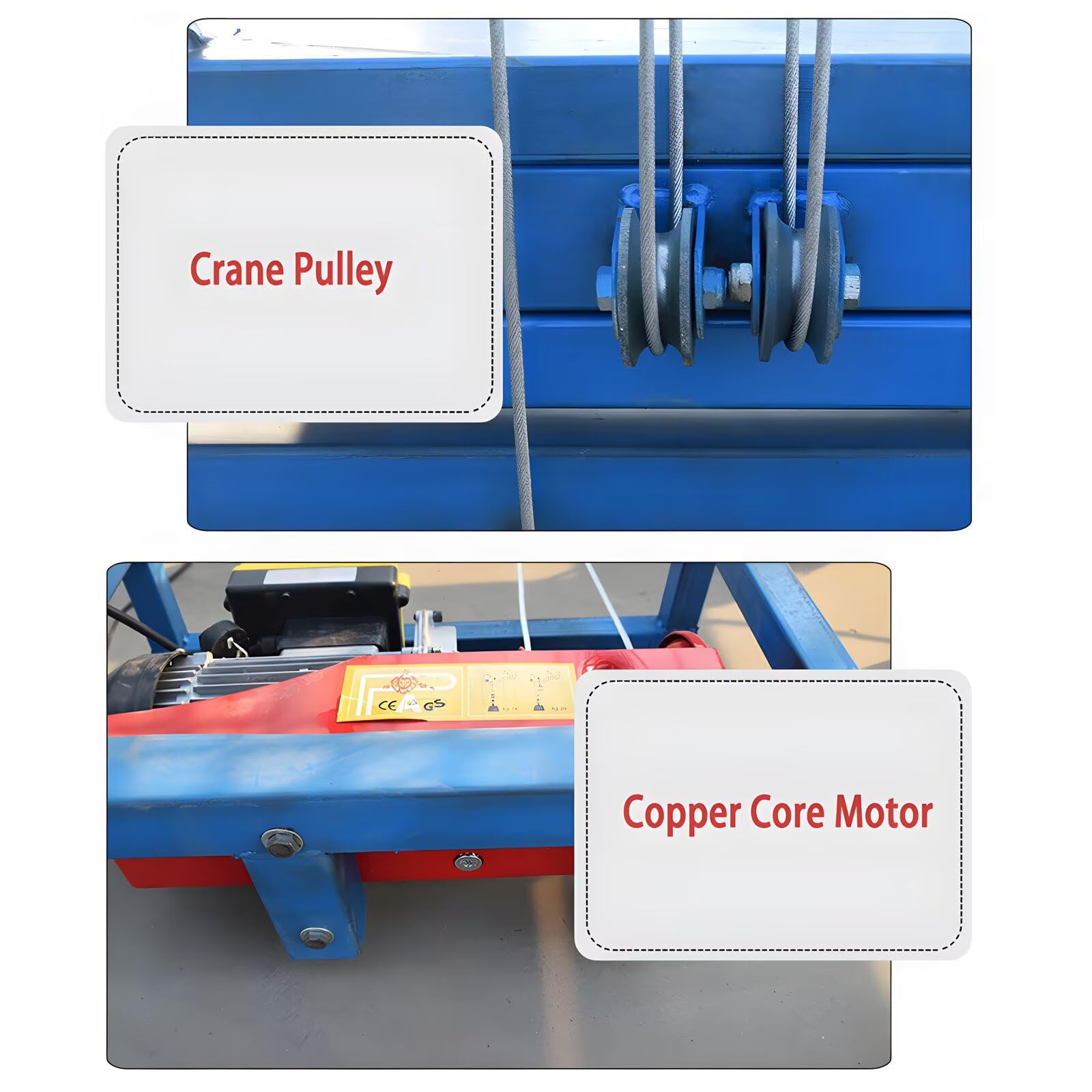

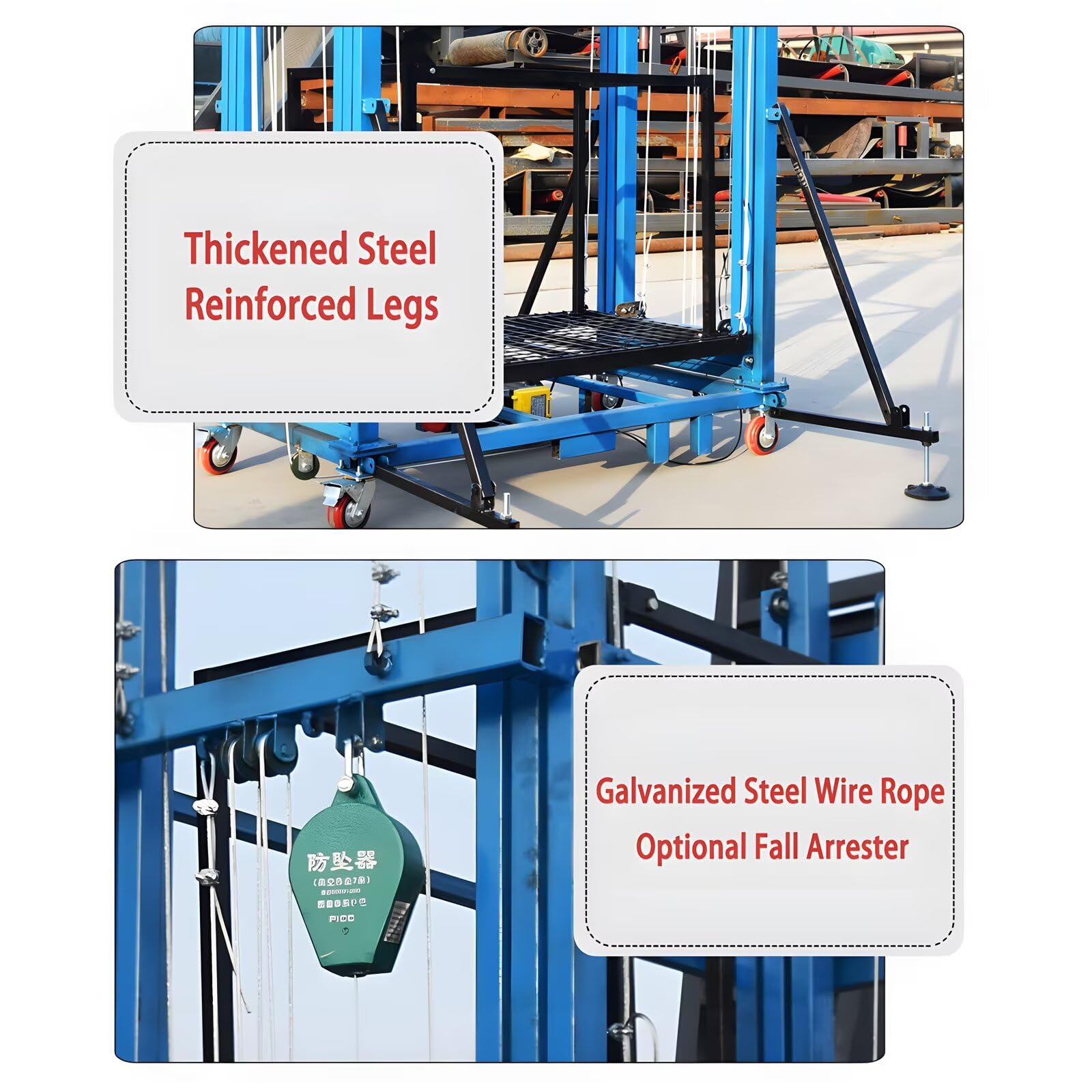

• 【GALVANIZED STEEL WIRE ROPE】The electric scaffolding lifter is equipped with high-power copper core motors and reinforced galvanized steel wire ropes, ensuring safe, stable, and smooth lifting operations. For added safety, heavy-duty anti-fall devices are installed when working at heights above 4 meters.
• 【GUARDRAIL LEGS】Safety guardrails and legs are provided for operations at heights above 4 meters, with their length adjustable to match the increasing height. For enhanced stability at heights above 6 meters, it is recommended to secure the scaffolding using manpower or windproof nails.

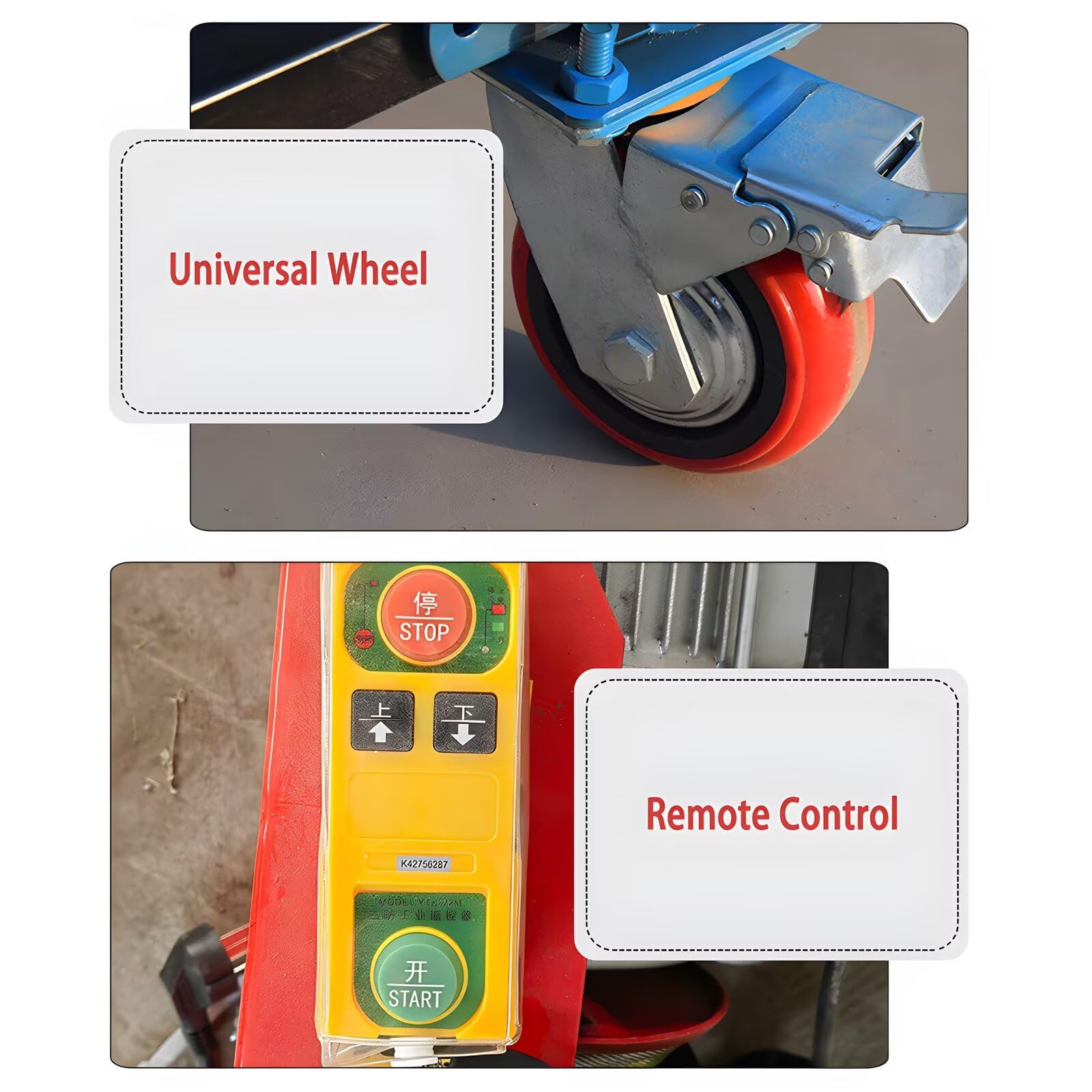

• 【MOBILE CASTERS】JIN YANG HU mobile scaffolding platform comes standard with 360° swivel PU wheels featuring brakes, ensuring easy mobility and convenient storage. Additionally, casters made from other materials or of different models can be customized and replaced to meet your specific requirements.

model number: 9.8FT Lifting Height

Part Number: 250306DDJSJ-02-1

Details: JIN YANG HU electric wire rope scaffolding supports customized load, size and color. The customized quantity is not less than 5 units. Please provide drawings before customization

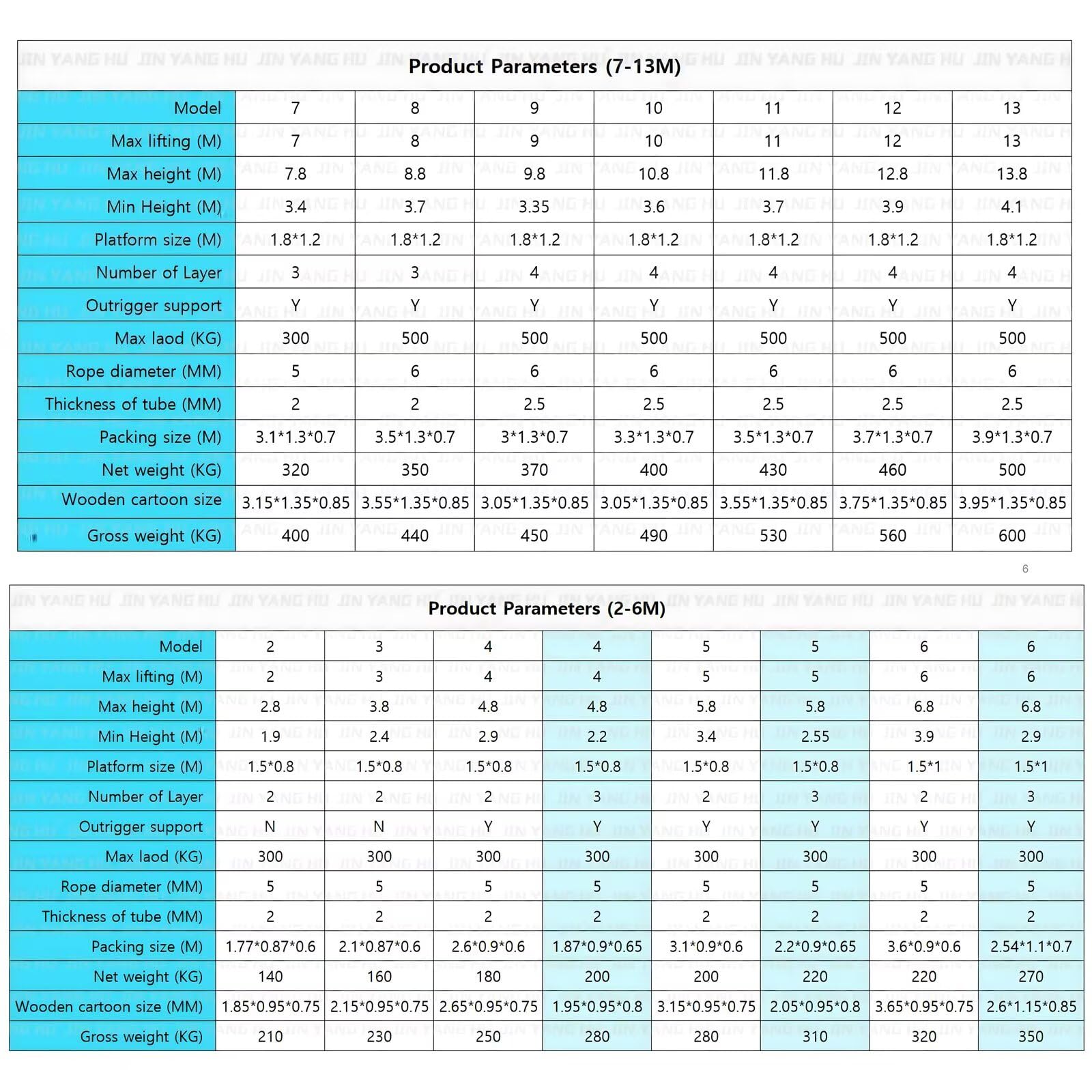

Specifications

Product name: electric scaffolding
Material: steel
Lifting method: electric/remote control
Load: 660 pounds/300 kilograms
Number of door frames: 2

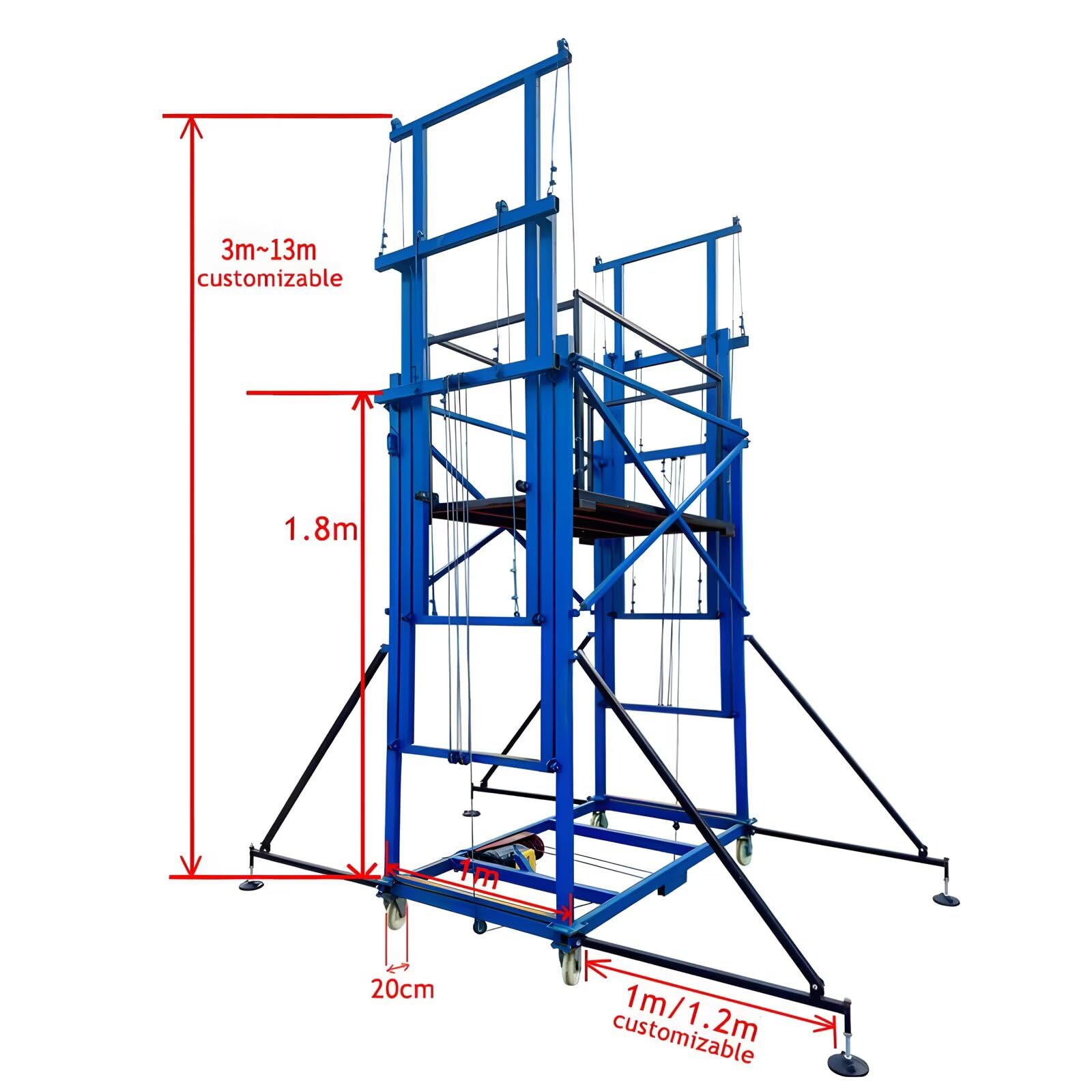

Lifting height: 9.8 feet
Maximum height: 3.8 meters/12.5 feet
Minimum height: 2.4 meters/7.9 feet
Platform size: 150 x 80 cm/59 x 31.5 inches
Length and width of door frame: 190 x 86 cm/74.8 x 33.8 inches
Wire rope diameter: 5mm
Steel pipe thickness: 2mm
Motor model: PA800
Number of wheels: 4
Wheel material: PU
With or without outrigger guardrail: No
With or without fall arrester: No
Packing type: Wooden box
Assembly required: Yes
Customization supported: Yes
Quantity: 1
Packaging size: 185 x 95 x 75 cm/72 x 37 x 30 inches
Packaging weight: 460 lbs/210 kg

Package Dimensions: 72.0 x 37.0 x 30.0 inches
