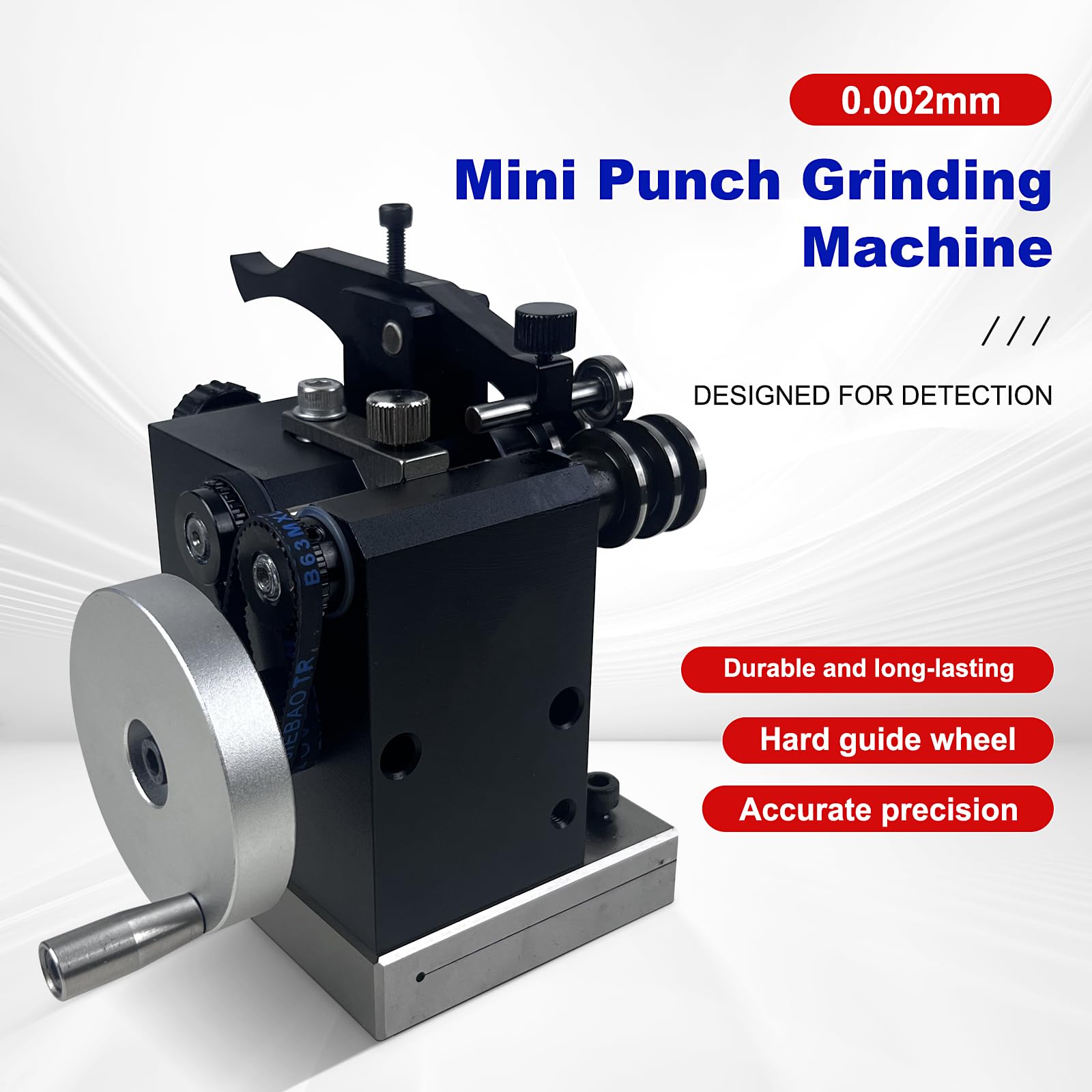

AICEYI High Precision Vertex Mini Punch Grinding Machine Double slot Mini Punch Grinder High Precision Needle Grinding Machine for Milling Drilling Machine Clamping Accuracy 0.002mm

Brand: AICEYI

Features:

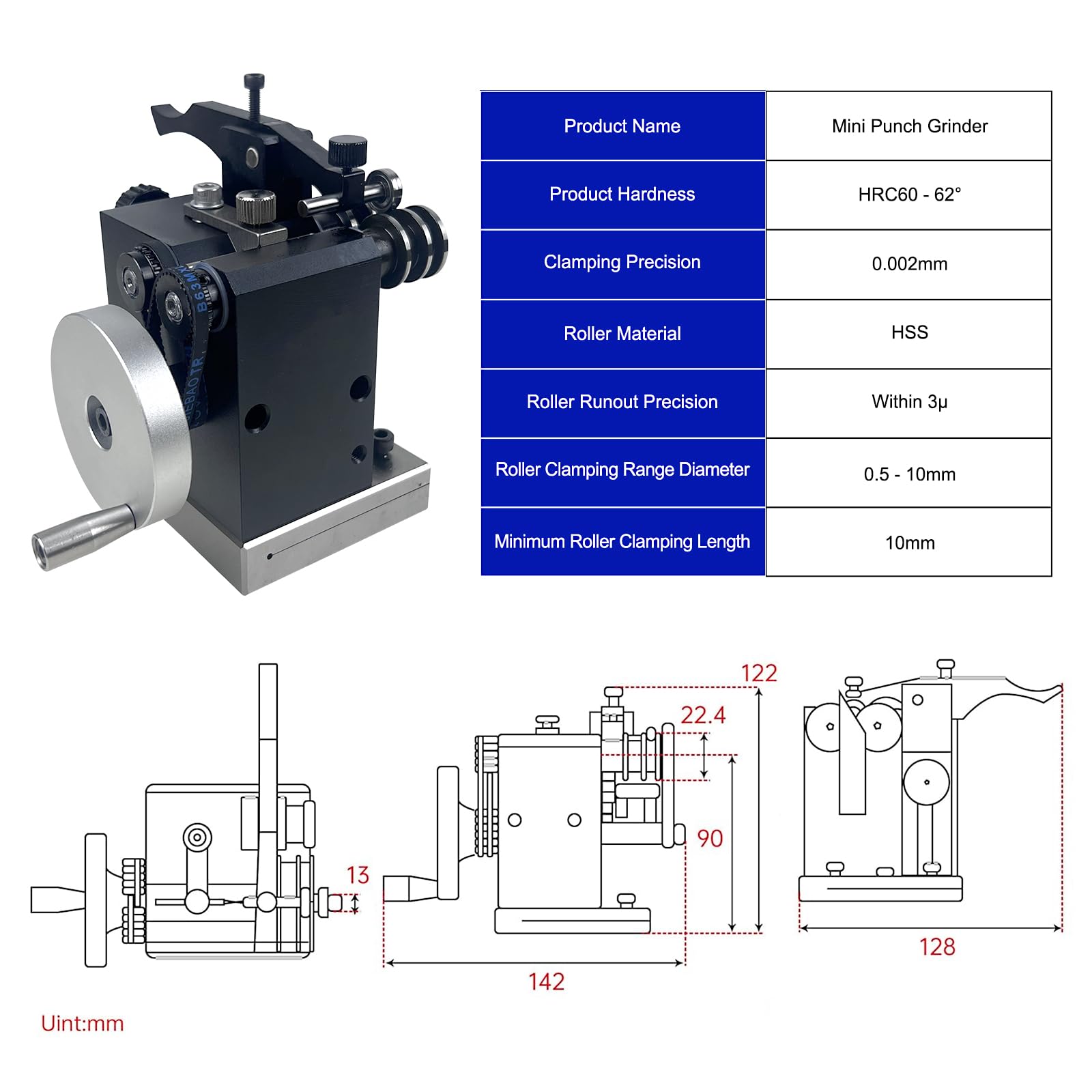

• 【Accuracy Range】Roller clamping range diameter: 0.5-10mm; Minimum length of roller clamping: 10mm; Accuracy of roller clamping: within 3μm; Accuracy of body: 0.002mm

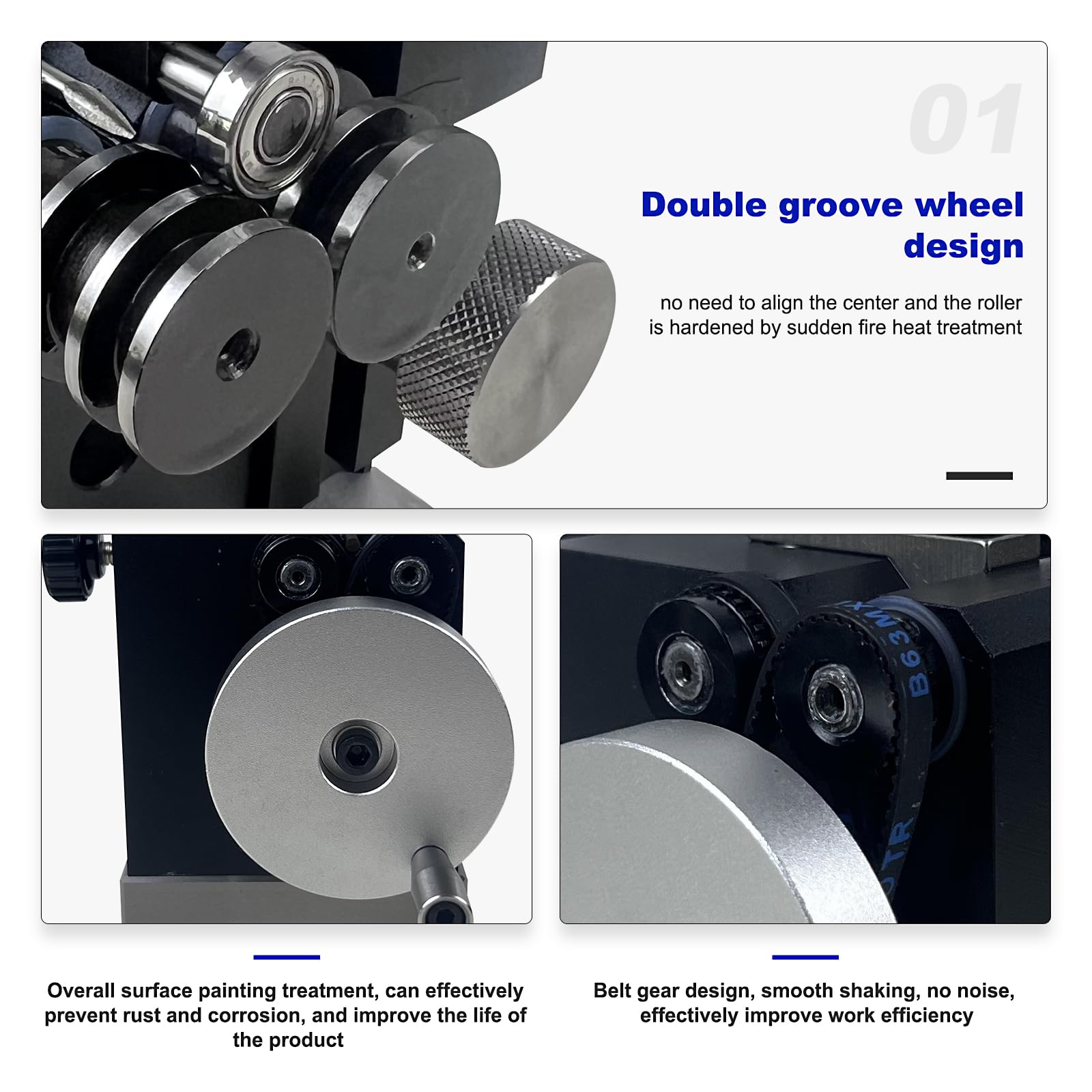

• 【Characteristic】Double rollers are hardened and quenched for better wear resistance
• 【Characteristic】Belt gear design, Smooth operation, can effectivelyreduce noise and improve work efficiency.
• 【Precautionary Note】When the punch of the grinder needs to be flushed, the water must not penetrate into the two rollers set up in the forest, so as not to cause rust in the forest, affecting the service life of the product.

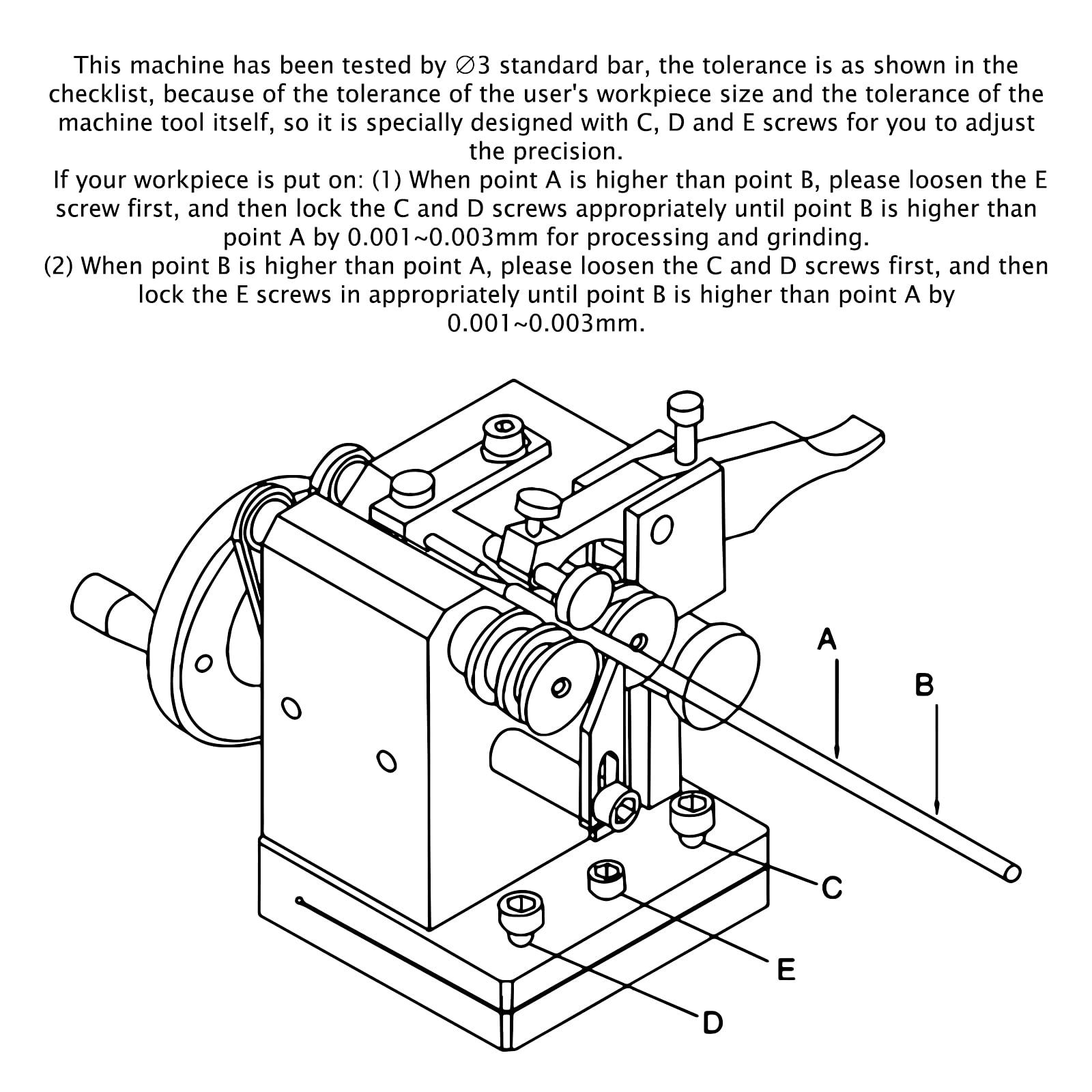

• 【Precautionary Note】The punch grinder is installed on the grinding machine to study and reduce the round punch without any adjustment to automatically study the concentric circles; adjustable rotary pressure roller left and right at ease, so that the workpiece forward or backward and then do the grinding; pressure on the pressure arm of the pressure screws, you can adjust the size of the pressure to match the different sizes of the punch.

model number: 0.002

Package Dimensions: 7.0 x 6.5 x 6.0 inches
