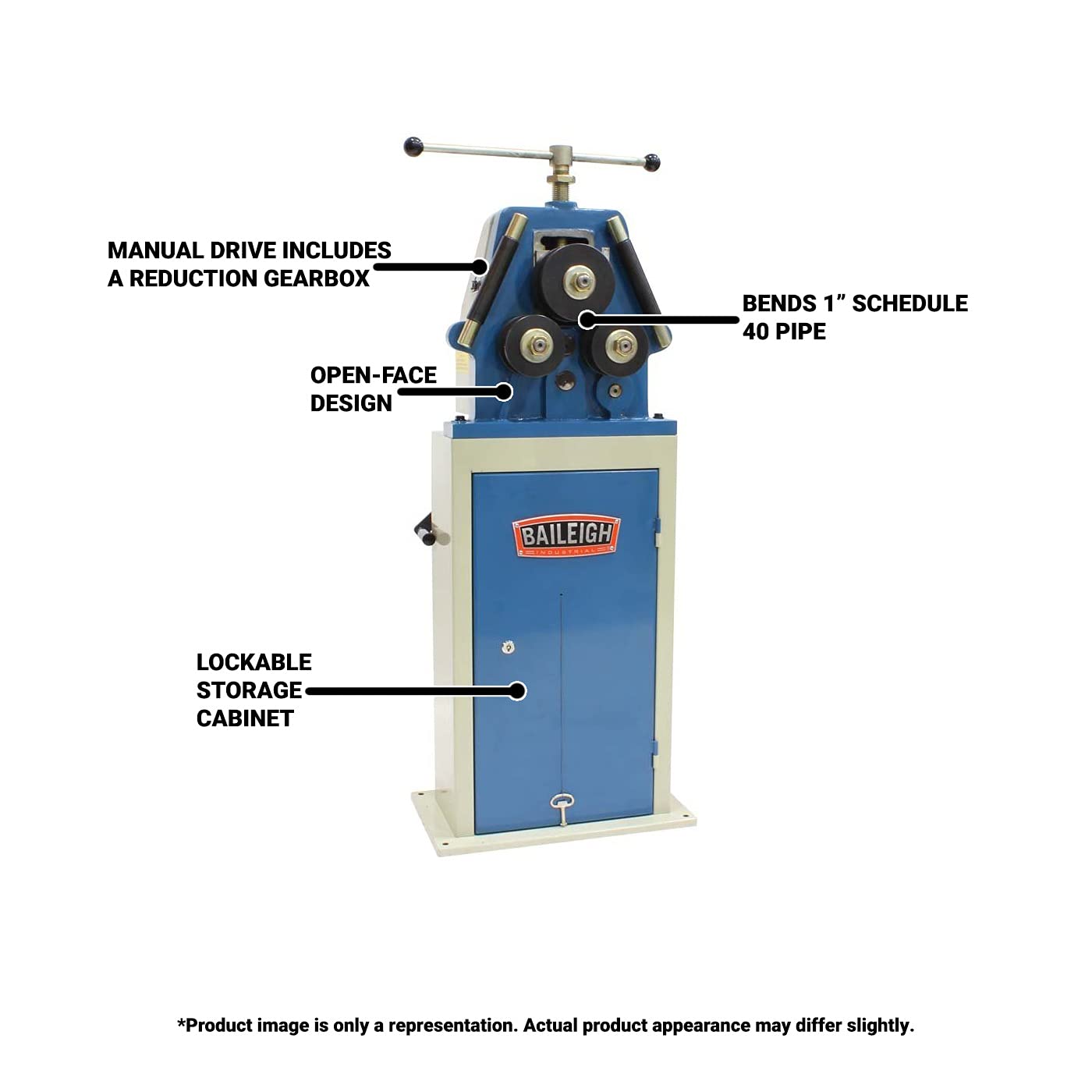

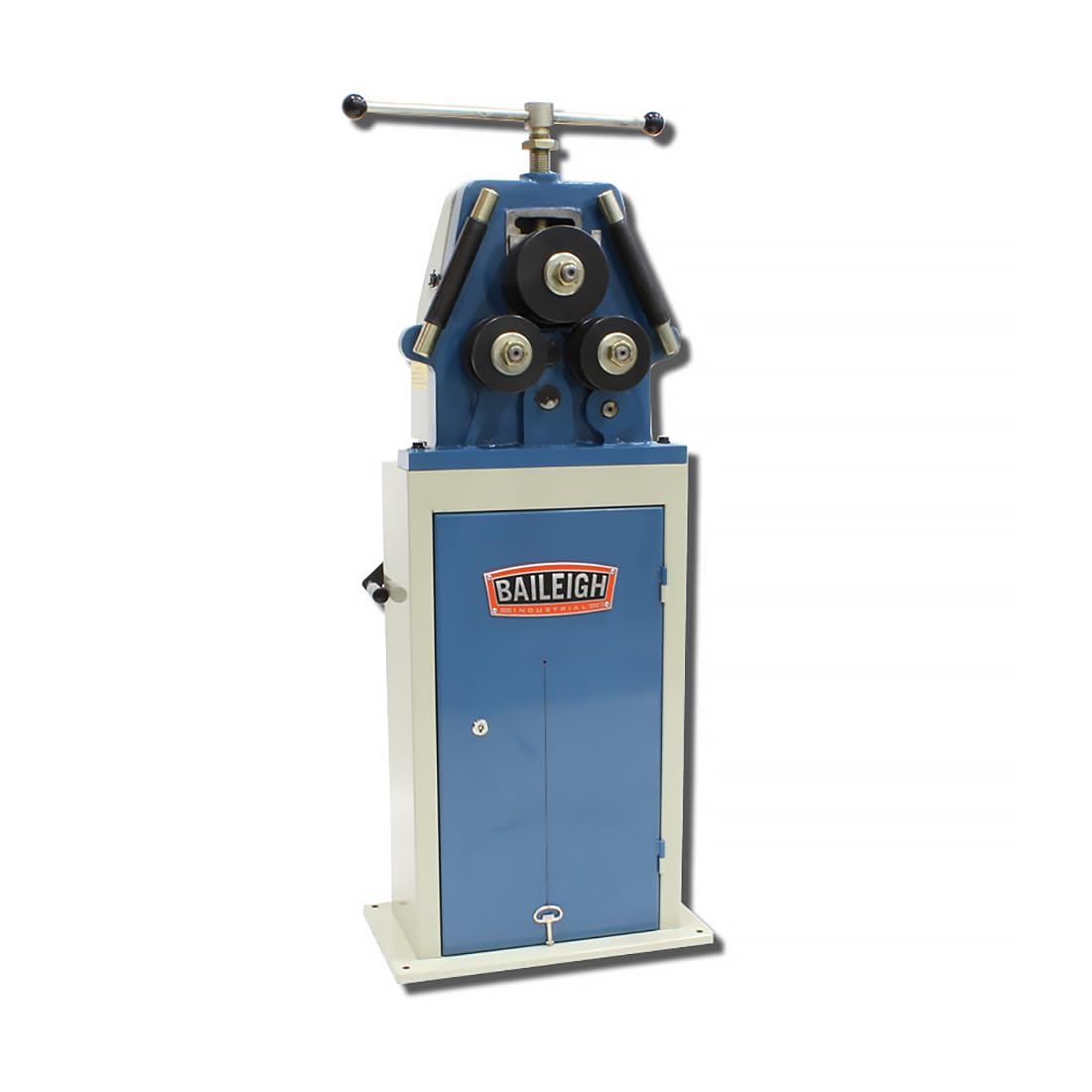

Baileigh Manual Roll Bender (R-M10)

Brand: Baileigh

Color: Blue and White

Features:

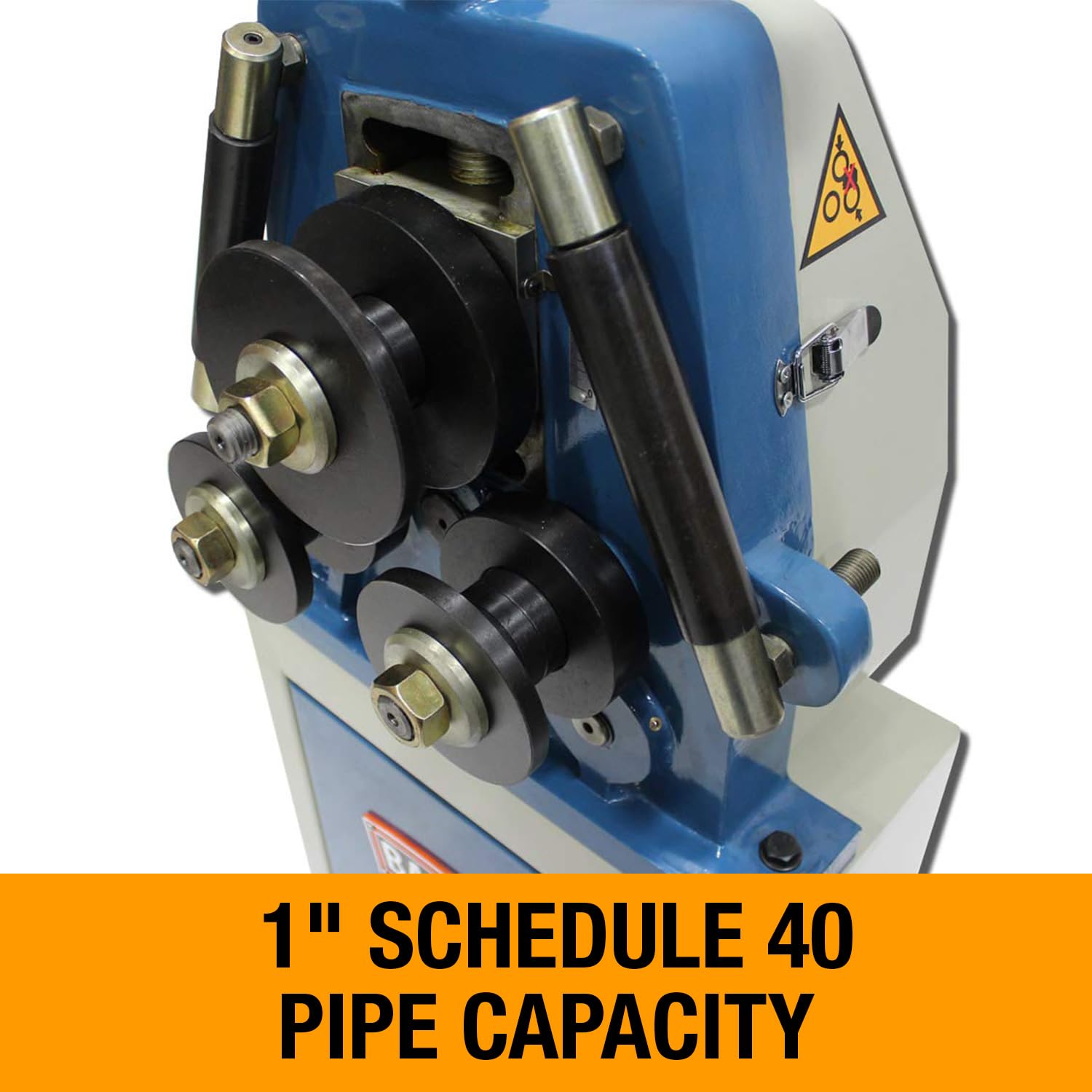

• Maximum capacity of 1.25" (.078" wall) mild steel round tubing and 1" schedule 40 pipe capacity
• Open-face design allows you to roll full circles

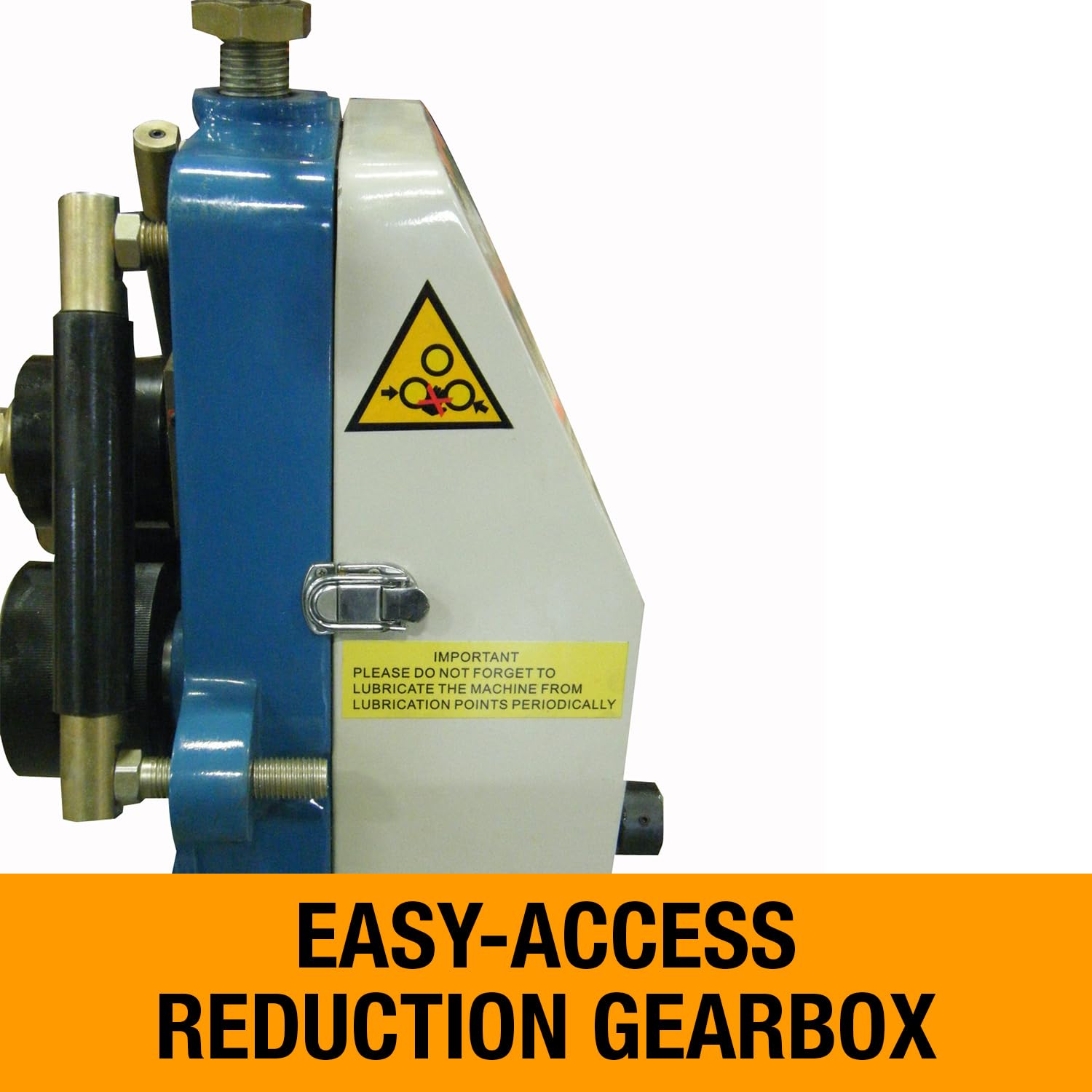

• Manual drive includes reduction gearbox to cut down on physical effort
• Comes equipped with various segment rolls for different types of flat bar, angle iron, and square tubing

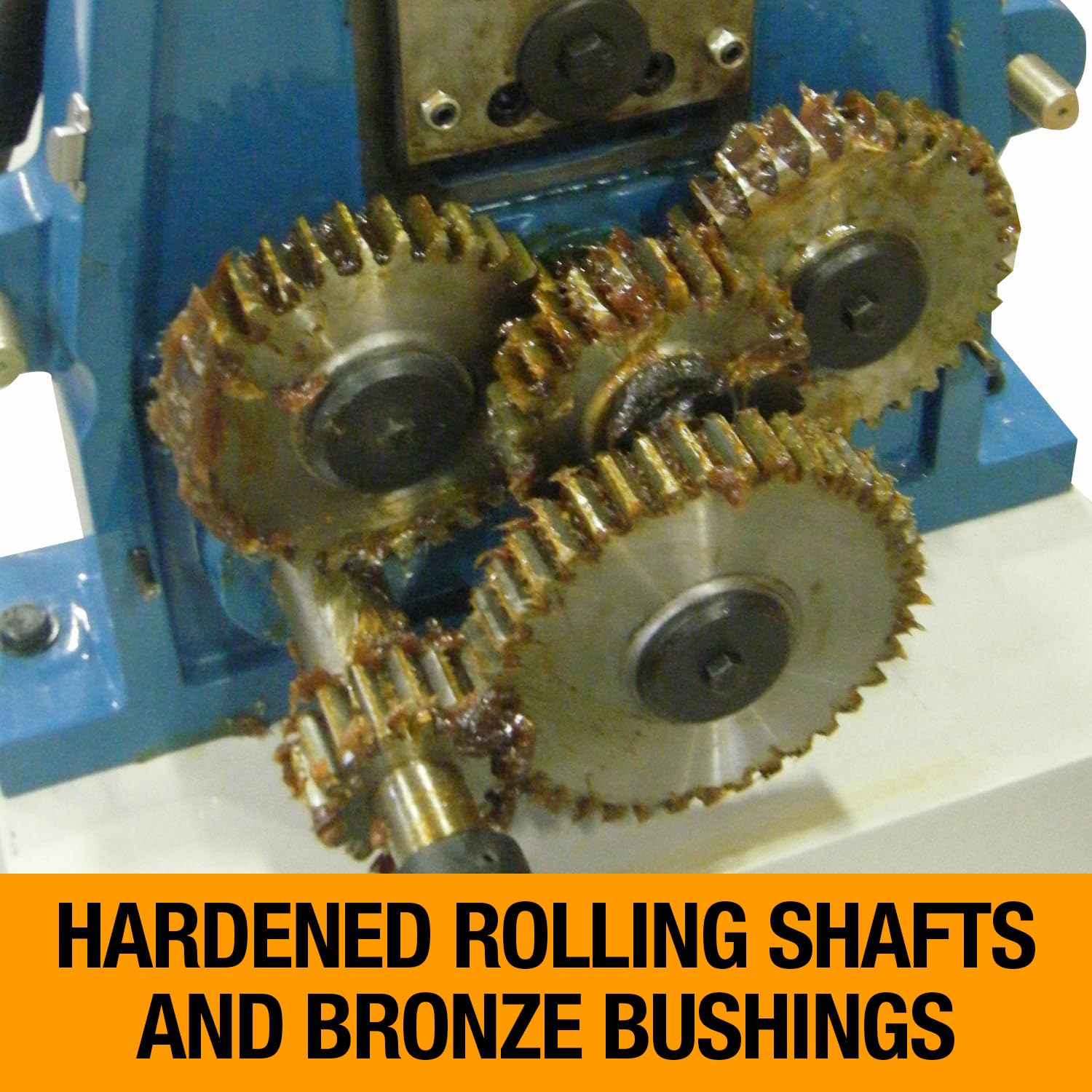

• Hardened rolling shafts turn on bronze bushings, ensuring that the machine will last for years and wear well
• Cast steel head, machined to exacting tolerances, maintains accuracy when bending at full capacity
• Machine base opens to a handy storage cabinet

model number: 1006846

Part Number: 1006846

Details: The Baileigh R-M10 Manual Roll Bender is capable of rolling full circles because of its open-face design. This bender can do anything that the larger models of roll benders can. The only difference is that this bender is manually powered, but it does have a reduction gearbox to assist in the bending functions. The R-M10 bender's powerful manual drive system has a maximum capacity of 1.25" (.078" wall) round tubing capacity in mild steel. All rolling shafts on the bender angle roll are hardened and turn on bronze bushings, ensuring long life and great wear characteristics. The head is made of strong cast steel and machined to exacting tolerances. The included base has a useful storage cabinet. The bender comes standard with segment rolls that allows for many different types of flat bar, some angle iron, and some square to be rolled. Baileigh covers this manual roll bender with a one-year parts warranty and lifetime technical support by phone.

EAN: 0731325411645

Package Dimensions: 60.0 x 48.0 x 44.0 inches
