BOLT STAR 24" Orange Bolt Template Tool (024-00414) for Nested 24"/25" Tube

Brand: BOLT STAR

Color: Neon Orange

Features:

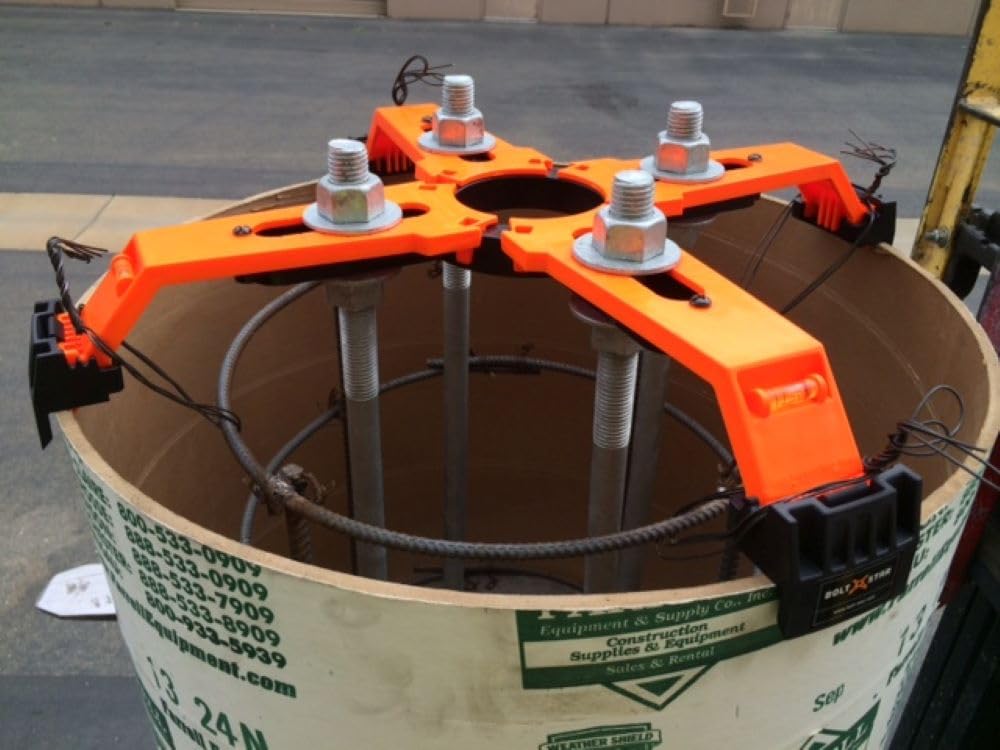

• BOLT STAR 24" reusable bolt template fits the standard-size 24" (610 mm) Round forming tube. Black Xtender Adaptor snaps on with compression clip to fit the larger 25" (635 mm) outer tube commonly labeled as 24"

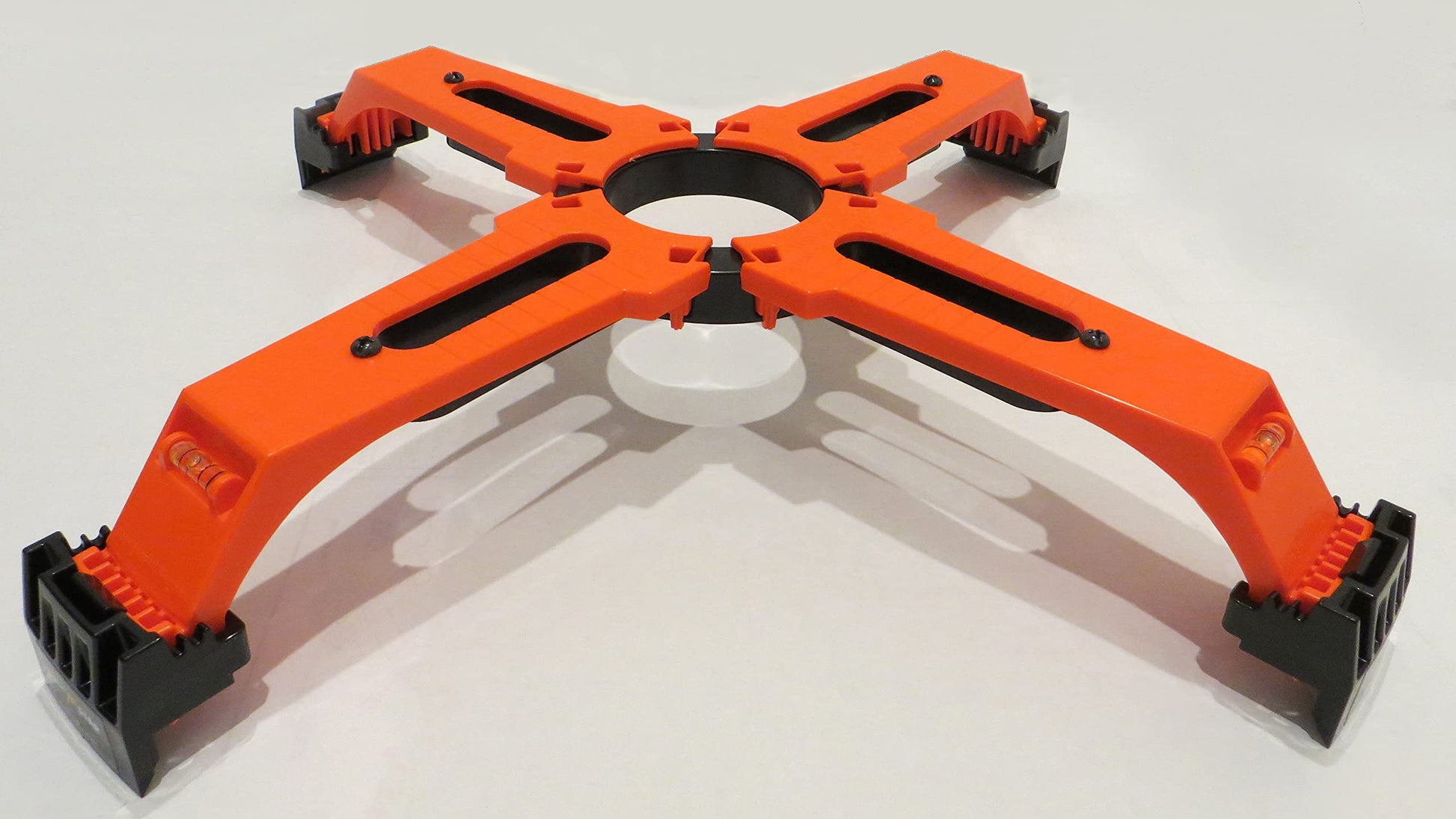

• Kit includes BOLT STAR 24" (610 mm) Standard bolt template (4 orange arms, 1 structural black hub), 1 Set of 4 Xtender Adaptors and hardware kit. Bubble levels included. (Not Included: Anchor bolts, tube and rebar cage as shown.)
• Bolt slots hold 4 anchor bolts up to 1-inch (25 mm) maximum diameter, featuring 7" (178mm) to 14" (356 mm) bolt circle measurements engraved directly on tool

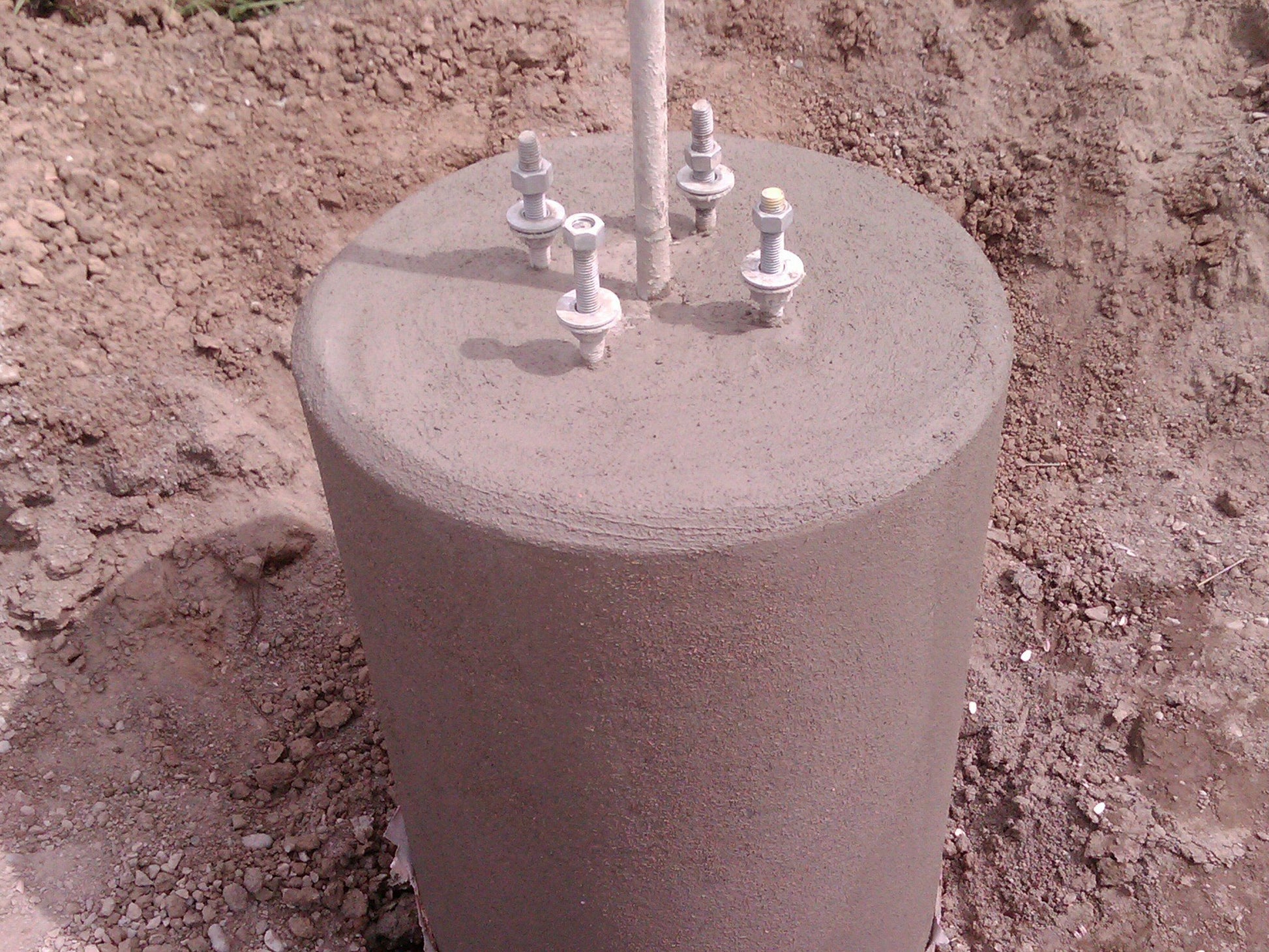

• Patented arched arms make this product unique, allowing 1 and 1/2 inches (38 mm) of clearance from top of form to bottom of template, enough room to trowel finish entire top of base without removing tool, lowering risk of leaners or bolts out of alignment

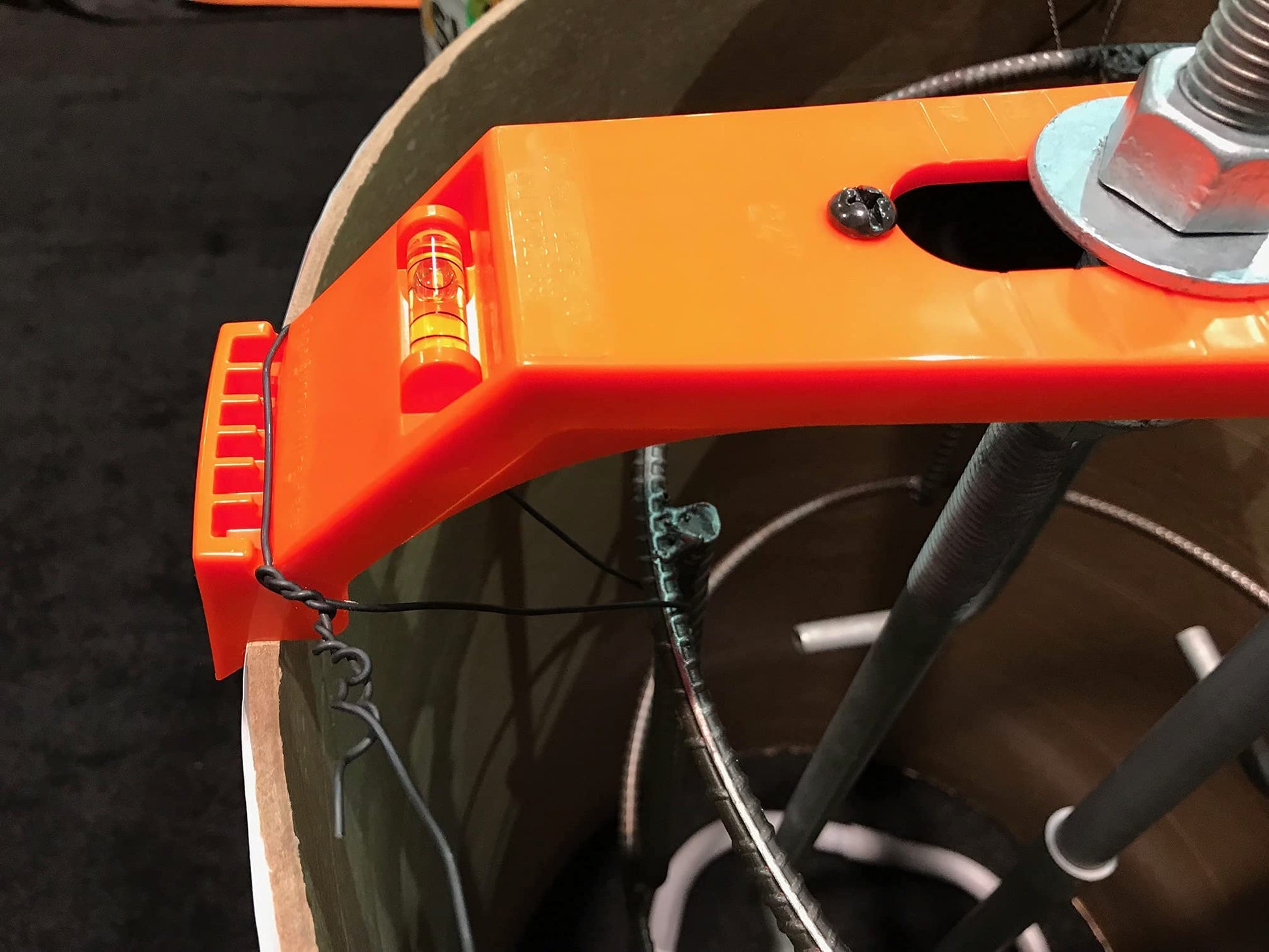

• Fast, safe and accurate installation from 57% more efficient process with no measuring, cutting or drilling required; form hooks keep bolts centered in form and prevent movement of the assembly
• 100% Made in the U.S.A.

model number: 024-00414

Part Number: 024-00414

EAN: 0856240004144

Package Dimensions: 14.4 x 13.5 x 4.7 inches
