BSIDE SH9A Thermal Imager Multimeter with Macro Lens 428×320 IR Resolution, 20000 Words Multimeter with 3.98'' Touchscreen 25Hz Infrared Thermal Camera 15 Thermal Palettes Dual-Light Fusion IR Camera

Brand: MAXRIENY

Features:

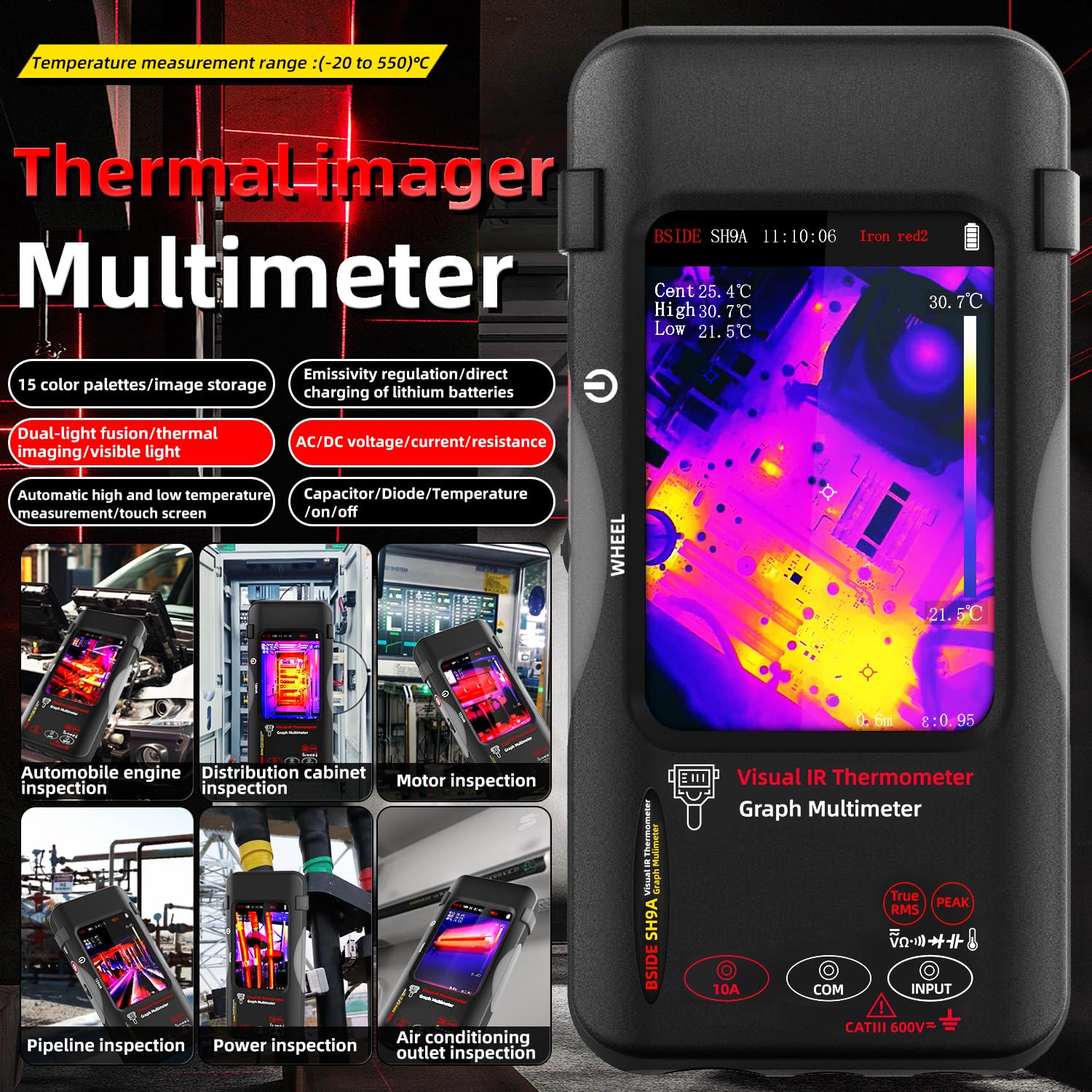

• 2-in-1 Thermal Imager Multimeter: 428x320 resolution thermal imaging and a 20000 word multimeter in one device The SH9A thermal imaging camera with multimeter provides more comprehensive troubleshooting and analysis and is ideal for use in the field in electrical, mechanical, construction, automotive, industrial equipment, and many other areas.
• Versatile Fieled Use: Equipped with a 35mm lens and supports 3X digital zoom, this device is perfect for both close-up inspections and wide-area monitoring. It’s ideal for professionals in electrical, HVAC, mechanical, and building inspections, with support for both photo recording to handle any job on-site.
• 3.98'' Touchscreen: This infrared camera multimeter comes with a 3.98'' full-viewing angle visual touch screen, which can be more clear real-time view of the data and easy to use.
• 428×320 Thermal Camera: Thermal camera has a 3.98'' screen and 25Hz frame rate to help you view and take photos in real time with greater clarity and smoothness.50mk thermal sensitivity for temperature difference visualization to help you find problems and make reliable diagnoses.15 color palettes Highly accurate measurements from -20°C to 550°C (-4°F to 1022°F). High/low temperature alarm.
• 20000 Word Multimeter: Digital multimeter features a high precision four and a half digit with spike mode. Flexible operation, can be used in a variety of measurement scenarios. Real-time measure AC and DC voltage 750V/1000V resistance capacitance diode temperature and all support stopping or recalculating the max and min average values.

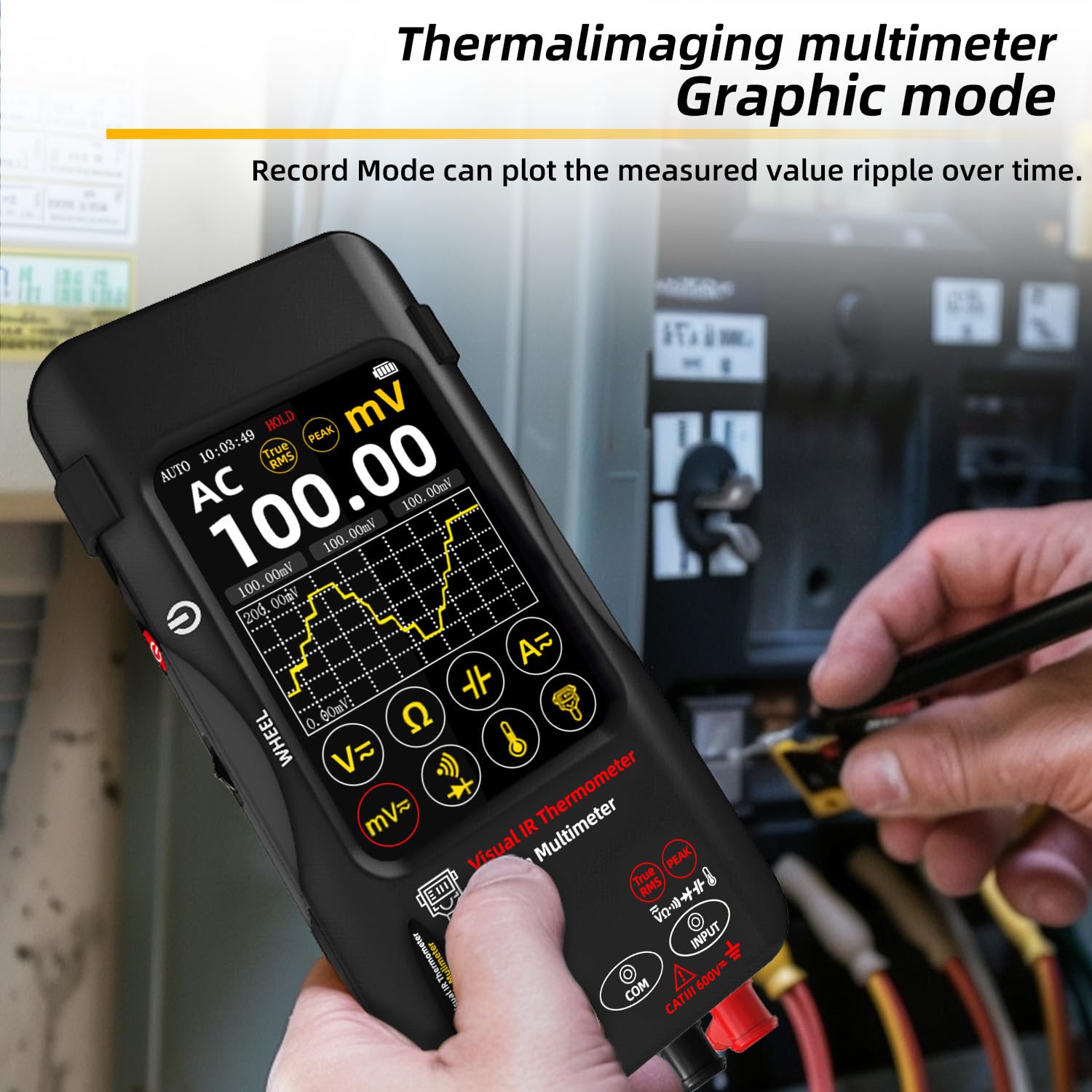

• Recording Mode: Multimeter mode can plot the ripple graph of the measured value over time and observe the fluctuation of voltage/resistance/capacitance/continuity/diode/temperature/AC current over time. Support data saving, can save 3 times measurement value, convenient for recording.

model number: SH9A with Macro Lens

Part Number: SH9A with Macro Lens

Details: Features:

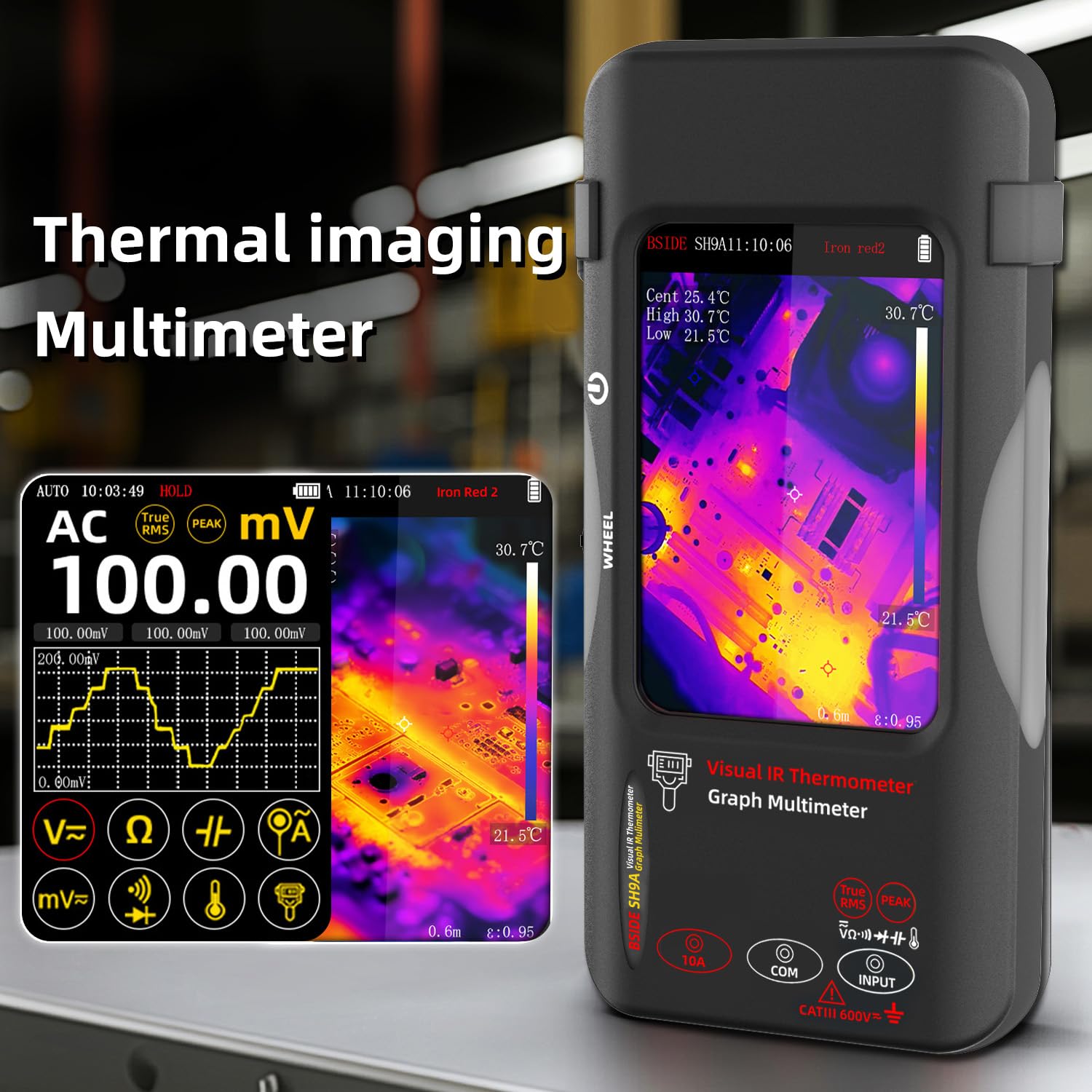

2 in 1 thermal imaging camera multimeter:
428×320 Infrared Thermal Camera
20000 Count Digital Multimeter
3.98-inch full viewing angle visual touch screen
Display the high/low/center temperature
Temperature alarm/warning thresholds can be set, font color alarms
7 language settings: Chinese, English, Japanese, German, Spanish, French, Italian (Russian can be added)
Adjustable emissivity, adjustable backlight, adjustable time and date
Adjustable auto shut-off time, adjustable temperature measurement unit ℉/℃/K
With 15 Thermal Palettes, 2500mAh rechargeable Li-ion battery
Can be used with a flexible current coil to test 2000A AC current.
Thermal imaging camera and multimeter interface can be screenshotted and data can be transferred to a PC for analysis

Specification:
Thermal Camera Mode:

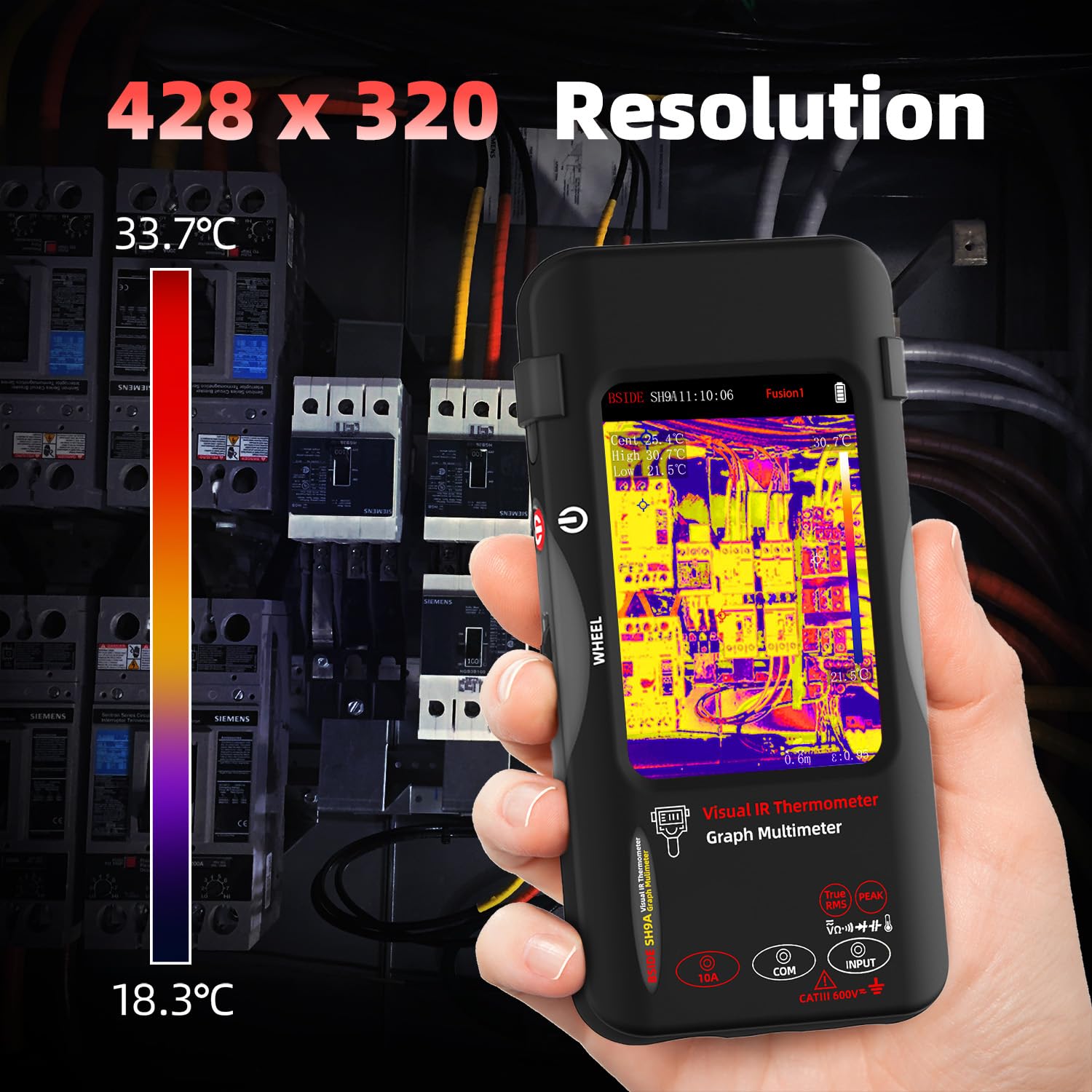

Thermal Imaging Camera: 428 x 320 resolution
Sensor Type: Vanadium Oxide (VOx) Microbolometer
Response Band: 8-14pm
Noise Equivalent Temperature Difference (NETD): ≤60mK(@25℃,F#1.0)
Spatial resolution (IFOV): 8.89mrad
Frame rate: 25Hz
Imaging lens focal length: 1.35mm
Temperature measurement resolution: 0.1℃
Temperature measurement focal length: 0.3m-3m adjustable
Temperature range: -20℃~550℃(-4°~1022°F)/0.1℃.
Temperature measurement unit: degrees Celsius, degrees Fahrenheit, Kelvin

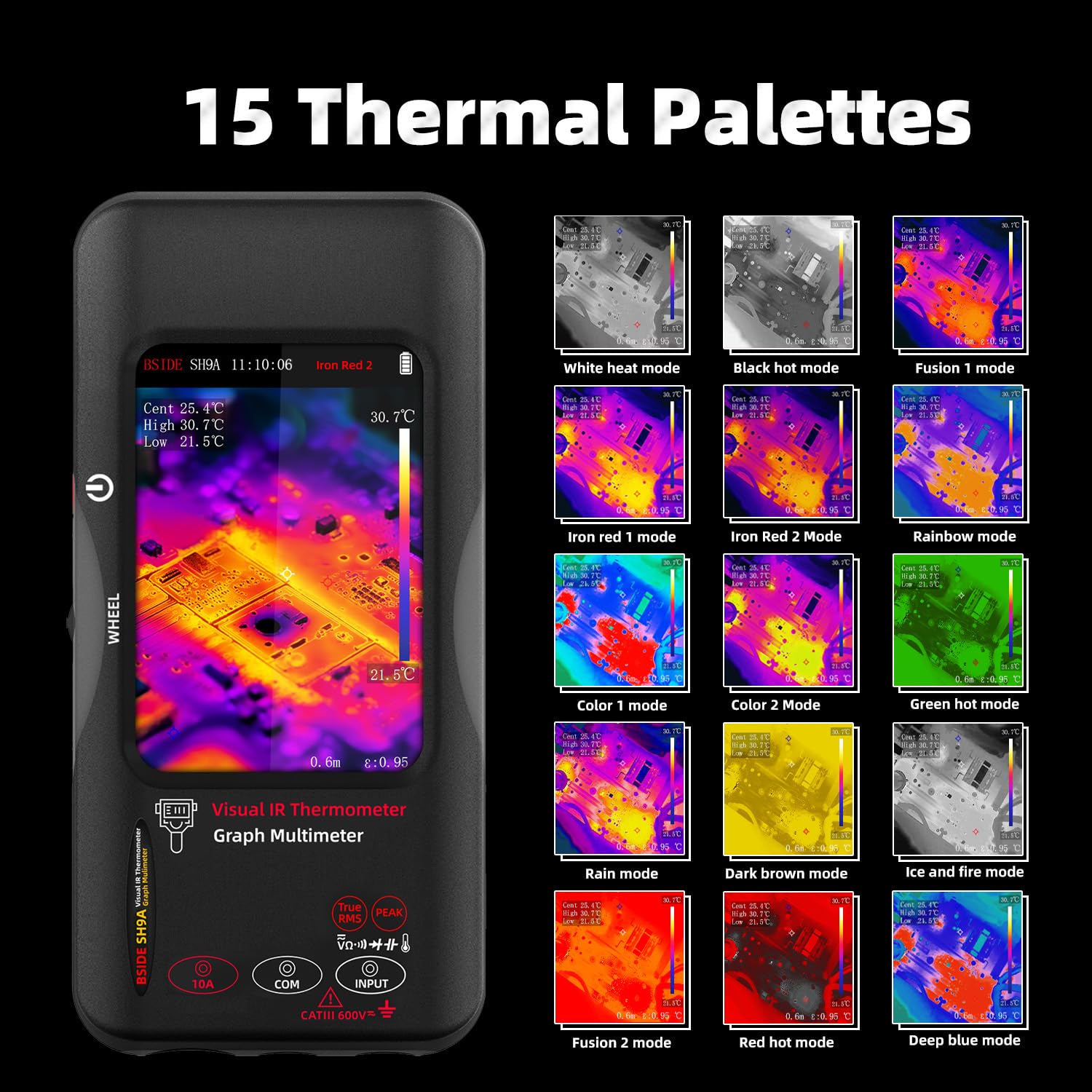

15 kinds of color palettes: white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue
Image storage: 30000 pictures
Multimeter mode:
DC Current(A):
2.0000A/0.0001A/±(0.8%+3)
10.000A/0.001/±(0.8%+3)
AC Current(A):
2.0000A/0.0001A/±(0.8%+3)
10.000A/0.001/±(0.8%+3)
DC Voltage (V):
2.0000V/0.0001V/±(0.05%+3)
20.000V/0.001V/±(0.05%+3)
200.00V/0.01V/±(0.5%+3)
1000V/0.1V/±(0.5%+3)
DC Voltage (mV):
20.000mV/0.001mV/±(0.1%+3)
200.00mV/0.01mV/±(0.1%+3)
AC Voltage (V):
2.0000V/0.0001V/±(0.5%+3)
20.000V/0.001V/±(0.5%+3)
200.00V/0.01V/±(0.5%+3)
750V/0.1V/±(0.5%+3)
AC Voltage (mV):
20.000mV/0.001mV/±(0.5%+3)
200.00mV/0.01mV/±(0.5%+3)
Resistances:
200.00Ω/0.01Ω/±(0.5%+3)
2.0000kΩ/0.0001kΩ/±(0.2%+3)
20.000kΩ/0.001kΩ/±(0.2%+3)
200.00kΩ/0.01kΩ/±(0.2%+3)
2.0000MΩ/0.0001MΩ/±(1.0%+3)
20.000MΩ/0.001MΩ/±(1.0%+3)
200.00MΩ/0.01MΩ/±(5.0%+5)
Capacitors:
999.99nF/0.01nF/±(5.0%+5)
9.999uF/0.001μF/±(2.0%+5)
999.99uF/0.01μF/±(2.0%+5)
99.999mF/0.001mF/±(5.0%+10)
Temperature:
(-20~1300)℃/1℃/±(2.0%+5)
(-4~2372)℉/1℉/±(2.0%+5)
Diodes: Yes
Continuity: Yes
Size: 169*81*26.8mm
Weight: 271g

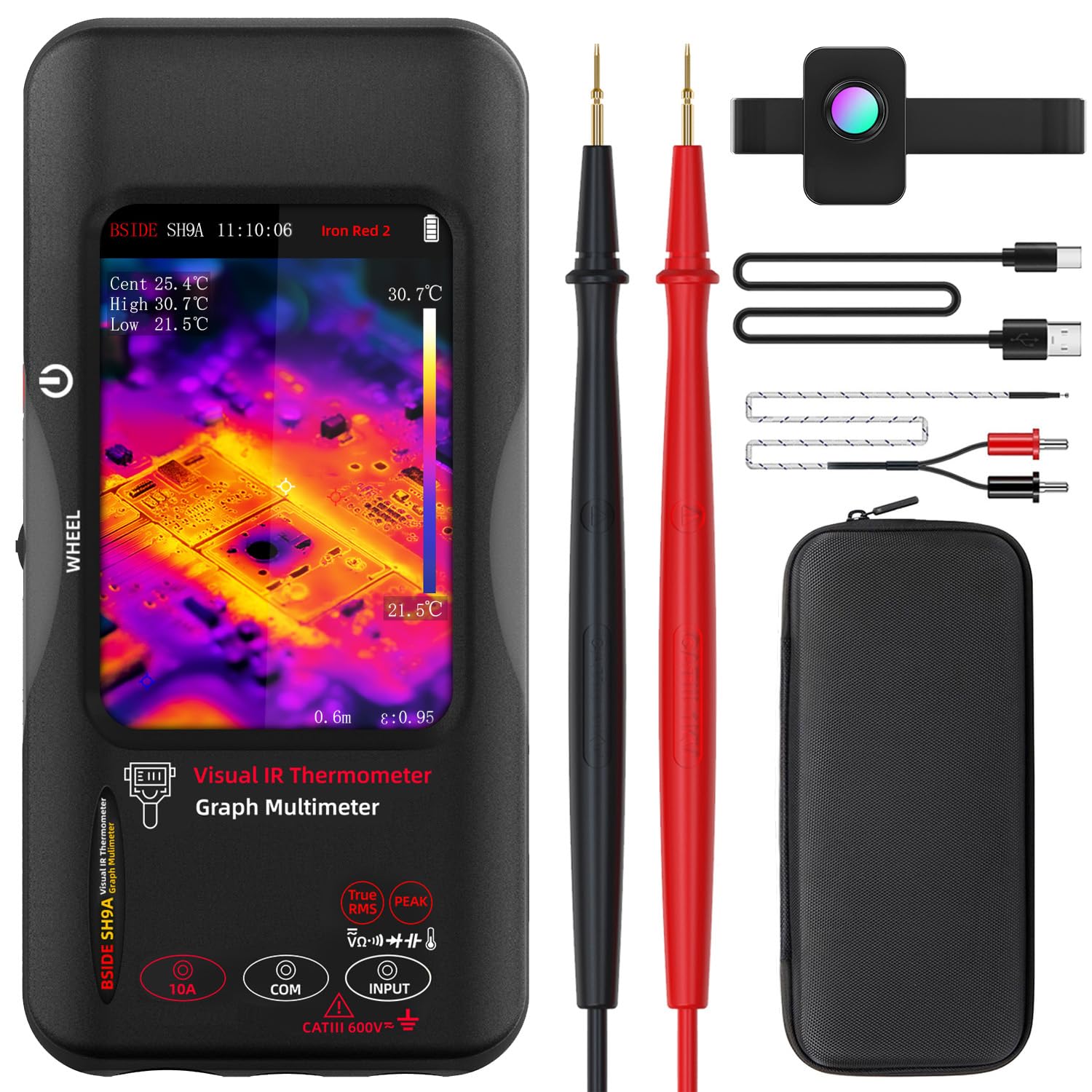

Package content:
1×Thermal imaging camera multimeter
1 x thermocouple
1×Test Leads
1×Storage bag
1 x Charging Cable
1×User's Manual

EAN: 6933540318288

Package Dimensions: 8.6 x 4.9 x 1.9 inches
