BSIDE Thermal Camera Multimeter Date Recorder with Macro Lens, 320x320 IR Resolution with 15 Thermal Palettes, 20000 Counts with 3.98" Touch LCD, Measures Cap Amp Temp Diode for PCB Circuit Break DIY

Brand: BSIDE

Color: SH7A with Macro Lens

Features:

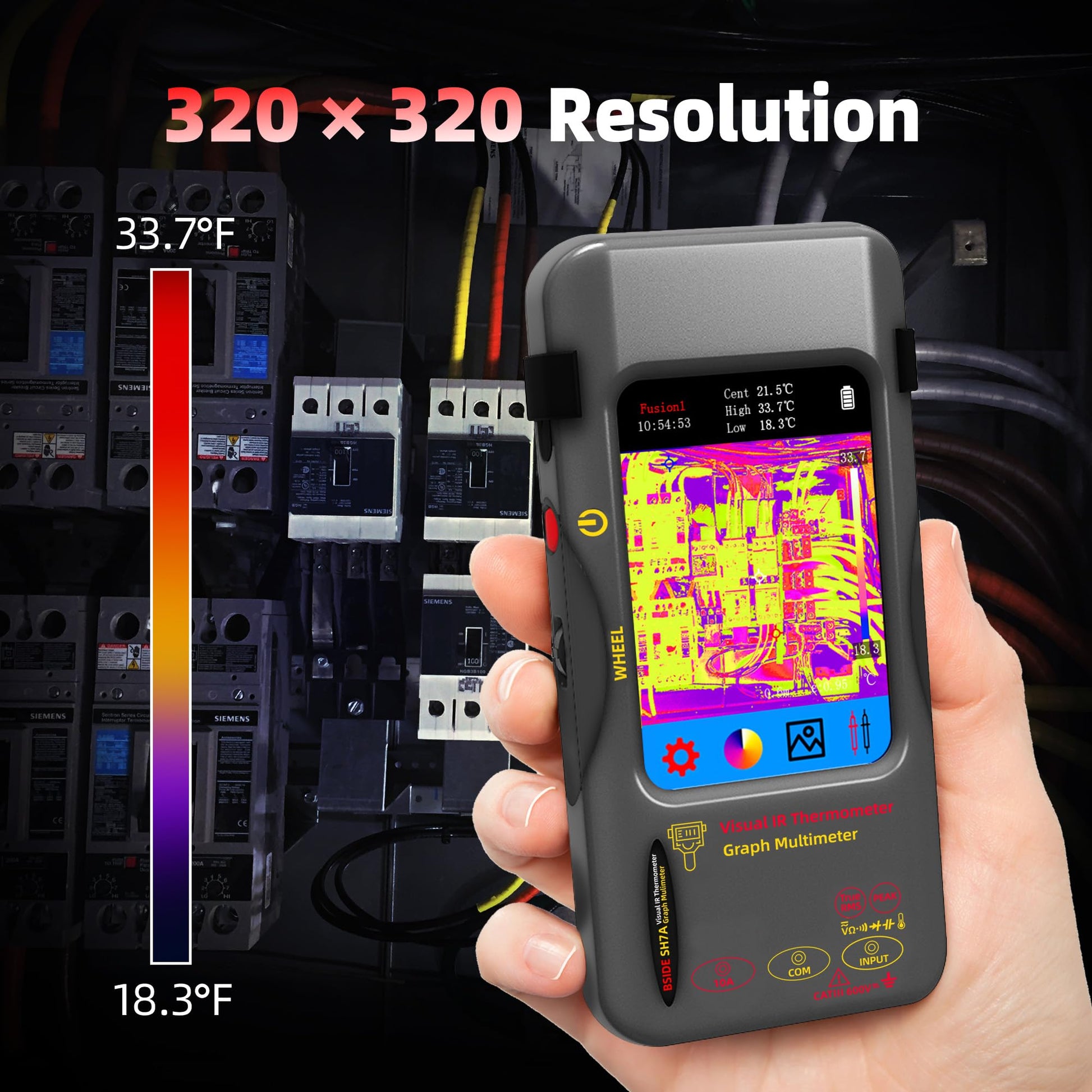

• [320x320 IR Infrared Camera]: BSIDE SH7A thermal camera features 320 x 320 ir resolution, which could help you detect potential problems early and diagnose problems reliably.
• [with Macro Lens]: Infrared camera with macro lens allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components, etc. Working object distance: 35mm; Magnification: 0.3X

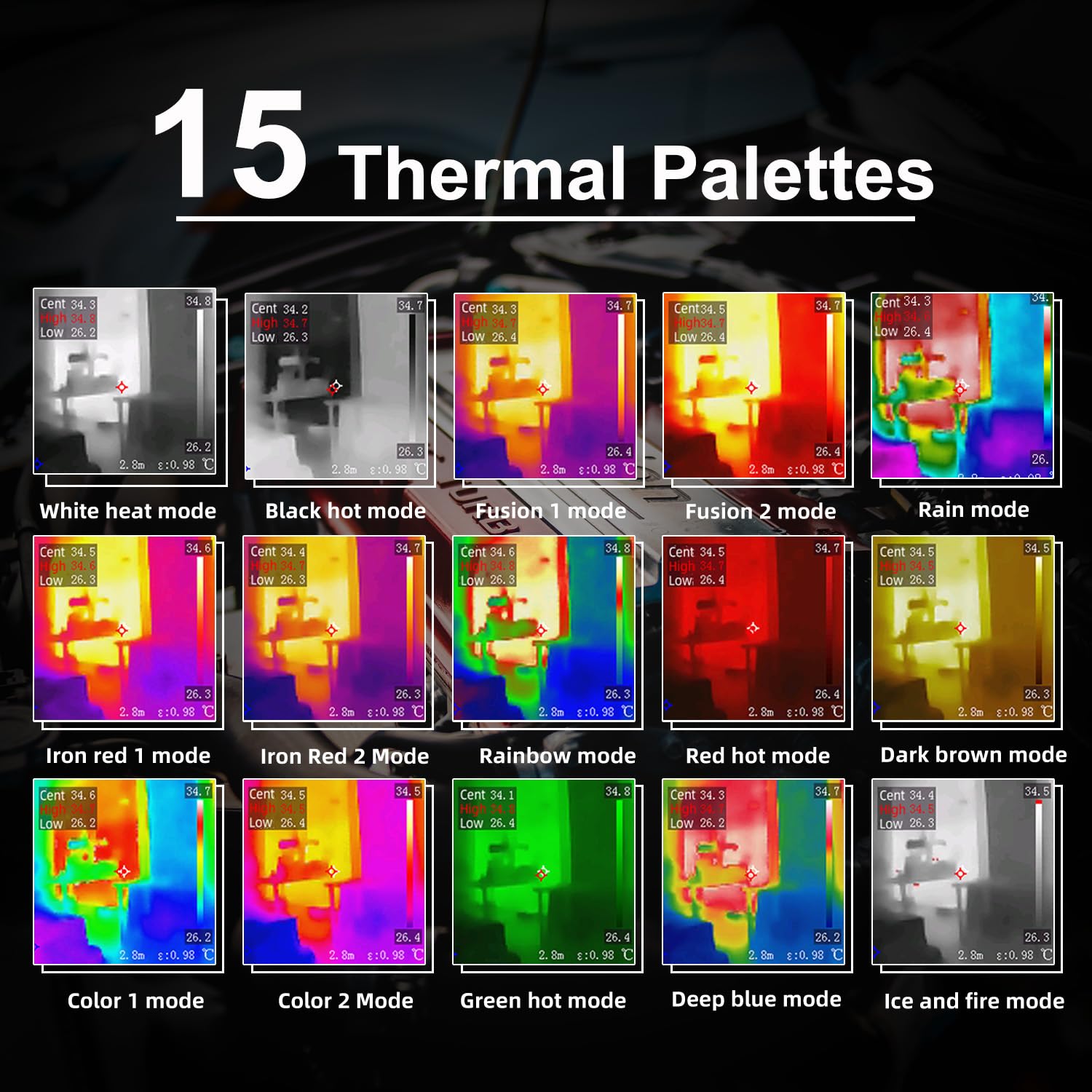

• [15 Thermal Palettes]: IR camera has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.

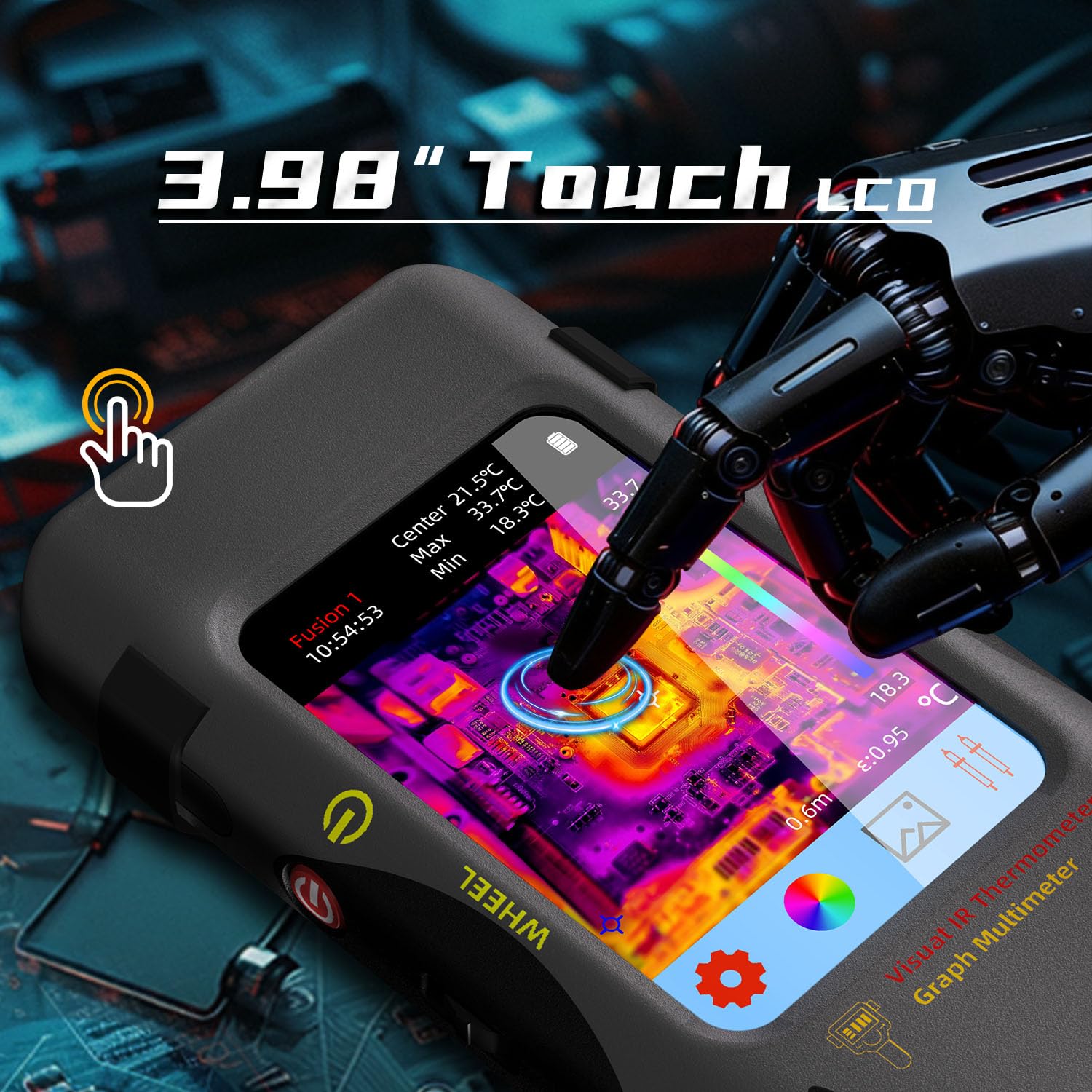

• [3.98” Touch TFT Screen]: Infrared camera multimeter equipped with 3.98 inch 320 x 480 color touch lcd, which provides you with best reading enjoyment, you could get the clear test results at wide angle.

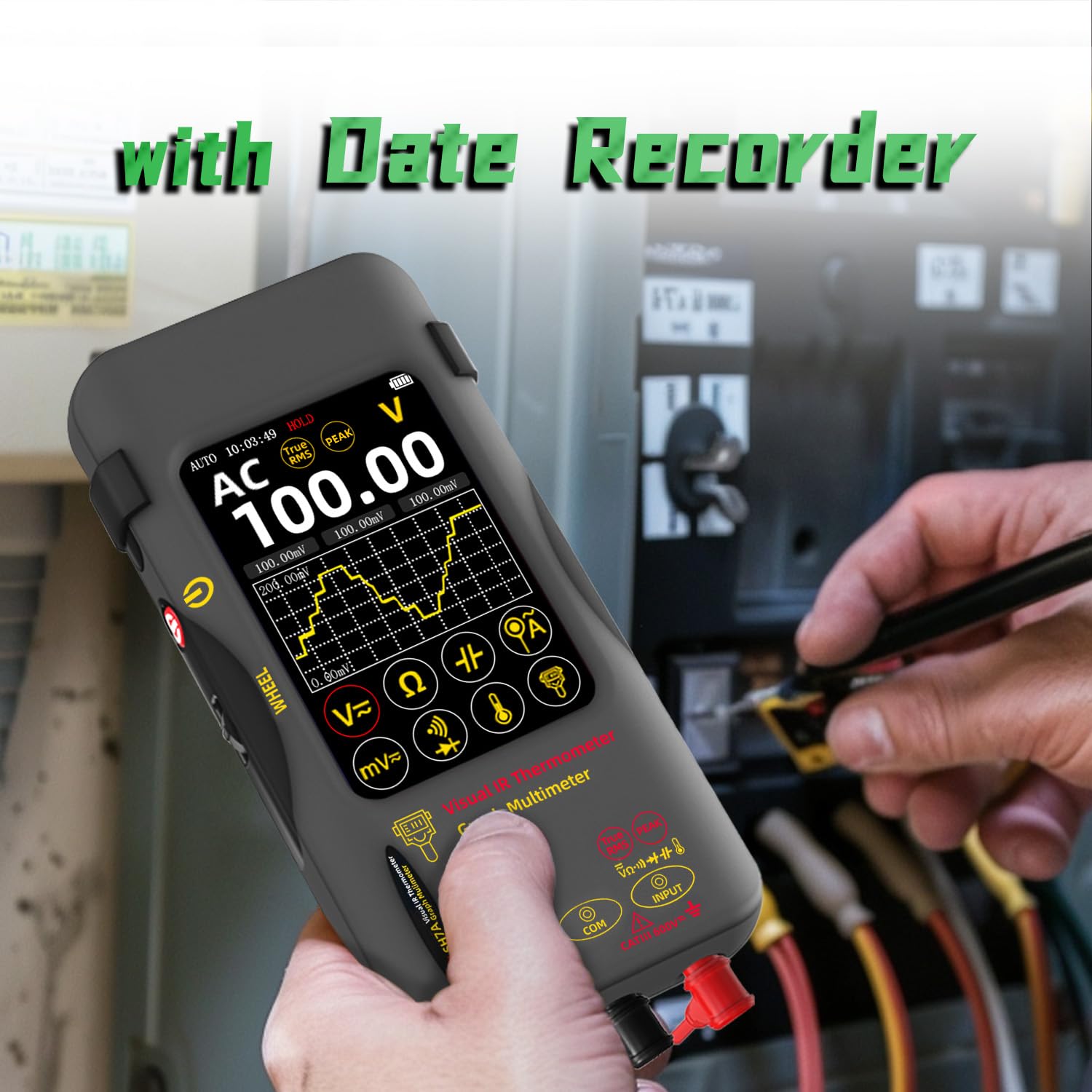

• [Date Recorder]: Thermal multimeter can record the graph of tested data over time. Such as voltage, resistance, current, capacitance, temperature. Records up to 3 measurements.

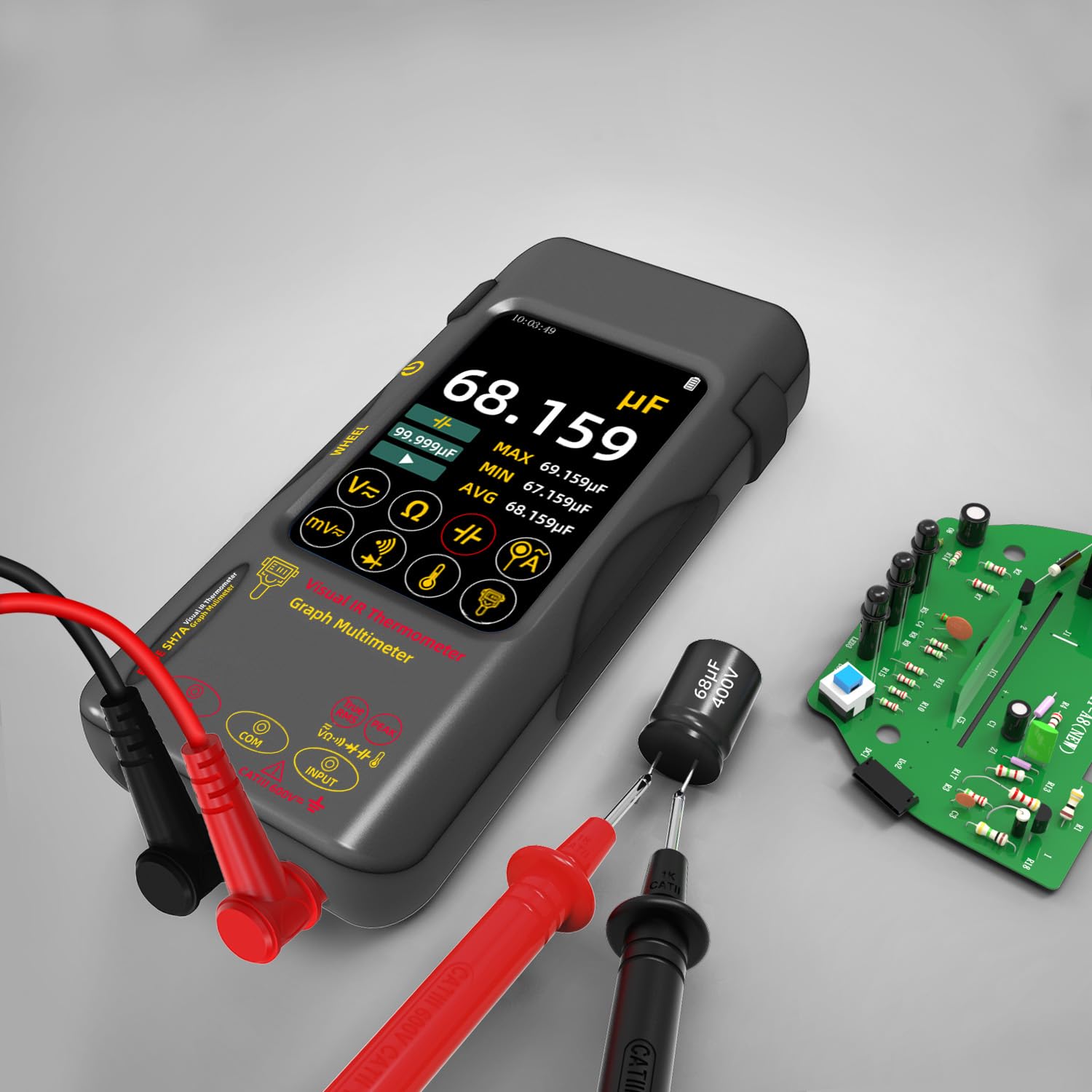

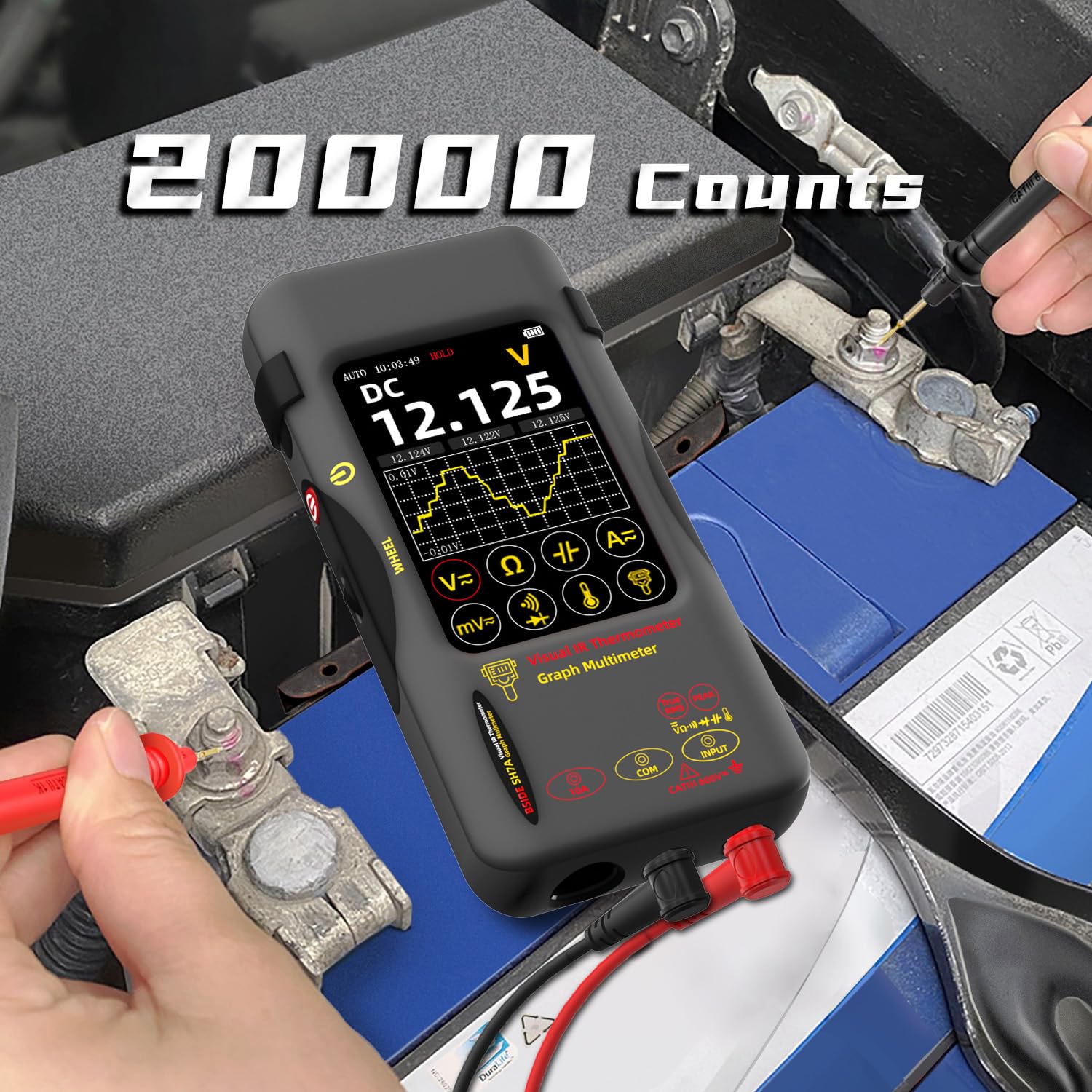

• [20000 Counts Multimeter]: Thermal imager integrated multimeter design, which measures amp, capacitance, diode, temperature, ac and dc voltage, resistance, continuity, etc.
• [Accurate Measurement]: Thermal imager voltmeter enables a refresh rate of 25 Hz and a wide temperature range from -20℃ to 550℃(-4℉ to 1022℉).

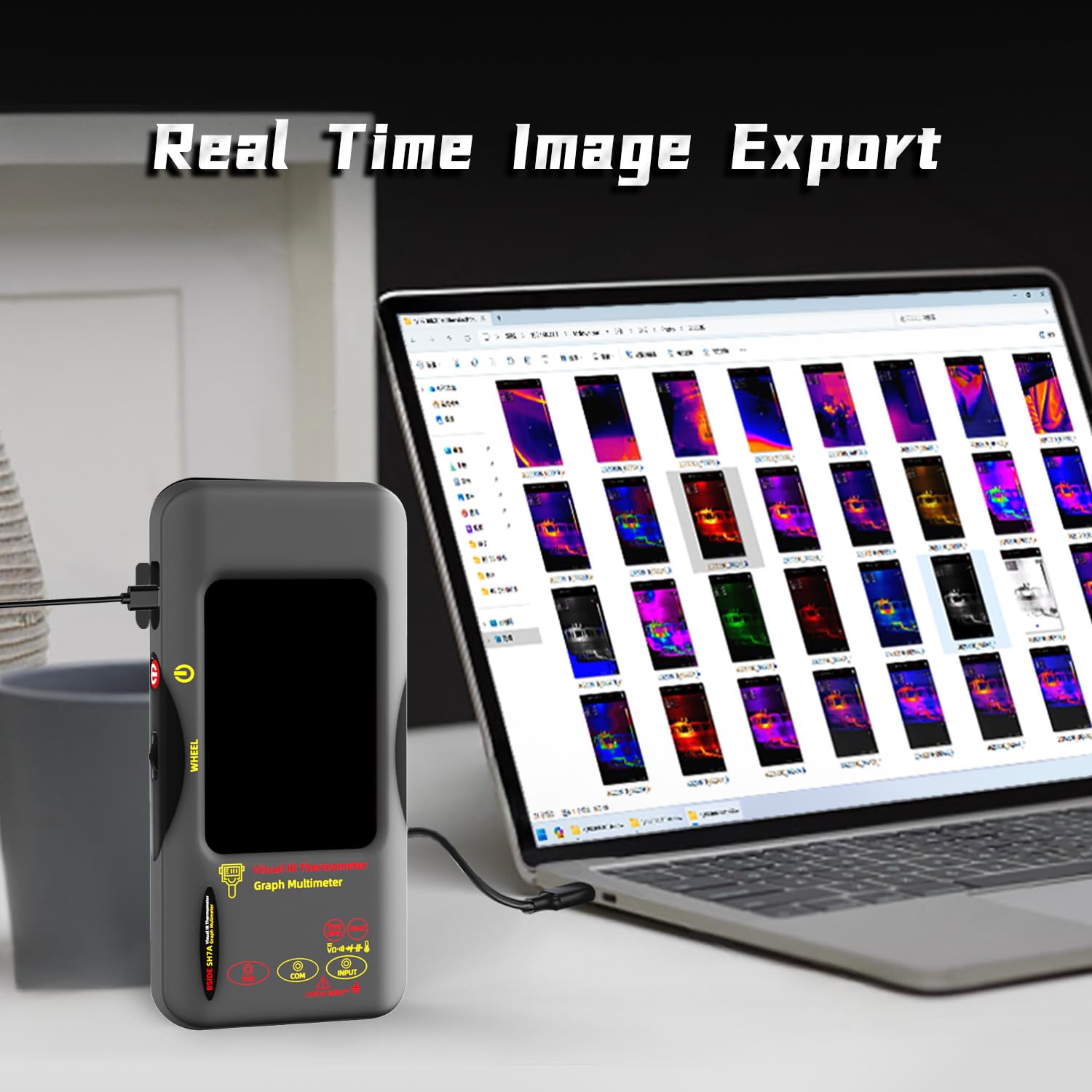

• [Efficient Data Storage and Export]: Thermal imaging camera can be connected to computer via USB for further analysis. The memory card can hold more than 12,900 images.
• [Super Battery Life]: Smart digital multimeter comes with a 2500mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurement.
• [High & Low Temperature Alarm]: IR laser camera with high and low temperature alarm functions, the camera will give out alarm when the temp exceed or under the setting data.

model number: Thermal Imager Multimeter

Part Number: Thermal Multimeter

Details: Features:
Handheld thermal imaging camera
Infrared camera with touch LCD screen
Super large touch screen thermal imager
20000 counts smart digital multimeter
320 x 320 ir resolution thermal imaging camera
320 x 480 screen display resolution infrared camera
Measures ac and dc voltage, resistance and continuity
Measures capacitance, amps, diode and temperature
Display hot, cold and central spots temperature on the screen
The emissivity of infrared imaging camera is adjustable
Rechargeable portable infrared camera with 15 thermal palettes
Tested data can be exported to your computer for analyzed
for home inspection, hvac electrical plumbing, boiler inspection

Specification:

1.Infrared Camera
Display Size: 3.98 Inch TFT LCD
IR Resolution: 320 x 320
Screen Resolution: 320 x 480
Angle of View (FOV): 50.0°(H)x 50.0°(V)/72.1°(D)
Spatial Resolution (IFOV): 8.89mrad
Temperature Range: -20℃-550℃(-4℉-1022℉)
Thermal sensitivity/NETD: Less 60mk
Refresh Rate: 25Hz
Distance Settings: 0.3-3 m
Emissivity: 0.01-1
Thermal Palettes: 15
Number of storage image: 12900

2.Digital Multimeter
MAX Display: 20000 counts
DC voltage:
20mV/200mV/2V/20V 0.001mV/0.01mV/0.0001V/0.001V ±(0.1%+3); 200V/1000V 0.01V/0.1V ±(0.5%+3)
AC voltage:
20mV/200mV/2V/20V/200V/750V 0.001mV/0.01mV/0.0001V/0.001V/0.01V/0.1V ±(0.5%+3);
AC Current (40Hz-1KHz): 2A/10A 0.0001A/0.001A ±(0.8%+3)
DC Current: 2A/10A 0.0001A/0.001A ±(0.8%+3)
Resistance:
200Ω 0.01Ω ±(0.5%+3); 2kΩ/20KΩ/200KΩ 0.0001KΩ/0.001KΩ/0.01KΩ ±(0.2%+3);
2MΩ/20MΩ 0.0001MΩ/0.001MΩ ±(1%+3); 200MΩ 0.01MΩ ±(5%+5)
Capacitance:
999.99nF 0.01nF ±(5.0%+20); 9.999µF/999.9µF 0.001µF/0.01µF ±(2%+5); 99.999mF 0.001mF ±(5%+10)
Temperature: -20℃~1300℃/-4℉-2372℉ 1℃/1℉ ±(2%+5)
Diode: Yes
Continuity: Yes

3. Macro Lens
Working object distance: 35mm
Magnification: 0.3X

Power: 2500mAh rechargeable battery (built-in)
Size: 169*81*26.8mm
Weight: 270g

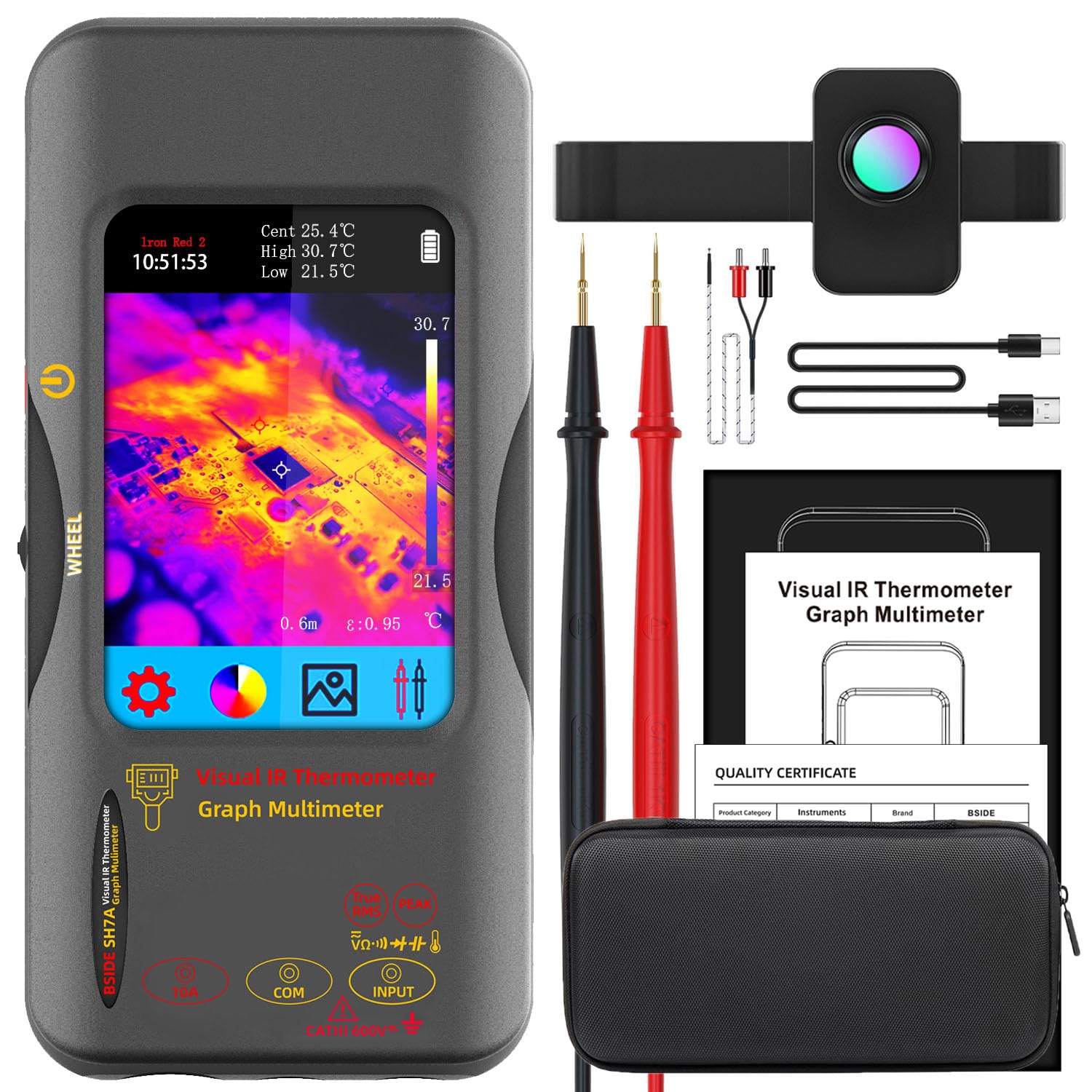

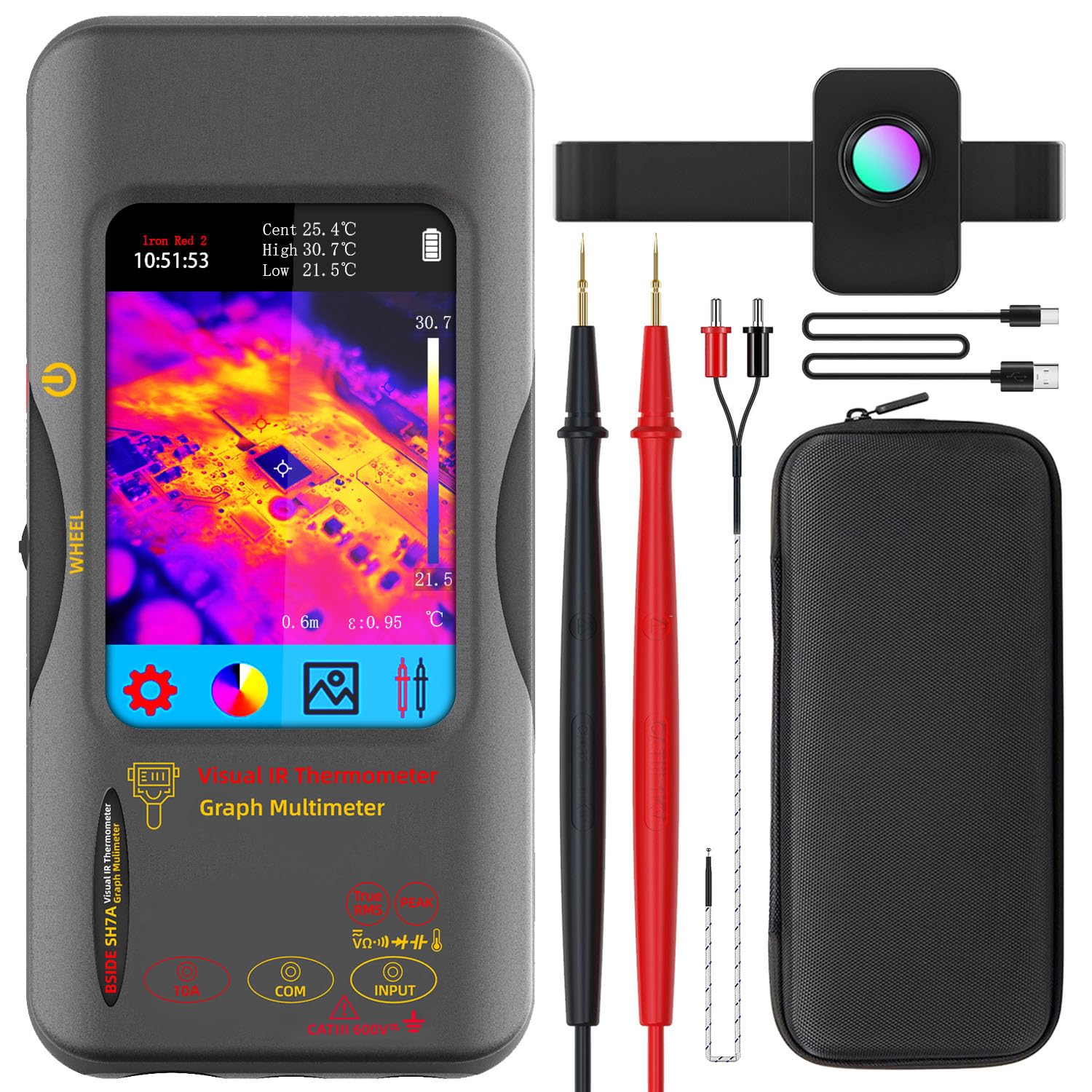

Package Includes:
1 x Infrared Camera Multimeter
1 x Macro Lens
1 x Charging Cable
1 x Carrying Case
1 x User Manual

EAN: 6933540318240

Package Dimensions: 8.6 x 4.9 x 1.9 inches
