Confined Space Tripod Kit,Heavy Duty Rescue Tripod Lifting Hoist with Fall Arrester,65.62ft Cable Portable Tripod Kit for Down Wells,Road Construction (1200LBS)

Brand: HIPUDNLM

Features:

• 【ROBUST AND DURABLE】: The steel wire, and aluminum alloy with spray molding and oxidation processes make this product have high strength and good rigidity and can resist wear,shock, and deformation.
• 【POWERFUL LIFTING】: The triangular support bracket and ring protection chain ensure the stability of this equipment in uneven areas, and with a weight capacity of 1102.31 lbs, you can use this product for rescue lifting confidently.
• 【ADJUSTABLE DESIGN】: Its legs are retractable and the height can be adjusted between 5.2-8ft, which can meet your different lifting needs.
• 【EASY TO CARRY】: The detachable design and two storage bags make it possible to store poles and the winch separately so that you can carry them to your workplace easily.

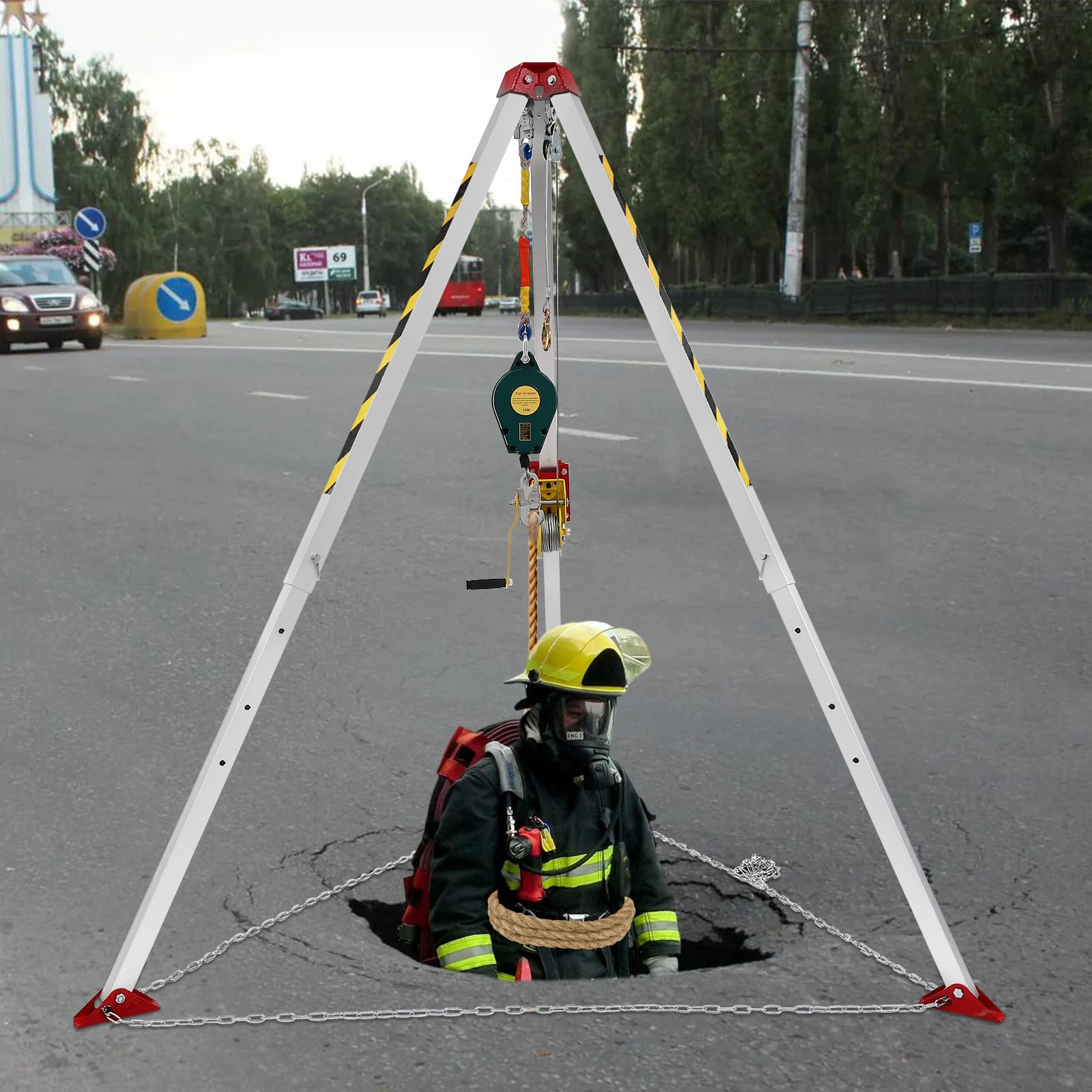

• 【APPLICABLE SCENARIOS】:It is widely used in down wells, road construction, power engineering, high-rise buildings, fire rescue, and so on.

model number: HIPUDNLM

Part Number: HIPUDNLM

Details: Description

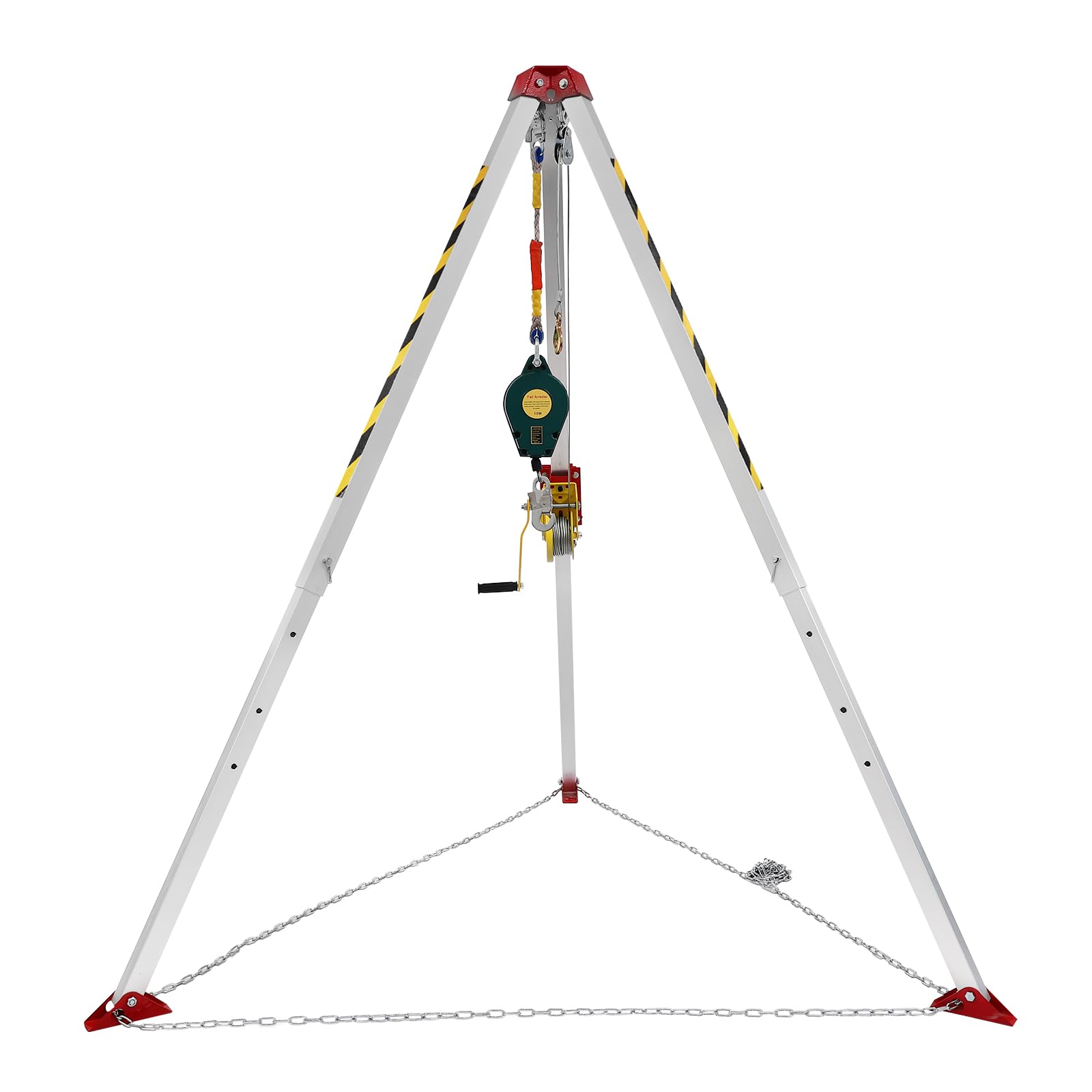

In the hidden corners of deep mines, in the treacherous environment of long and narrow shafts, when precious lives are in danger, it is the rescue tripod that comes forward and plays an indispensable role. It consists of a sturdy triangular bracket and, winch, fall arrester, and ring chains, which can provide stable support and lifting capacity. It is usually used in a variety of rescue scenarios, such as construction, road accidents, etc., to help lift and stabilize heavy objects or injured people.

Details

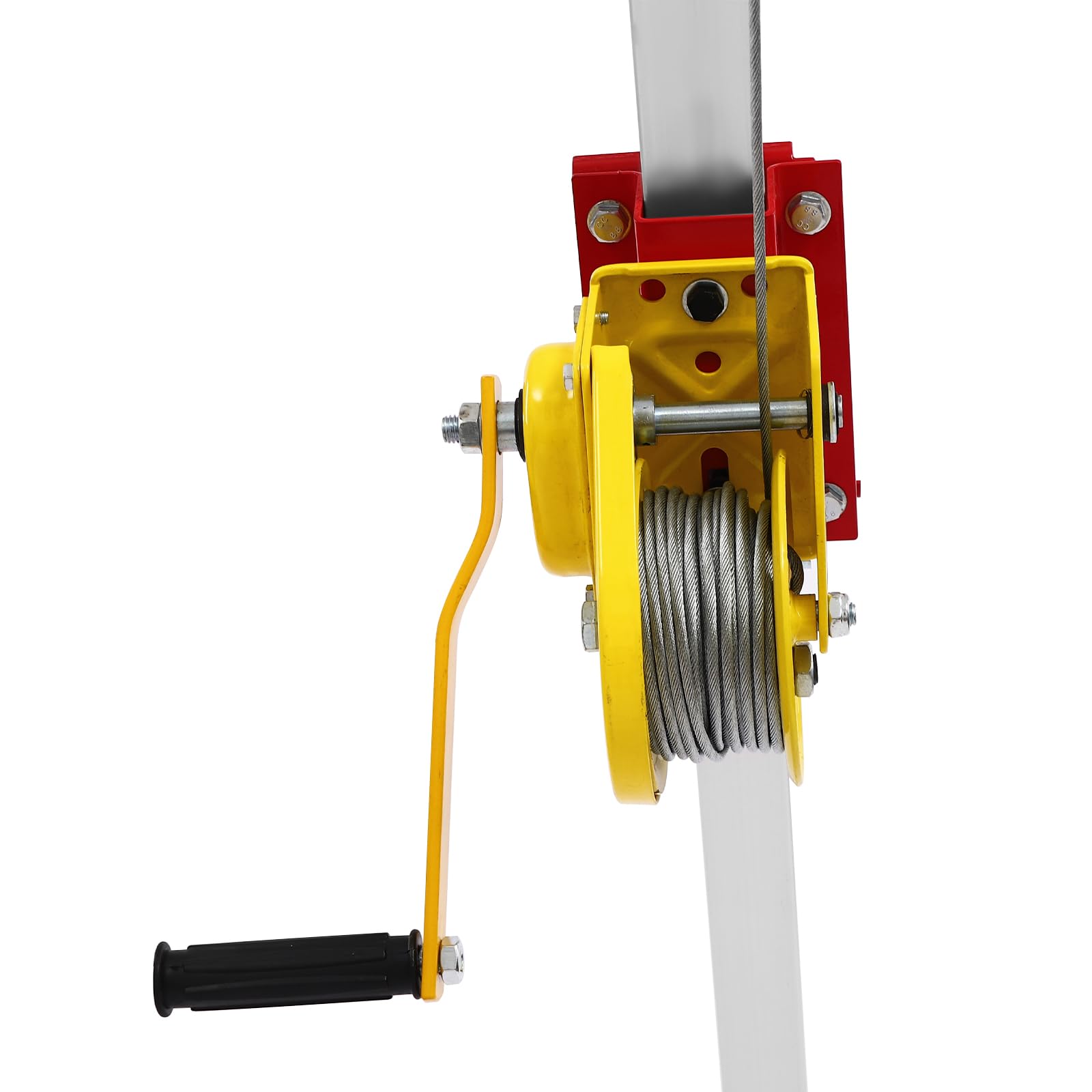

Winch Mount: It can be used to fix the winch, strong and durable.
Long Steel Wire: The 65.62ft wire is strong and durable while having a long lifting stroke, which can lift most people or items of varying heights.

Specifications
Color: Silver, Red, Yellow
Material: Aluminium Alloy, Steel Wire
Process: Spray Molding, Oxidation
Style: Modern
Assembly Required: Yes
Operate Mode: Manual
Mounting Type: Floor Standing
Blocking Force: 22KN
Gear Ratio: 6:1
Handle Force: 0.2KN
Manual Handle Force: ≤500N
Safety Coefficient: >10

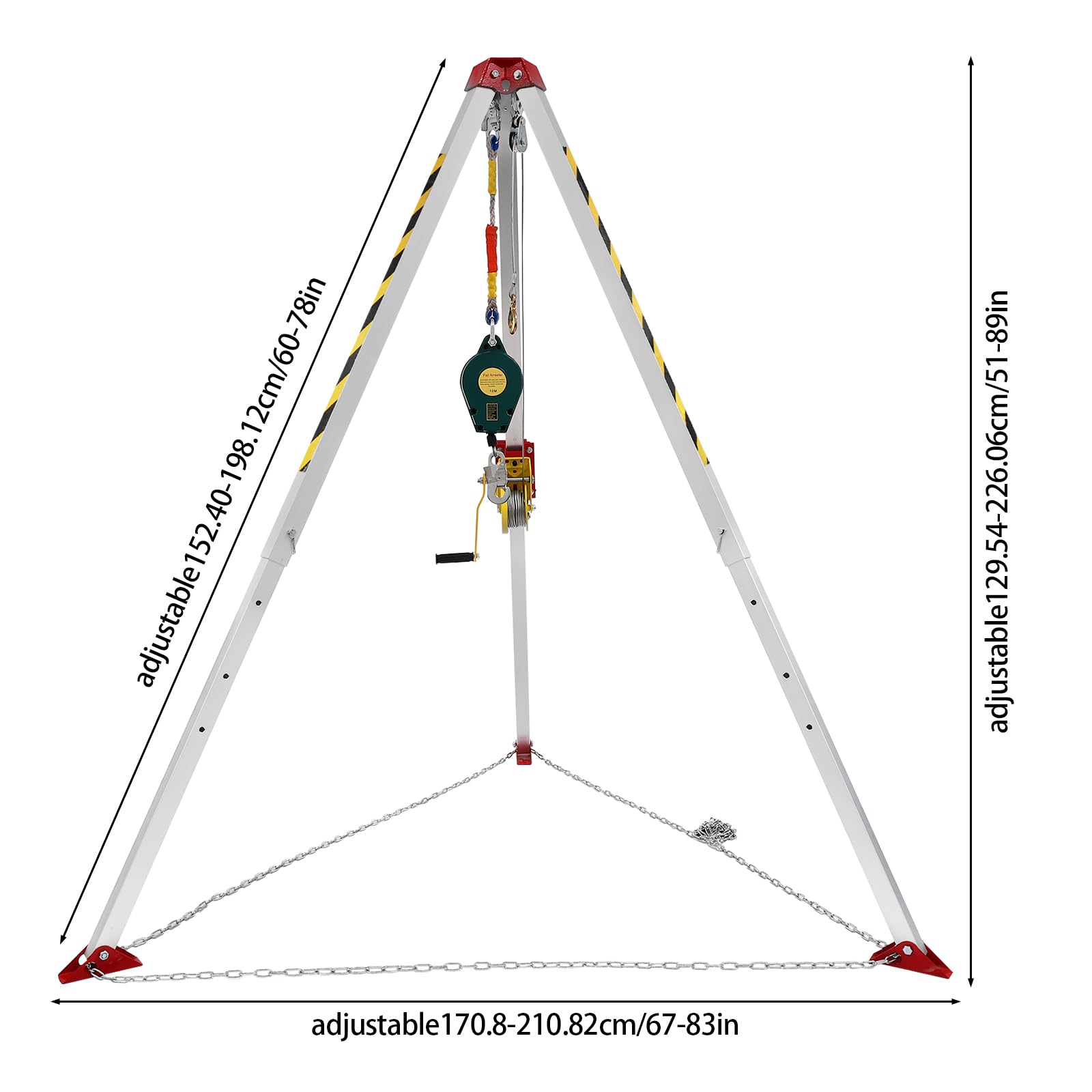

Working Height: 1.6-2.45m/5.2-8ft
Tripod Load: 500kg/1102.31lbs(The Tripod Working Height is Set to the Lowest Position)
Winch Working Load: 1179.3kg/2600lbs
Steel Wire Rope Length: 20m/65.62ft
Product Vertical height: 1.5-2.2m/4.92-7.22ft
Bottom Leg Spacing: 1.5-2.45m/4.92-8.04ft
Package Size: 160*46*27cm/62.99*18.11*10.63in
Gross Weight: 35kg/77.16lbs
Net Weight: 33kg/72.75lbs

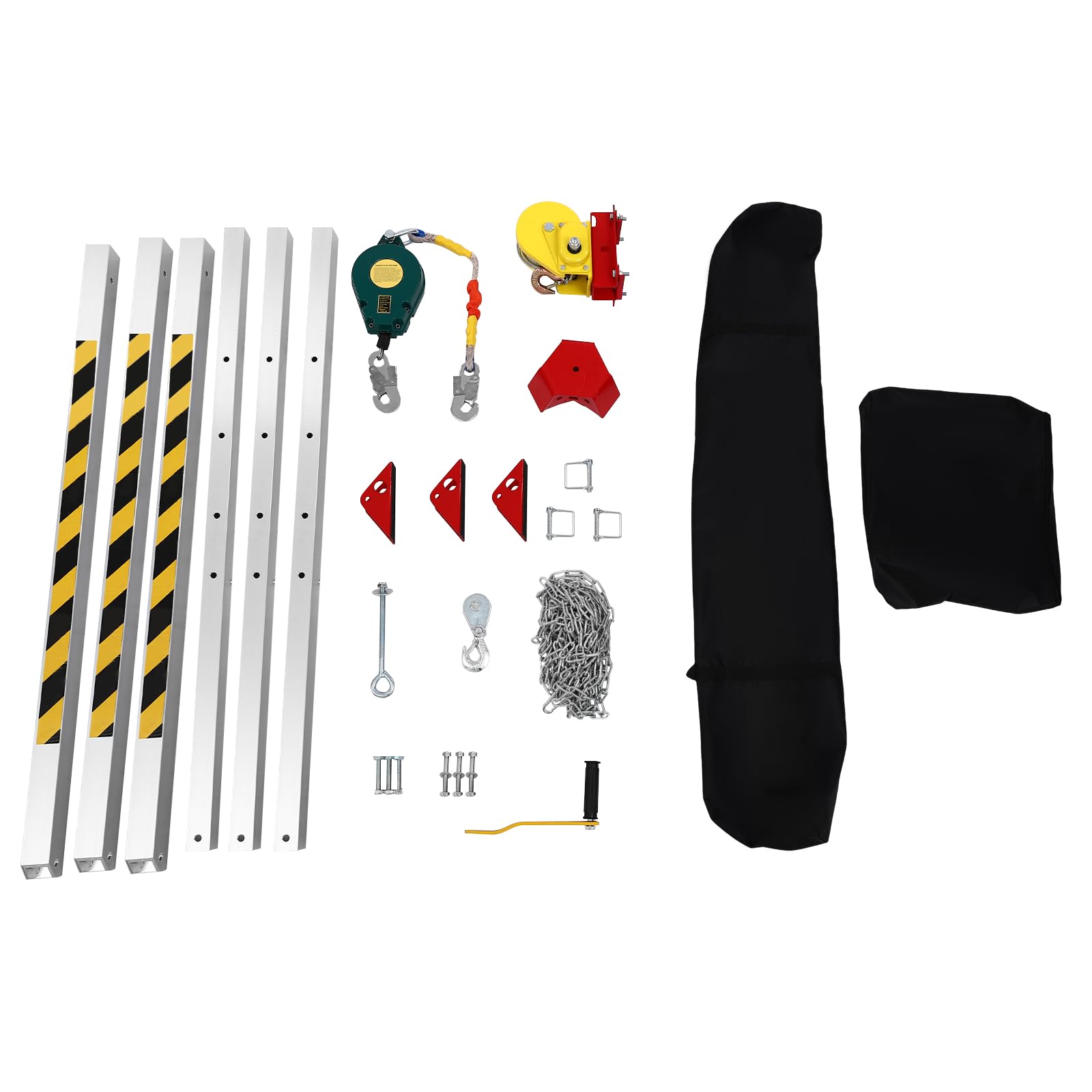

Package Included
1* Confined Space Tripod Kit
1* Fall Arrester
2* Storage Bags
All Accessories for Installation

Notes
1.Please check the size carefully before ordering.
2.To enhance the safety of trapped persons, please use it with a seat belt and a helmet (both not included).
3.The rescue tripod is lifting equipment and must be inspected every month. Before each use, please check that the steel wire is properly wound around the winch.
4.Regularly check whether the connecting joints of the steel wire are strong enough.
5.The steel wire on the winch needs to be left for three to four turns to ensure that the steel wire does not slip.
6.The rescue tripod should be stored in a dry place and should not be stored with cor-ros-ive liquids such as acids and alkalis.
7.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

EAN: 0747696485819
