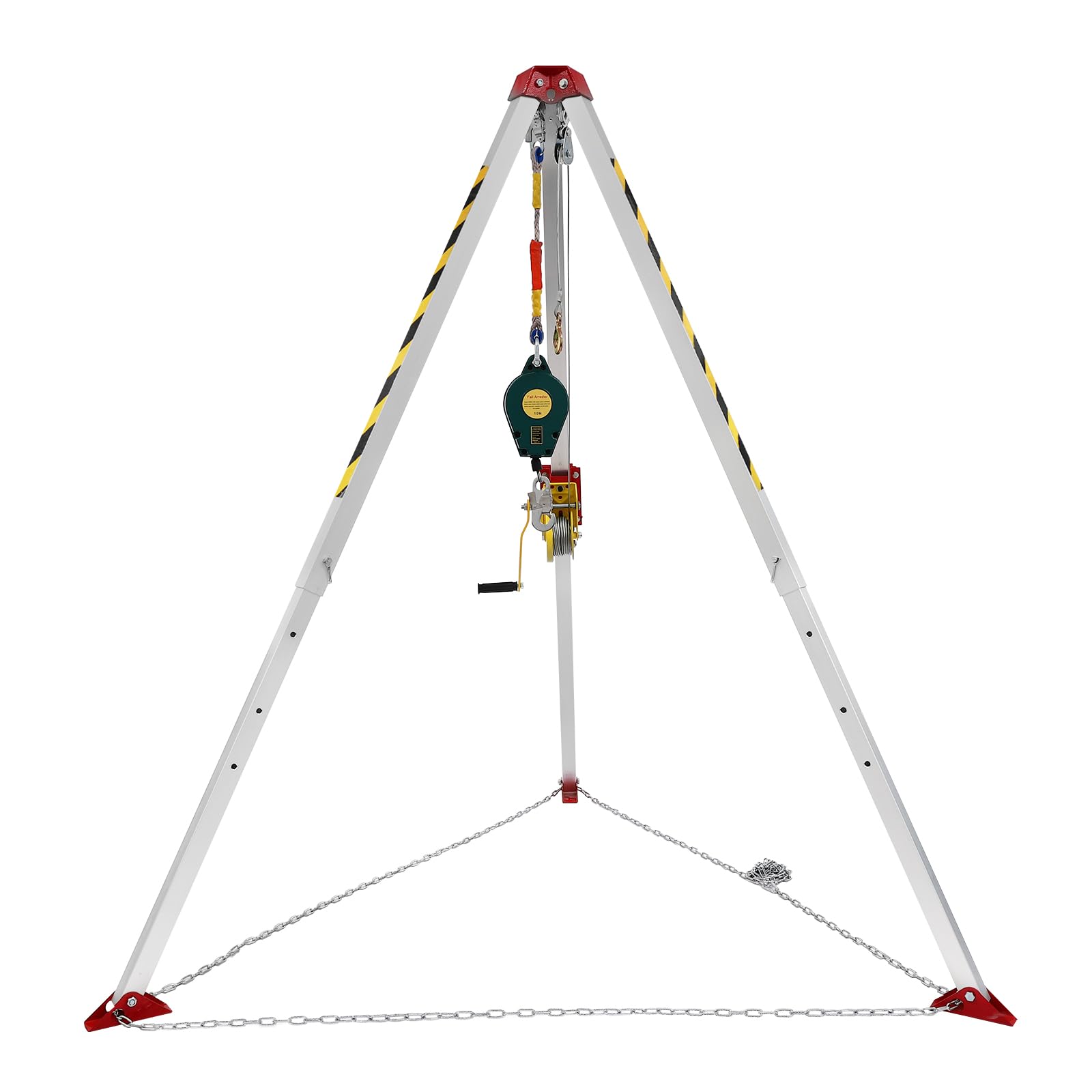

Confined Space Tripod Kit, Rescue Tripod with Winch Mount and Long Steel Wire, Adjustable Rescue Tripod Fall Arrester Triangular Support Bracket and Ring Protection Chain

Brand: Ynomdusa

Color: Silver 1200lbs

Features:

• Confined Space Tripod Kit: The triangular support bracket and ring protection chain ensure the stability of this equipment in uneven areas, and with a weight capacity of 396.83 lbs, you can use this product for rescue lifting confidently.

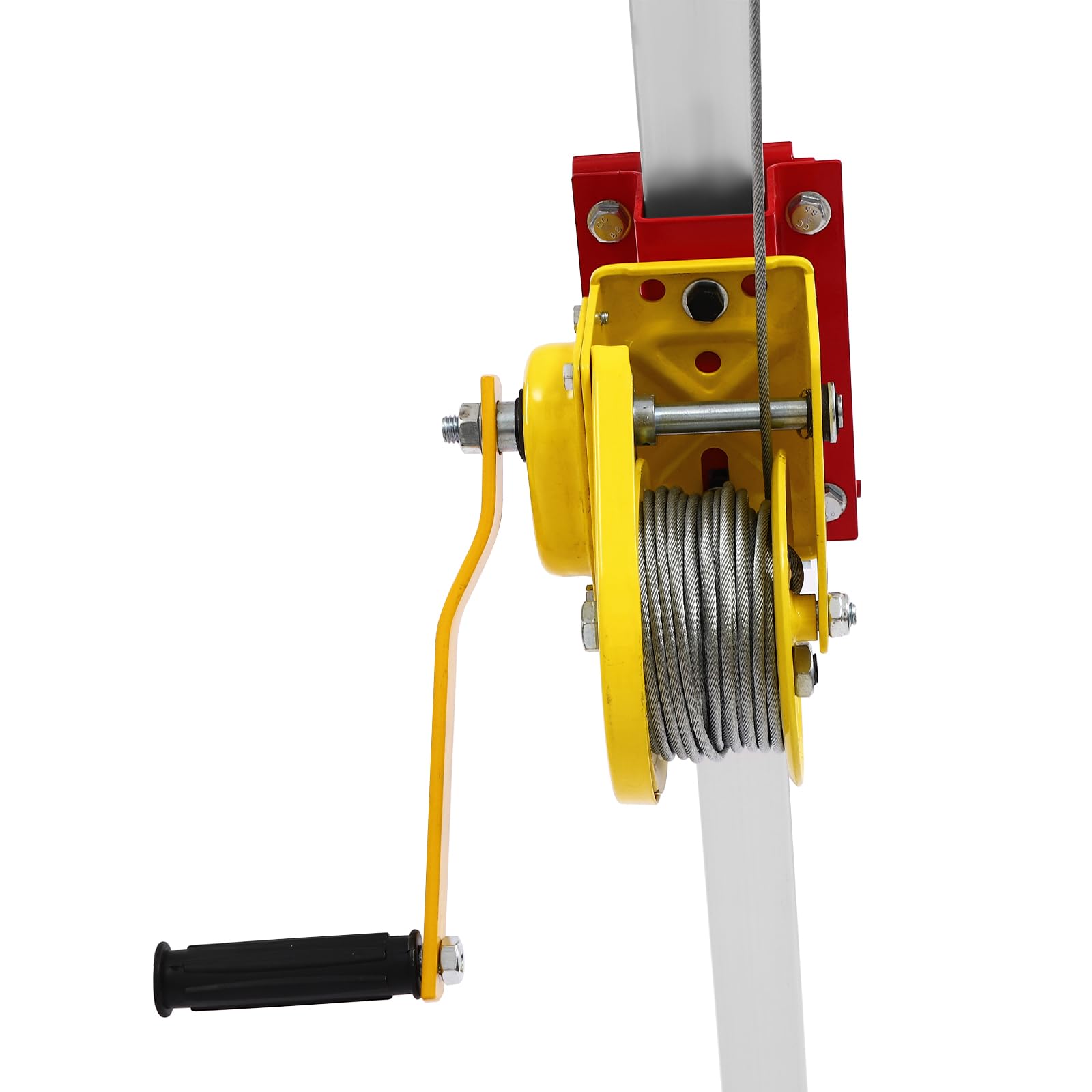

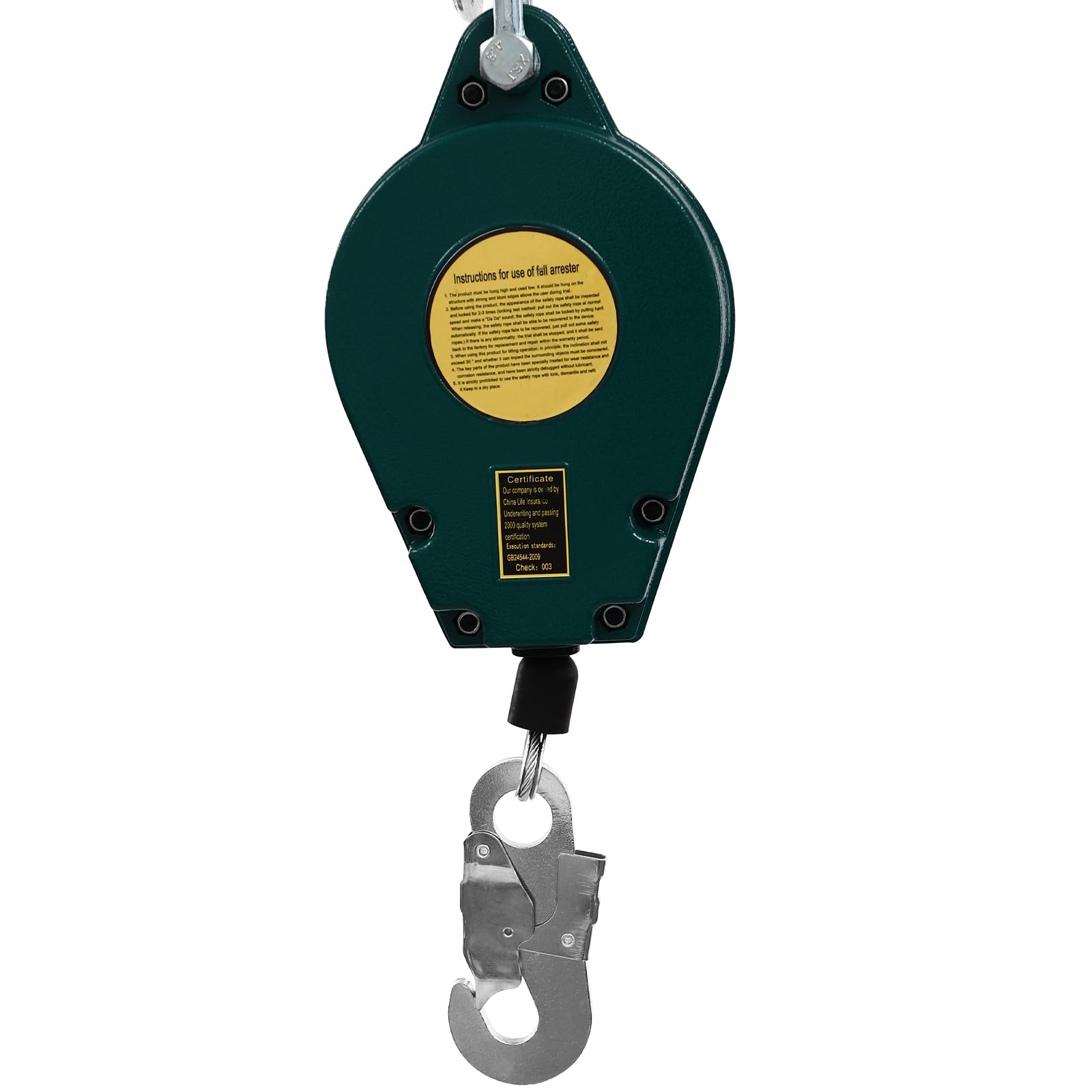

• Safety First: The winch is equipped with a self-locking device for ascending and descending. Moreover, the fall arrester with a hook and a safety factor of more than 10 can also ensure safety in use.
• Professional Tool: Rescue Tripod is not just a cold mechanical device, but a symbol of hope and salvation. It plays an important role in lifting and rescuing people trapped in mines and deep shafts and is a professional lifting equipment.
• Adjustable Design: Its legs are retractable and the length can be adjusted within 51-89in and the work height can be adjusted between 60-78in, which can meet your different lifting needs.
• Easy to Carry: The detachable design and two storage bags make it possible to store poles and the winch separately so that you can carry them to your workplace.

model number: GYTR5

Details: Description

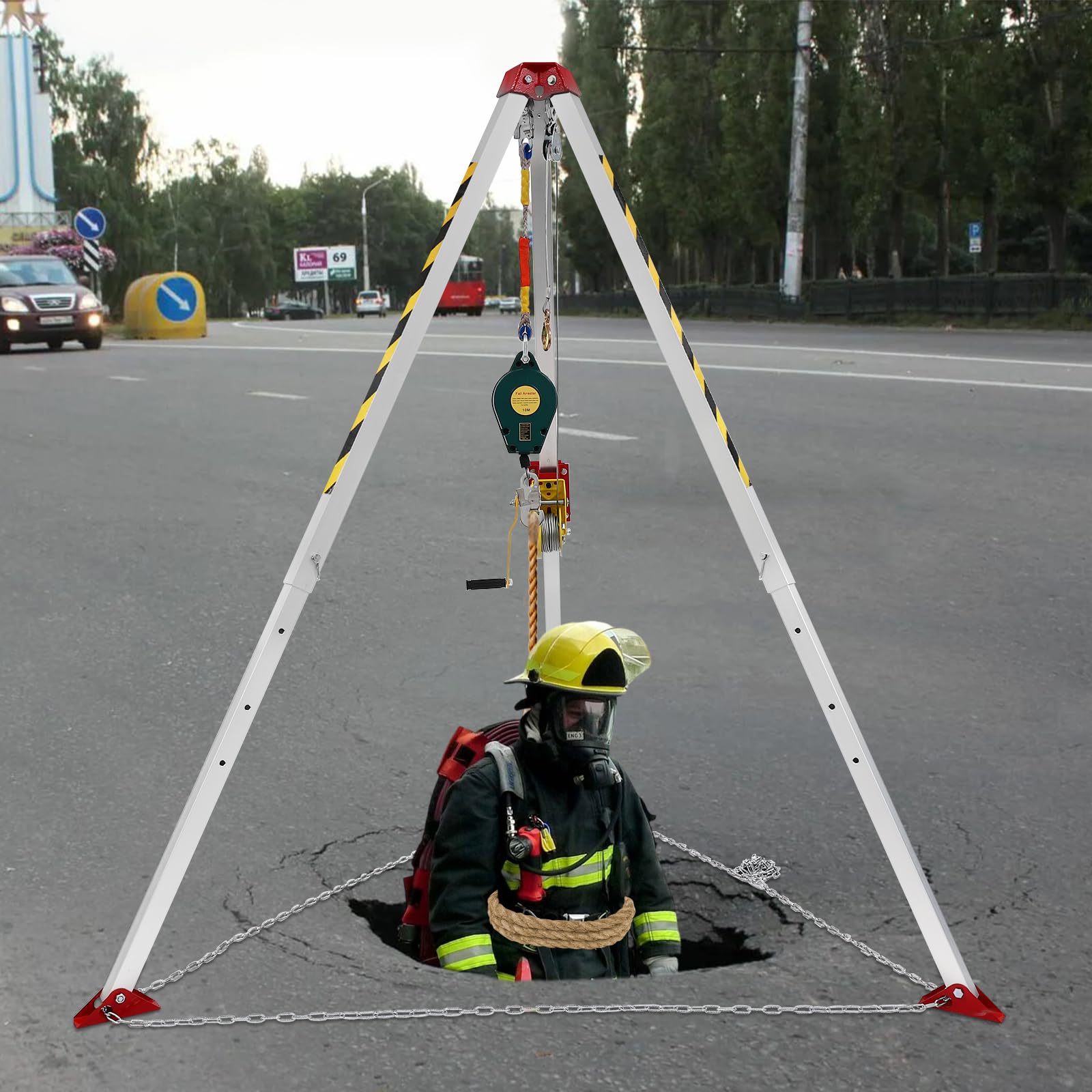

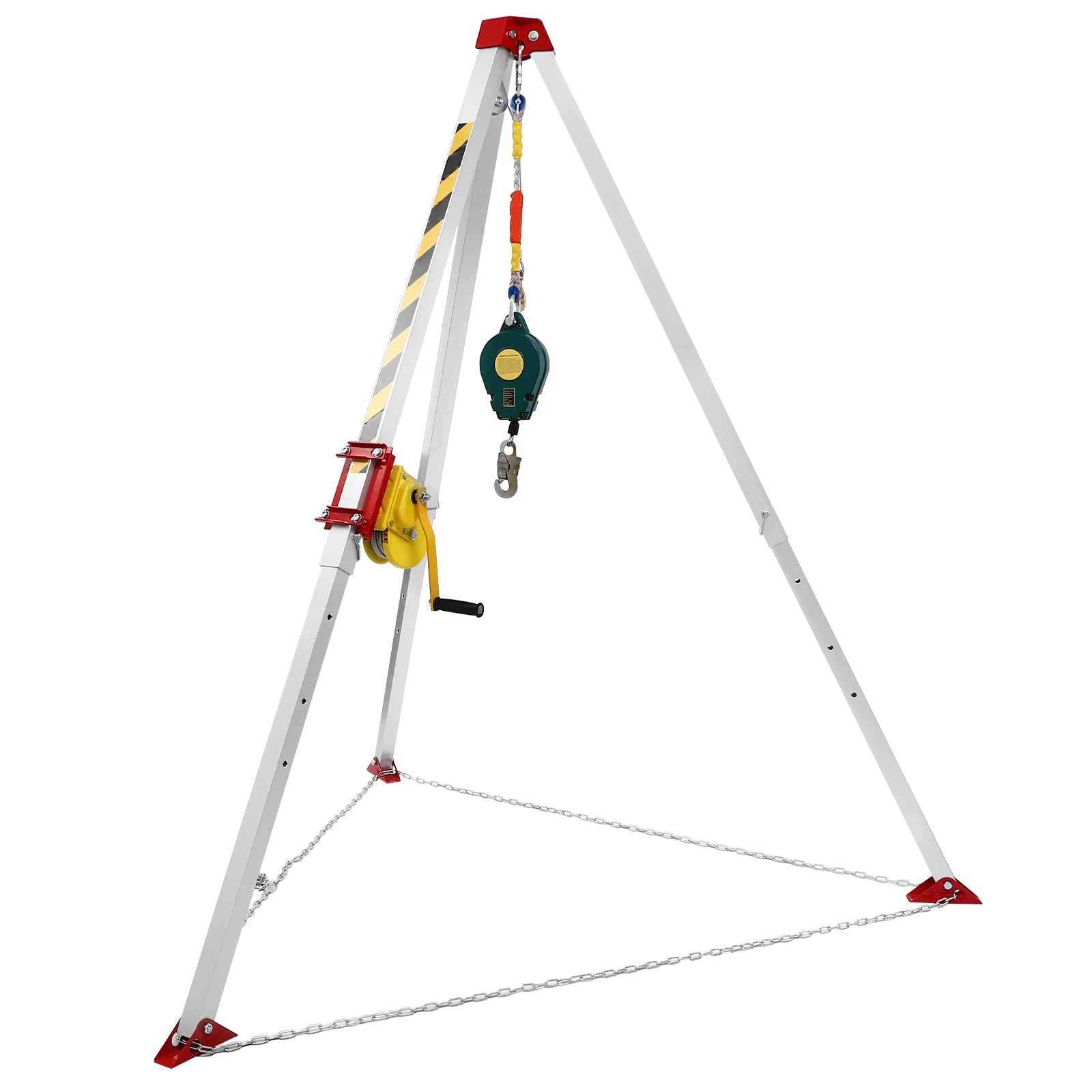

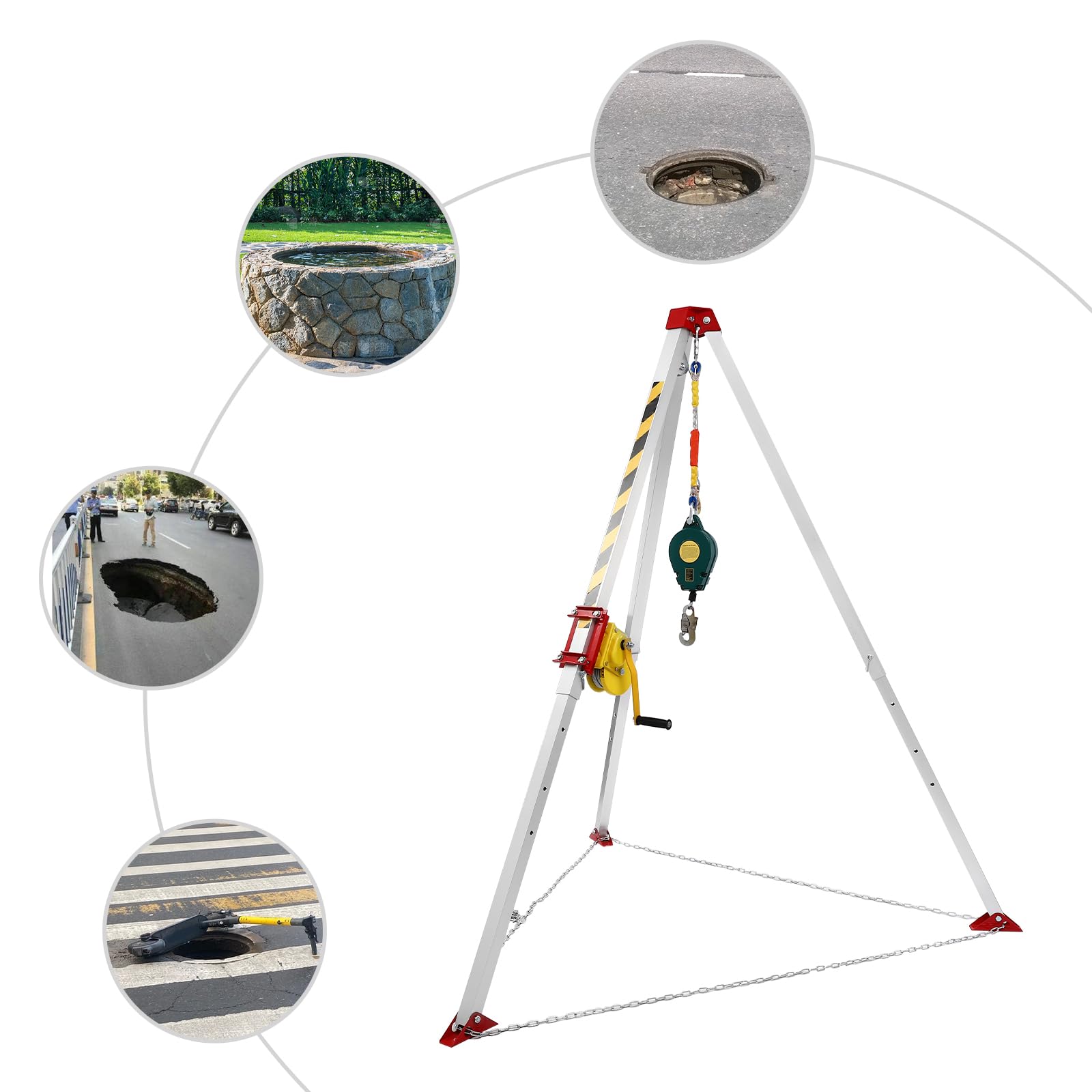

In the hidden corners of deep mines, in the treacherous environment of long and narrow shafts, when precious lives are in danger, it is the rescue tripod that comes forward and plays an indispensable role. It consists of a sturdy triangular bracket and, winch, fall arrester, and ring chains, which can provide stable support and lifting capacity. It is usually used in a variety of rescue scenarios, such as construction, road accidents, etc., to help lift and stabilize heavy objects or injured people.

Specifications
Color: Silver, Red, Yellow
Material: Aluminium Alloy, Steel Wire
Process: Spray Molding, Oxidation
Style: Modern
Assembly Required: Yes
Operate Mode: Manual
Mounting Type: Floor Standing
Blocking Force: 22KN
Gear Ratio: 4:1
Handle Force: 0.2KN
Manual Handle Force: ≤500N
Safety Coefficient: >10

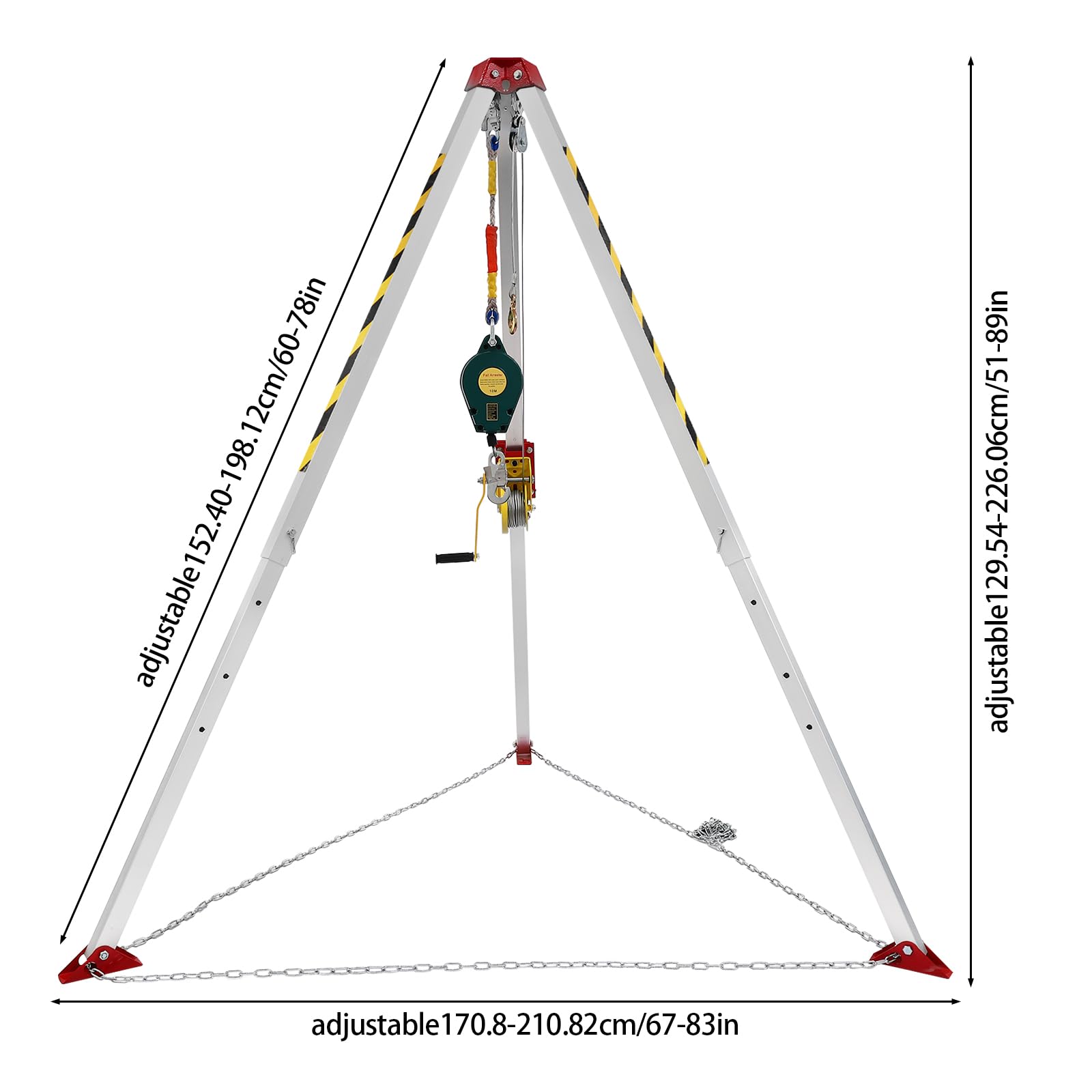

Working Height: 1.52-1.98m/60-78in
Leg Length: 1.3-2.3m/51-89in
Leg Spacing: 1.7-2.1m/67-83in
Tripod Load: 180kg/396.83lbs
Winch Working Load: 544.3kg/1200lbs
Steel Wire Rope Length: 20m/65.62ft
Package Size: 160*46*27cm/62.99*18.11*10.63in
Gross Weight: 29.5kg/65.04lbs
Net Weight: 28kg/61.73lbs

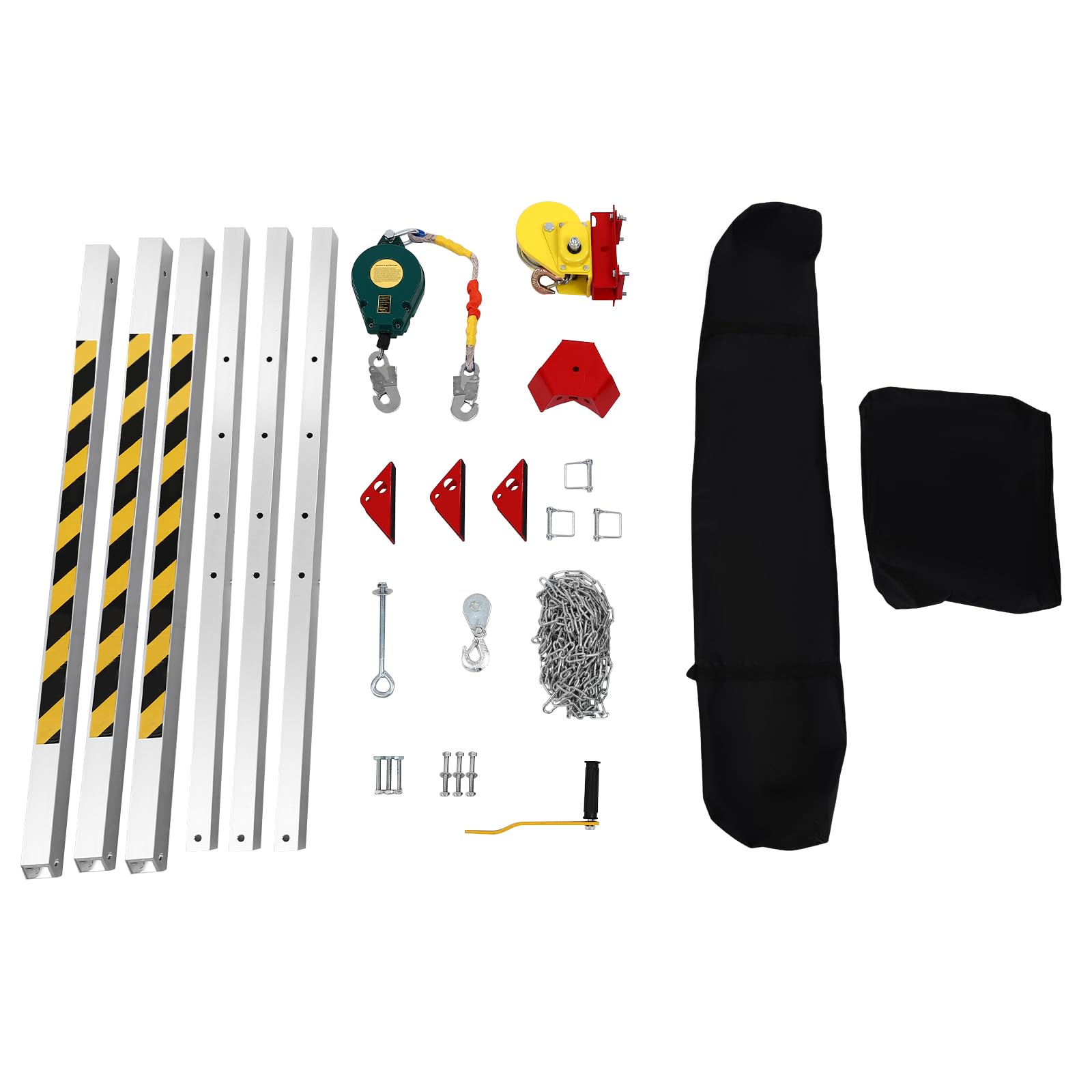

Package Included
1* Confined Space Tripod Kit
1* Fall Arrester
2* Storage Bags
All Accessories for Installation

Notes
1.Please check the size carefully before ordering.
2.To enhance the safety of trapped persons, please use it with a seat belt and a helmet (both not included).
3.The rescue tripod is lifting equipment and must be inspected every month. Before each use, check that the steel wire is properly wound around the winch.
4.Regularly check whether the connecting joints of the steel wire are strong enough.
5.The steel wire on the winch needs to be left for three to four turns to ensure that the steel wire does not slip.
6.The rescue tripod should be stored in a dry place and should not be stored with corrosive liquids such as acids and alkalis.
7.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

Package Dimensions: 63.0 x 18.1 x 10.6 inches
