Digi-Pas 2-AXIS HIGH-Precision Digital Inclination Sensor Module, Tilt Angle Sensor, Inclinometer, DWL5500XY 0.0002”/ft (0.02mm/M) NIST-Traceable … (5. DWL5500XY PRO Software)

Brand: Digi-Pas

Features:

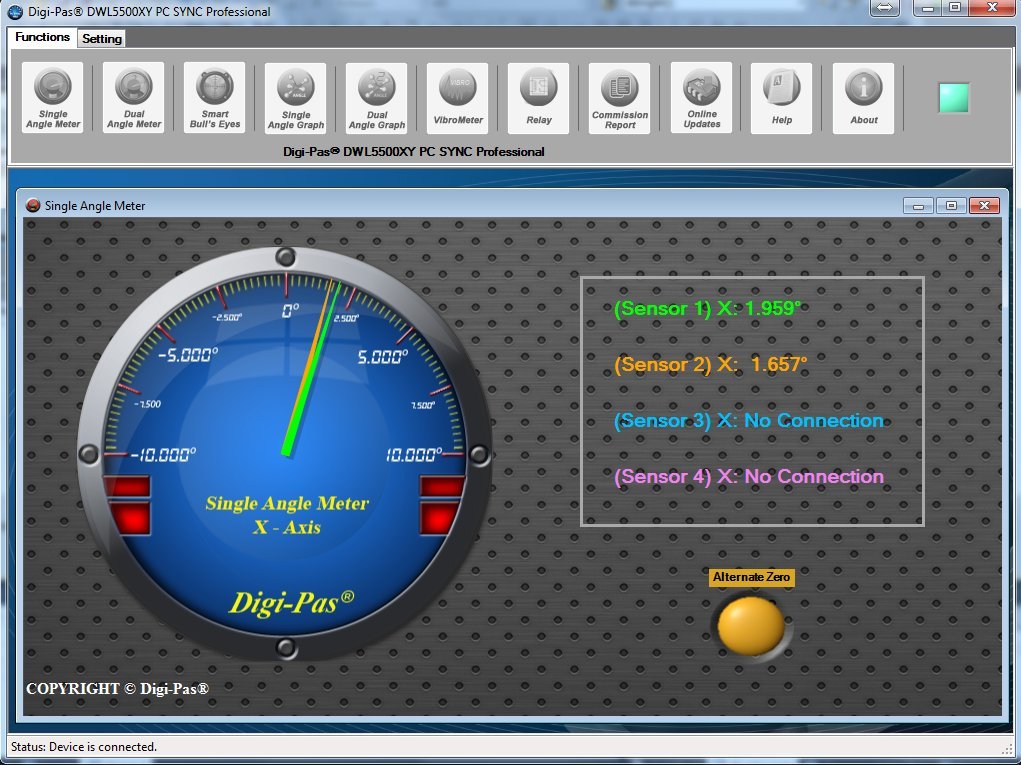

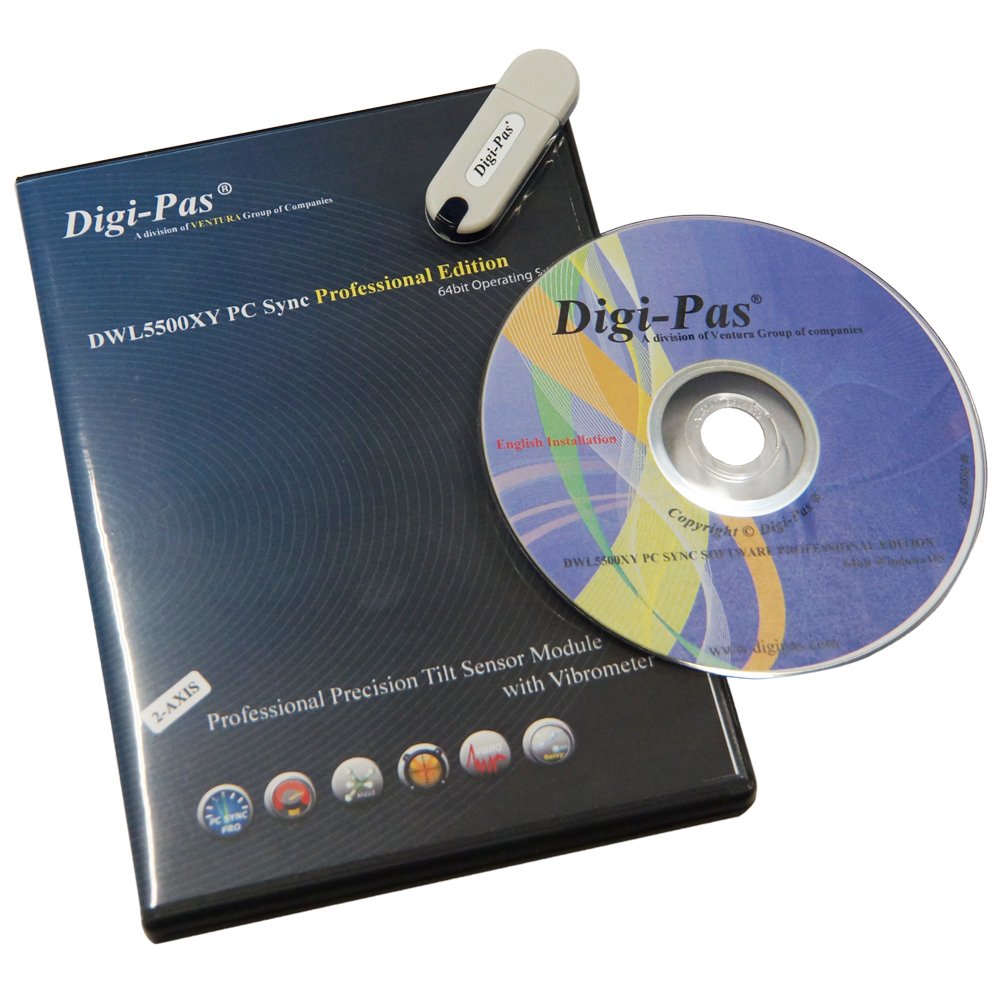

• PC Sync Pro Software is a “Plug & Play” interface instantly enables users to remote access to one unit of Digi-Pas Inclination Sensor Module from PC via RS232/ RS485. A Dongle is included to work with Software. Dongle driver installation is in CD provided.

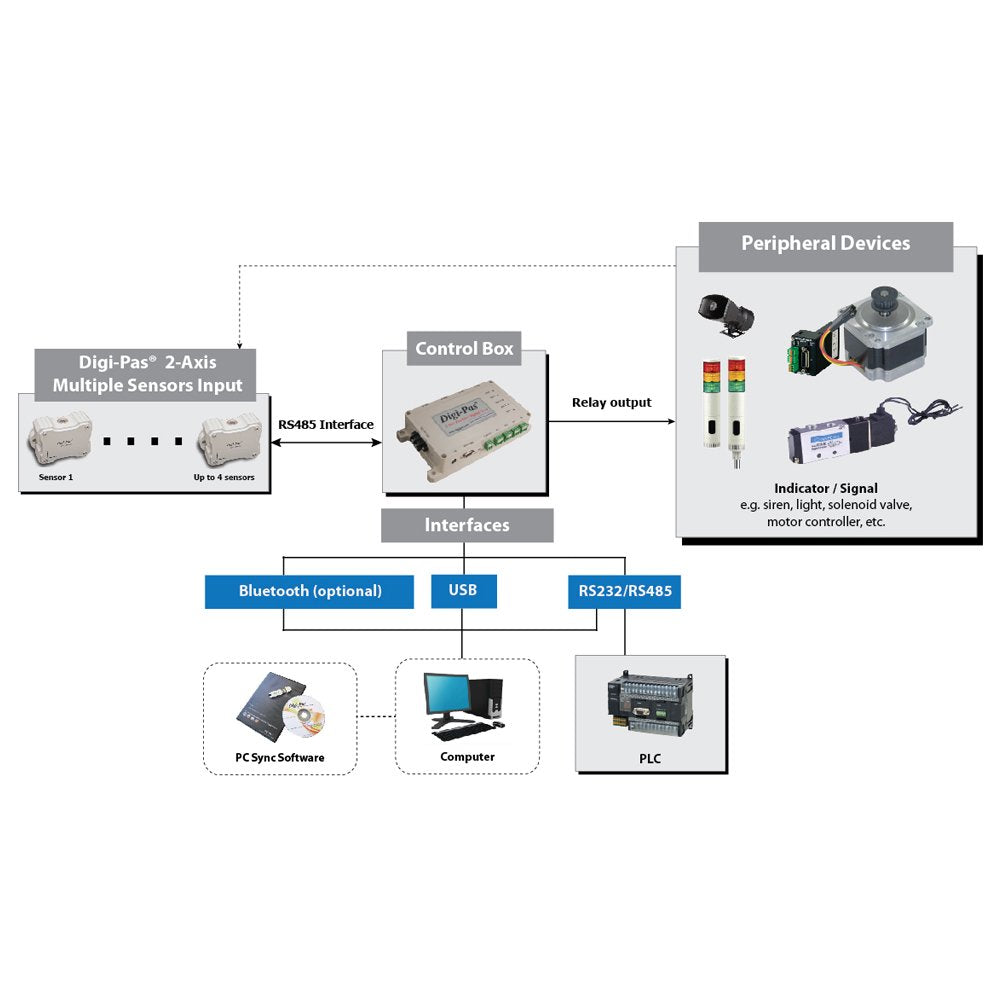

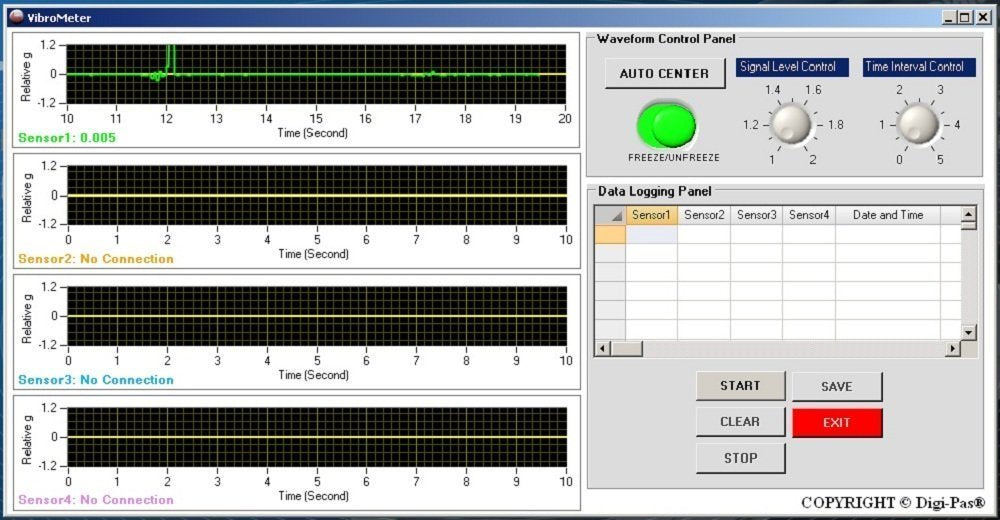

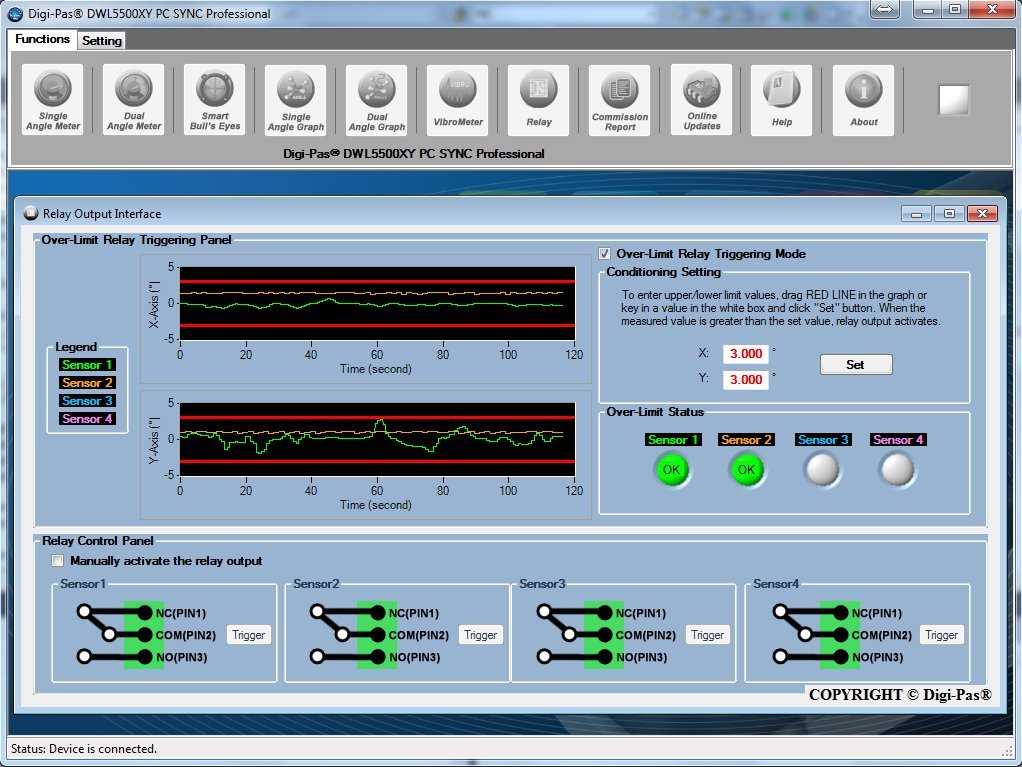

• When used with Digi-Pas Control Box, MULTIPLE sensors access via USB/RS232/RS485/ Wireless Bluetooth connectivity for real-time monitoring & logging of 2-D leveling data, tilt-angles alignment and vibration measurement. User can set tilt angle/vibration values via the Software to trigger external peripheral devices connected to 4 I/Os such as siren/alarm, valve, motor, strobe lights, etc.
• NO time-consuming writing codes are required, leaving applications engineers more productive time to focus on their core activities. Effectively SHORTEN project timeline and enhances project delivery certainty, particularly useful during feasibility assessments or initial stage on exploratory applications.

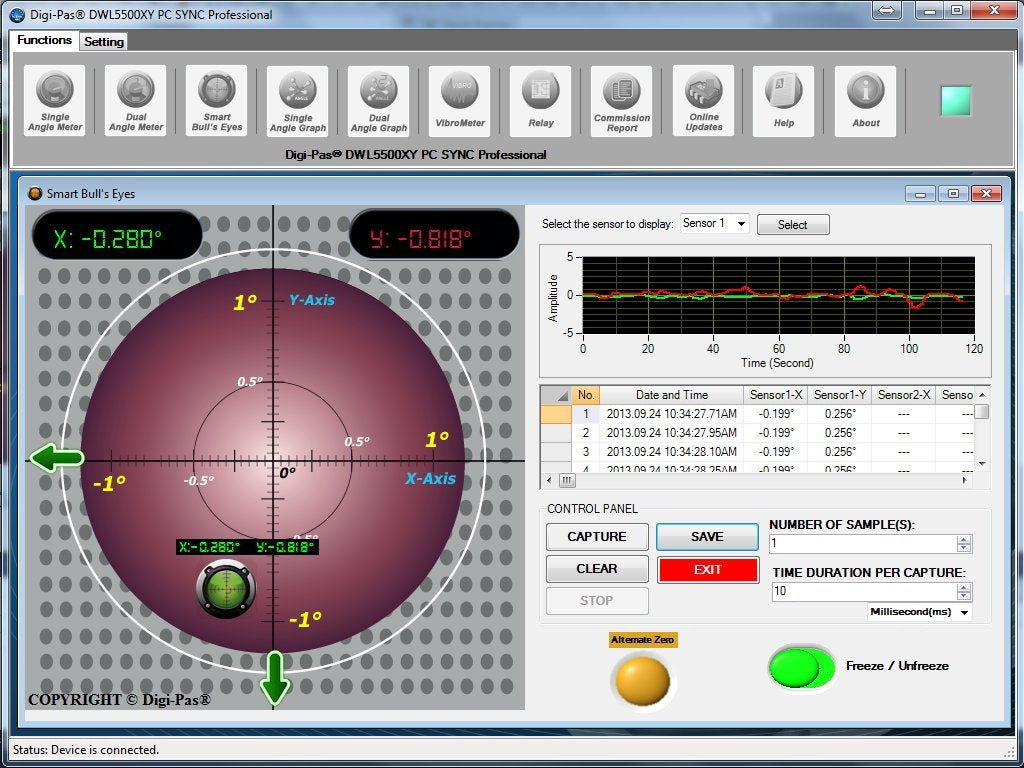

• Smart 2D Bubble feature allows user to view and record 2-axis angle/levelling measurement simultaneously in graphical "Bull's eye" (with auto range feature) and numeric formats: °(Degree), mm/M & In/Ft units. User may define parameters for data capturing and saved in Excel format for further analysis.

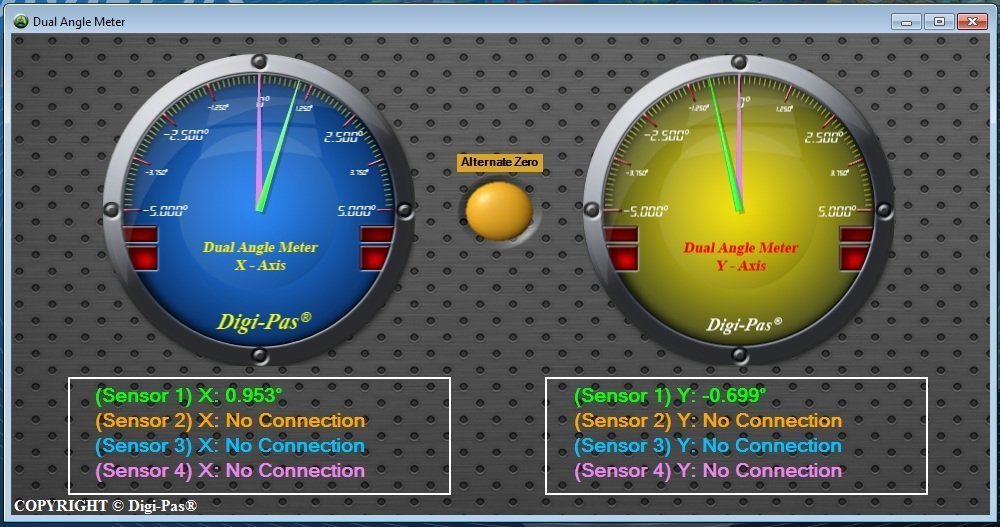

• DUAL-AXIS Angle Graph feature allows user to view and record 2-axis angle/levelling measurement simultaneously in graphs and numerical readings, define parameters for data capturing and saved in Excel format for further analysis.

model number: DWL5500XY PRO SW

Part Number: 2-05501-00

EAN: 8887726110396

Package Dimensions: 7.7 x 5.7 x 0.7 inches
