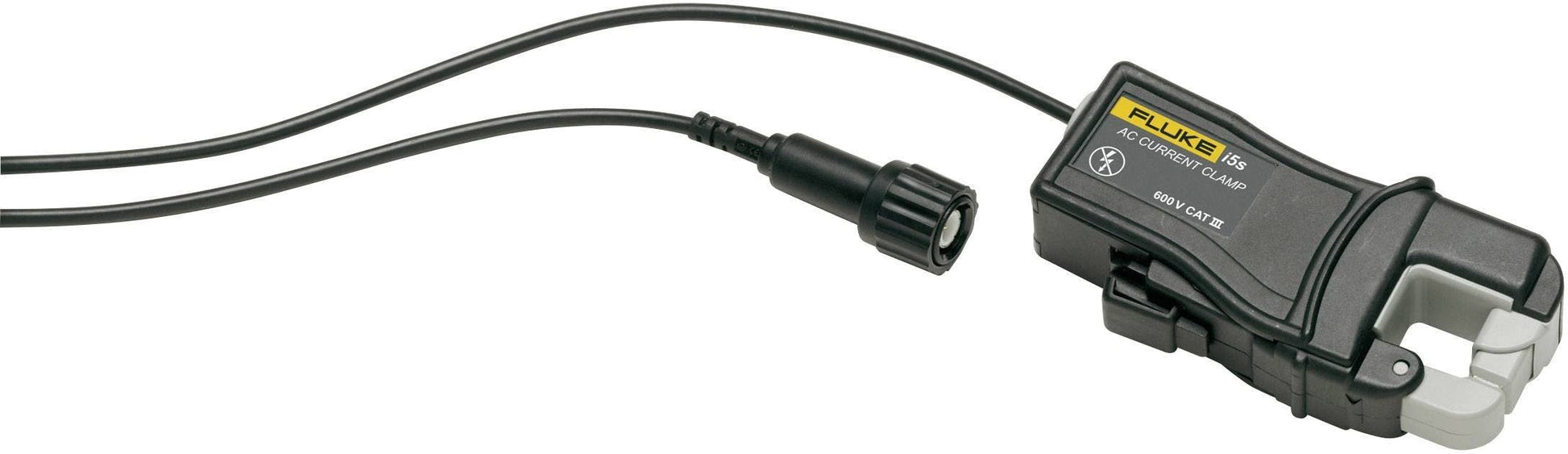

Fluke I5S AC Current Clamp, 600V AC Voltage, 5A AC Current

Brand: Fluke

Color: black

Features:

• Low level current clamp measures up to 5A AC
• Compact shape makes transporting and storing convenient
• Take accurate readings without breaking the circuit
• CAT III 600 V (For insulated conductors only)
• 1 year warranty

model number: I5S

Part Number: I5S

Details: Expand the use of your Fluke 430 series power quality tool or ScopeMeter test tool with this 5A AC current clamp, specially configured to provide good accuracy at low levels e.g. while taking measurements on secondary current transformers. Compact shape makes transporting and storing convenient. Take accurate readings without breaking the circuit. CAT III 600 V (For insulated conductors only). Nominal current range: 5A. Continuous current range: 10mA to 6A. Maximum non-destructive current: 70A. Lowest measurable current: 10mA. Basic accuracy: 10mA to 1A: 1 percent + 5 mA, 1A to 5A: 1 percent. Useable frequency: 40 Hz to 5 kHz. Output levels: 400 mV/A. Input load impedance: greater than 1 mega ohm in parallel with up to 47 pF. Crest factor: less than or equal to 3, add 0.7 percent to accuracy. Safety: CAT III 600V per IEC/EN61010-1, Pollution Degree 2. Maximum voltage: 600V AC. Maximum conductor diameter: 15mm. Output cable length: 2.5m. With BNC adapter. Measures 116mm length by 43mm width by 23mm height.

EAN: 0095969308656

Package Dimensions: 8.5 x 5.0 x 4.4 inches
