Heavy-Duty Construction - A rugged slide designed for heavy loads, ensuring stability and durability in demanding applications
Versatile Positioning - Ideal for precise positioning, milling, drilling, microscope viewing, and staging operations
Dual Axis Travel - Offers 8 inches of longitudinal travel and 5 inches of transverse travel for comprehensive workpiece manipulation

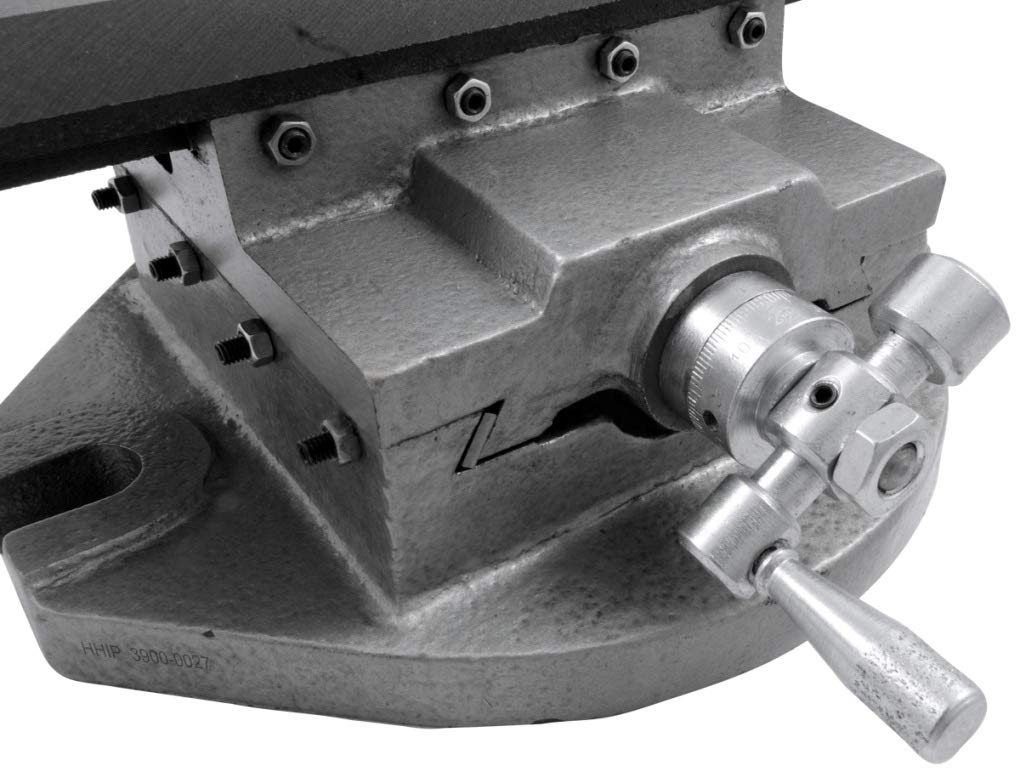

Adjustable Base - Features an adjustable base, perfect for small jig boring and precision cut-off operations, enhancing flexibility

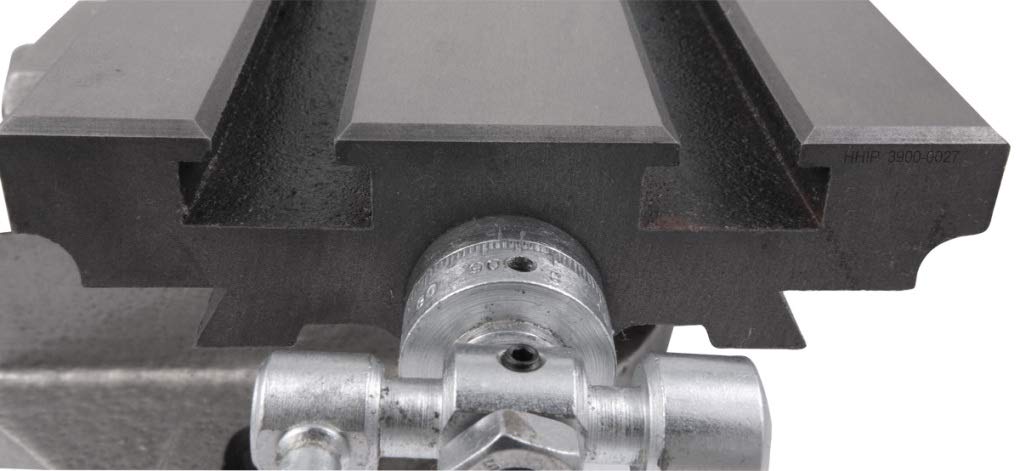

Optimized T-Slots - Equipped with 5/8 inch wide T-slots on 2-1/2 inch centers, providing secure clamping for various fixtures
model number: 3900-0027
Part Number: 3900-0027

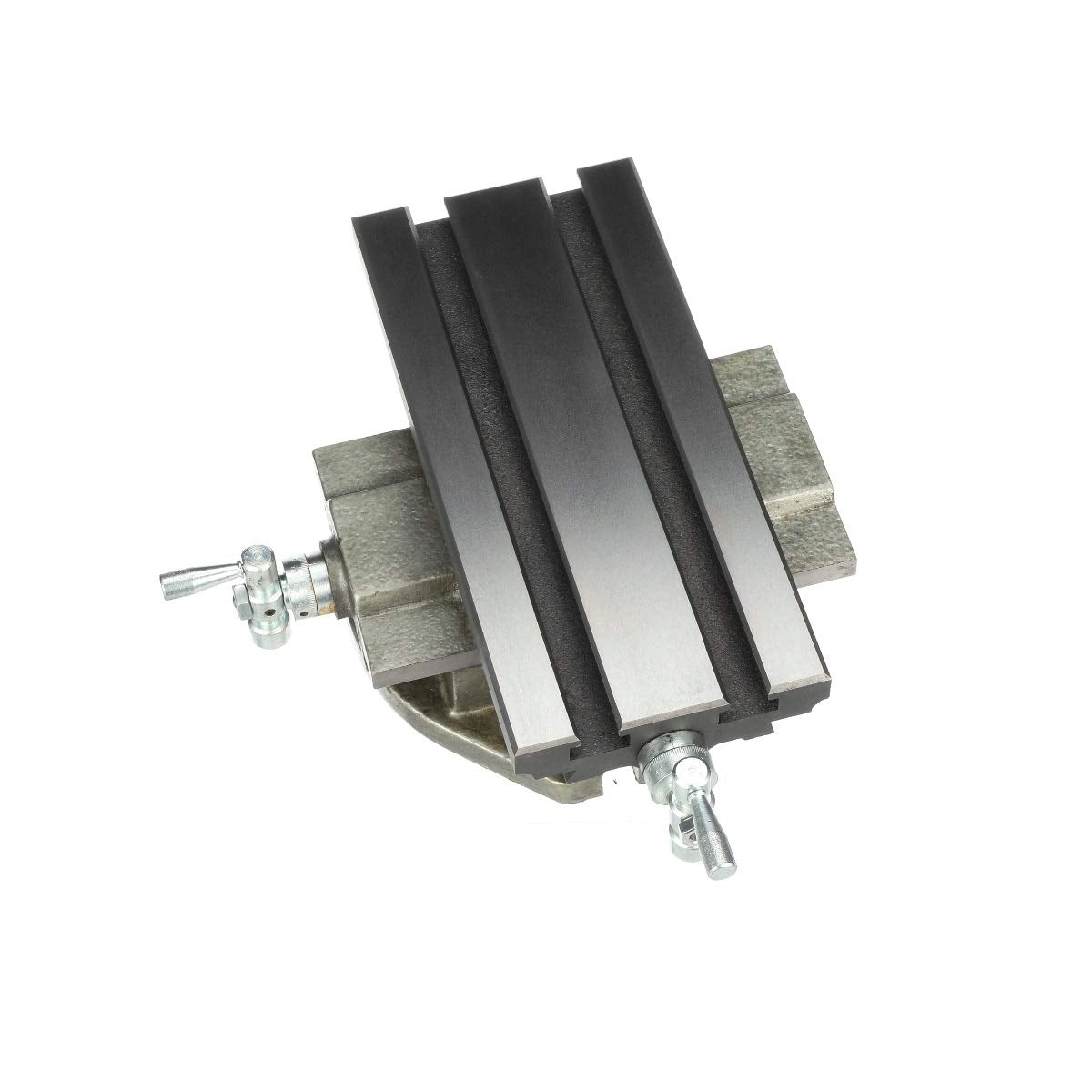

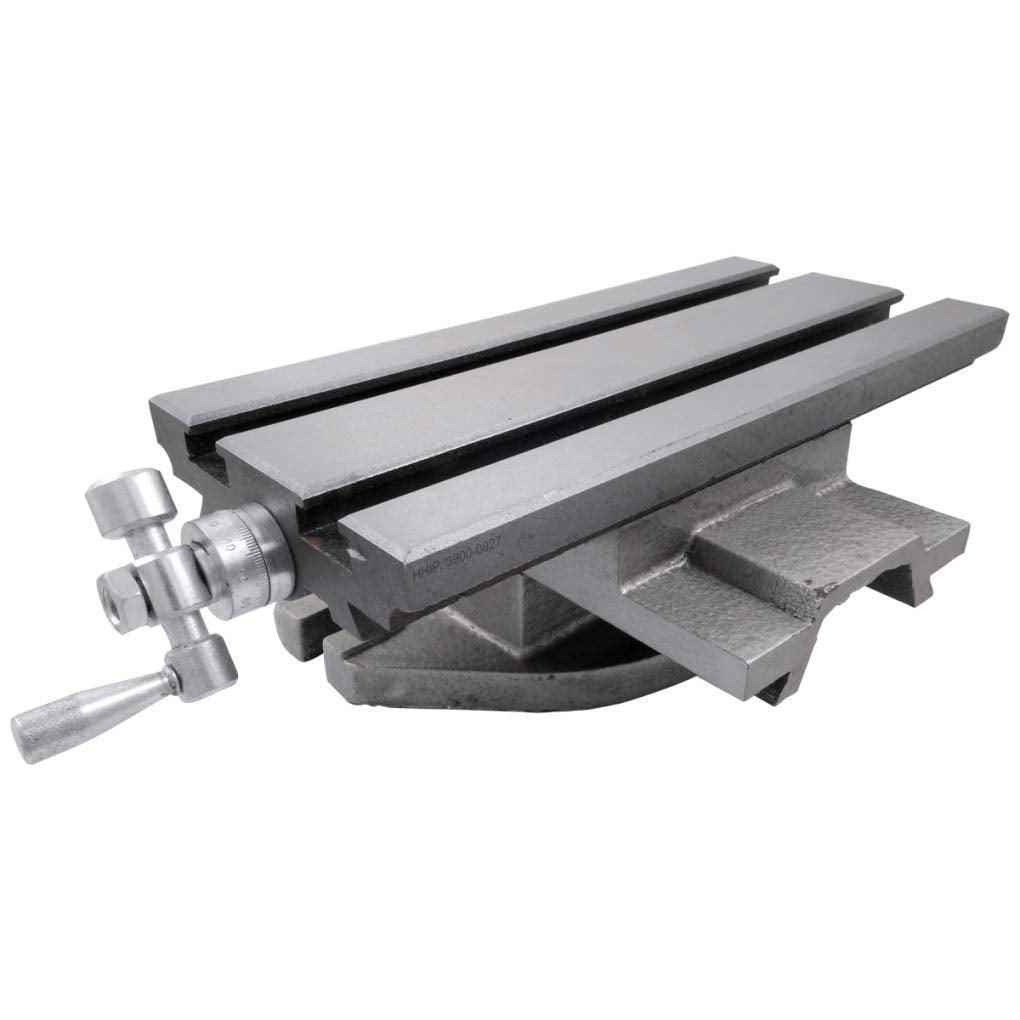

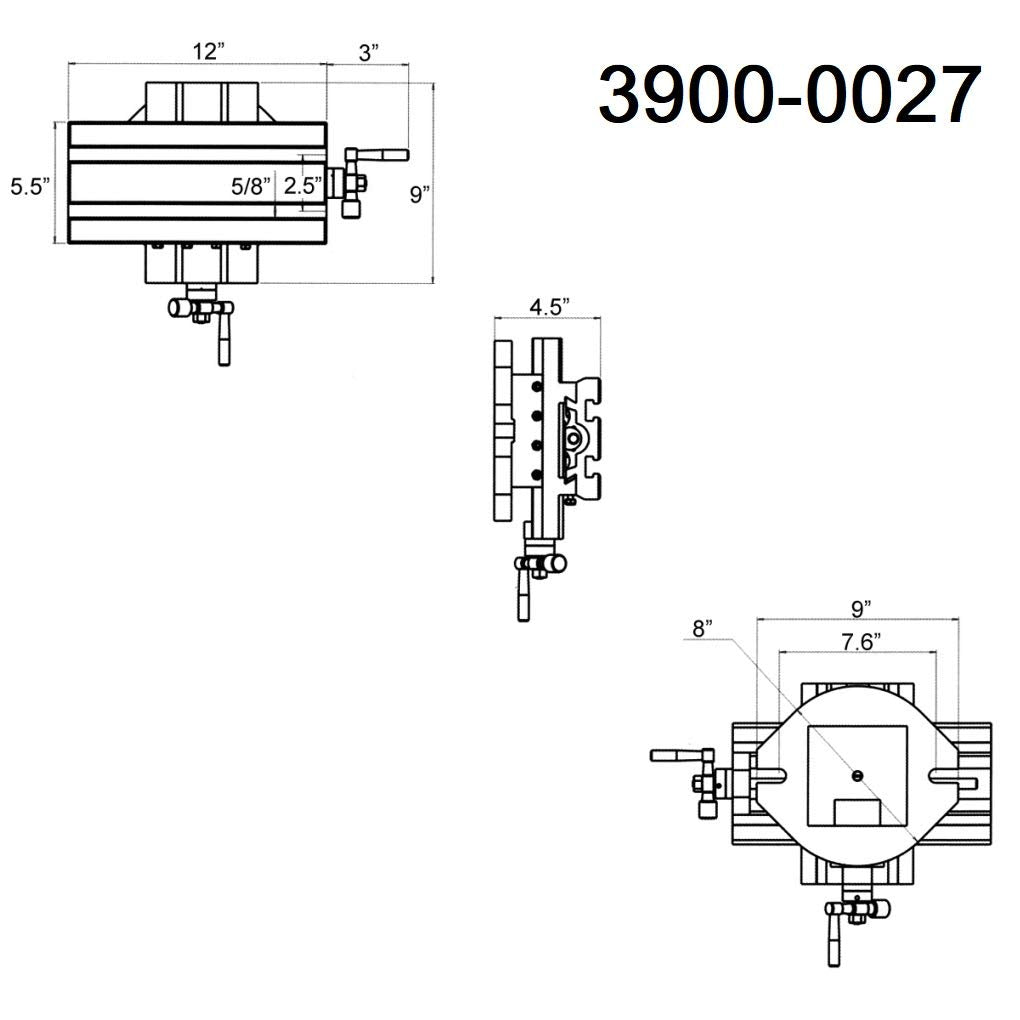

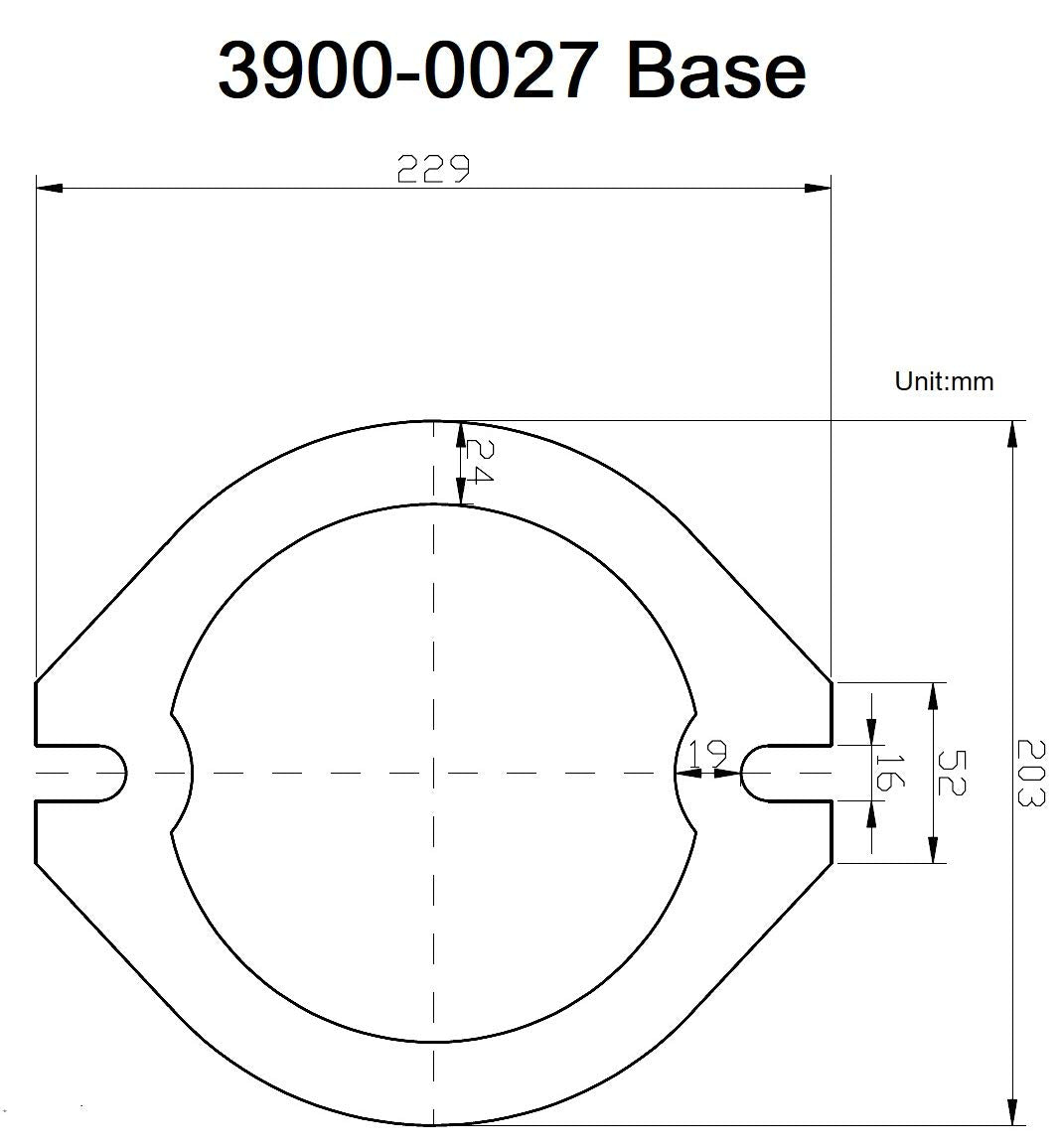

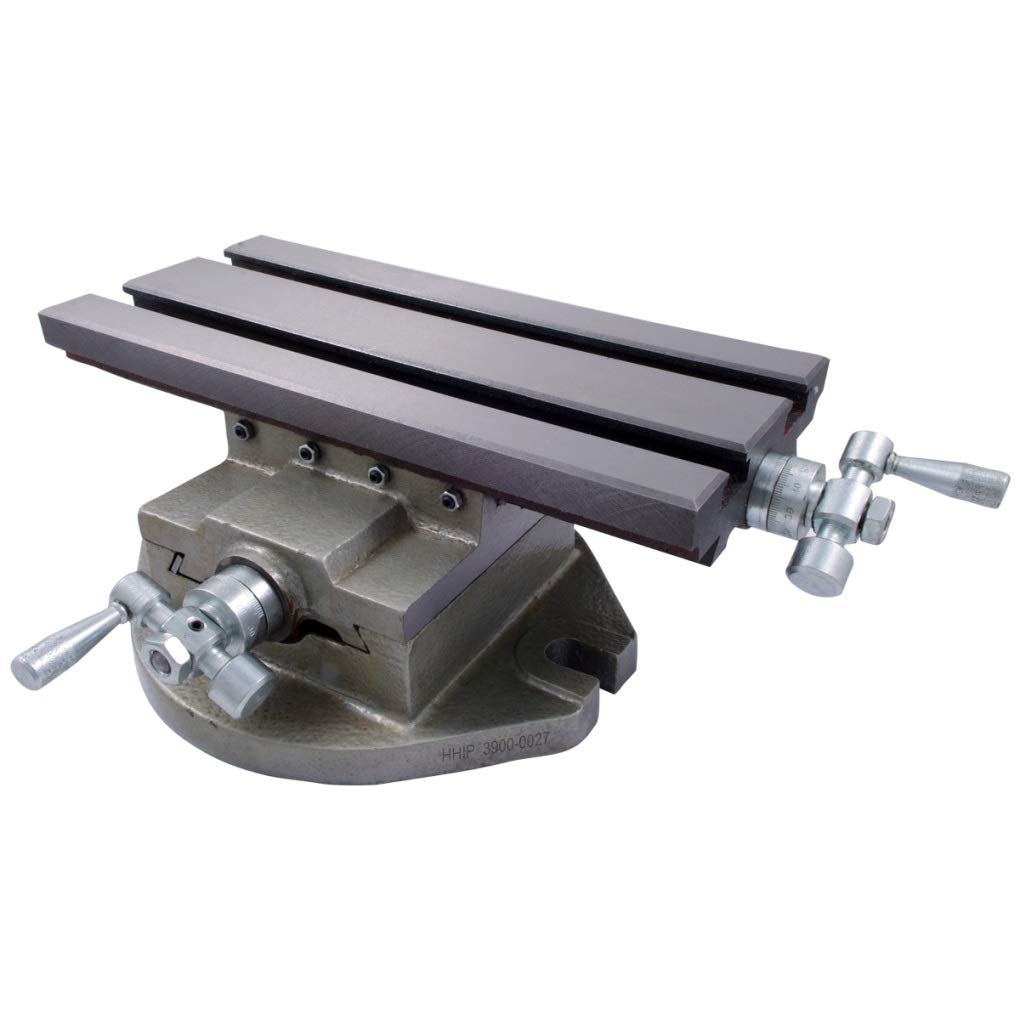

Details: HHIP 5-1/2 X 12" Compound Slide Table ~ A heavy, rugged slide used in positioning, milling, drilling, microscope viewing and staging. ~ Adjustable base for heavy loads, small jig boring, and precision cut-off operations. ~ T-slot width is 5/8". ~ T-slots are on 2-1/2" centers. ~ Overall height is 4-1/2". ~ Travel is 8" longitudinal and 5" transverse. ~ The base is an 8 X 9" oval with u-slots for up to 5/8" bolts on a 7-3/4" to 8-1/2" bolt circle. ~ Maximum moving is 9-3/4".
