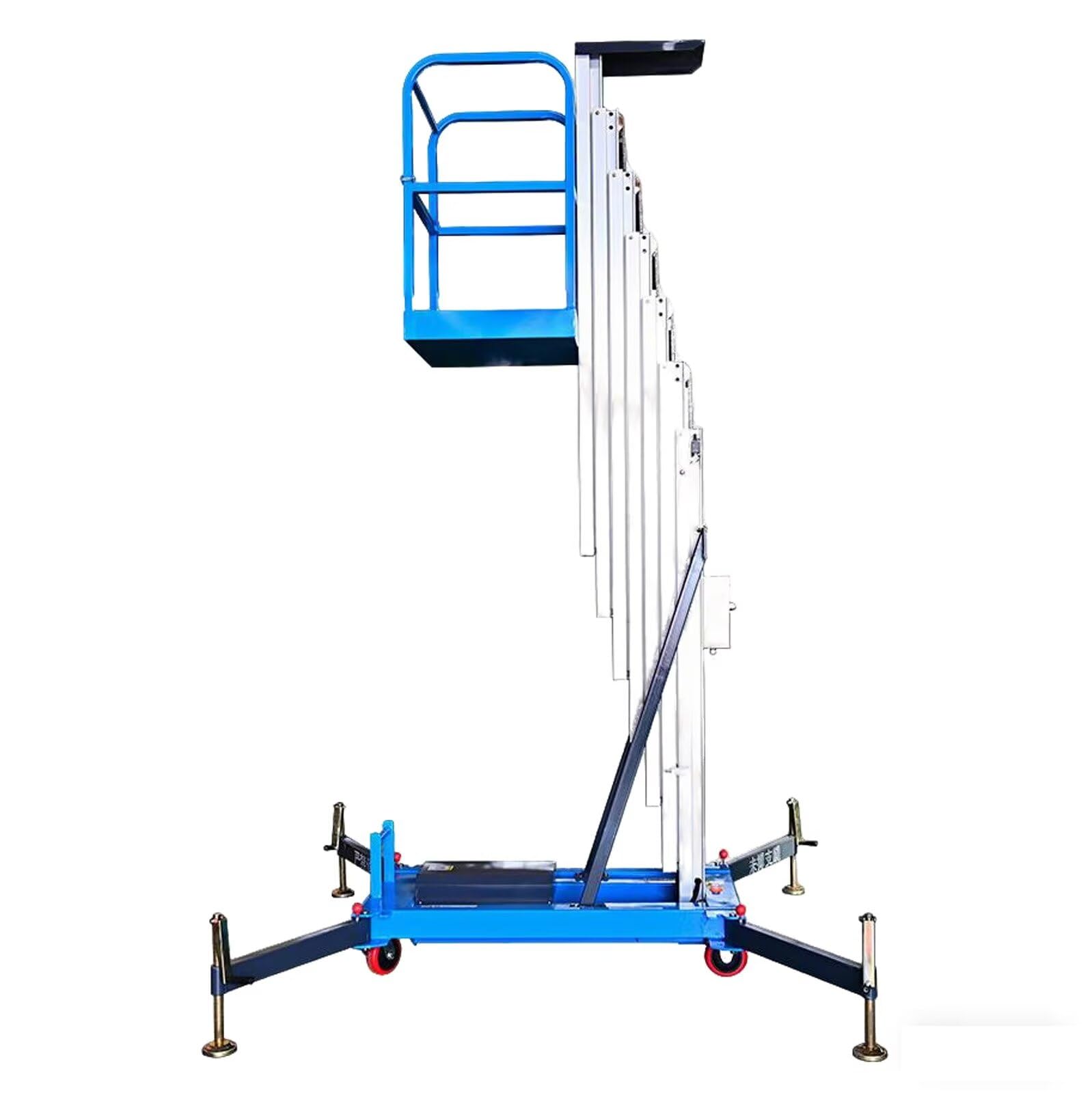

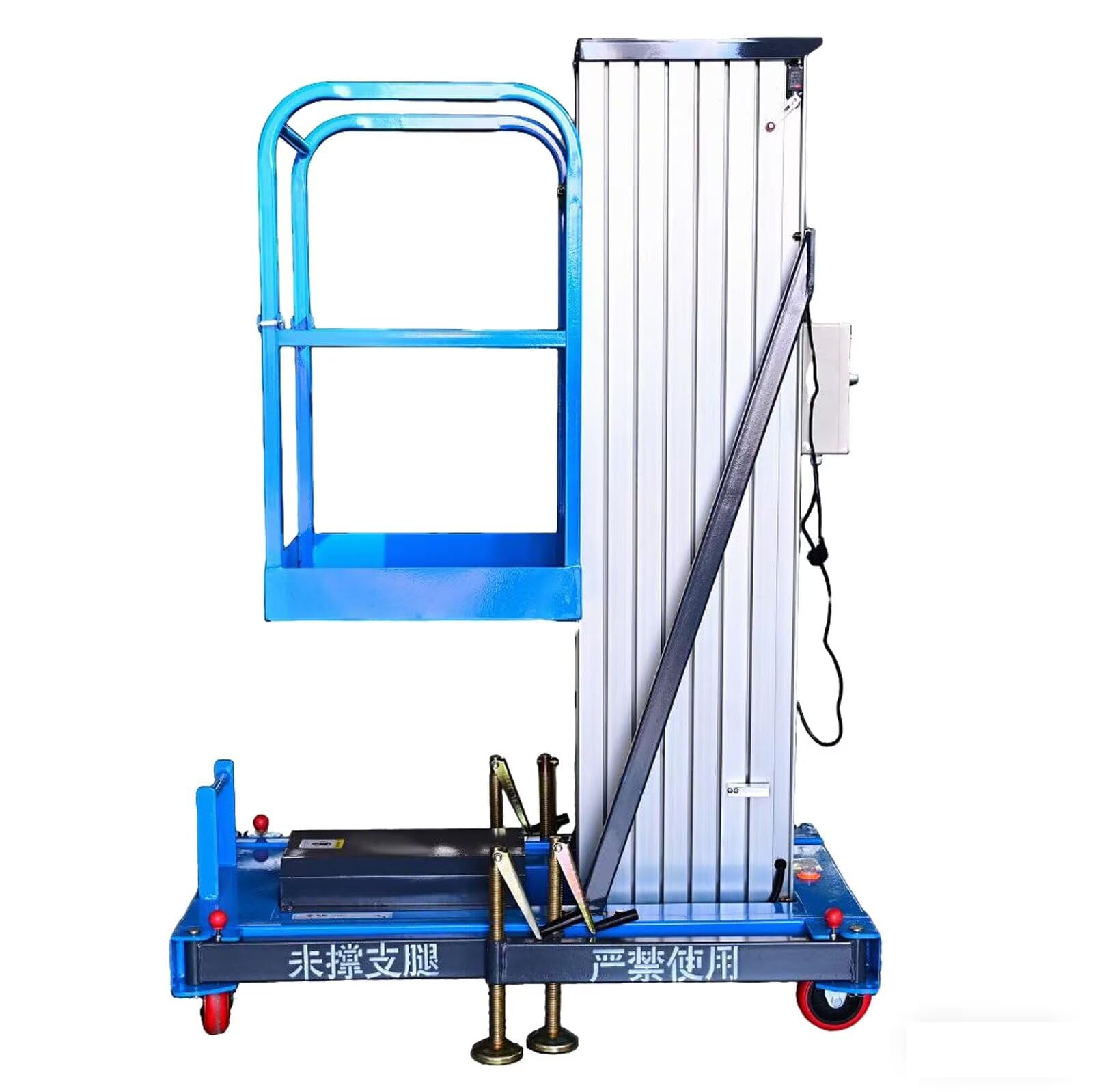

JIN YANG HU Aluminum Alloy Lifting Platform supports customized colors, sizes, and other details; please provide information before customization.

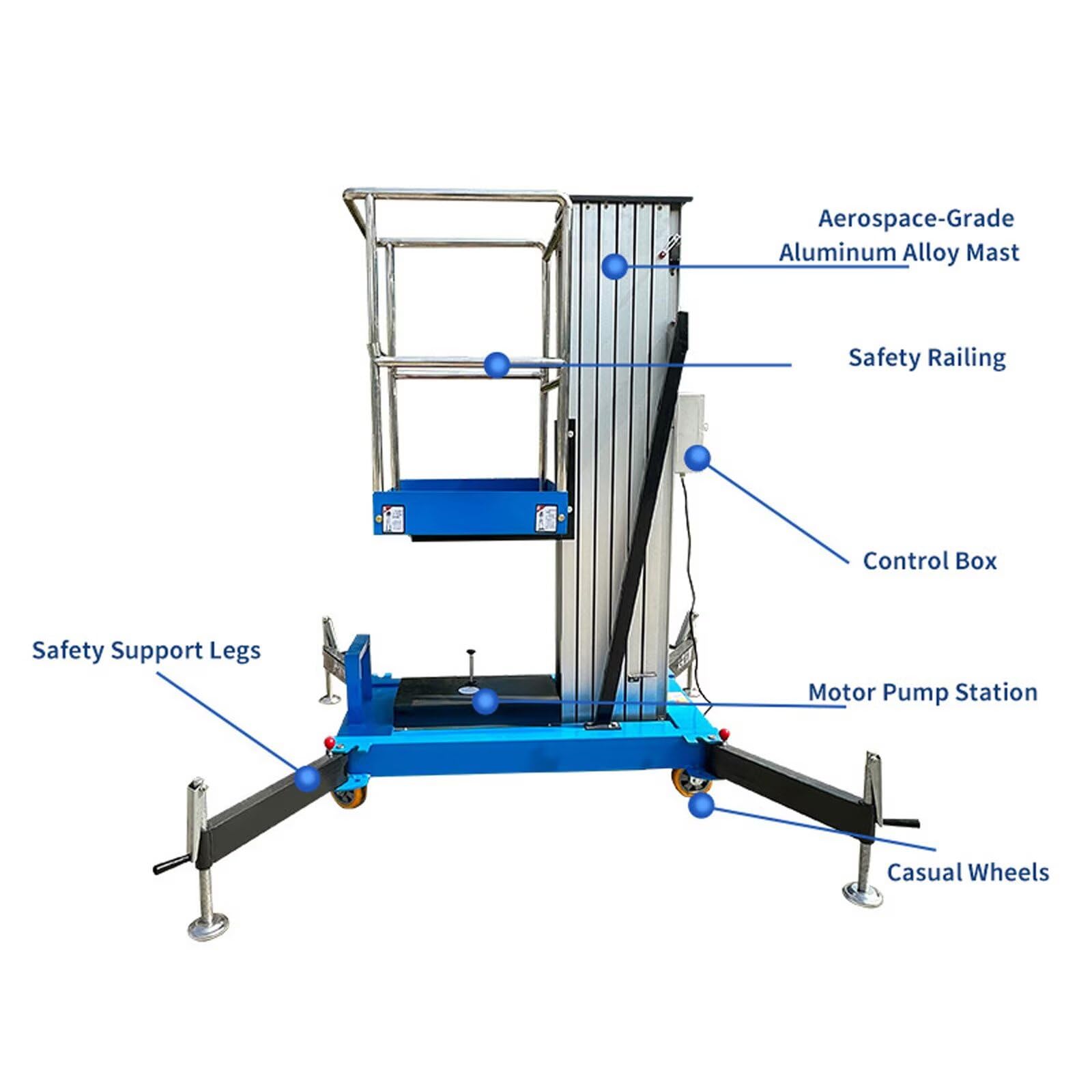

Material: Made of lightweight aviation aluminum alloy, it is easy to move; the surface naturally forms an oxide film, eliminating the need for additional painting for rust prevention.

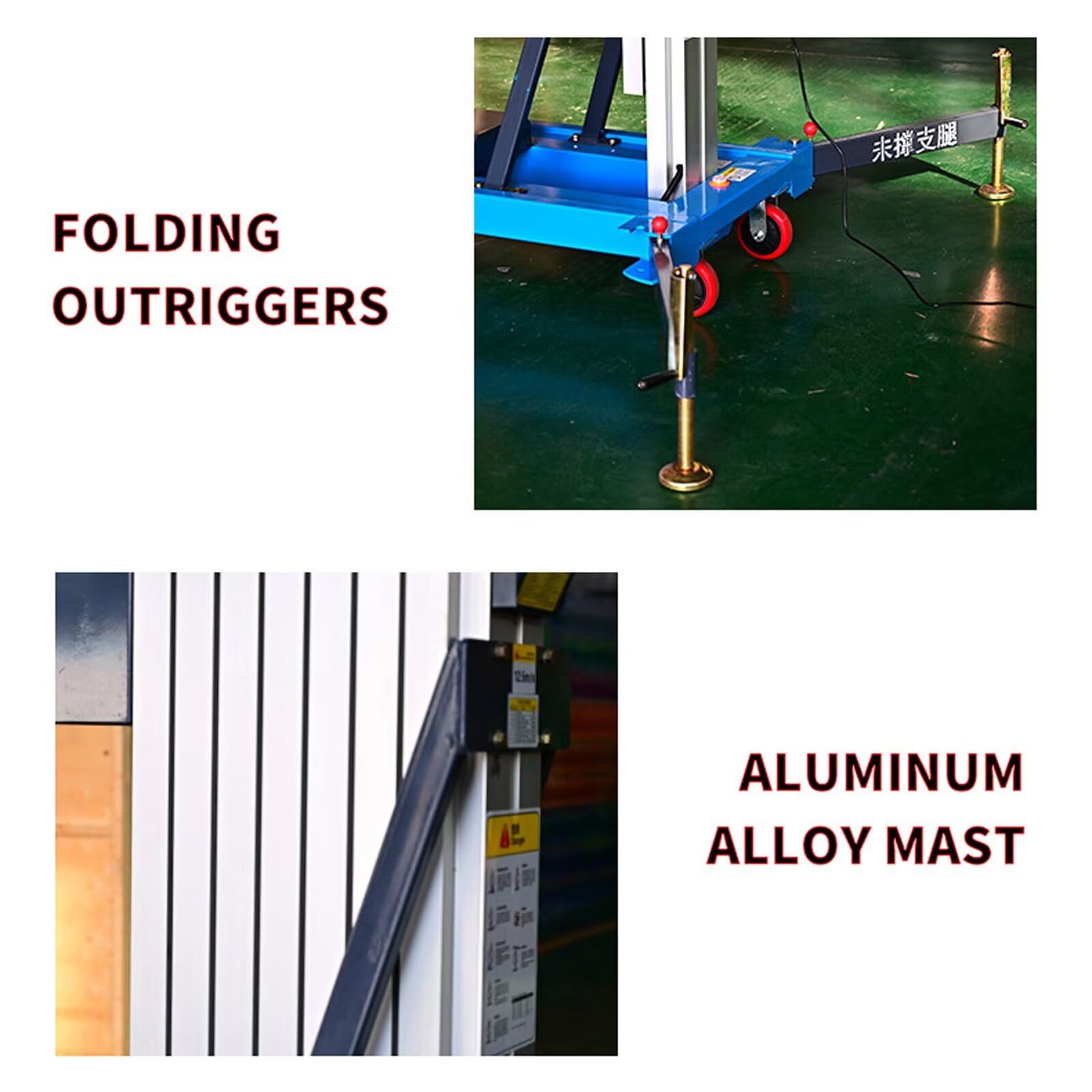

Folding Design: Utilizes hydraulic or electric screw drive for uniform lifting speed and is equipped with a manual descent emergency device.

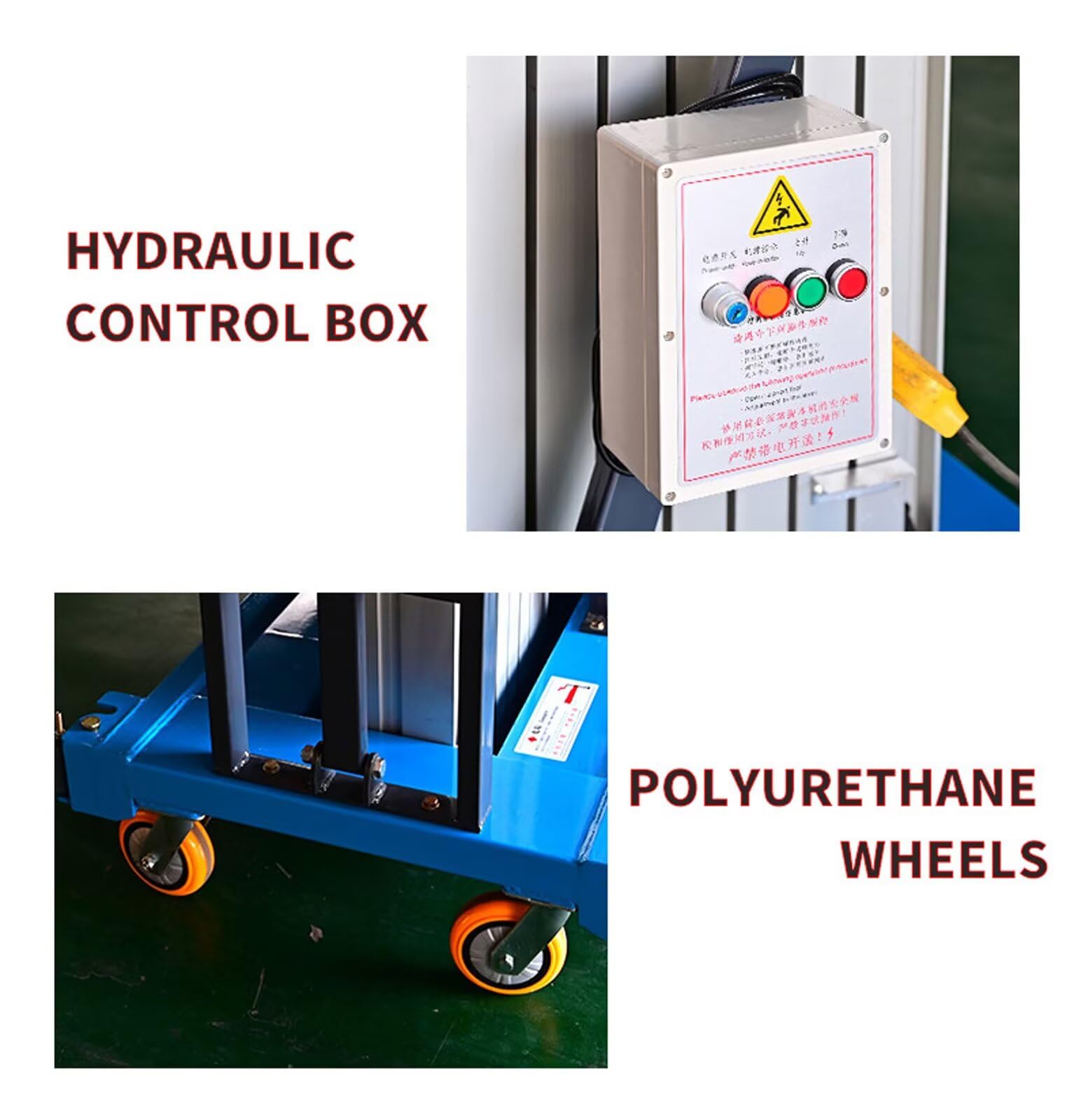

Easy Operation: The control panel is simple, requiring only buttons to control lifting, starting, and stopping; no professional training is needed to operate it.
Flexible Applications: Its narrow body allows for flexible movement in confined spaces (such as workshop aisles and stairwells), and can be used for high-altitude installation of lighting fixtures, billboards, doors and windows, stage equipment, IV stands, etc.
model number: GTWY4-100A
Part Number: GTWY4-100A

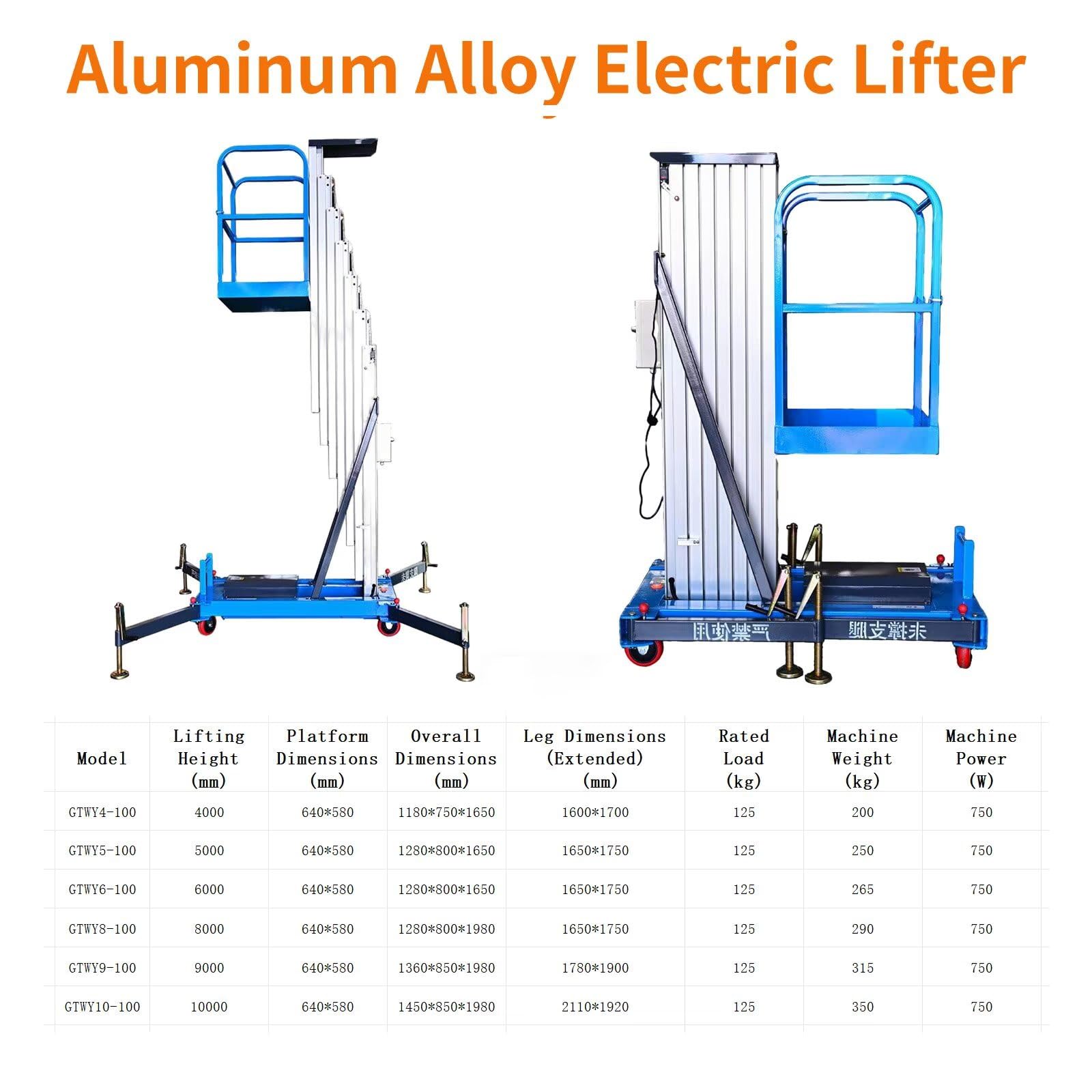

Details: Product Specifications
Model: GTWY4-100A

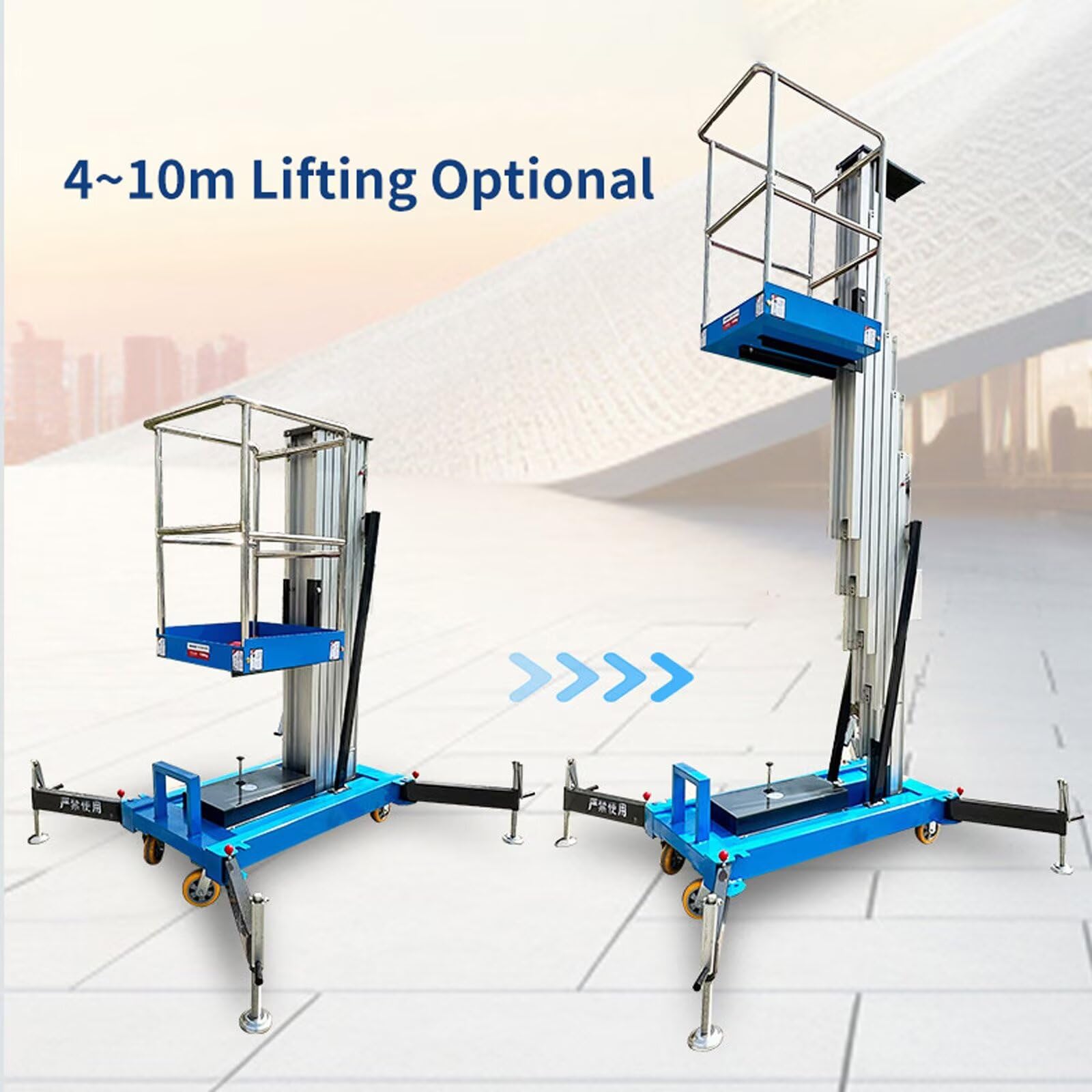

Working Height: 4 meters / 13.1 feet
Rated load: 125 kg / 275 lbs
Platform Dimensions: 640*580mm
Base Distance from Ground: 80mm
Mobility: Manual
Voltage: 110V
Customization Time: 7-10 days
Assembly Required: Yes
Customizable Details: Yes
Customizable Options: Color/Height/Wheel Type/Voltage/Power Supply, etc.
Packaging Type: Wooden Crate
