Jonard Tools FPL-5050S Mini Fiber Optic Power Meter & Light Source Kit, Single Mode 1310/1550nm, Optical Loss Tester, Built-in VFL, RJ45 Cable Tester

Brand: Jonard Tools

Features:

• COMPLETE FIBER TESTING KIT: Combines optical power meter and light source for accurate end-to-end fiber loss testing in one portable solution
• SINGLEMODE 1310/1550NM TESTING: Supports dual wavelengths for precise measurement of signal strength and attenuation in fiber networks

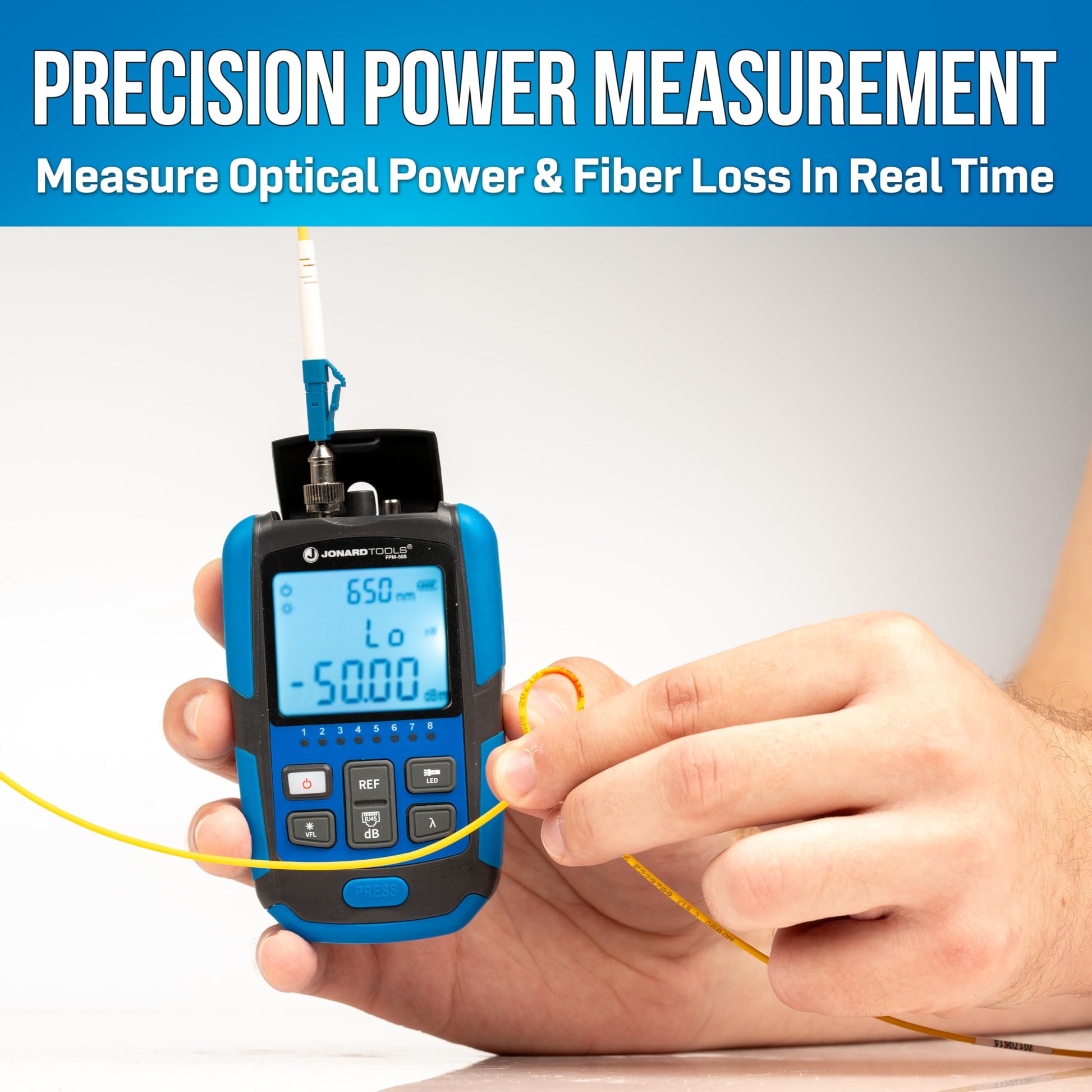

• HIGH-ACCURACY POWER MEASUREMENT: Measures absolute power and relative loss with wide wavelength range (800–1650nm) and 0.01 dB resolution
• BUILT-IN VFL & MULTI-FUNCTION FEATURES: Includes visual fault locator and RJ45 cable testing for fast troubleshooting and verification

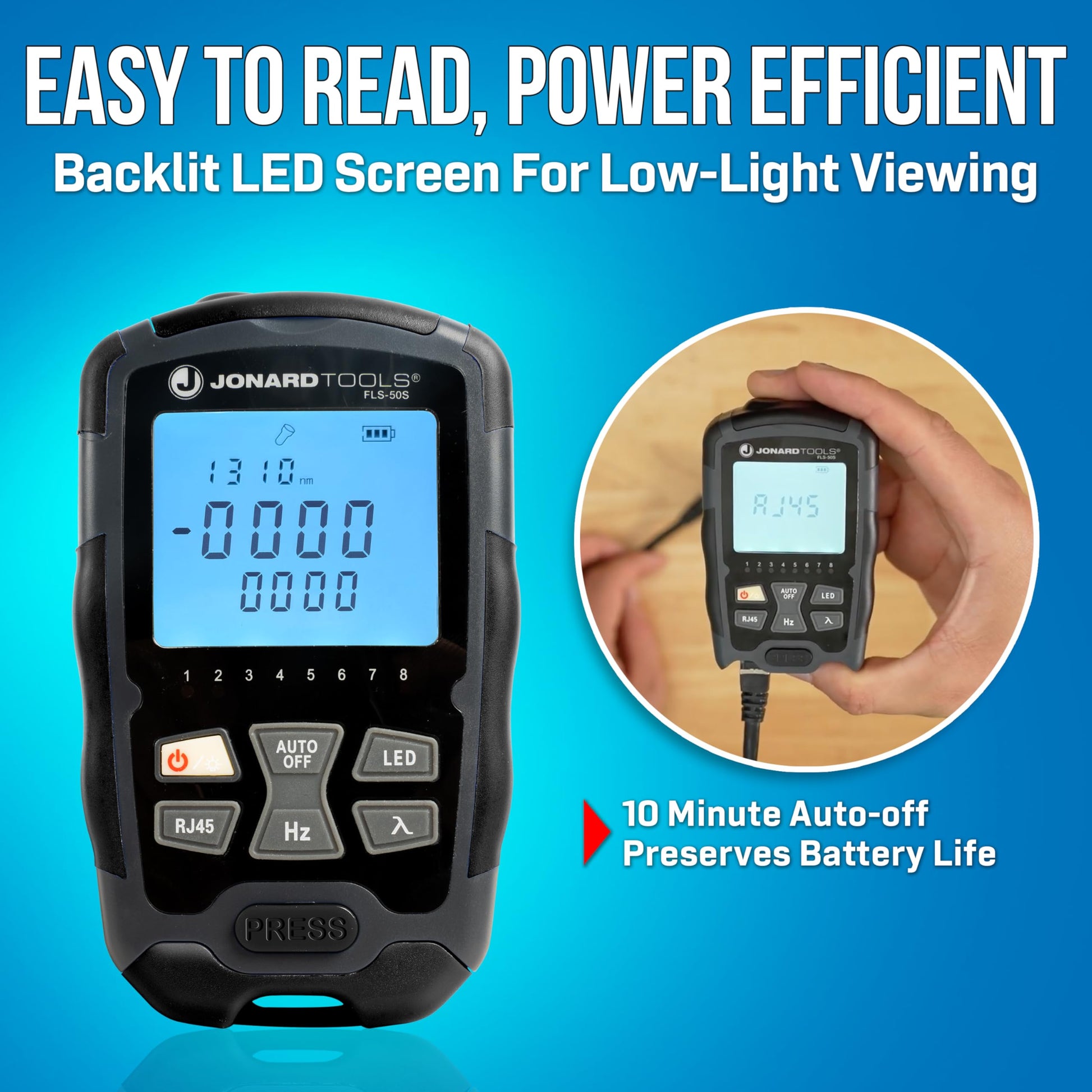

• PORTABLE FIELD-READY DESIGN: Compact unit with backlit displays, auto-off function, and stable output for reliable use in the field

model number: FPL-5050S

Part Number: FPL-5050S

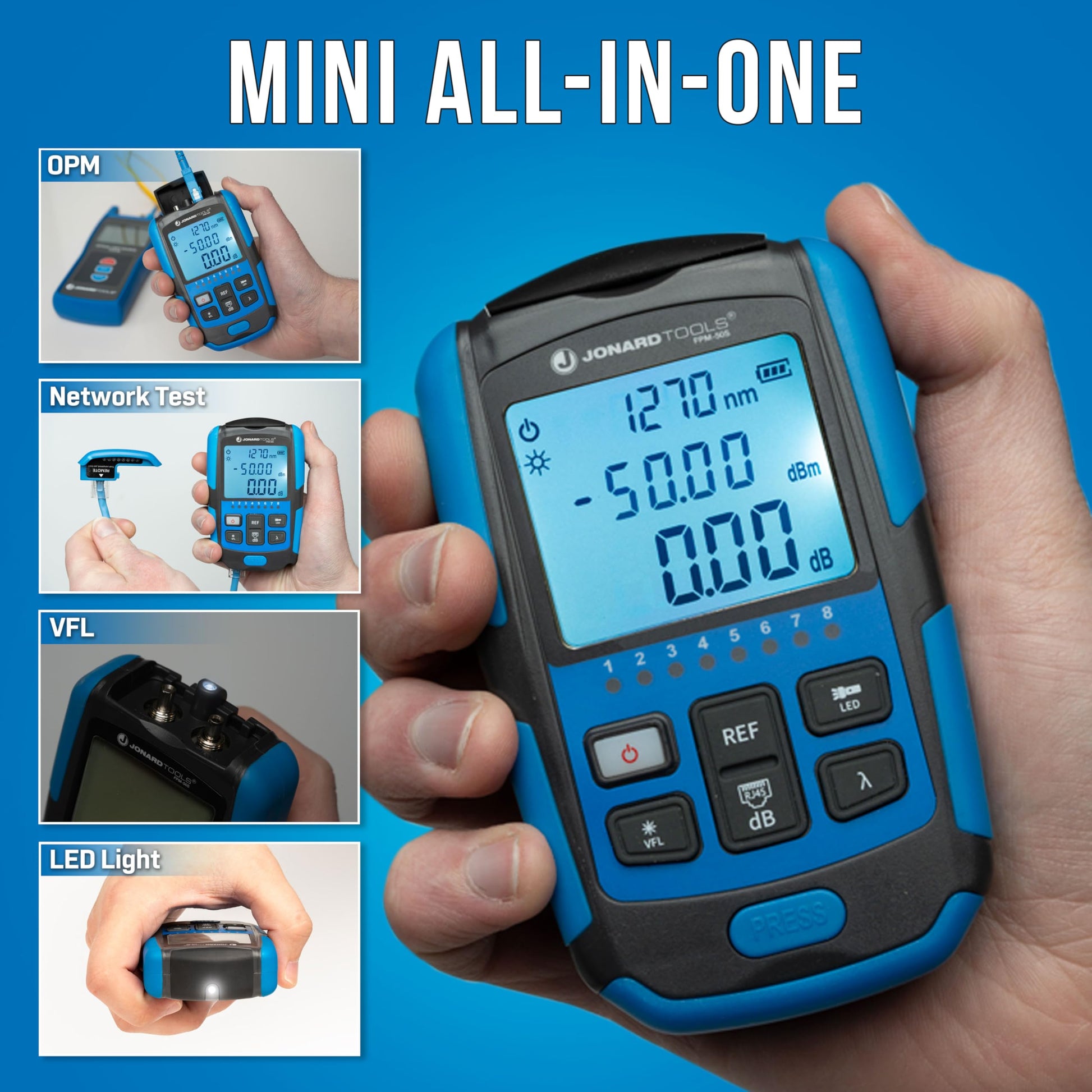

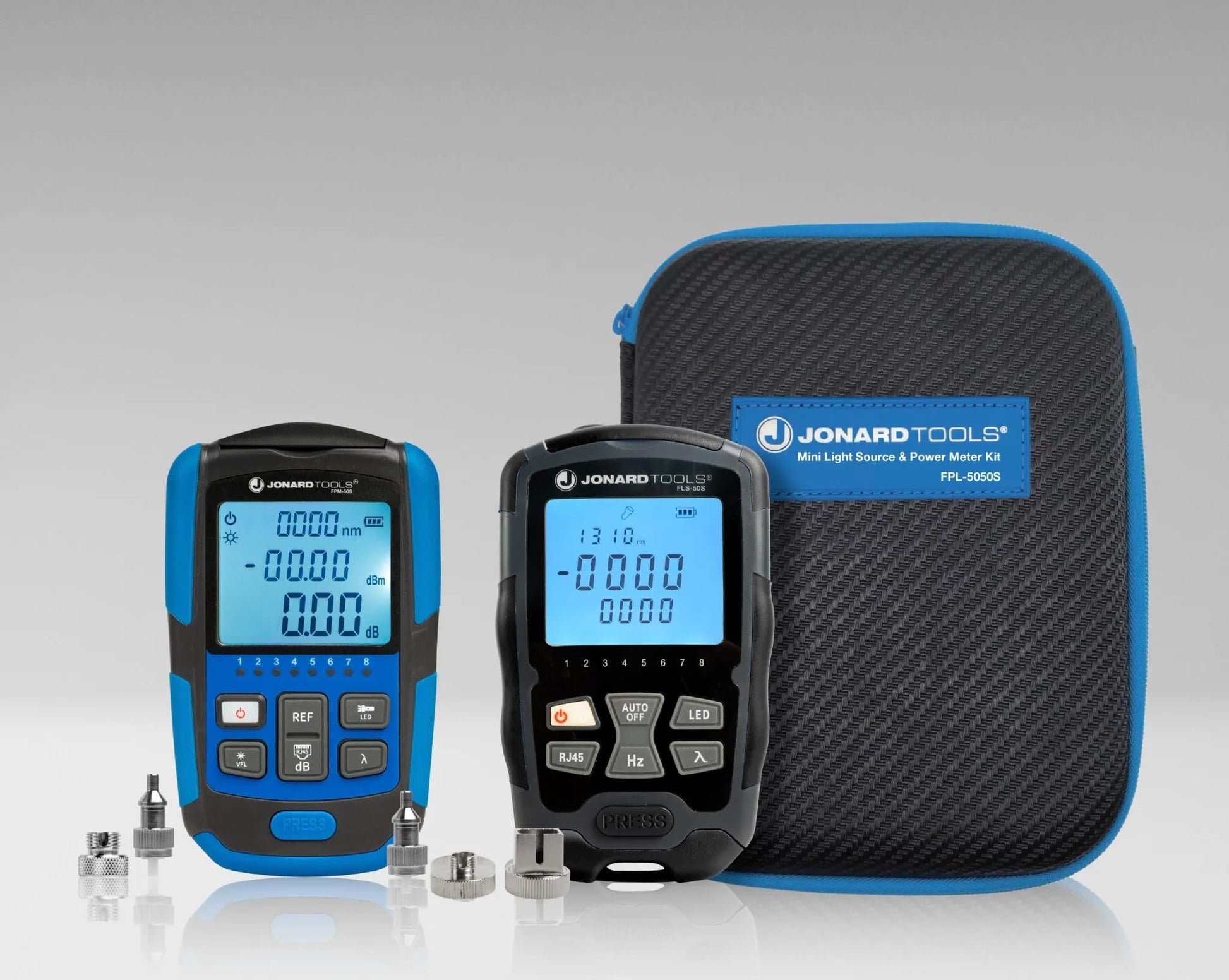

Details: Jonard Tools FPL-5050S Mini Fiber Optic Power Meter & Light Source Kit is a compact, all-in-one solution for testing and troubleshooting fiber optic networks.

This kit combines a mini optical power meter with a stable light source, allowing technicians to measure signal strength and calculate optical loss with precision.

Designed for singlemode fiber applications, it supports 1310nm and 1550nm wavelengths for accurate end-to-end testing.

The power meter features a wide detection range from 800nm to 1650nm with high-resolution readings, ensuring reliable performance across various fiber systems.

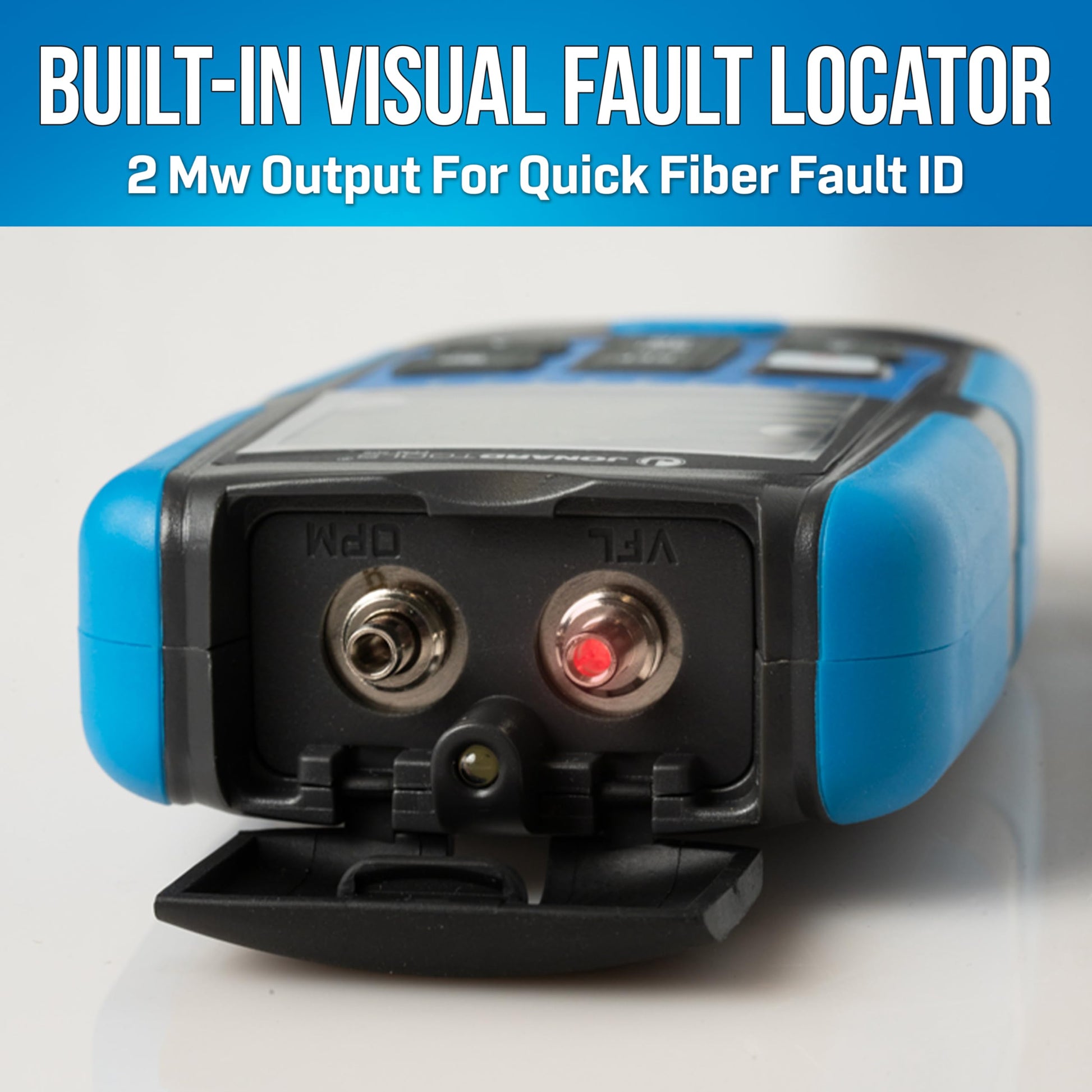

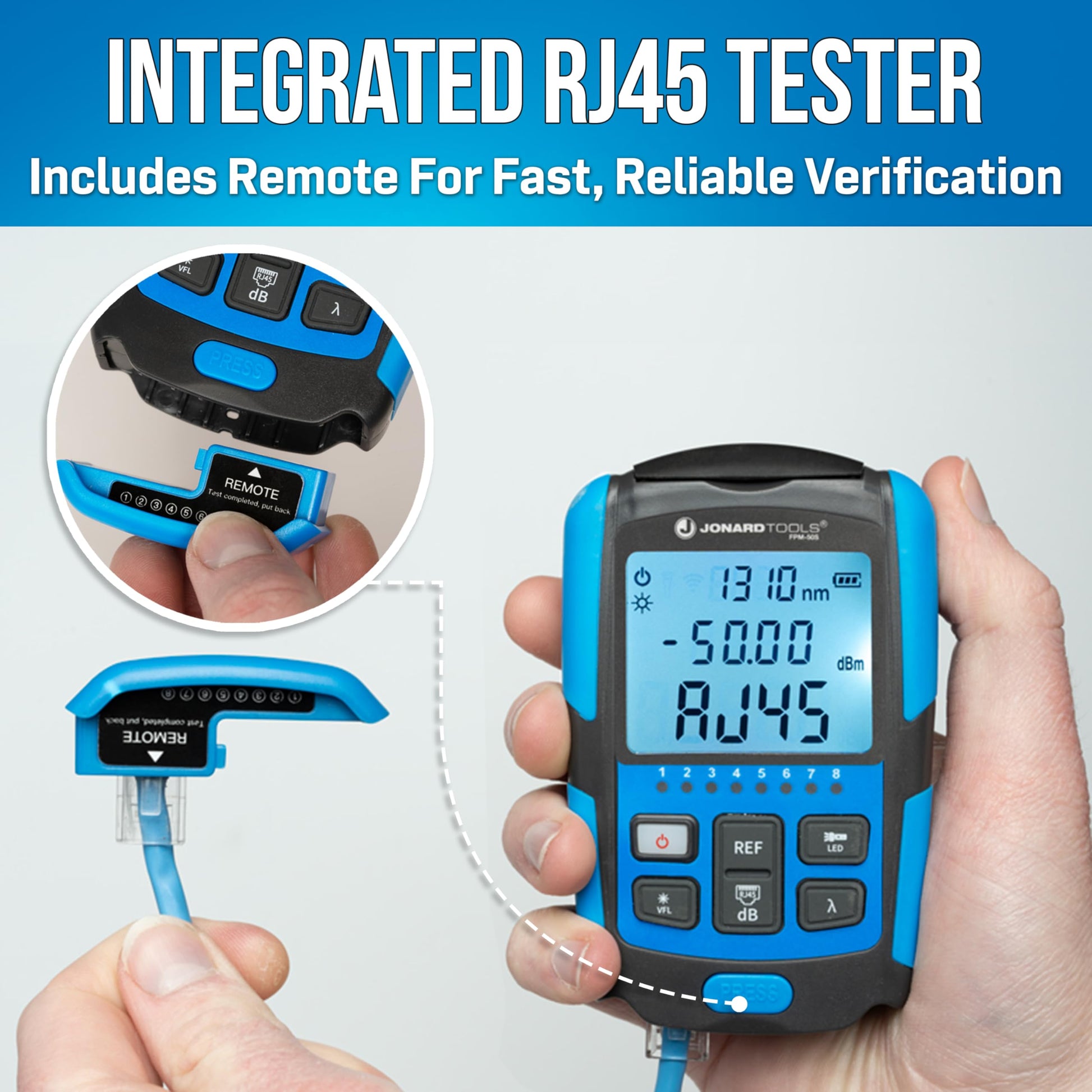

A built-in visual fault locator helps quickly identify fiber breaks and faults, while integrated RJ45 cable testing adds extra versatility for network technicians.

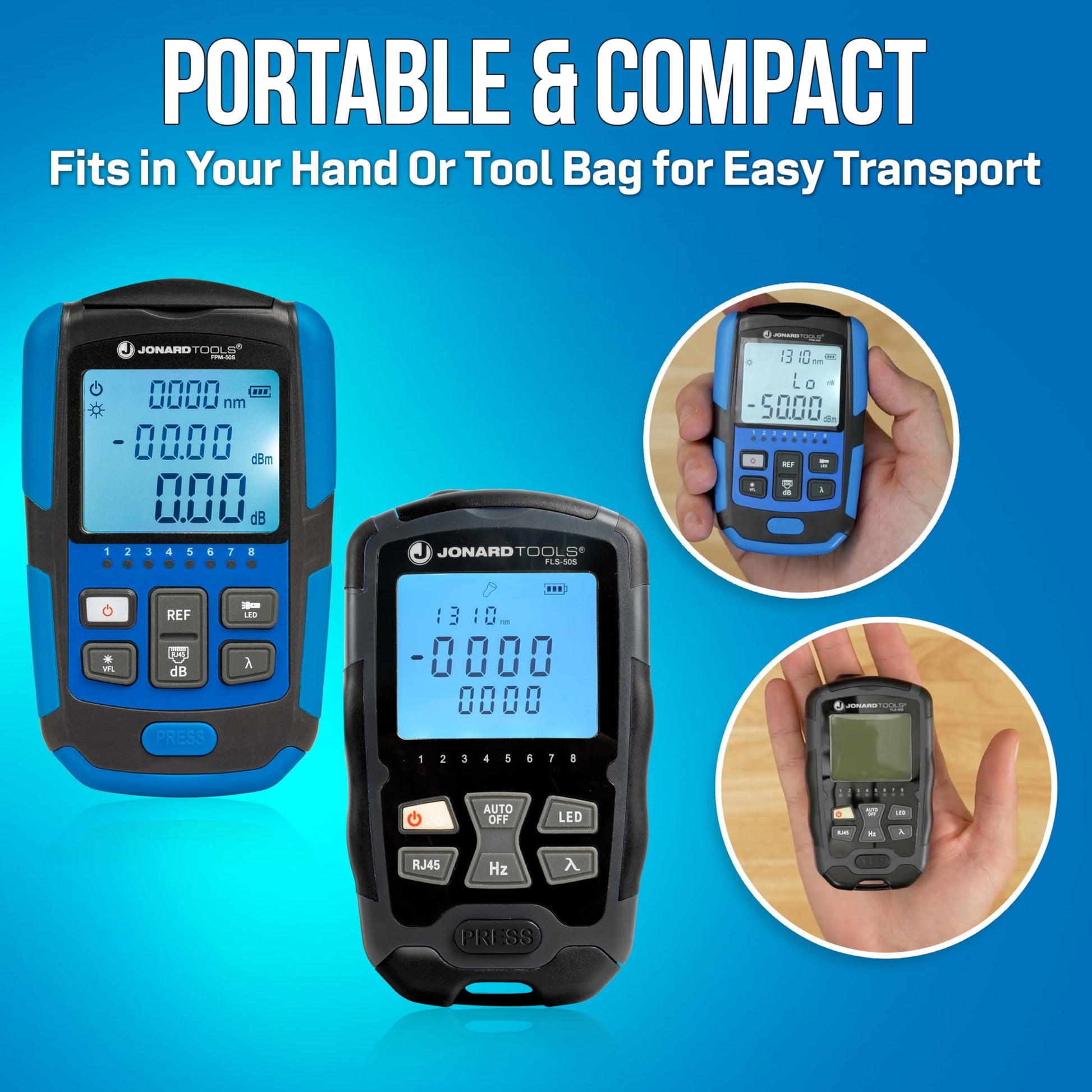

With a compact, portable design, backlit displays, and multiple modulation modes, this kit is ideal for field use in telecom, FTTH, and data network installations.

EAN: 0810132439667

Package Dimensions: 10.4 x 7.6 x 3.4 inches
