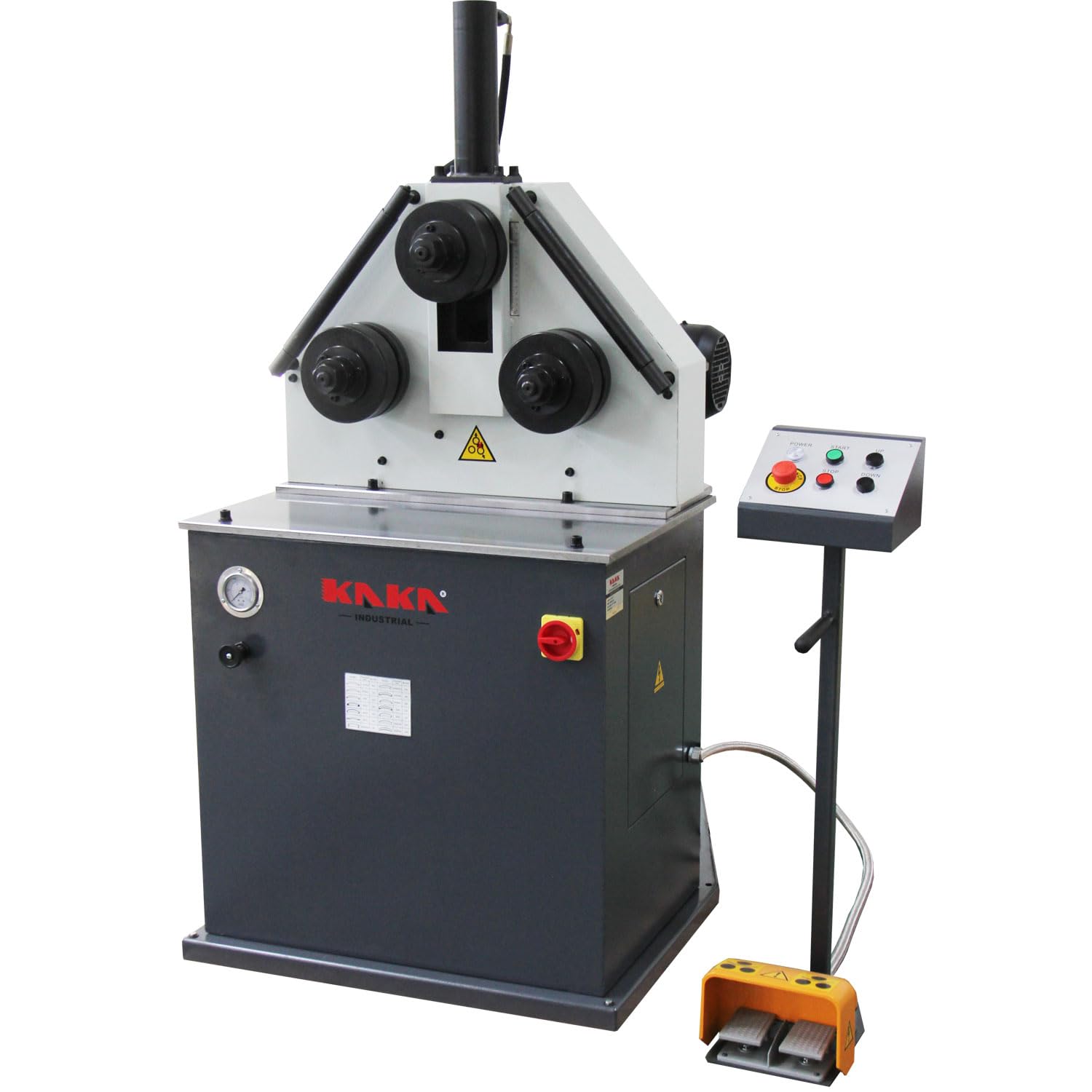

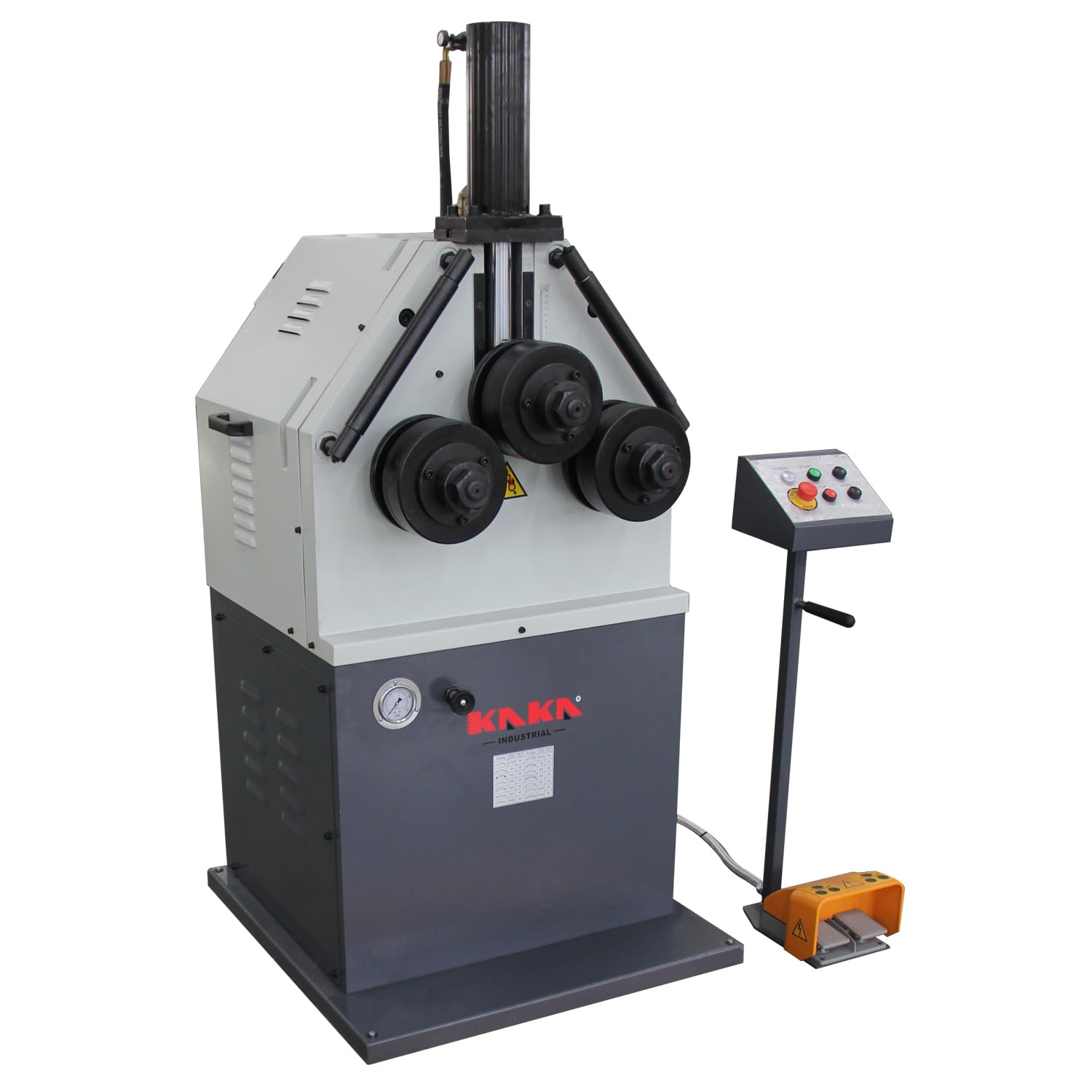

KAKA Industrial Roll Bending Machine- Heavy Duty Hydraulic Profile Bender for Steel Pipe,3HP Heavy Duty Bender for 2.4 inch Flat Bar, 1.4 inch Round Tube & 2 inch Square Bar | 220V 3-Phase HRBM-50HV

Brand: KAKA INDUSTRIAL

Color: Grey

Features:

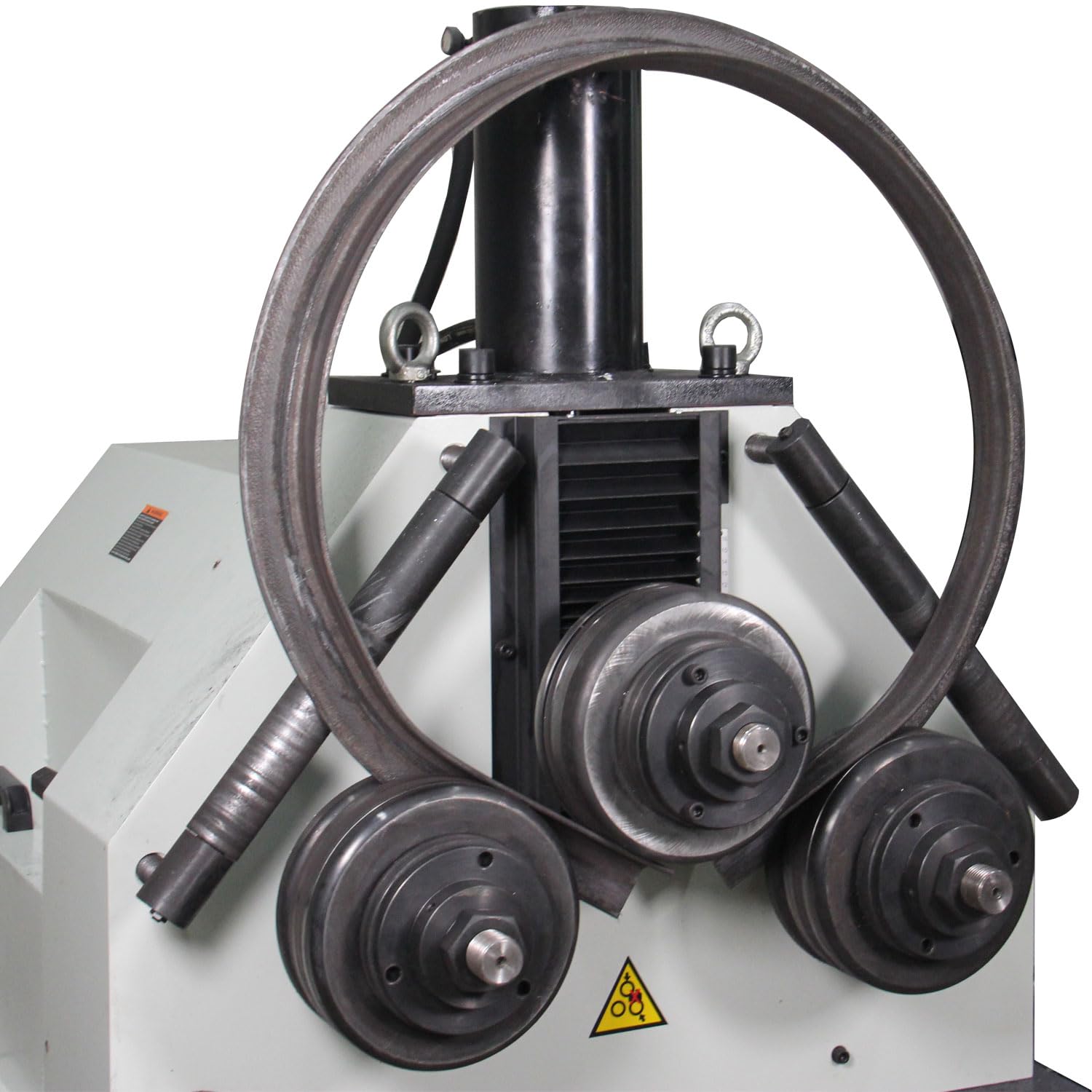

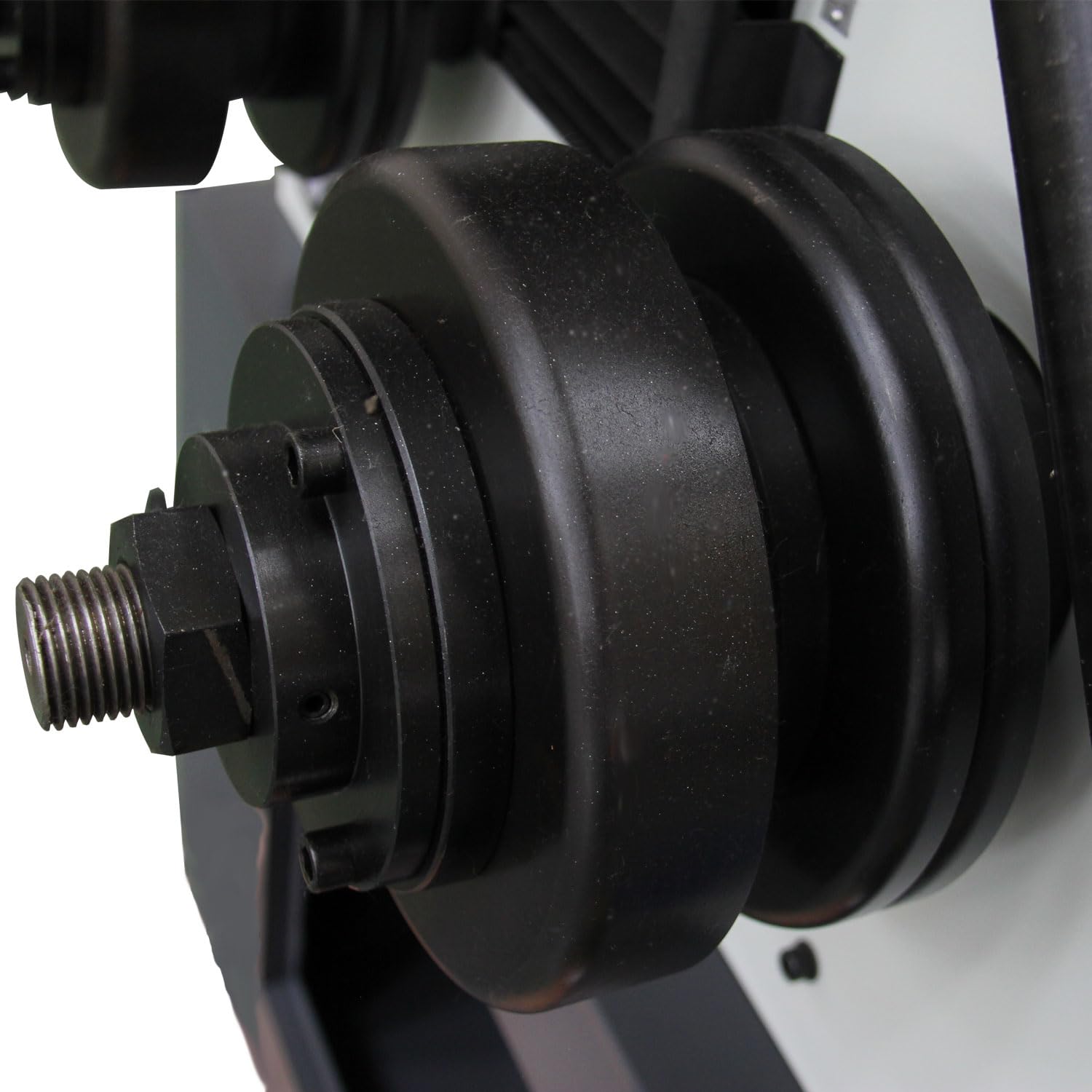

• HEAVY-DUTY HYDRAULIC BENDING CAPACITY​ - Powered by a ​3HP (2.2kW) hydraulic motor​ with ​ø2" (ø50mm) hardened steel rollers. Bends profiles including ​2.4"x0.4" (60x10mm) flat bars, ø1.4" (ø35mm) round bars, and 2"x2"x0.12" (50x50x3mm) square tubes​ with minimum bending diameters as tight as ​500mm.

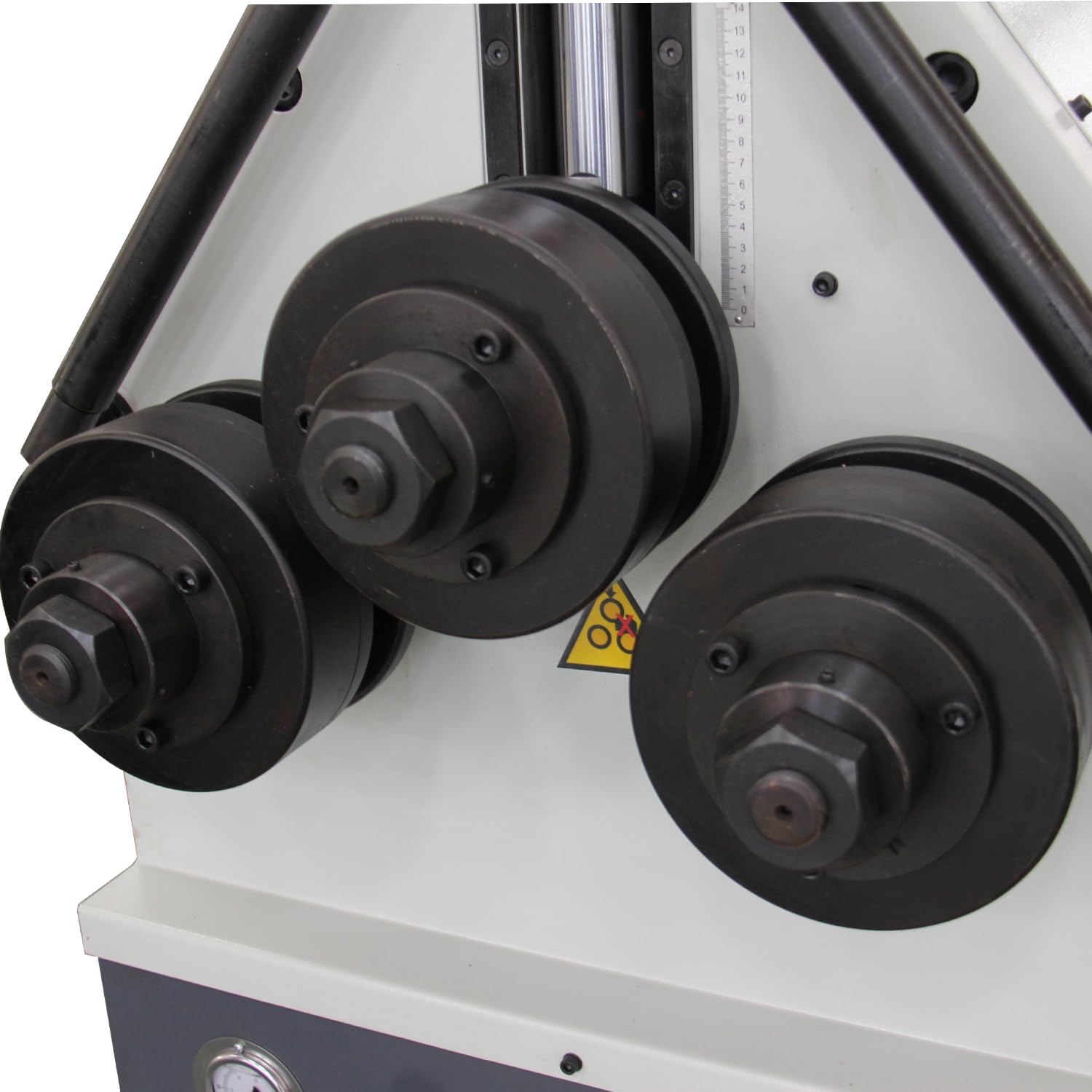

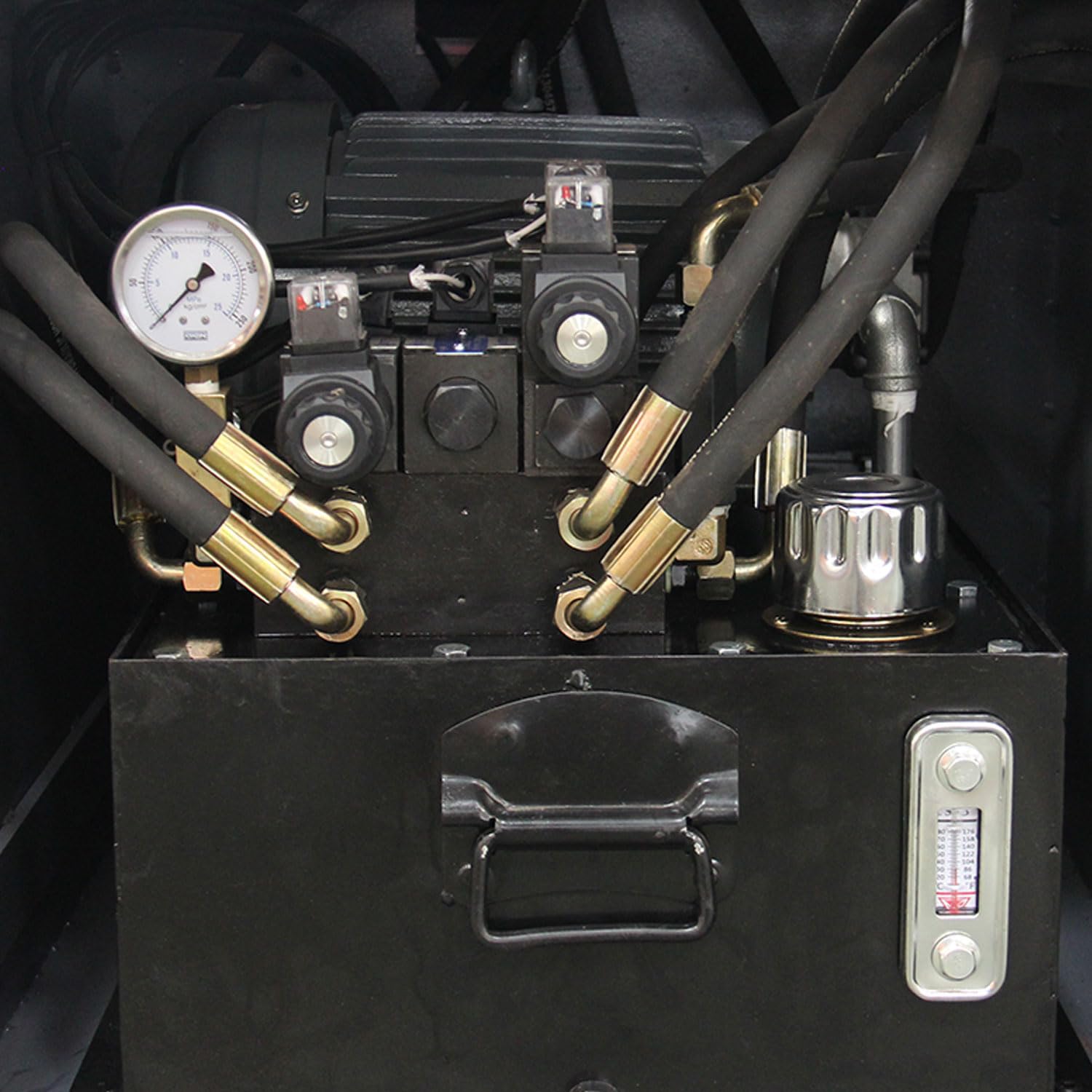

• PRECISION ROLLER SYSTEM & DUAL OPERATION​ - Features three powered rollers with hydraulic control system. Supports both ​horizontal and vertical operation​ for bending long beams, wide plates, pipes, and complex profiles. Standard spindle speed of ​9 r/min @50Hz.
• EXTENSIVE PROCESSING CAPACITY​ - Handles diverse profiles per technical specs: Flat bars: 2.4"x0.4" (60x10mm) - Min dia. 500mm Angle steel: 2.4"x0.4" (60x10mm) - Min dia. 1150mm Square tubes: 2"x2"x0.12" (50x50x3mm) - Min dia. 800mm
• INDUSTRIAL CONSTRUCTION & DESIGN​ - Built with heavy-duty steel frame supporting ​1135lbs (515kg) net weight. Compact packaging ​48"x32"x71" (122x82x180cm)​​ fits workshop spaces. Gross weight ​1433lbs (650kg)​.
• SPECIAL ROLLER CUSTOMIZATION​ - Optional rollers available for specific profiles from ​13"x0.08" to 2.8"x0.08" (330x2mm to 70x2mm)​. Ideal for metal workshops, construction, and automotive fabrication.
• VERSATILE INDUSTRIAL APPLICATIONS​ Ideal for metal workshops, construction sites, and automotive fabrication Suitable for HVAC ductwork, structural steel bending, and custom metalworking Processes various materials including steel, aluminum, and stainless steel
• Please be expecting a phone call from the freight carrier to schedule your delivery appointment. Please note that someone must be present at the delivery address to receive the shipment and sign for it. If your address is a residential location, we strongly recommend requesting a liftgate service for your delivery, as the truck will not have a loading dock.

model number: Roll Bender Ring Roll Machine

Part Number: 191023V230V460

EAN: 0720314477946
