Little Giant 1-ABS 115-volt, 1/150 HP, 205 GPH Automatic Shallow Pan Condensate Removal Pump for Ceiling Mounted Air Conditioners or Dehumidifiers, Black/Blue, 550521

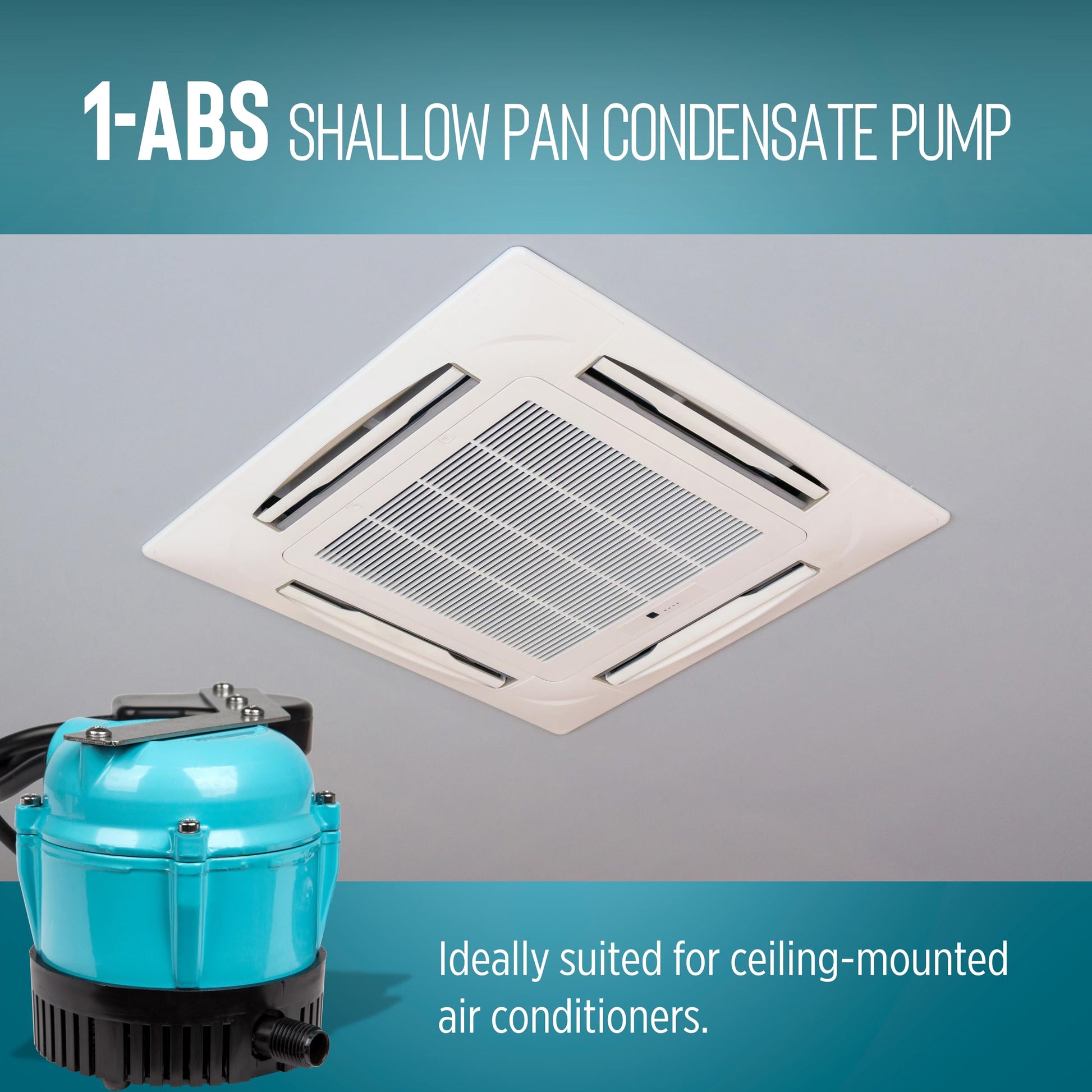

APPLICATIONS: ideal for shallow pan condensate removal from ceiling-mounted air conditioners, dehumidifiers and portable air conditioners; does not come with a collection tank

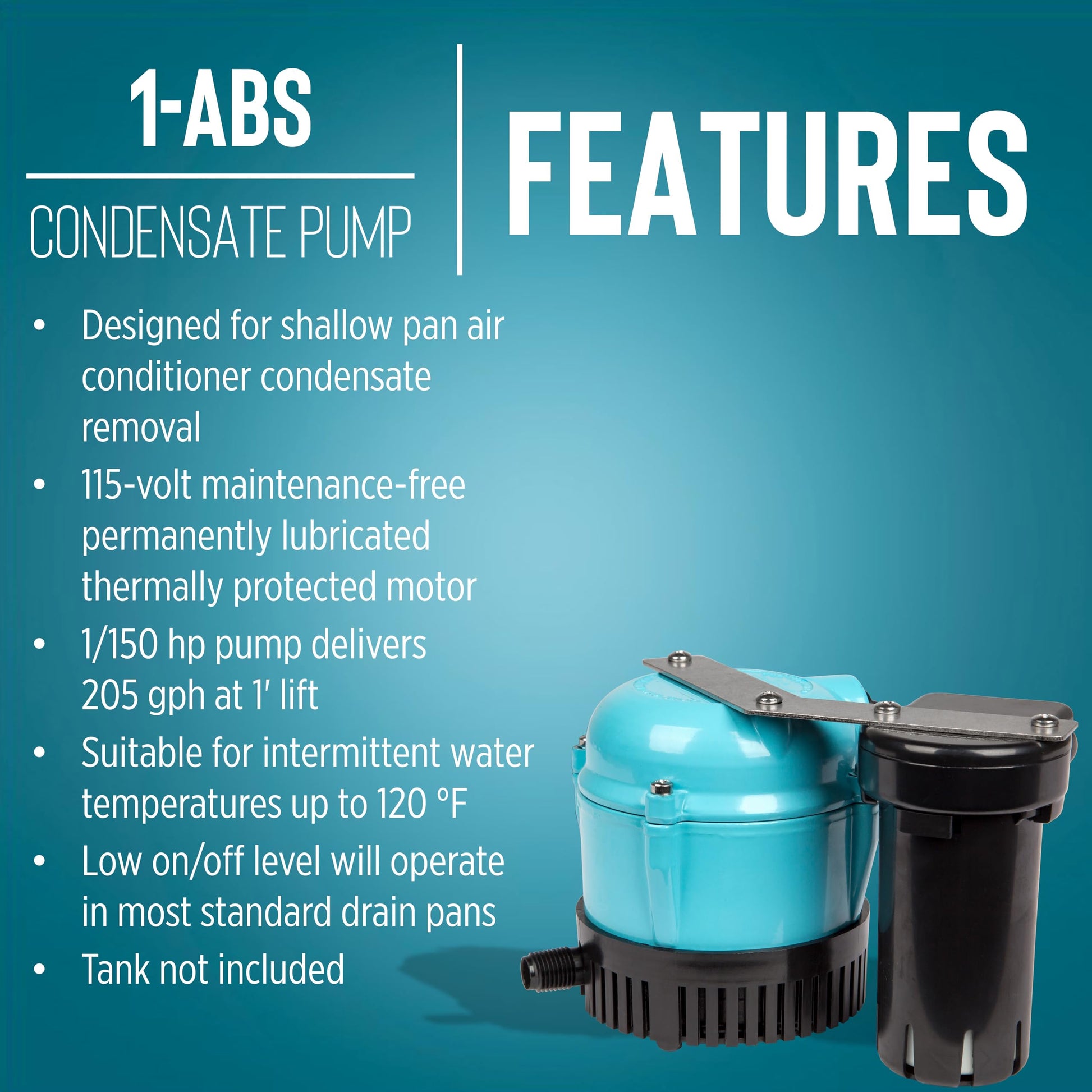

MOTOR SPECIFICATIONS: permanently lubricated motor bearings require no maintenance during life of pump; oil-filled to maximize heat dissipation; 115-Volt, 1/150 hp; 60 Hz, 1.1 Amps; 70 Watts; 9' cord

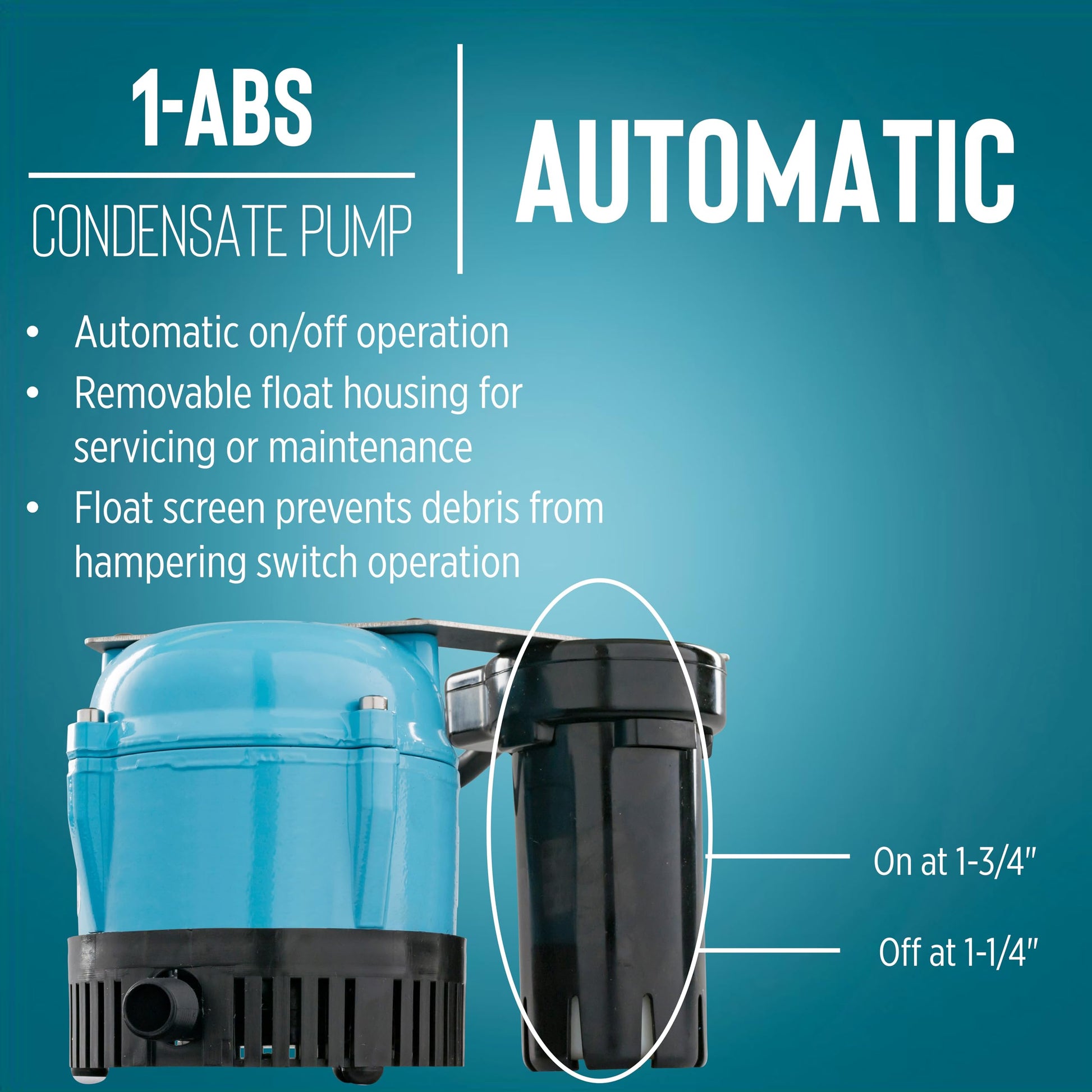

AUTOMATIC OPERATION: low on and off levels: activates pump when water reaches 1-3/4" and shuts off when water falls to 1-1/4"; will operate in most standard condensate drain pans

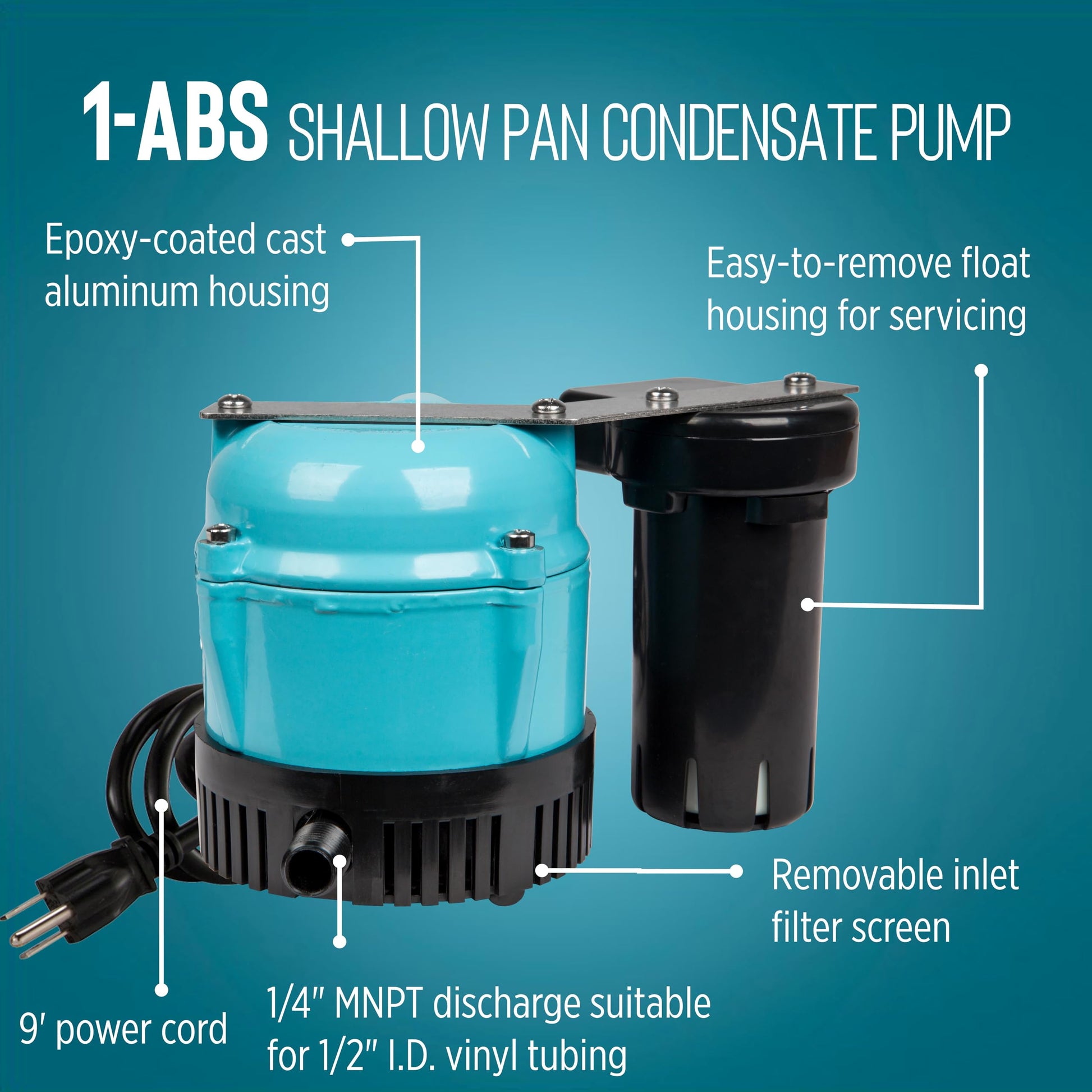

BUILT TO LAST: epoxy-coated cast aluminum pump housing and motor cover; nylon volute and impeller; Nitrile shaft seal; stainless steel switch bracket; removable float screen

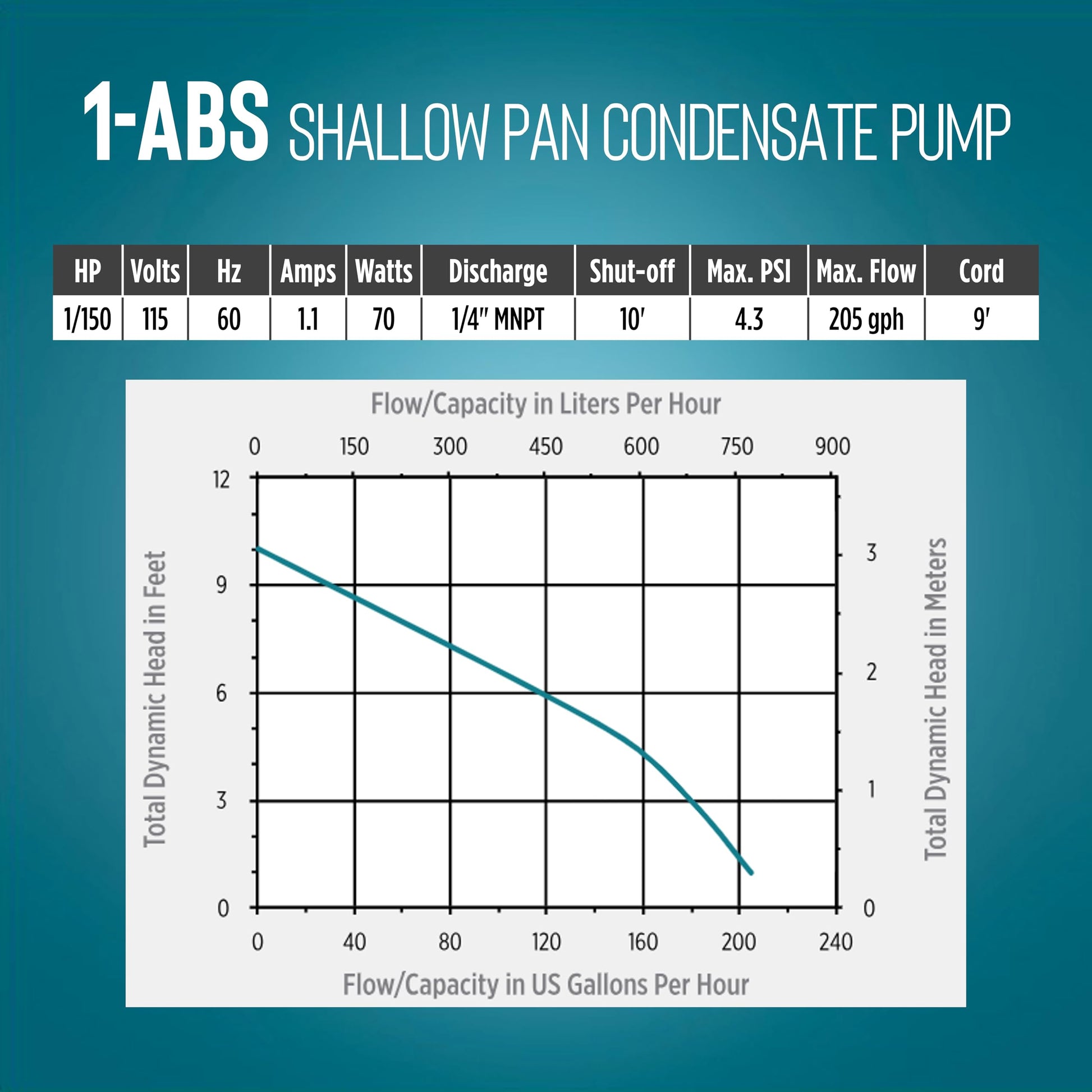

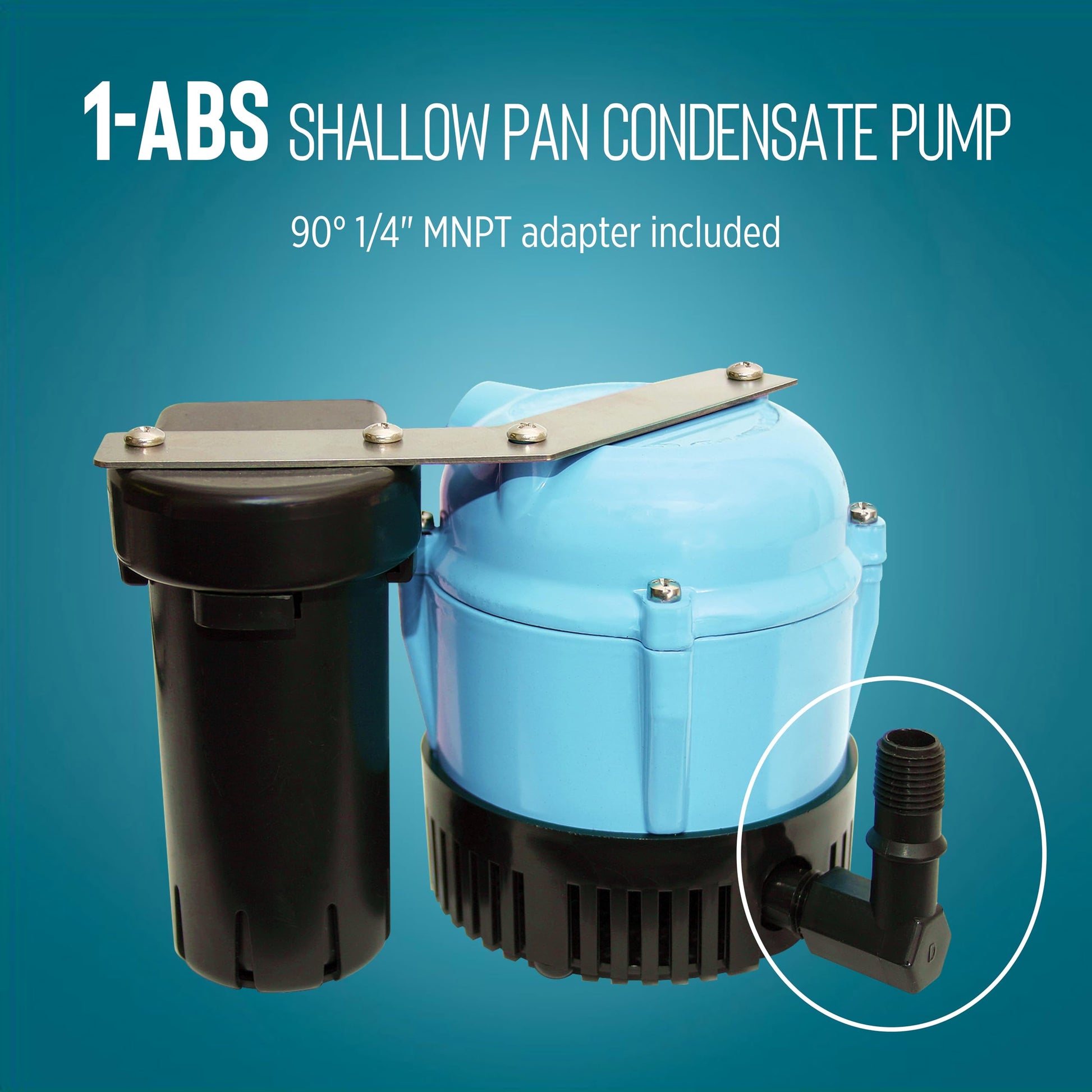

PUMP SPECIFICATIONS: 205 gph at 1' lift; maximum 4.3 PSI; 10' shut-off; handles intermittent water temperatures up to 120 °F; fits 1/2" I.D. vinyl tubing; 90° adapter included
model number: 550521
Part Number: 550521

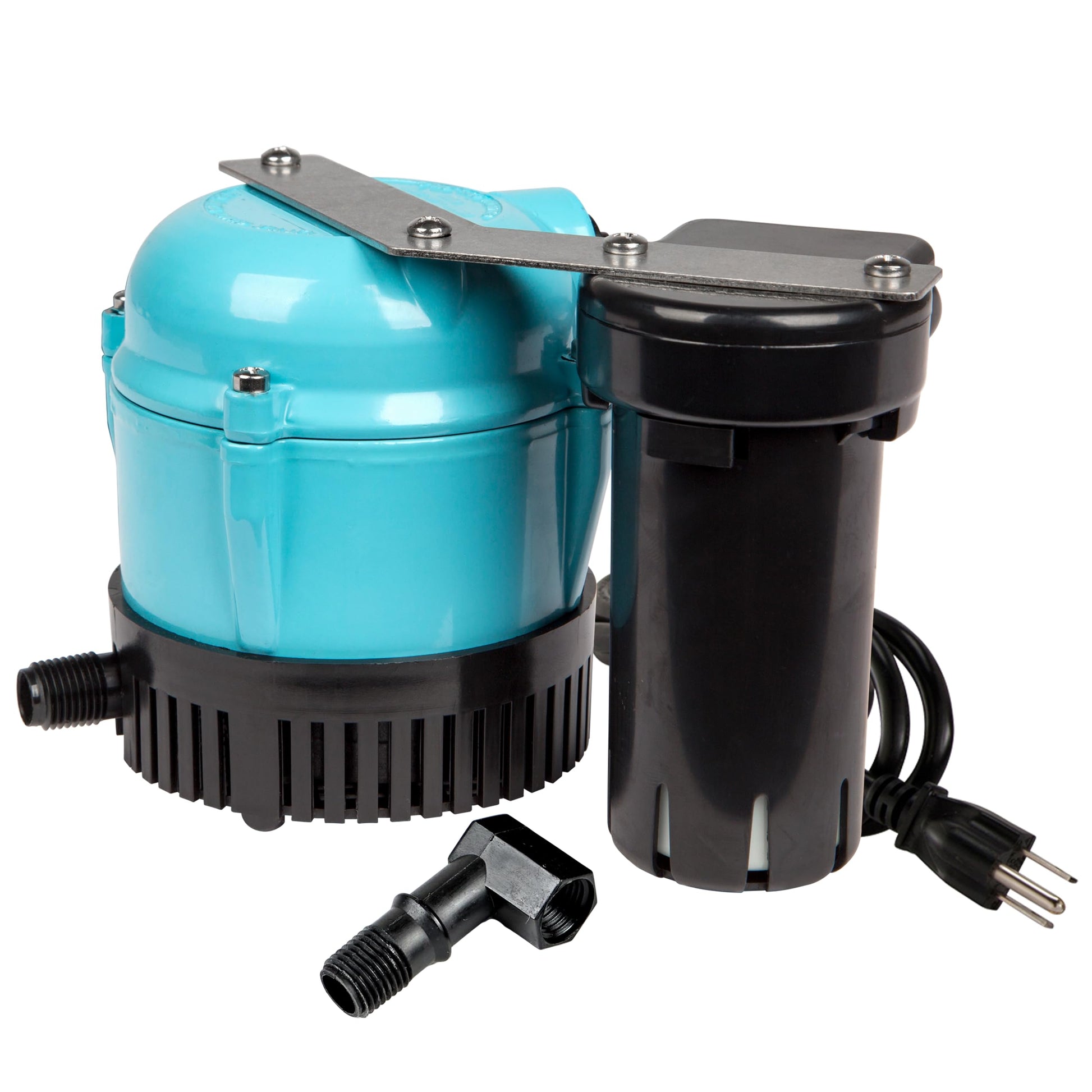

Details: The Little Giant 1-ABS offers low on and off levels and is ideal for removing condensate from air conditioners or dehumidifiers. This pump fits inside most dehumidifiers, portable air conditioners and ceiling-mounted air conditioners. The 1-ABS automatically starts when water reaches 1-3/4-inches and shut offs when water drops to 1-1/4-inches. The 1-ABS comes equipped with a 9-ft. 115-Volt power cord and plug. A built-in, unique float switch design assures reliability while providing easy access to the float switch for maintenance. This unit does not come with a condensate collection tank.
