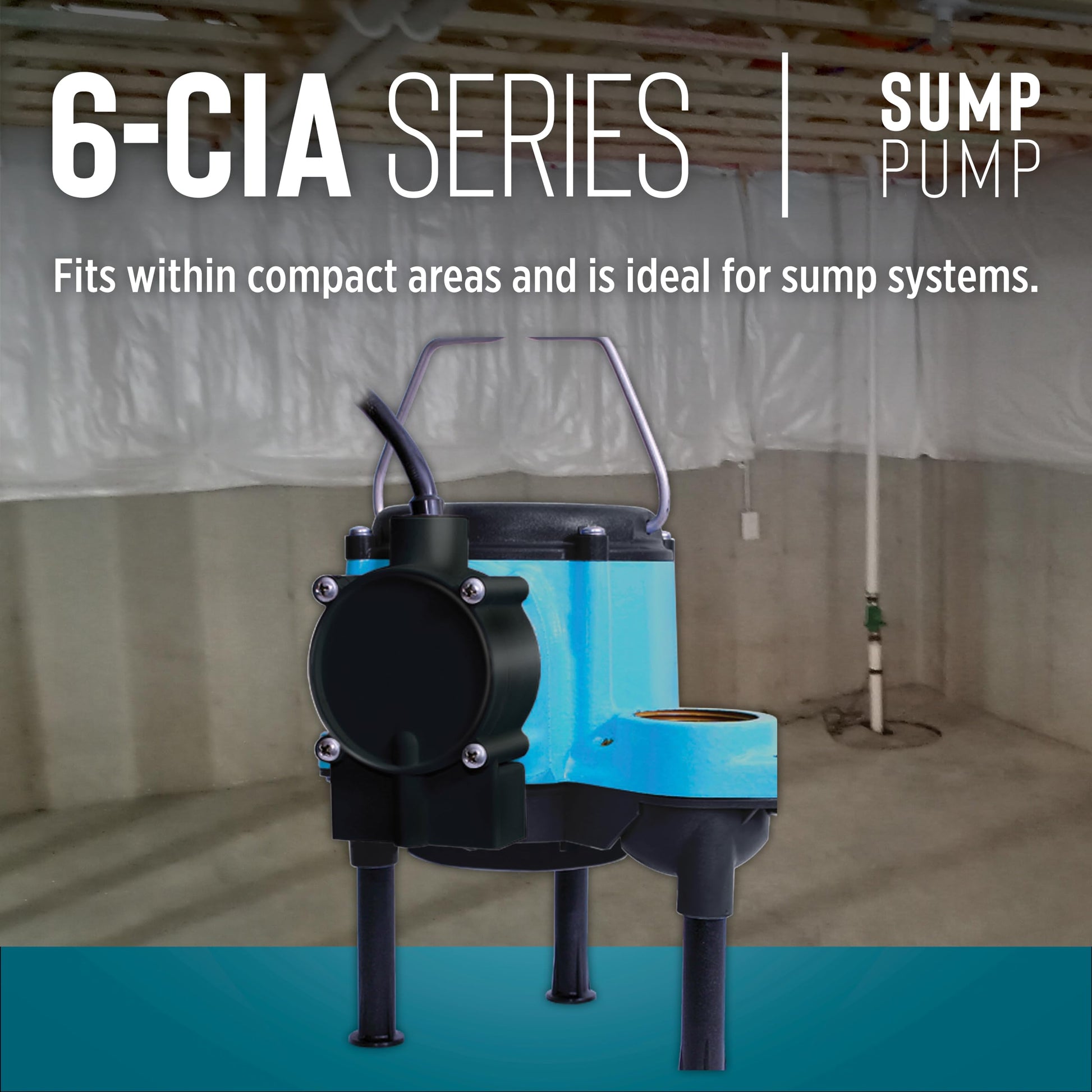

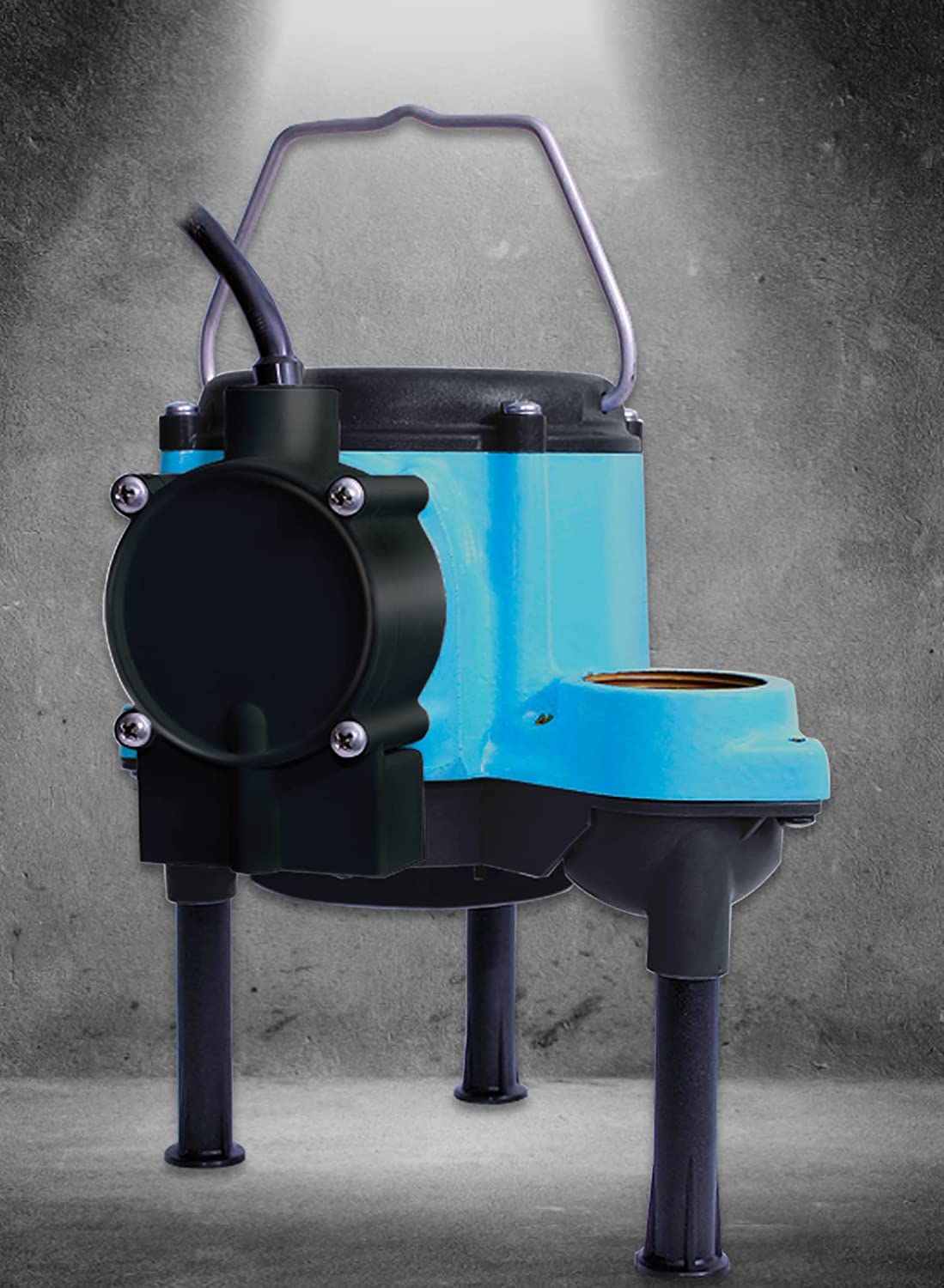

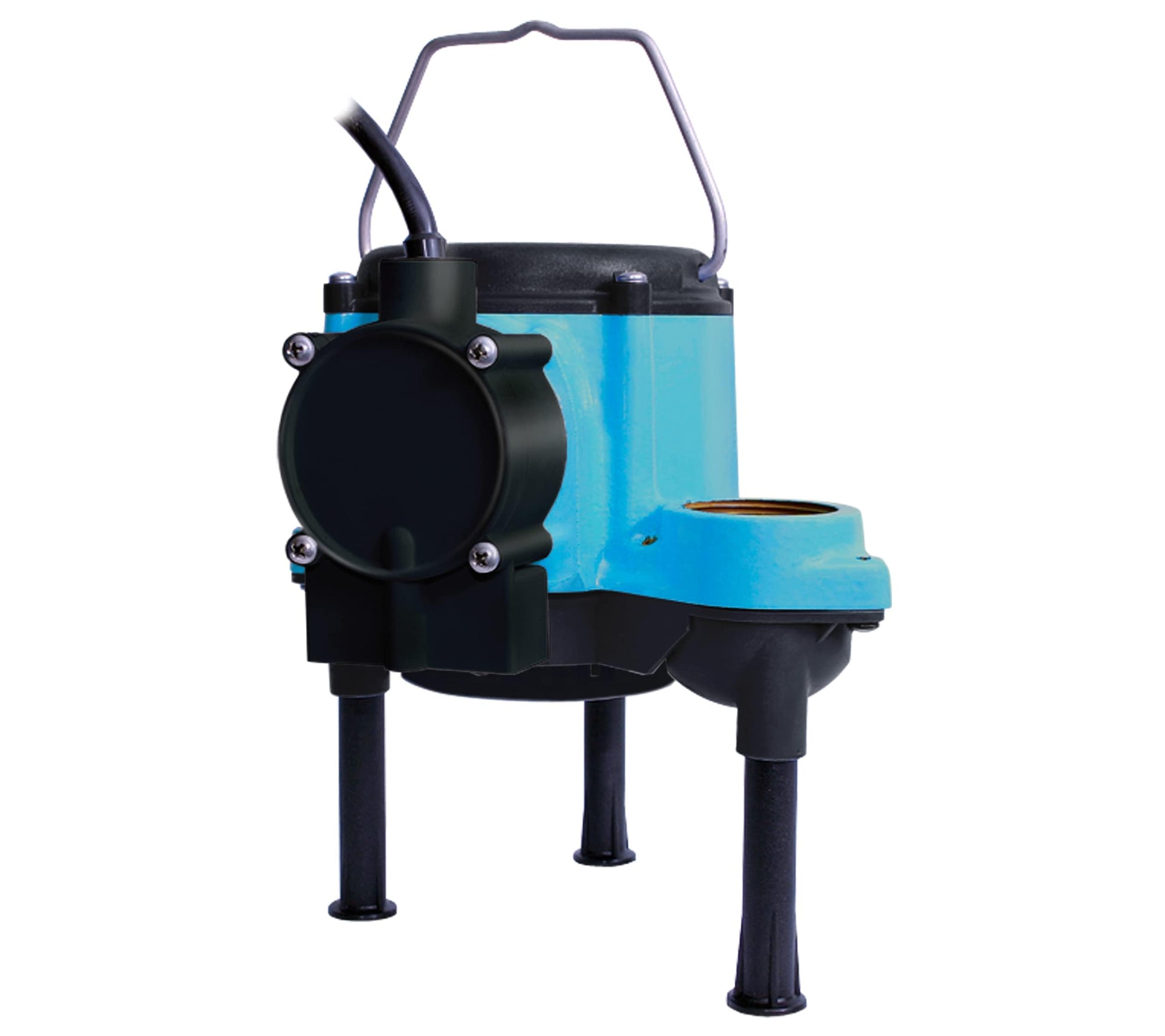

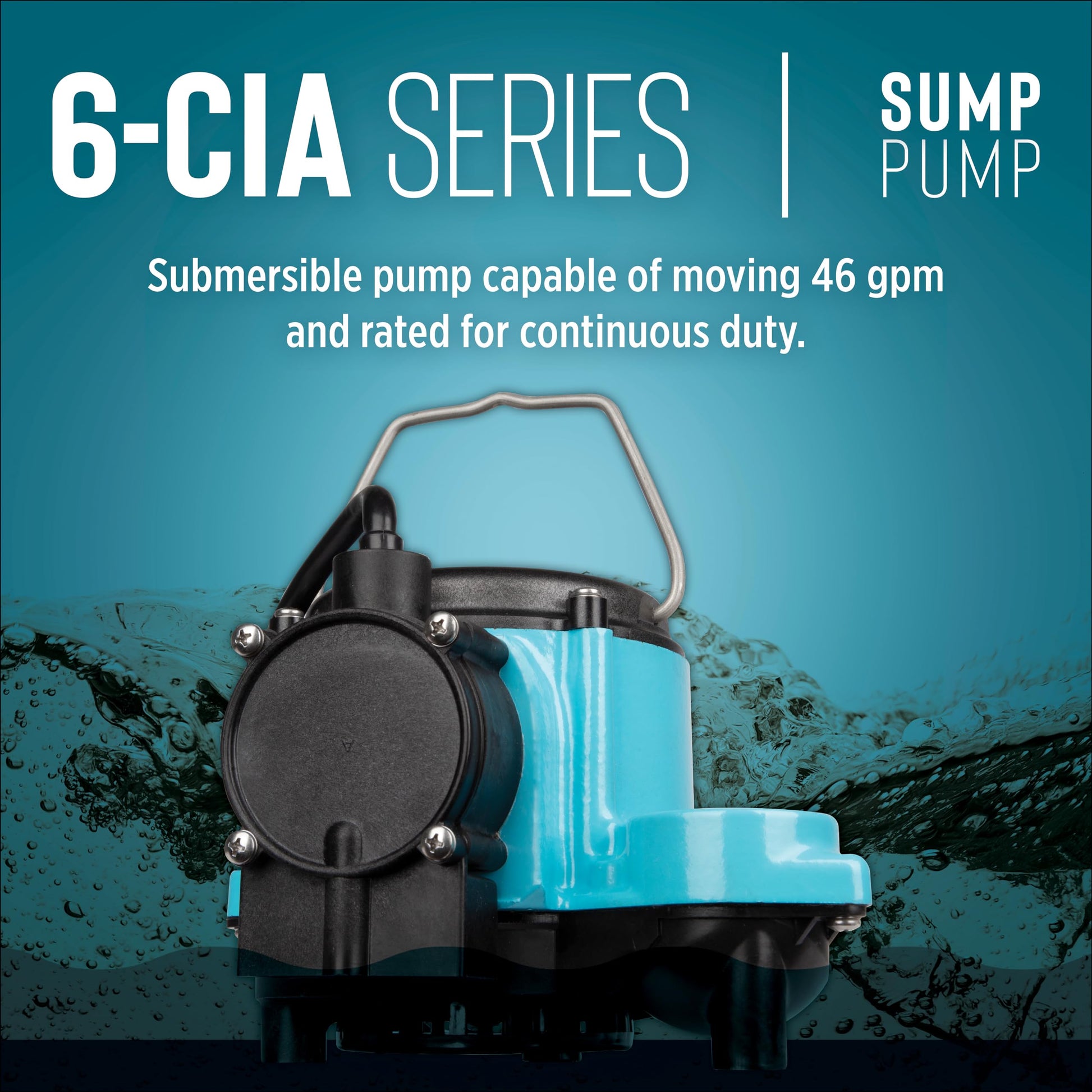

Little Giant 6-CIA 115 Volt, 1/3 HP 2760 GPH Cast Iron Submersible Sump Pump with Extended Leg Kit and Integral Diaphragm Switch, 10-Ft. Cord, Blue, 506162

Brand: Little Giant

Color: Blue

Features:

• AUTOMATIC SUBMERSIBLE PUMP ideal for sump systems; not recommended for general dewatering or emergency water removal

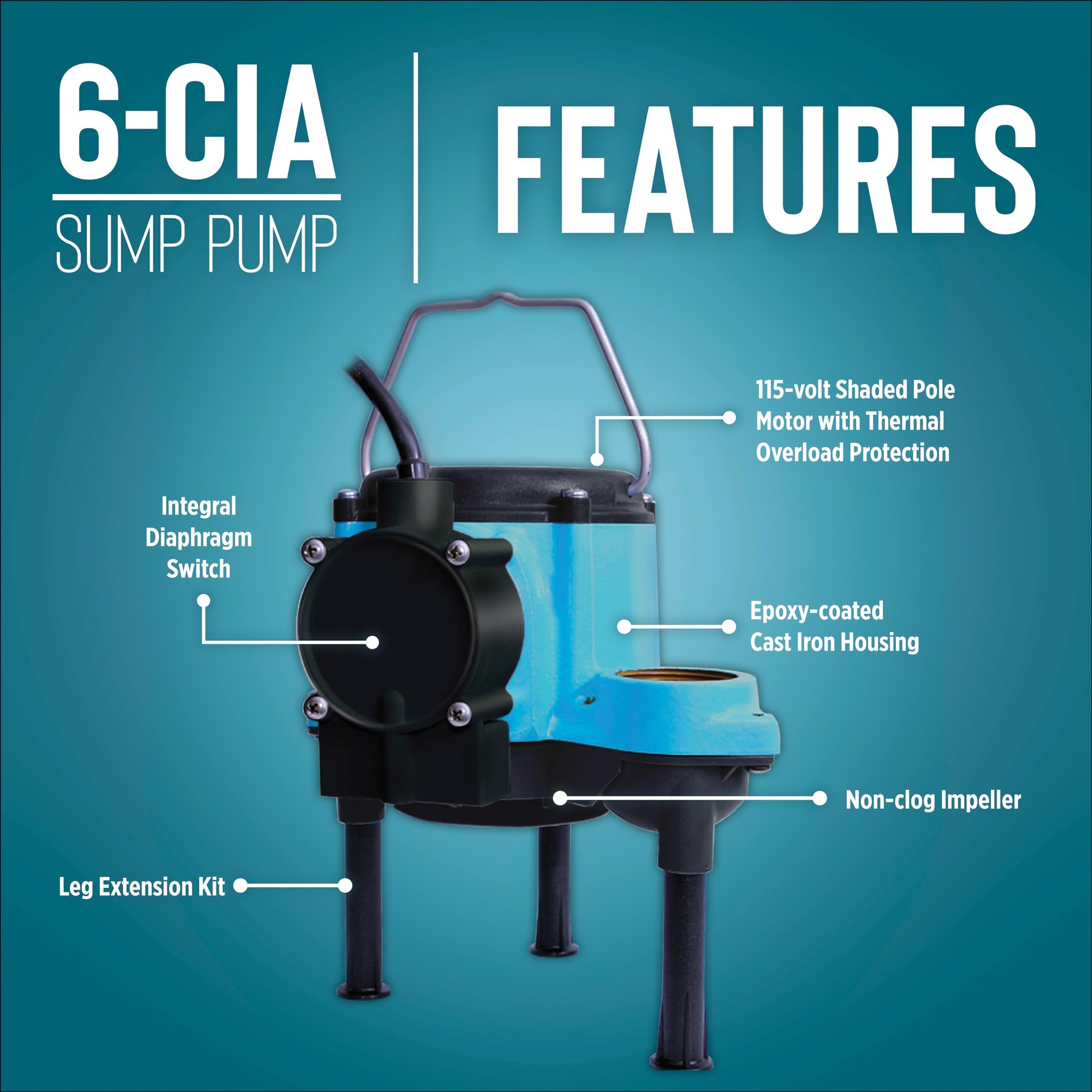

• BUILT TO LAST: Epoxy-coated cast iron housing; non-clog vortex style impeller; upper and lower bearings; nitrile/carbon/ceramic mechanical shaft seal
• CONTINUOUS DUTY MOTOR: 1/3 HP shaded pole motor, 9.0 running Amps, 14.3 starting Amps, 720 Watts, thermally protected, CSA listed in the USA and Canada
• BUILT-IN DIAPHRAGM SWITCH: pressure activated non-adjustable switch; on at 7 - 10"; off at 1 - 4"; NOT recommended for emergency water removal or general dewatering
• SPECIFICATIONS: 1/3 hp; 115 Volts; 50/60 Hz; 9.0 running Amps; 14.3 starting Amps; 720 Watts; 2760 gph at 5' lift; 18' shut-off; 7.8 PSI; 10' cord; 1.5" FNPT discharge; 140° max fluid temperature

model number: 506162

Part Number: 506162

Details: The Little Giant 6 Series submersible epoxy-coated cast iron sump pumps are equipped with a 1/3 hp 115-volt, shaded pole, oil-filled motor with thermal overload protection and is designed for continuous duty. These pumps deliver up to 2760 gph (46 gpm) at 5' lift, have a shut-off of 18' and a maximum psi of 7.0. These pumps are equipped with a 1-1/2 FNPT discharge. The maximum fluid temperature is 140 °F. The 6-Series is CSA listed in the USA and Canada.

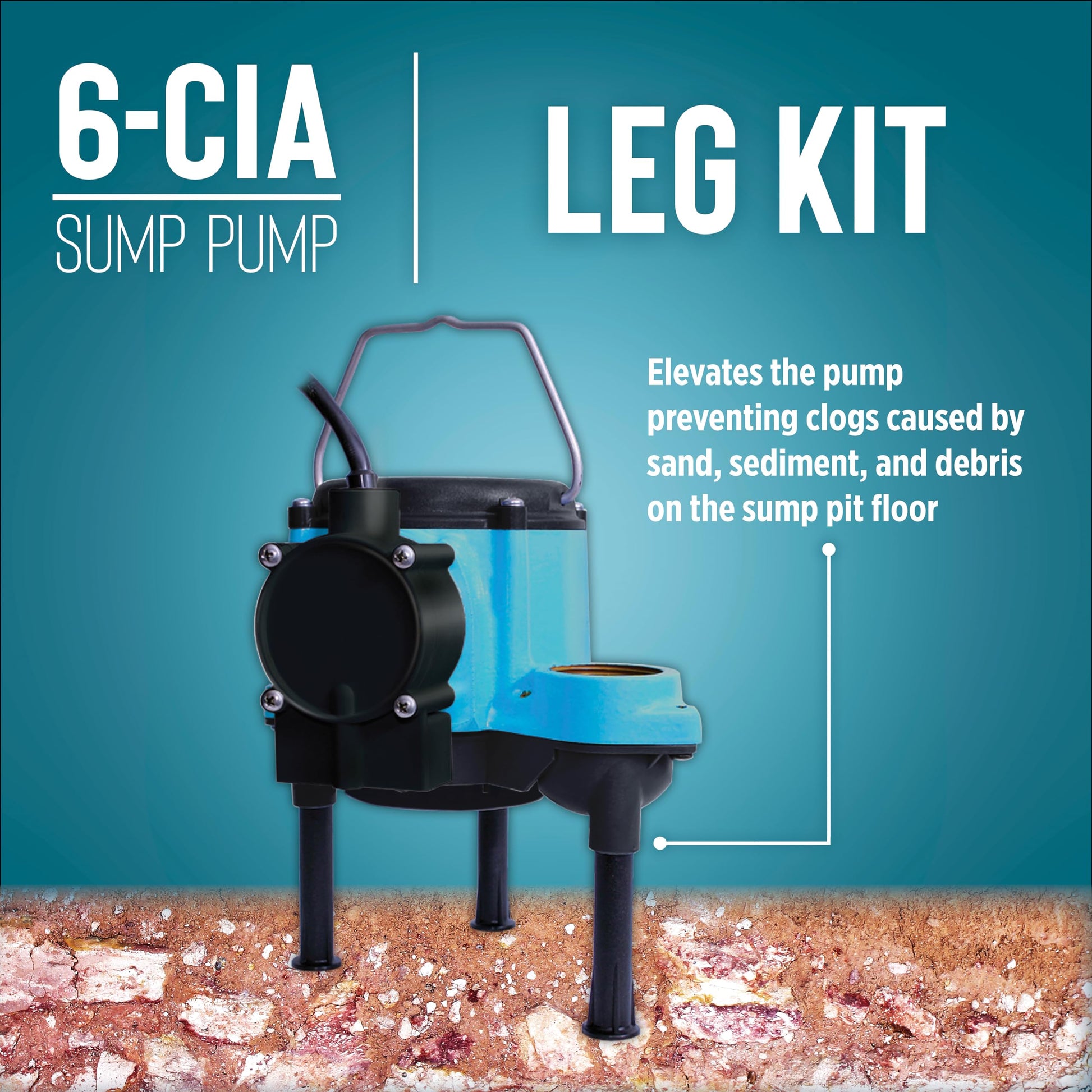

The Little Giant 506164 6-CIA automatic sump pump with integral switch is designed specifically for sump systems. The pressure activated integral switch (not adjustable) activates when the water level is between 7" and 10" and shuts off when the water level drops to between 1" and 4". The switch cannot be overridden for manual operation and is therefore not recommended for emergency water removal or general water transfer. This pump comes with a 10' cord and a leg kit with three 3-1/2" plastic legs lifting the pump off of the ground and protecting it from debris.

SWITCH OPTION TIPS:

- Integral diaphragm switches are designed for sump systems only. Minimum basin diameter required is 10".

- Mid-level integral diaphragm switches cycle more frequently. They are designed for shallow under sink or laundry tub systems. Minimum basin diameter required is 10".

- Piggyback float switches are designed for sump systems, emergency water removal or water transfer applications. They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. Float switches require more room to activate the switch, the minimum basin diameter is 18".

- Piggyback diaphragm switches are designed for sump systems, emergency water removal or water transfer applications; They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. The minimum basin diameter is 10".

EAN: 0010121111646

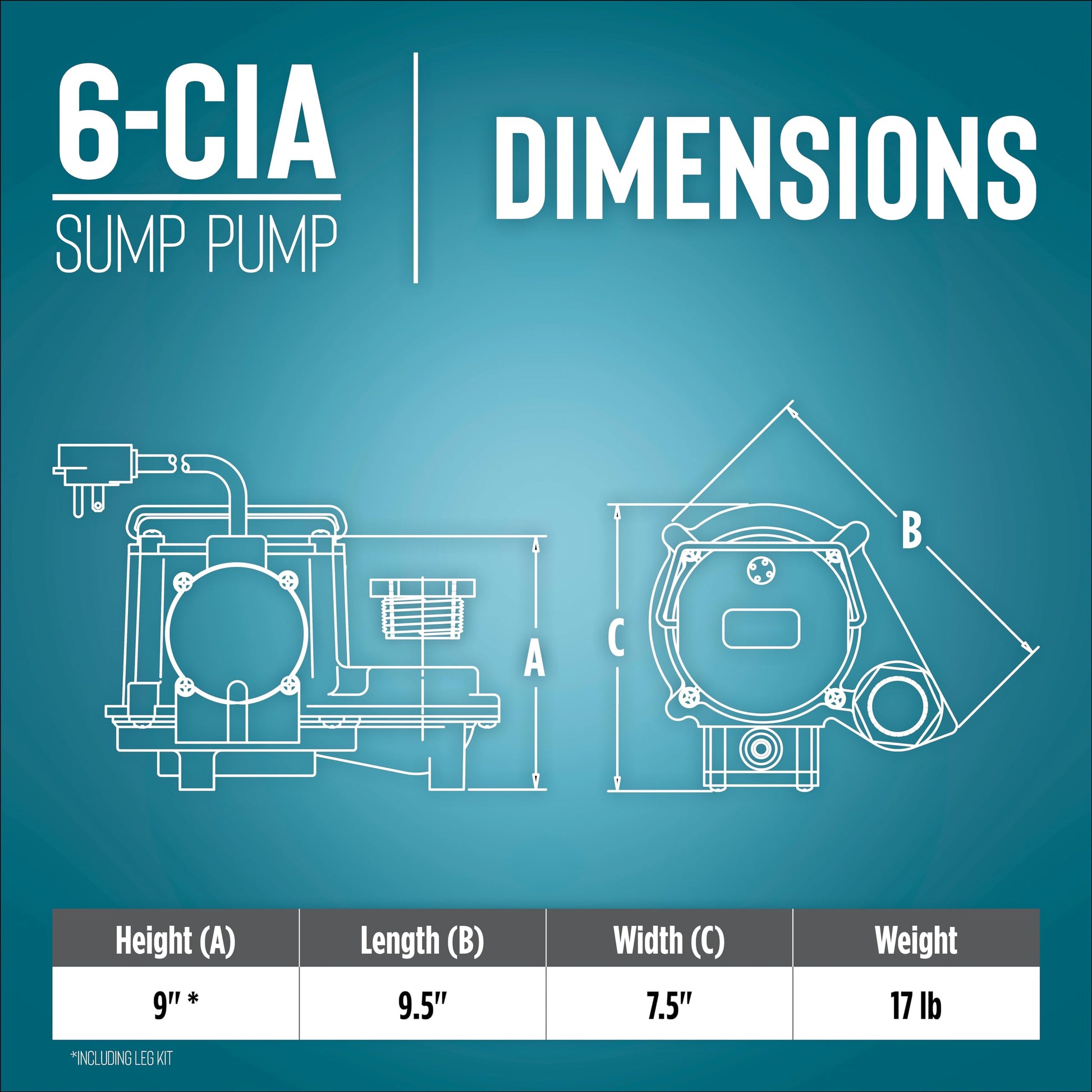

Package Dimensions: 10.3 x 10.3 x 9.5 inches
