Little Giant 9ECH-CIM 115-Volt, 4/10 HP, 4200 GPH Manual Submersible Cast Iron High Head Effluent Pump with 30-Ft. Cord, Blue, 509533

Brand: Little Giant

Color: Blue

Features:

• HIGH HEAD EFFLUENT PUMP: designed to handle higher-head flow for transferring gray water from deep effluent systems and sump systems; 3/4" solids handling; 45' shut-off
• HIGH EFFICIENCY MOTOR: Permanent Split Capacitor (PSC) thermally protected motor runs on 7 Amp, 830 Watts and is cCSAus listed; rated for continuous duty
• BUILT TO LAST: Epoxy-coated cast iron cover, motor housing, and volute; Nitrile carbon/ceramic shaft seal; thermoplastic elastomer non-clog impeller; steel shaft; upper and lower ball bearings

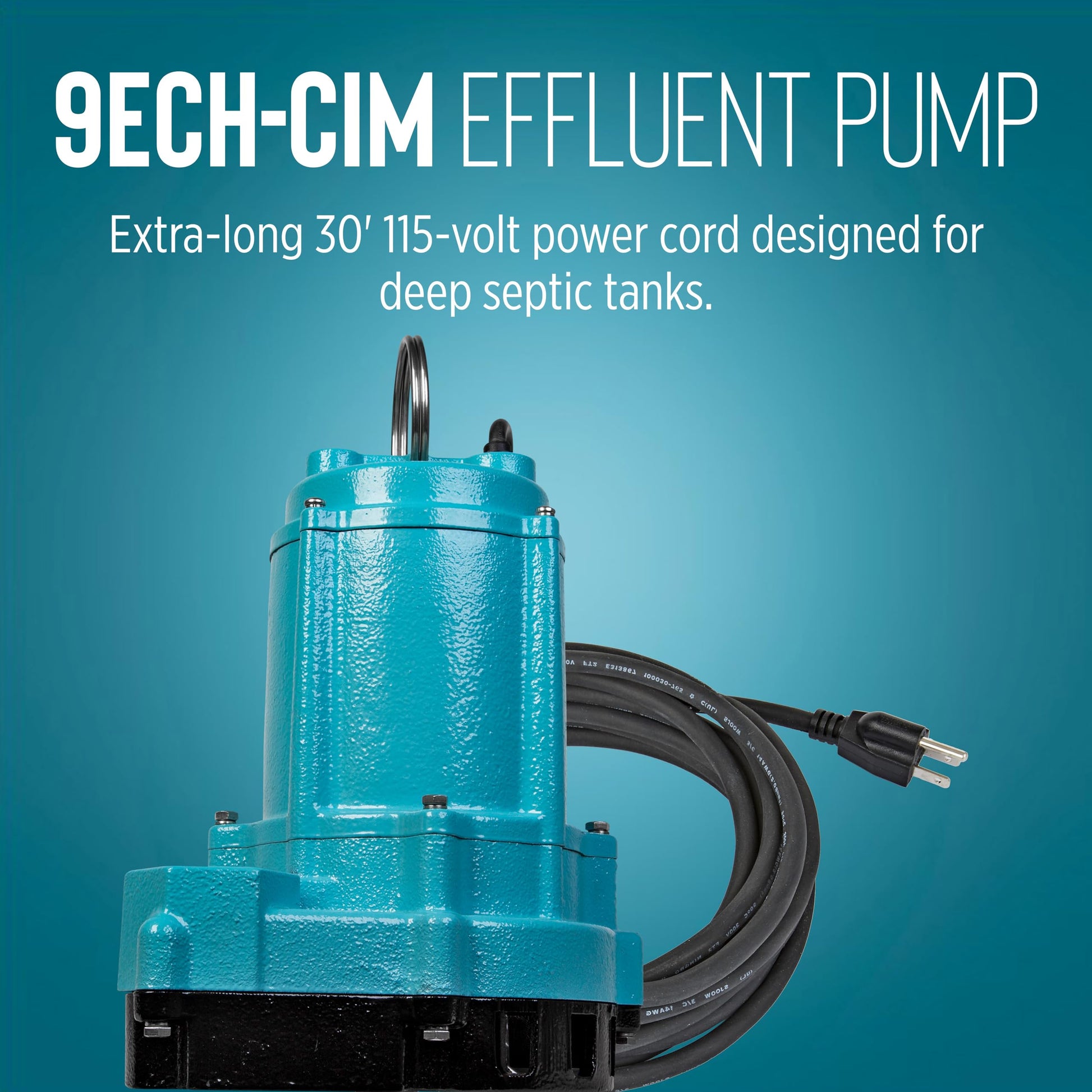

• MANUAL EFFLUENT PUMP: designed to work with piggy-back tethered or vertical switches (sold separately); 30' 115-volt cord with 3-prong plug included

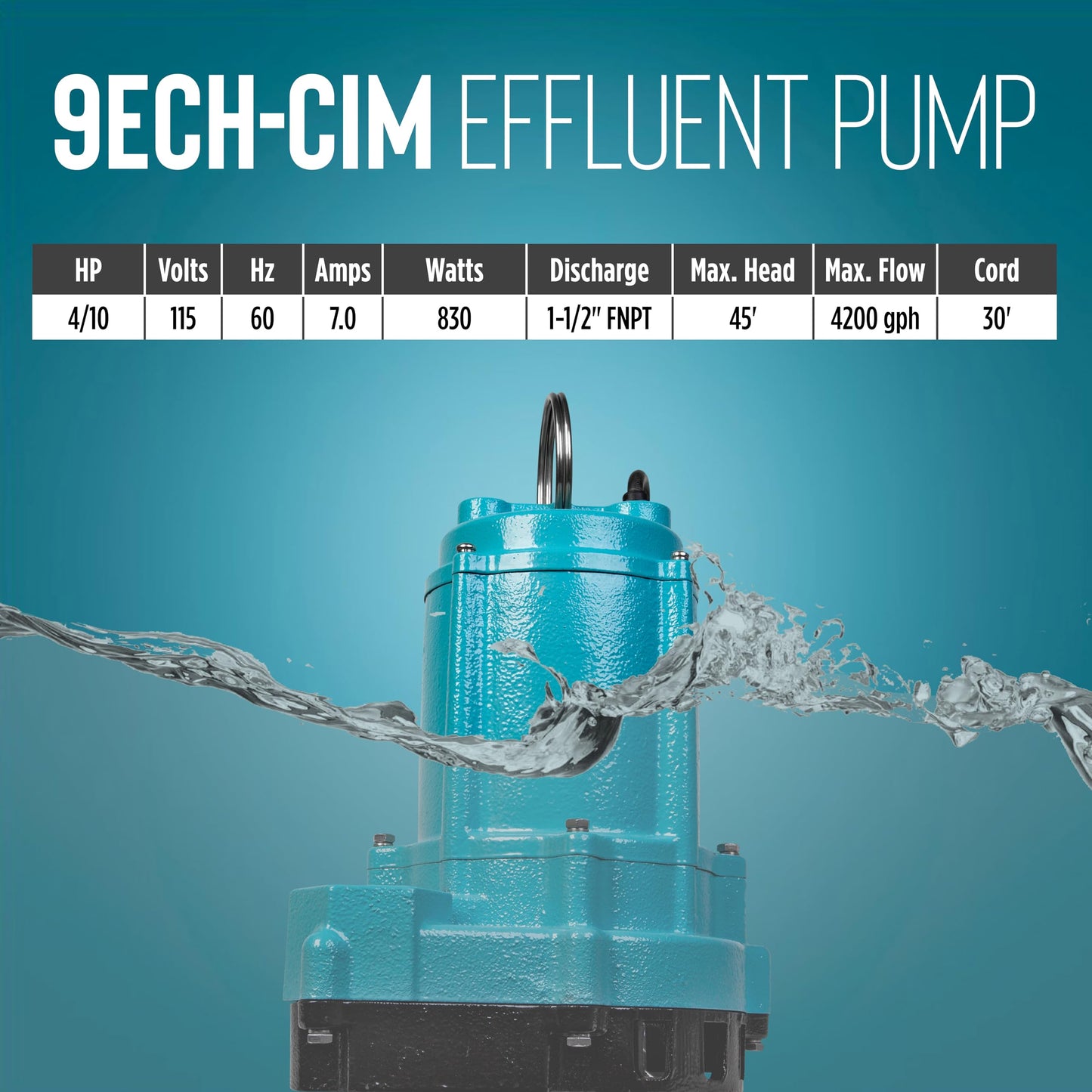

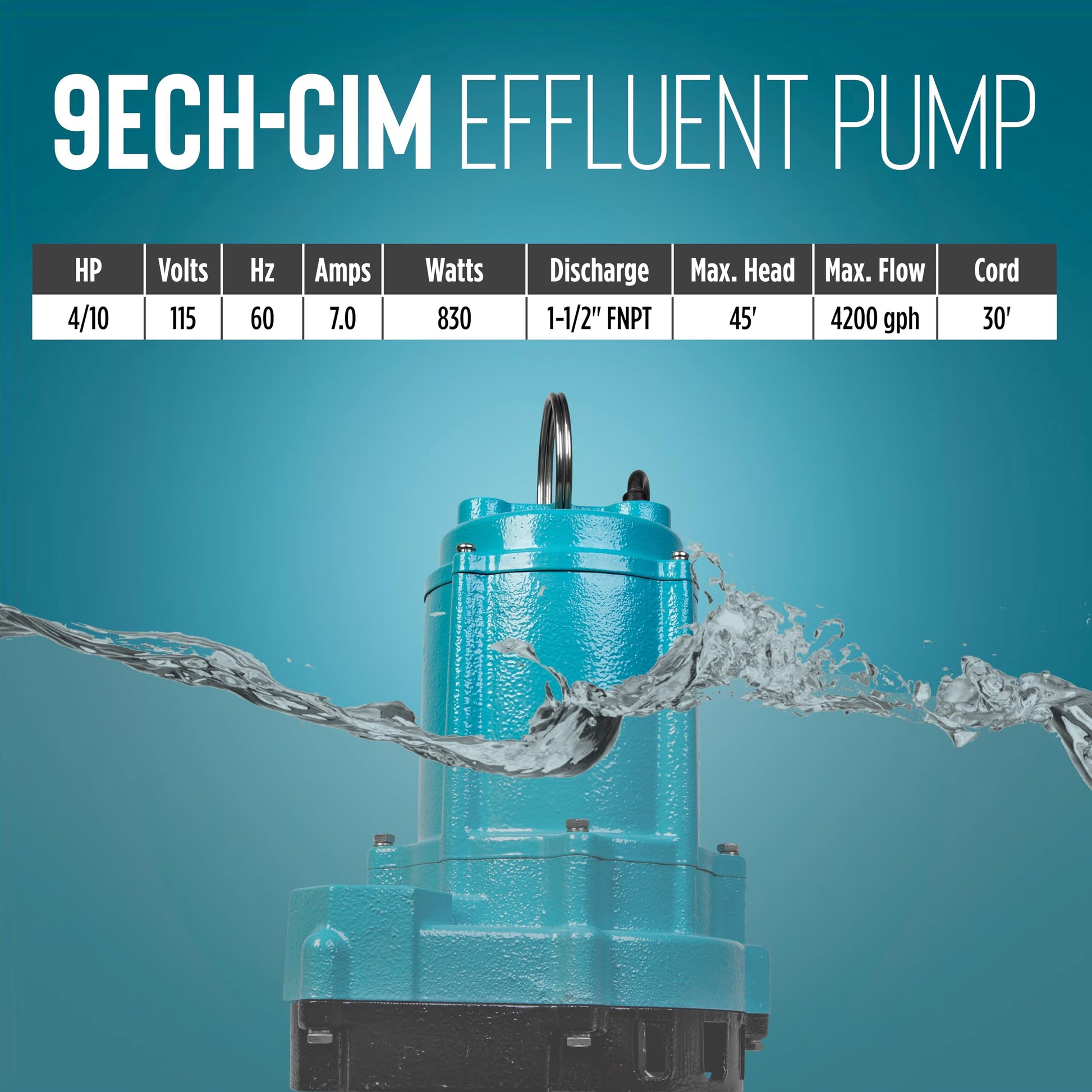

• SPECIFICATIONS: 115-volts, 4/10 hp, 60 Hz, 7 running amps, 830 watts, 4200 GPH at 5' lift; 45' shut-off; 19.5 PSI; 1-1/2" FNPT discharge; rated for 140 °F liquid temperature; 30' cord; 37.4 lbs.

model number: 509533

Part Number: 509533

Details: With a 45' shut-off the 9ECH-CIM is built to handle higher-head flow in residential wastewater removal, dewatering, and water transfer applications, the 9ECH -CIM effluent pump is a homeowner's trusted companion. Constructed of heavy cast iron with an epoxy-coated finish and stainless steel fasteners, the 9ECH-CIM effluent pump will provide years of reliability. Ideally suited for effluent septic systems with deep tanks. This 4/10 HP pump delivers up to 4200 GPH and comes with a 30' cord and 3-prong plug. It can be used with any tethered or vertical switch designed for 1/2 HP pumps (not included.

Features & Benefits

4/10 hp Permanent Split Capacitor (PSC) motor

Designed for continuous duty

Energy-saving low amp draw

1-1/2" FNPT (38 mm) discharge

3/4" solids handling

EAN: 0010121003019

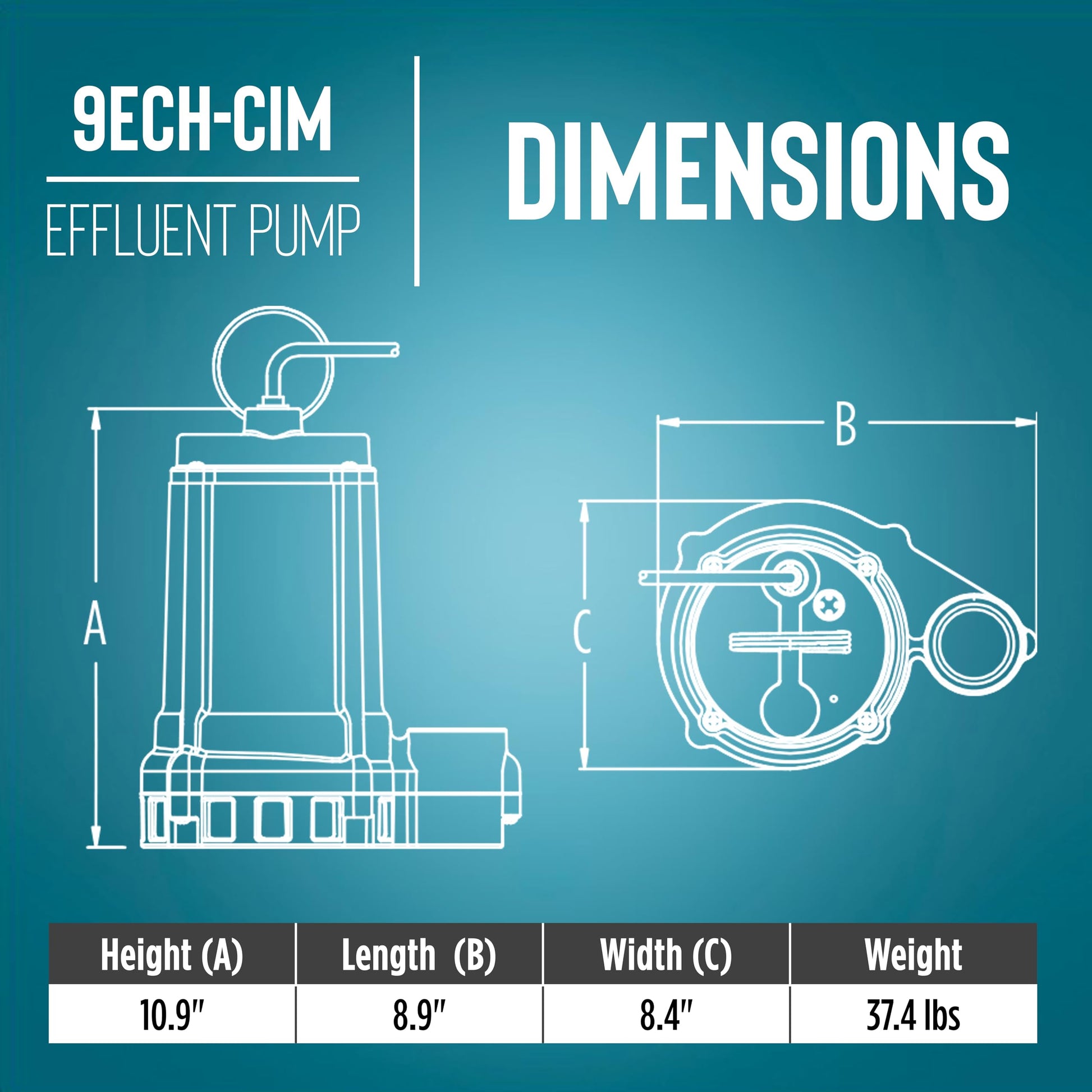

Package Dimensions: 15.5 x 12.0 x 10.0 inches
