Little Giant 9JF2V2D Pit Plus JR Sewage Basin System with 115-Volt, 4/10 HP, 6000 GPH 9SC-CIM Sewage Pump, Float Switch with 20-Ft. Cord, 2-inch Vent, 2-inch Discharge, Green/Blue/Black, 509673

Brand: Little Giant

Color: Green/Blue/Black

Features:

• ALL-IN-ONE SEWAGE BASIN SYSTEM: includes 24"x24" Pit Plus JR basin/lid, sewage pump, one 2" MNPT discharge pipe with coupling, one 6" x 2.38" vent pipe; piggyback float switch/tree

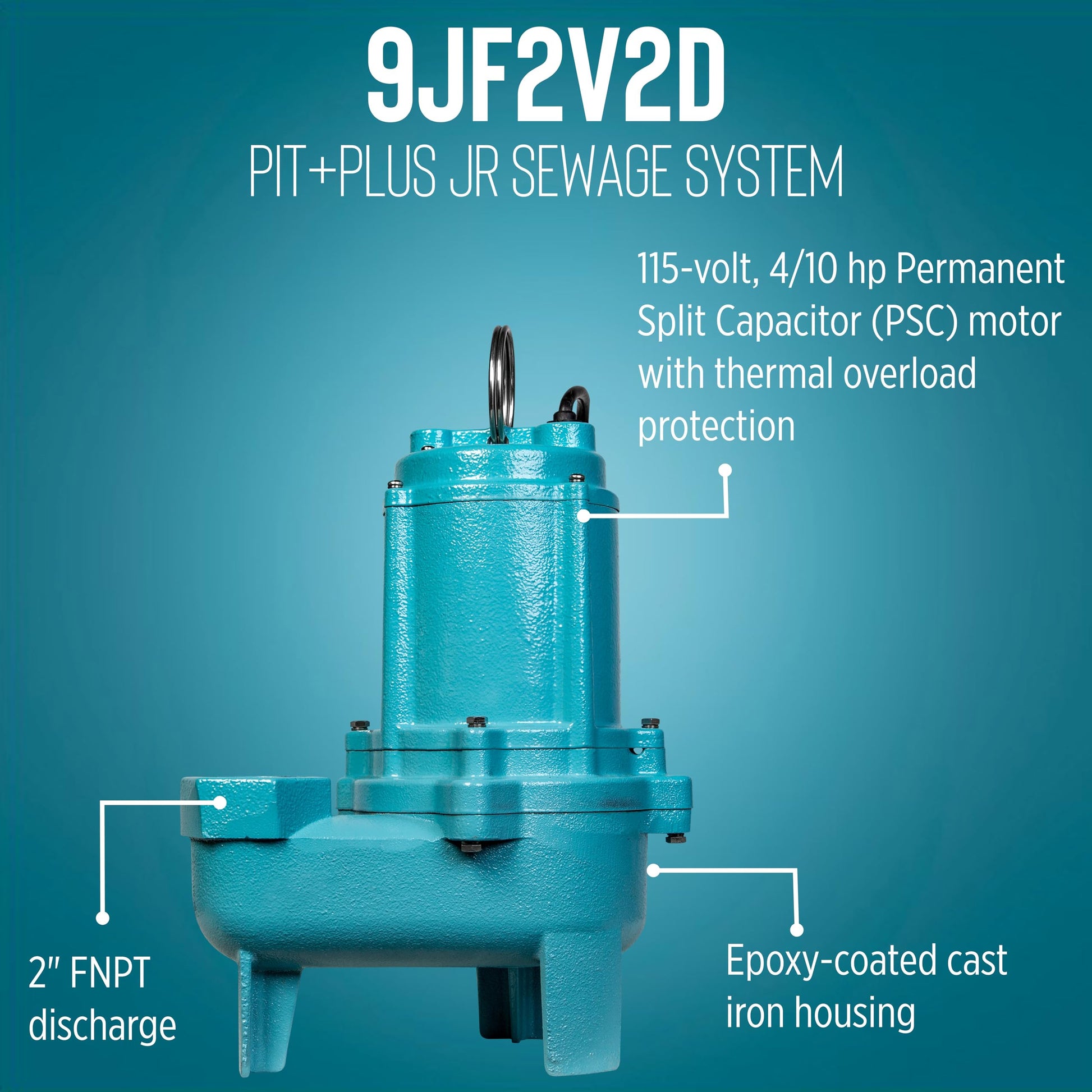

• SEWAGE PUMP INCLUDED: Little Giant's energy-efficient 9SC-CIM 4/10 HP cast iron sewage pump delivers 6000 GPH, is equipped with a 2-inch FNPT discharge, and comes with a 20-ft. cord

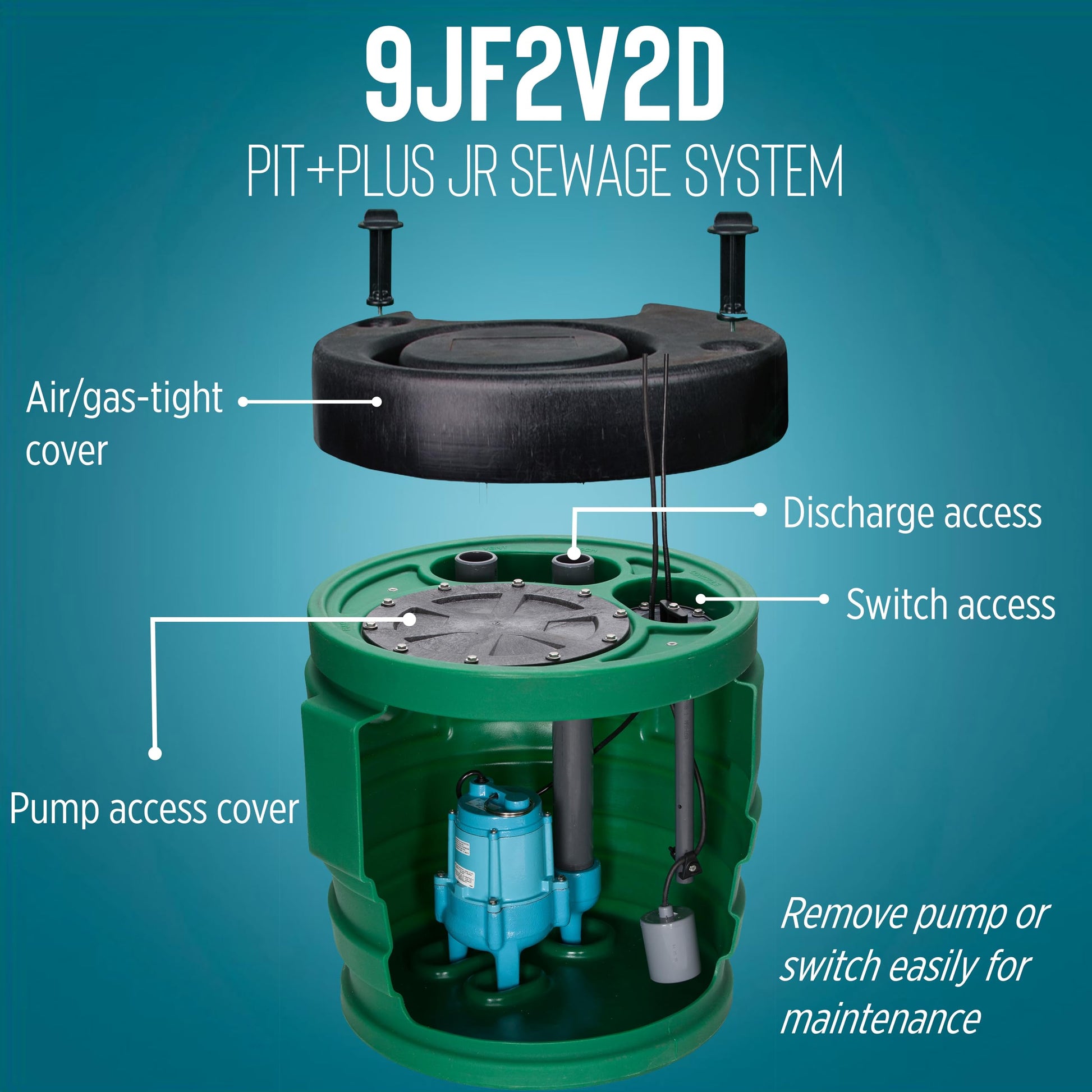

• PIT+PLUS JR BASIN FEATURES: recessed discharge and vent location; monolithic molded basin top; independent recessed switch module; independent pump access cover; durable and functional cover
• MOTOR SPECIFICATION: 4/10 HP; 115-Volt, 60 Hz, Permanent Split Capacitor (PSC) motor designed for continuous duty; 8 running Amps; 870 Watts

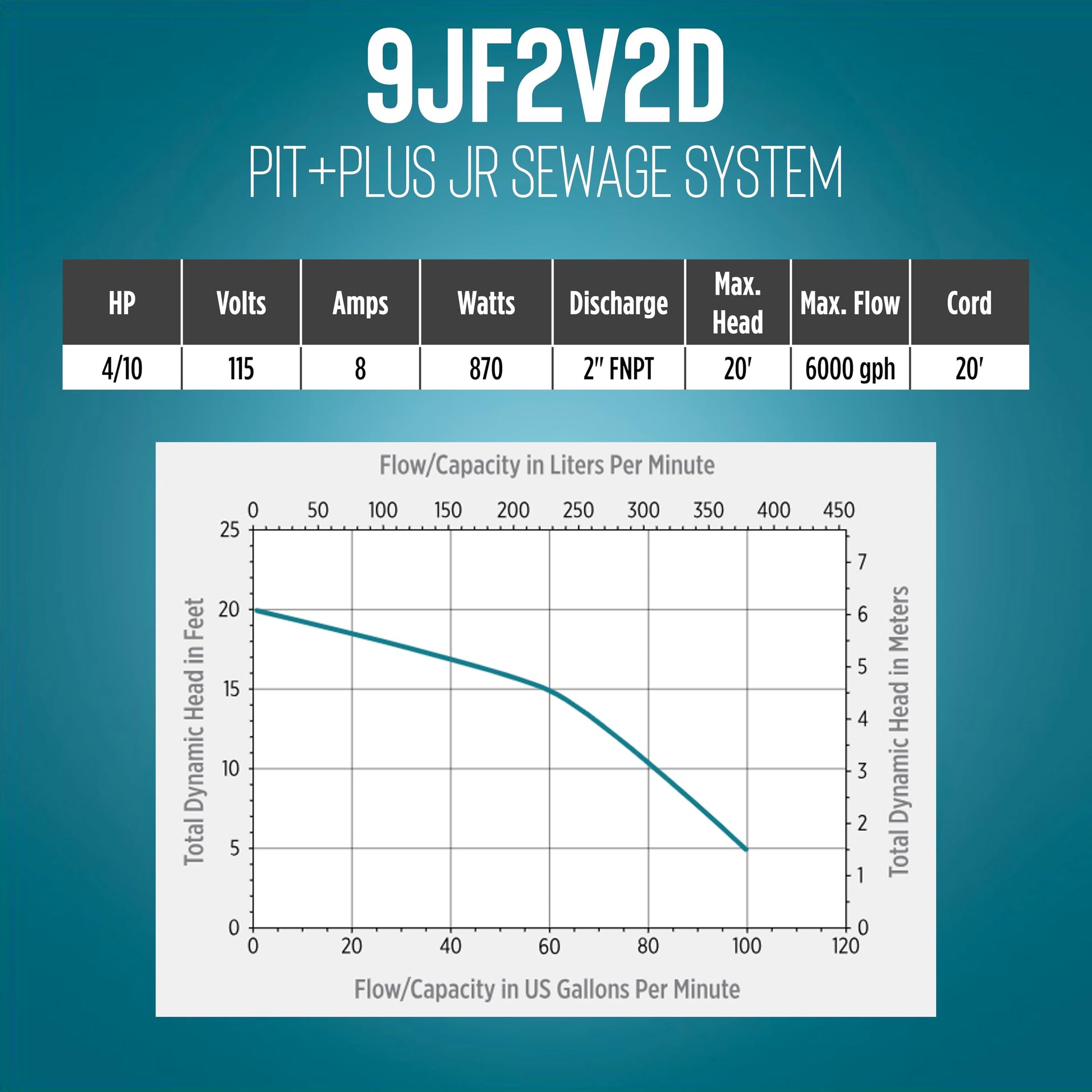

• PUMP SPECIFICATIONS: 6000 GPH at 5-ft. lift; 20-ft. shut-off; maximum 8.7 PSI; 2" discharge; manual operation (switch included seperately); 20-ft. cord; epoxy-coated cast iron cover/housing/volute

Release Date: 28-06-2023

model number: 509673

Part Number: 9JF2V2D

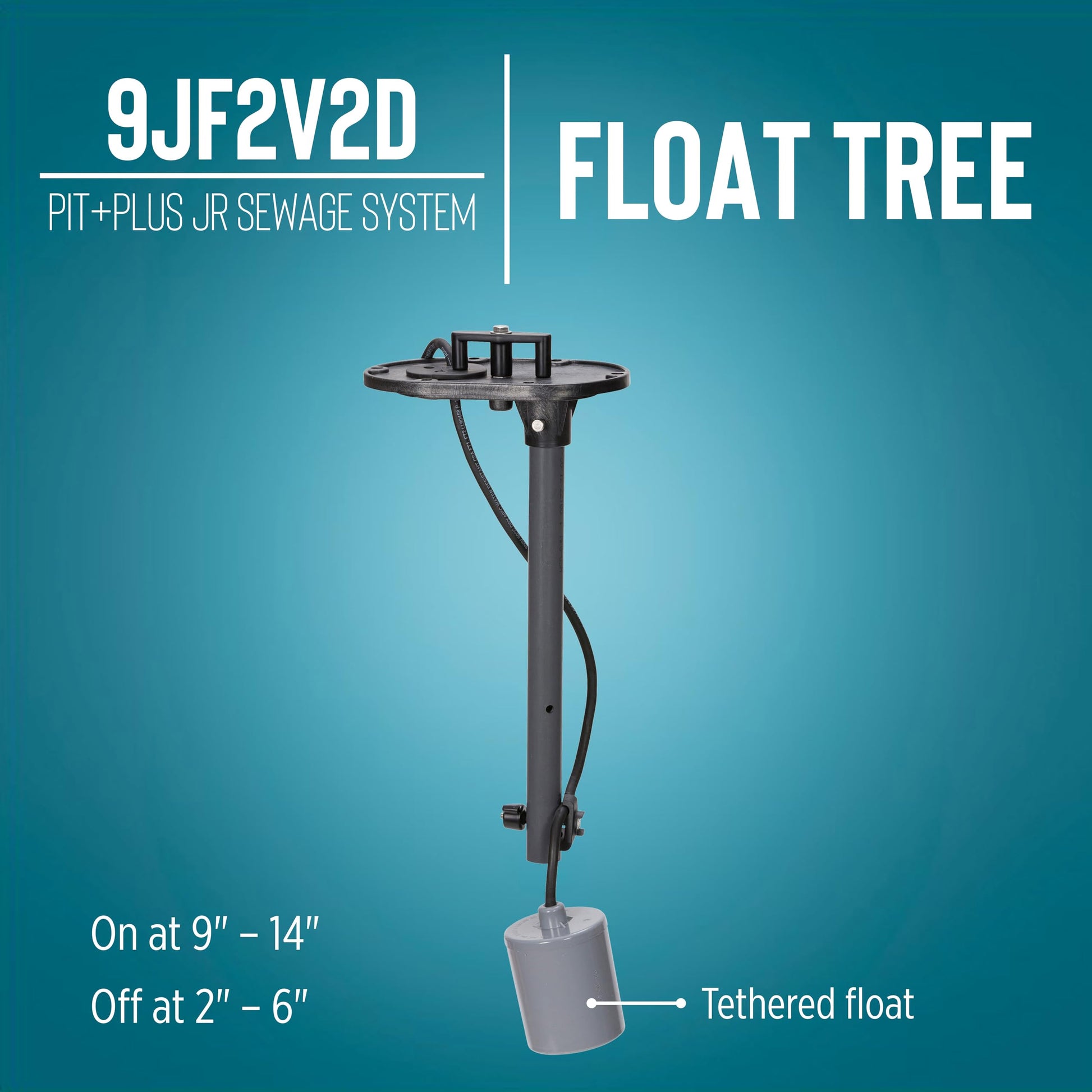

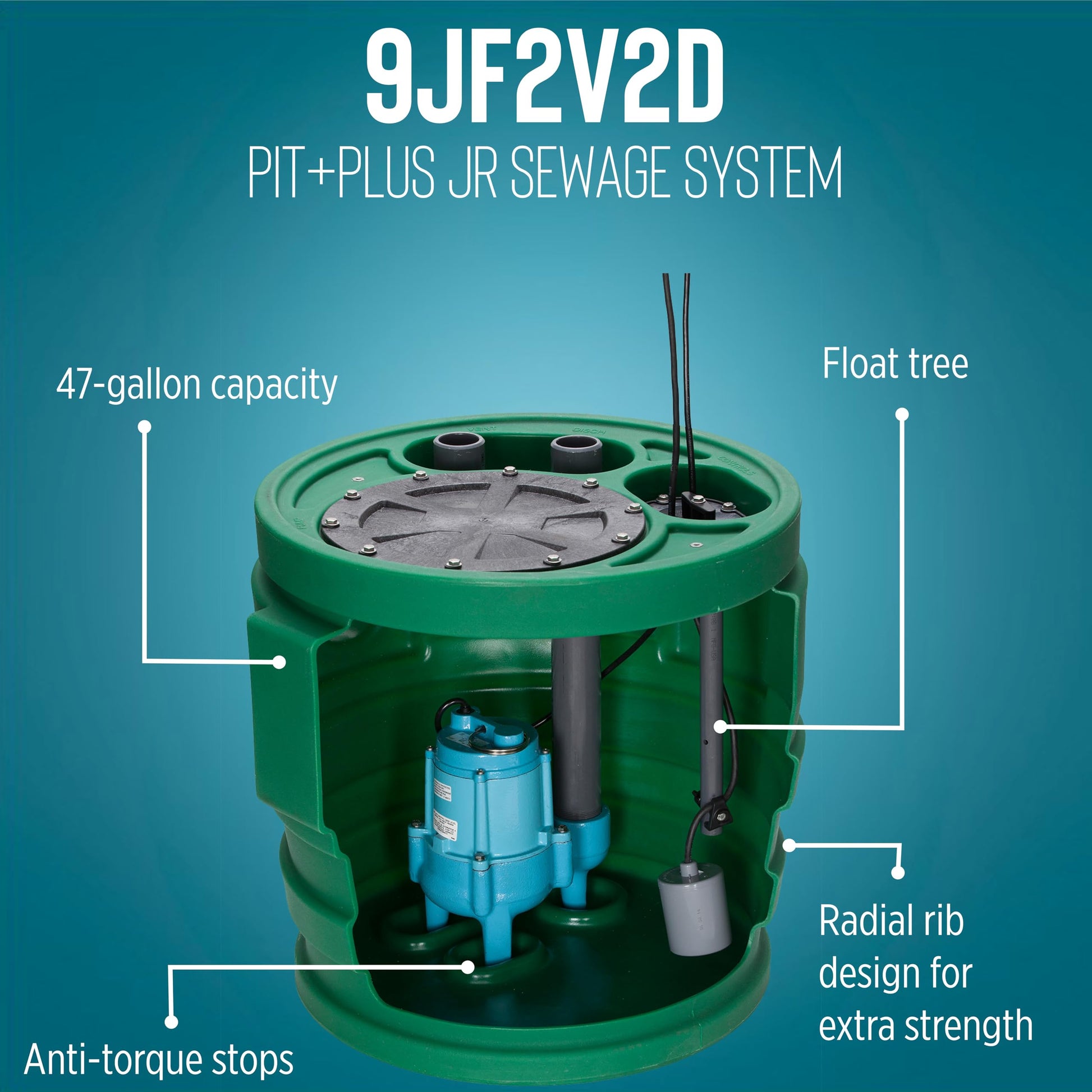

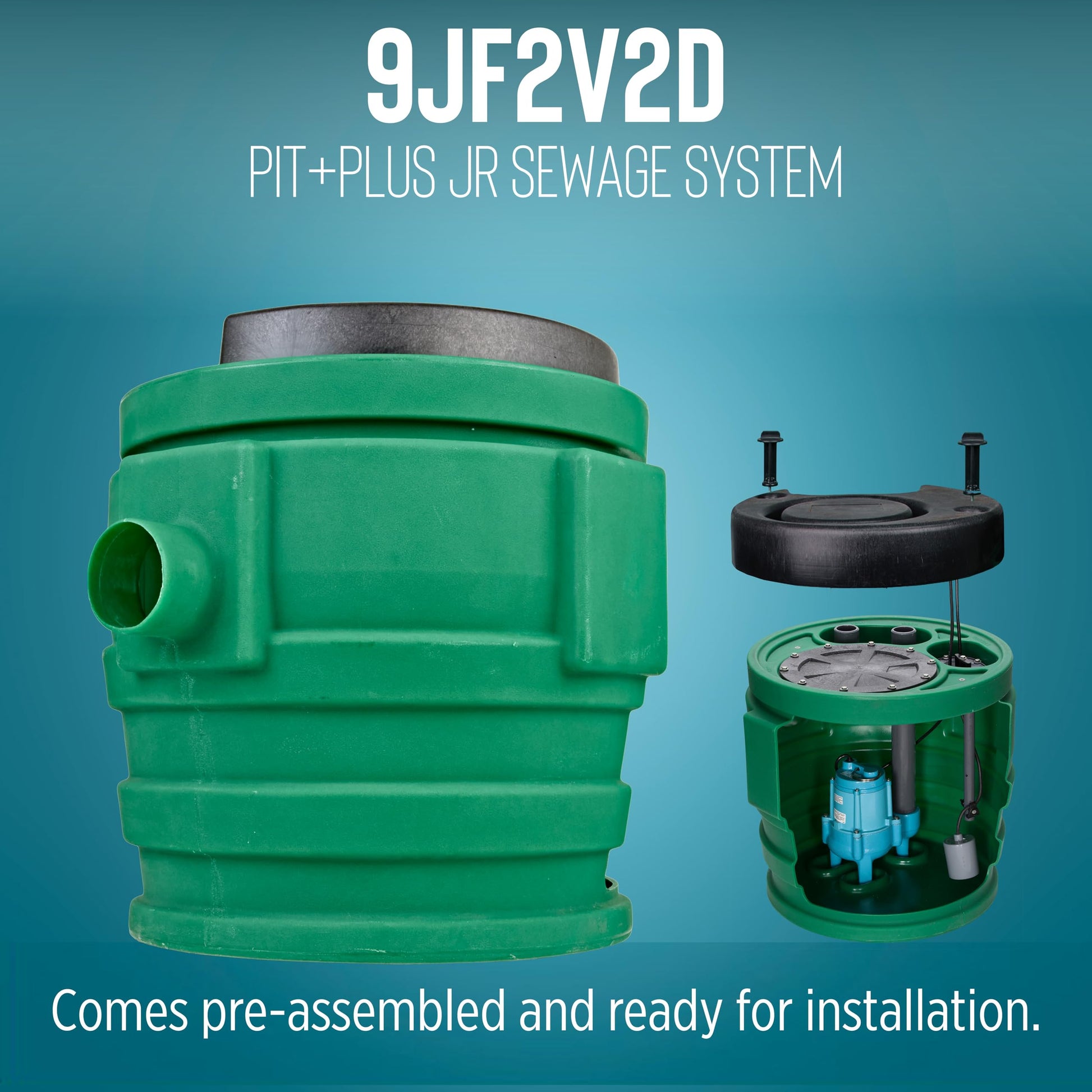

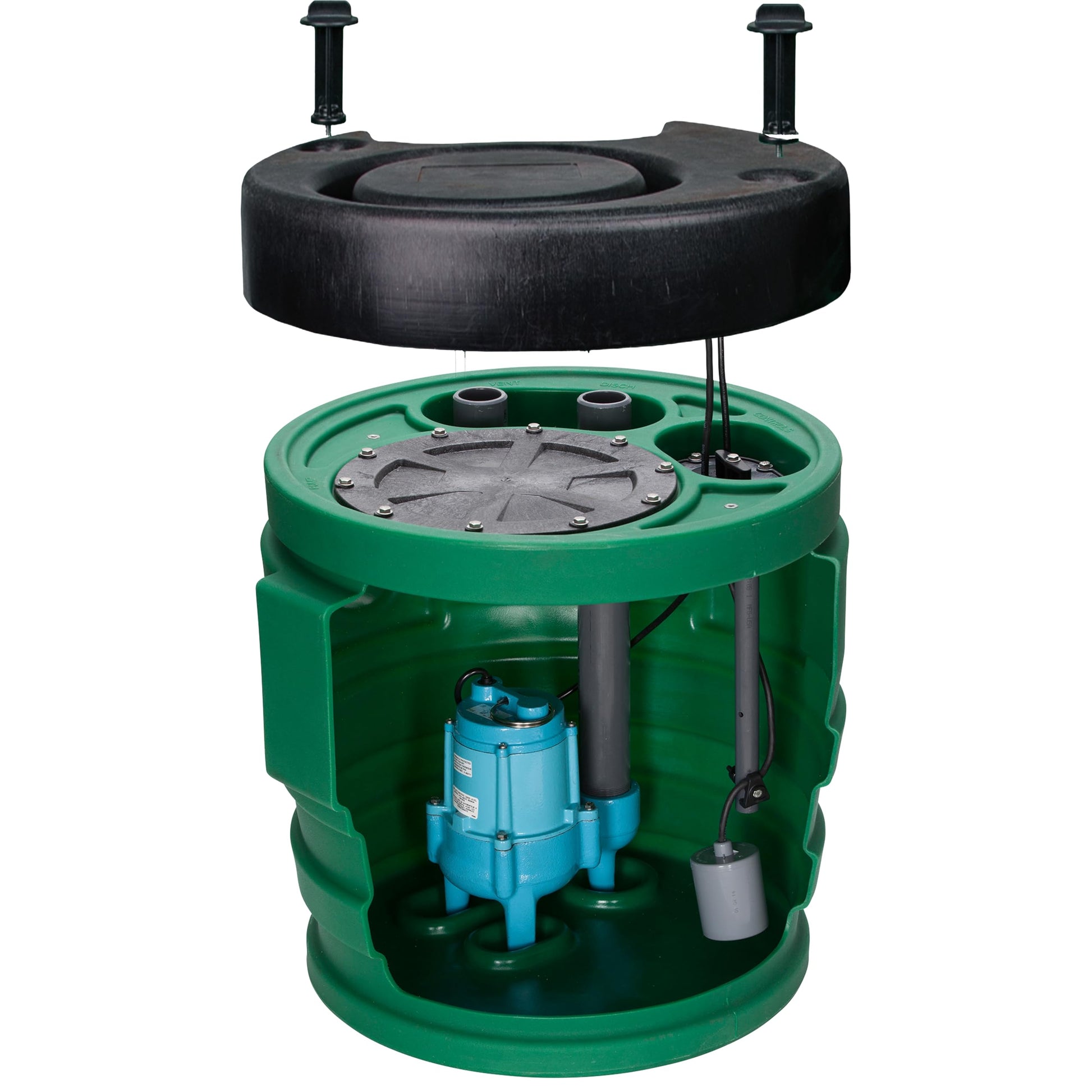

Details: The Pit Plus JR preassembled sewage pump system includes a 4/10 HP submersible sewage/effluent pump with basin and float switch. The basin features a radial rib design for added strength, 360° molded handle; integrated anti-flotation collar, and recessed discharge and vent location. The 9SC-CIM pump delivers 6000 GPH at 5-ft lift and comes with a 2-inch discharge and 20-ft. cord. The system also includes a piggy-back mechanical float switch and float tree. Also included is a 13-inch x 2" MNPT discharge pipe with coupling and a 6-inch x 2.38-inch vent pipe. Please note this product does not come with a check valve. This system is specifically designed for areas with rocky terrain or where problematic soil makes digging difficult. The larger capacity of the Pit Plus Jr. extends the pump life by reducing pumping cycles. This system is designed to handle liquid and solid waste materials up to 2".

EAN: 0010121147584

Package Dimensions: 28.3 x 24.4 x 23.6 inches
