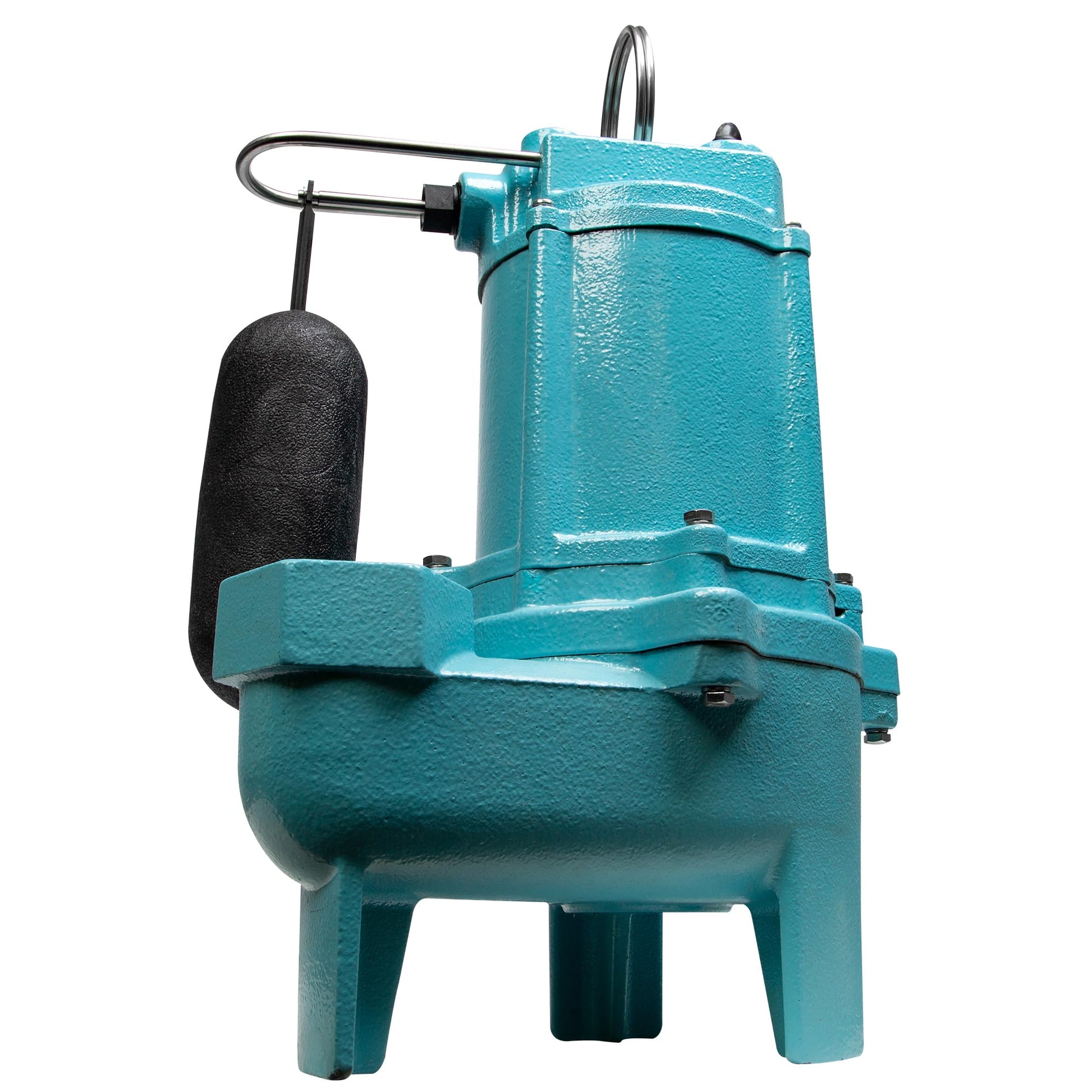

Little Giant 9SC-CIA-SFS 115 Volt, 4/10 HP, 6000 GPH Epoxy-Coated Cast Iron Submersible Sewage Pump with Integral Snap-Action Float Switch, 20-Ft. Cord, Blue, 509411

Brand: Little Giant

Color: Blue

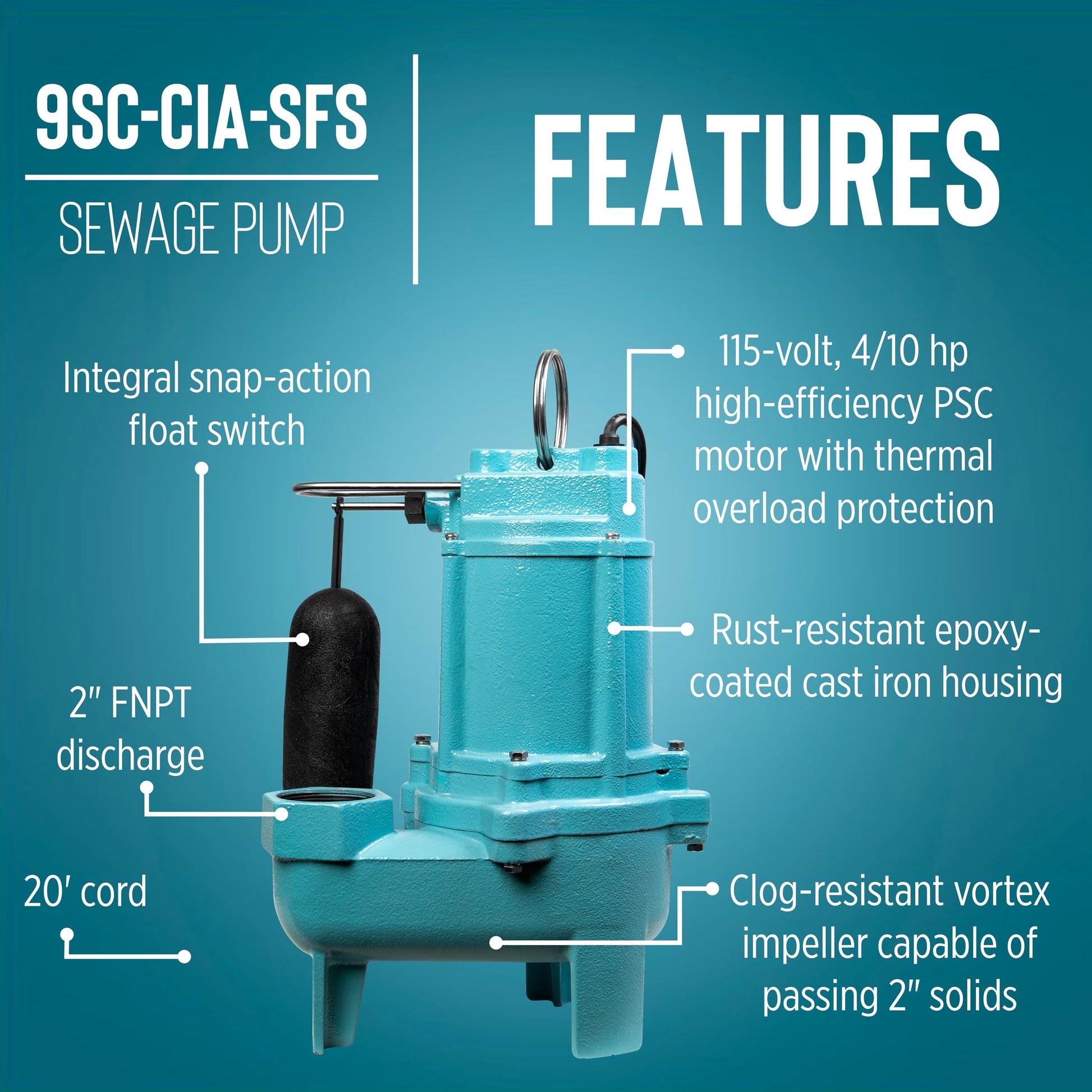

Features:

• APPLICATIONS: designed for residential sewage and effluent wastewater transfer from sewage basins to sewage systems or tanks; able to handle solids up to 2-inches in diameter
• BUILT TO LAST: designed for continuous duty; epoxy-coated cast iron housing, and volute; thermoplastic motor cover; upper and lower ball bearings; steel shaft

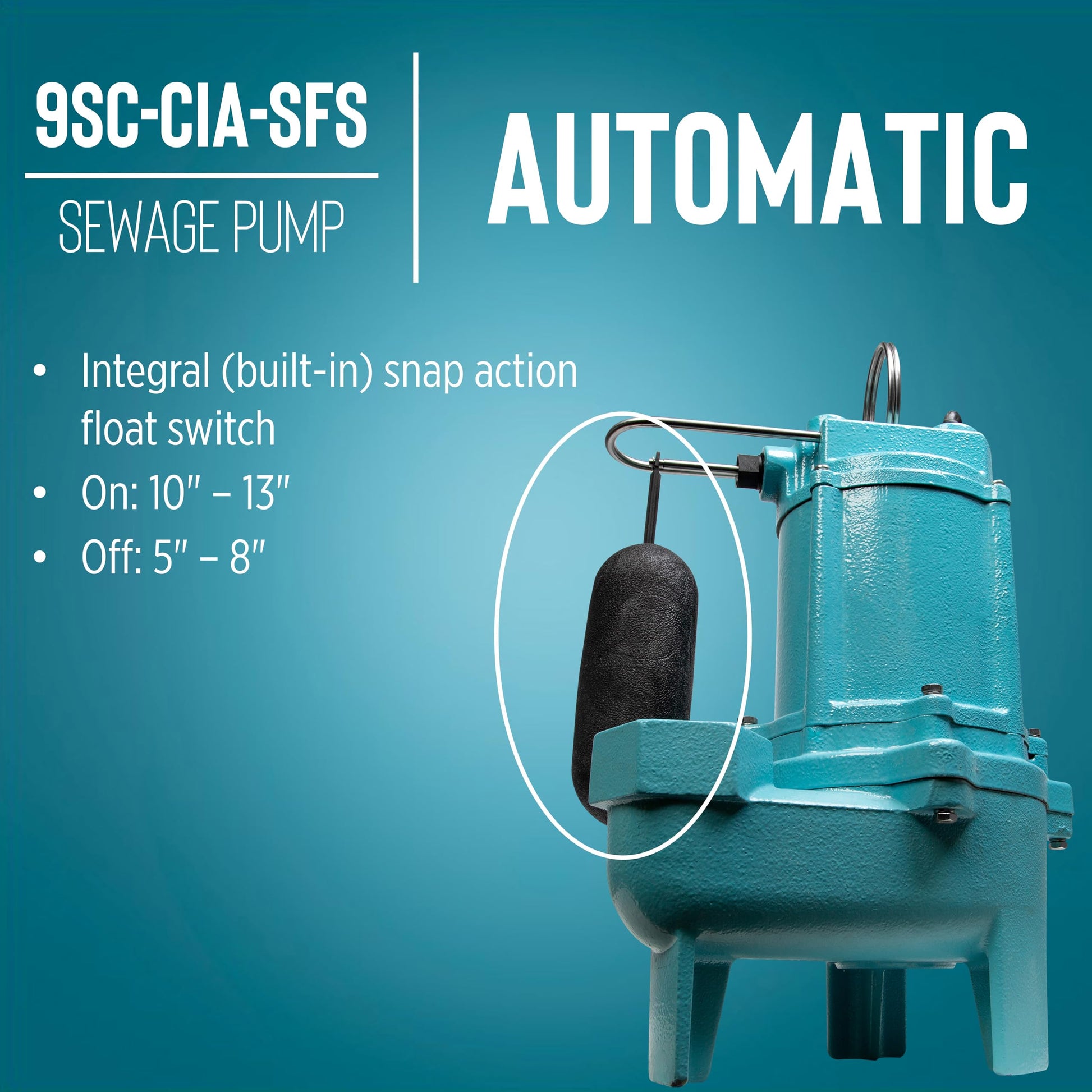

• AUTOMATIC OPERATION: snap-action float switch activates the pump when liquid reaches 10 - 13 inches and shuts off when liquid falls to 5 - 8 inches
• ENERGY EFFICIENT MOTOR: 4/10 HP, 115 Volts, 8 Amps, 870 Watts; permanent split capacitor (PSC); 20-ft. power cord with plug; CSA listed in the USA and Canada

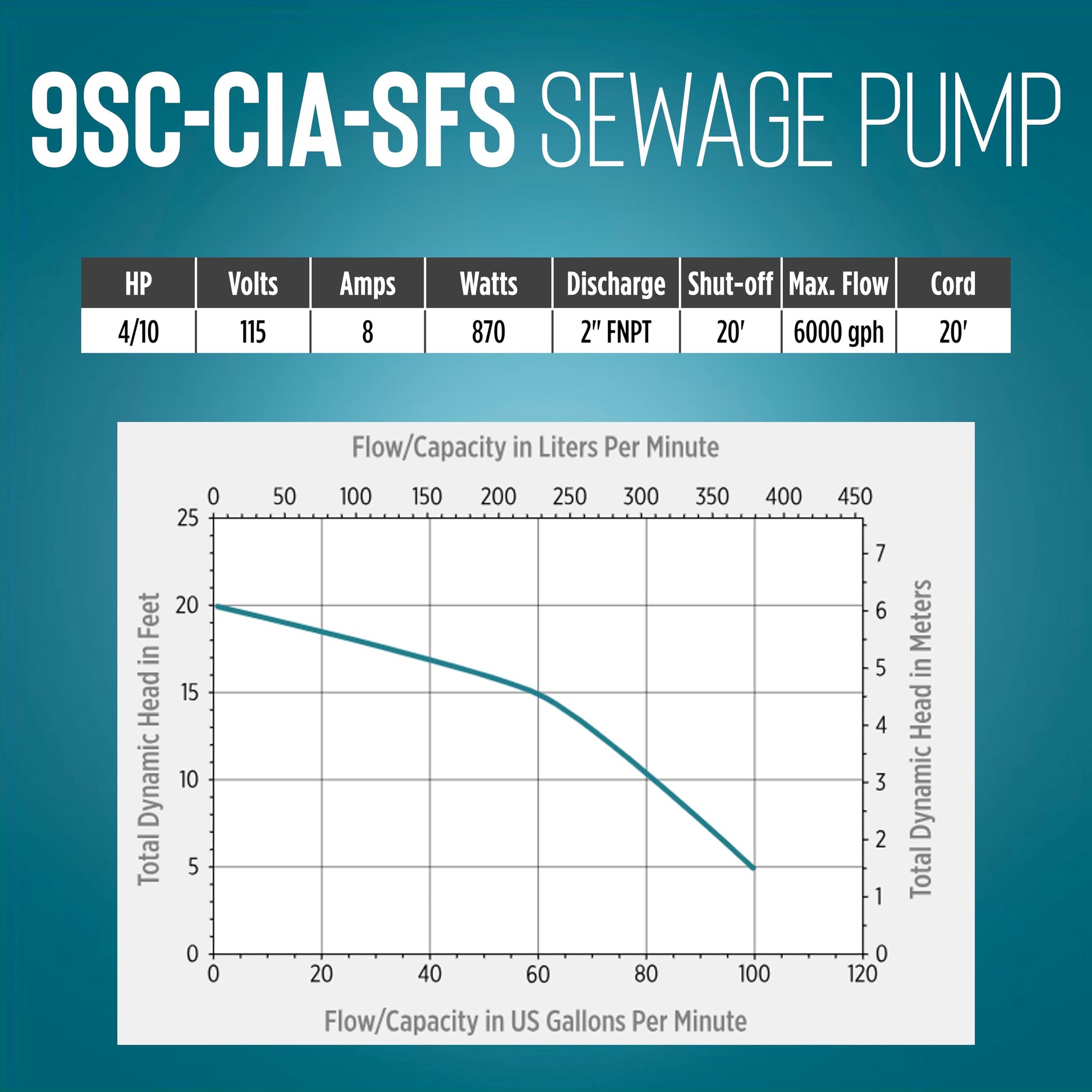

• PUMP SPECIFICATIONS: 6000 GPH at 5-ft. Lift; 20-ft. shutoff; 8.7 PSI; rated for 140°F liquid temperatures; 2-inch FNPT discharge; 2-inch solid handling; nylon vortex-style impeller; weight 38.5 lbs.

model number: 509411

Part Number: 509411

Details: The Little Giant 9SC-CIA-SFS 4/10 HP, 6000 GPH sewage and effluent pump is a dependable companion in residential sewage and effluent wastewater removal. The 9SC-CIA-SFS handles solids up to 2-inches in diameter. This pump comes with a built-in (integral) snap action float switch which activates the pump when liquid reaches 10 to 13 inches and shuts off the pump when liquid falls between 5 and 8 inches. This pump features a 20-ft. power cord and energy-efficient PSC motor drawing 8 Amps/870 Watts.

This pump is equipped with an air bleed hole which prevents the pump from being airlocked and allowing trapped air to escape. A large volume of water will spray from the pump. The pump is NOT DEFECTIVE. This is normal operation and does not affect the performance of the pump.

EAN: 0010121003231

Package Dimensions: 17.5 x 11.7 x 10.4 inches
