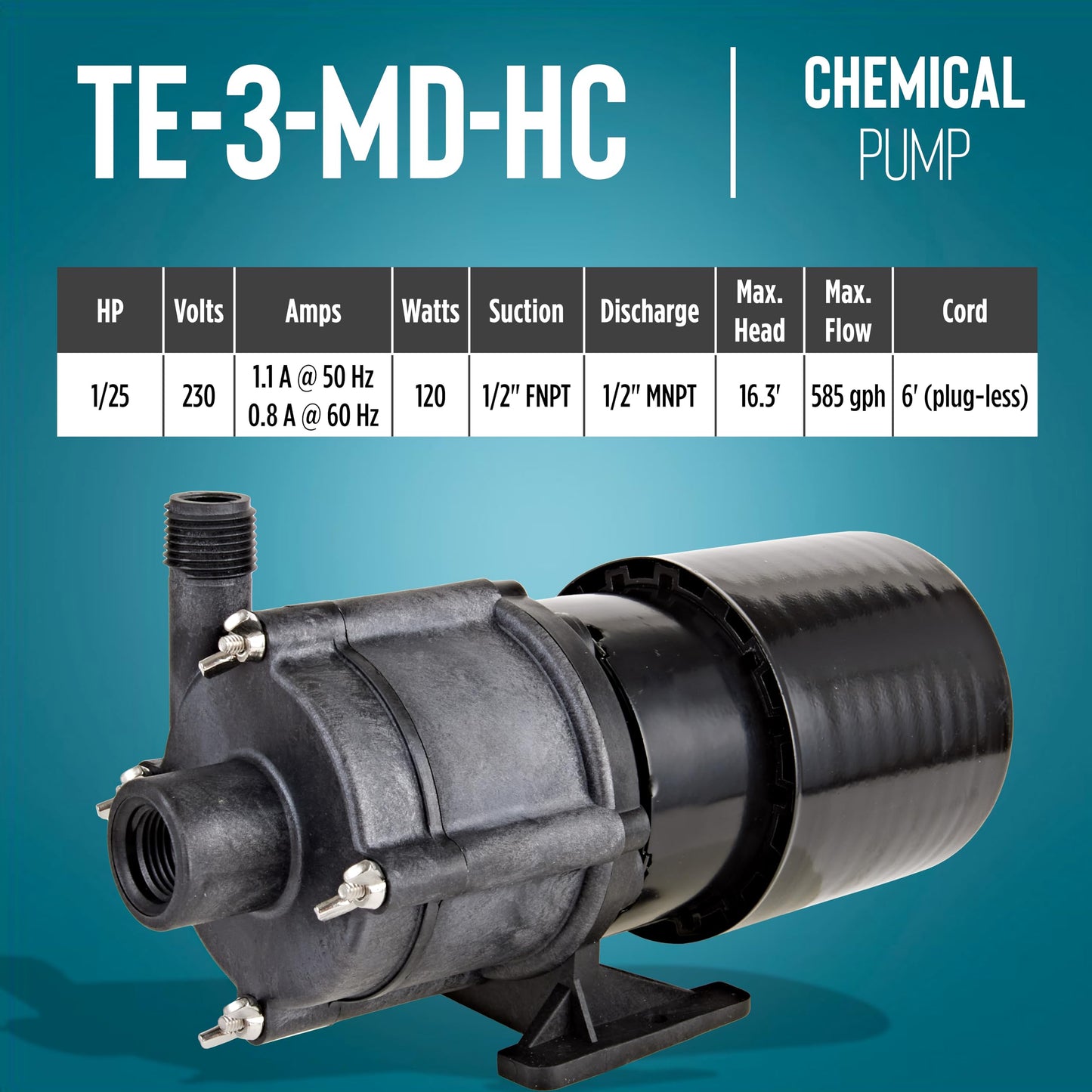

Little Giant TE-3-MD-HC 230 Volt, 1/20 HP, 585 GPH Non-Submersible Highly Corrosive Chemical Transfer Magnetic Drive Pump, 6-Ft. Power Cord (Plug-less), Black, 581614
APPLICATIONS: designed for in-line, non-submersible use to circulate highly corrosive acids, alkalis, solvents, brine, plating and sterile solutions and other highly corrosive chemicals/solutions
EXCELLENT CHEMICAL RESISTANCE: motor housing, impeller and volute are made of polyphenylene sulfide (PPS); motor shaft and thrust washers are ceramic, FKM O-ring seal
LIMITATIONS: 1.1 specific gravity; maximum liquid temperature 200°F; this pump does not come with a plug
MOTOR SPECIFICATIONS: 230 VOLTS; 50/60 Hz, 120 Watts, 1/20 HP; 1.1 Amps at 50 HZ; 0.8 Amps at 60 Hz; totally enclosed fan-cooled (TEFC) motor; thermally protected; 6-ft. power cord (plug-less)
PUMP SPECIFICATIONS: 1/2" FNPT intake; 1/2" MNPT discharge; 585 GPH at 1-ft. head, 16.3 ft. shutoff; maximum 7.05 PSI
model number: 581614
Part Number: 581614
Details: The Little Giant 230 Volt, 1/20 HP TE-3-MD-HC non-submersible magnetic drive pump is used to circulate highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions. Its motor housing, impeller, and volute are made of polyphenylene sulfide PPS for excellent chemical resistance. This pump utilizes pure carbon bushing to enable the pump to run dry for up to 8 hours at a time. This pump delivers up to 585 GPH at 1-ft. lift. This pump comes with a 6-ft. plug-less power cord and cannot be plugged into a standard outlet.
