Little Giant VCMA-20ULST 230 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 20-Foot Tubing, White/Black, 554461

Brand: Little Giant

Color: Black/White

Features:

• AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and dehumidifiers
• THERMALLY PROTECTED, HIGH PERFORMANCE MOTOR: 1/30 HP, 0.5 Amps, 75 Watts, 230 Volts, 60 Hz, fan-cooled motor; CSA certified to US and Canadian standards; 230V plug does not fit standard wall outlets

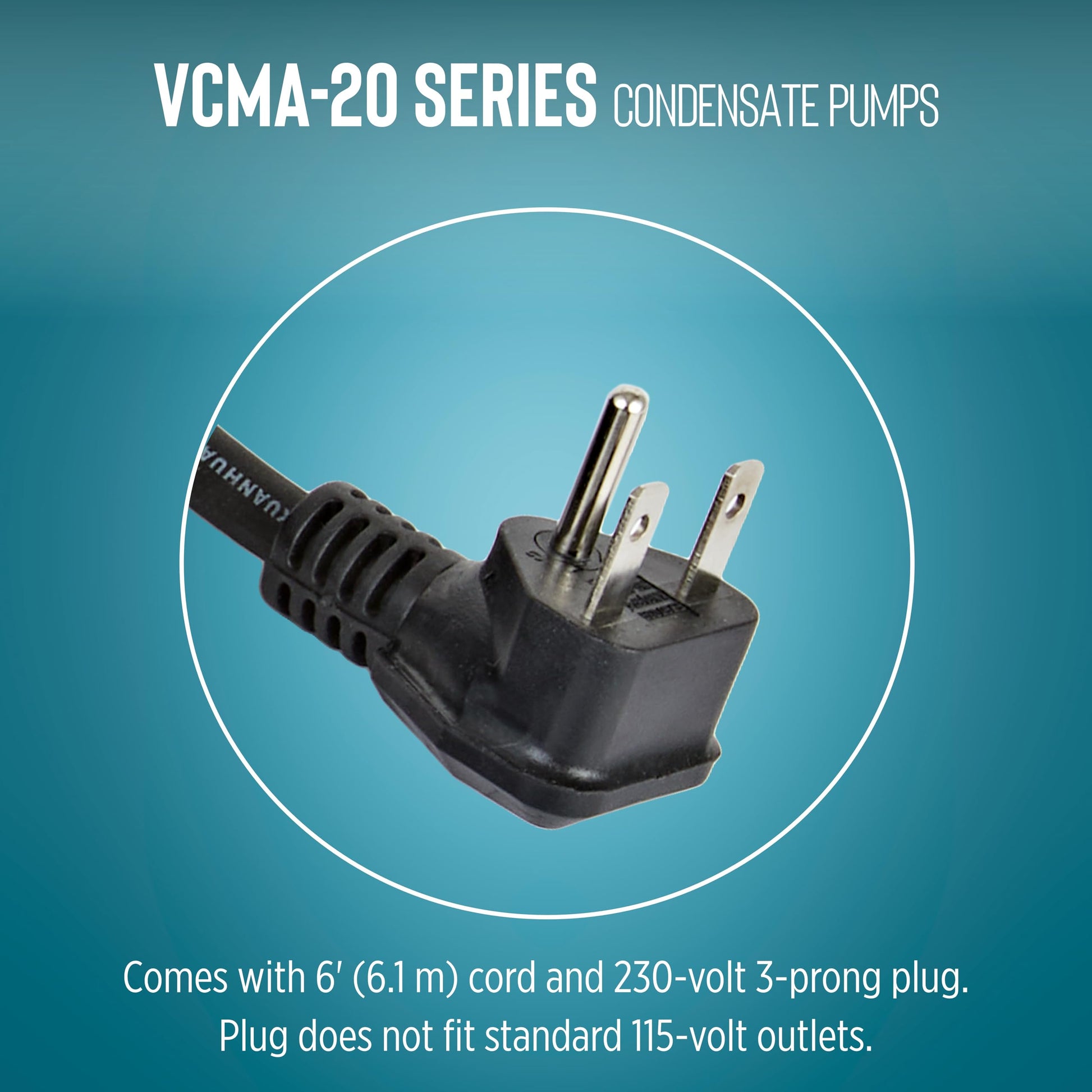

• 230 VOLT 3-PRONG PLUG: This unit is 230 Volts and comes with a 6-ft. cord and plug; the plug does not fit standard 115-Volt wall outlets - see images

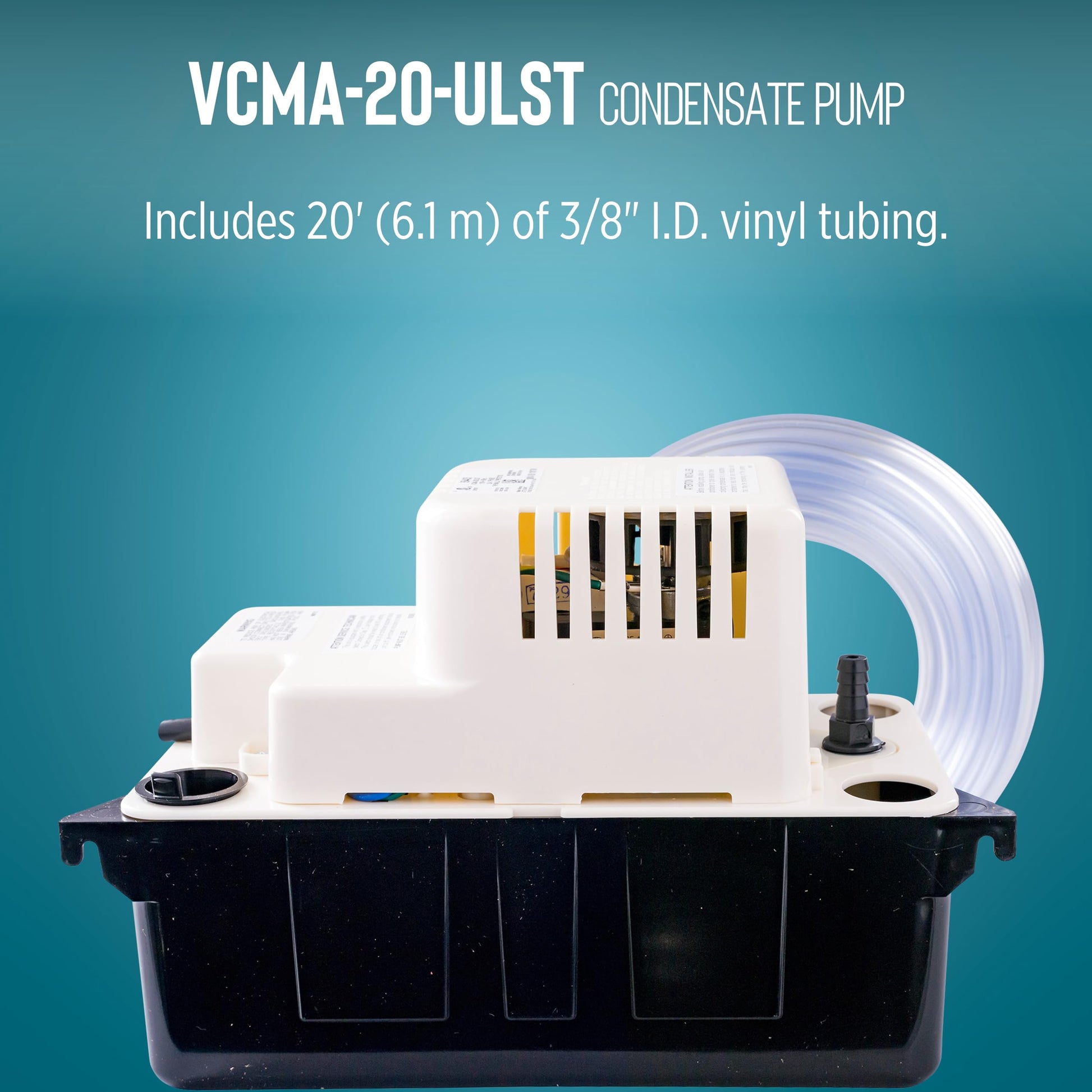

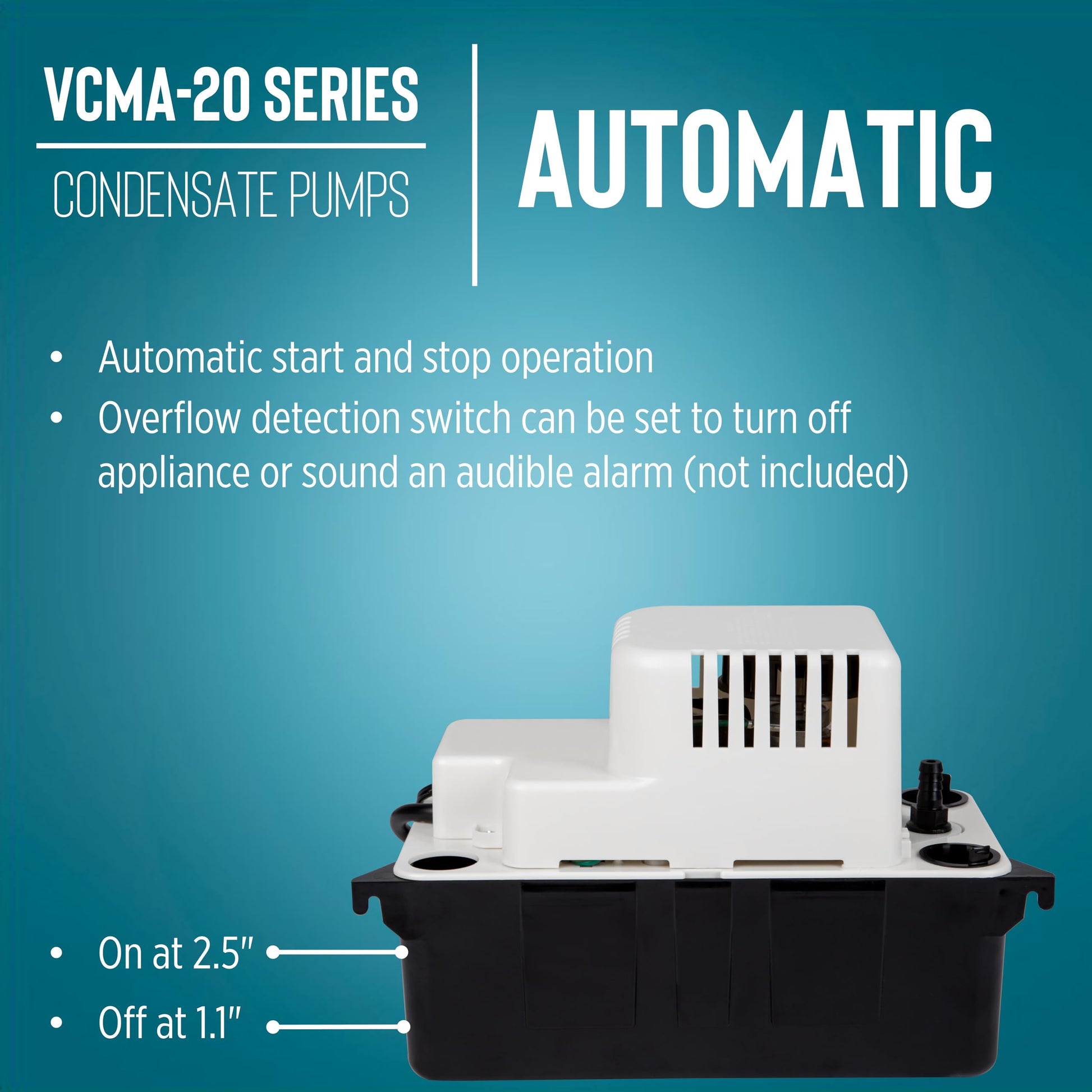

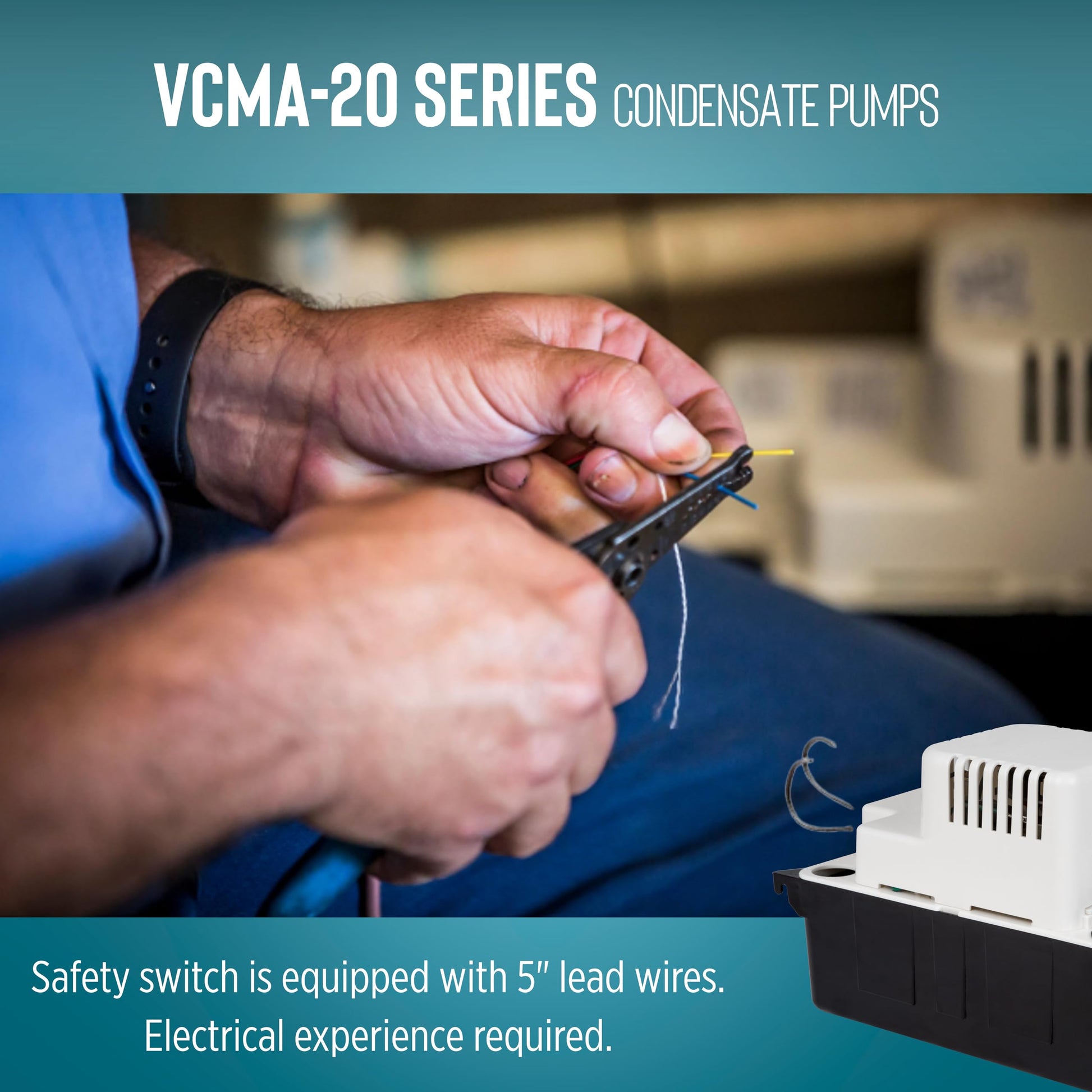

• INCLUDES OVERFLOW DETECTION SWITCH and VINYL TUBING: switch can be set to shut down the appliance or sound an alarm (alarm not included); basic wiring knowledge required; 20' x 3/8" I.D. vinyl tubing
• SPECIFICATIONS: 1/30 HP; 230 Volts, 0.5 Amps,75 Watts, 3/8" OD barbed discharge, 80 GPH at 1' lift, 17' shut-off, max 7.4 psi, three 1-1/8" inlet drain holes, 6' cord; max water temperature: 140° F

model number: 554461

Part Number: 554461

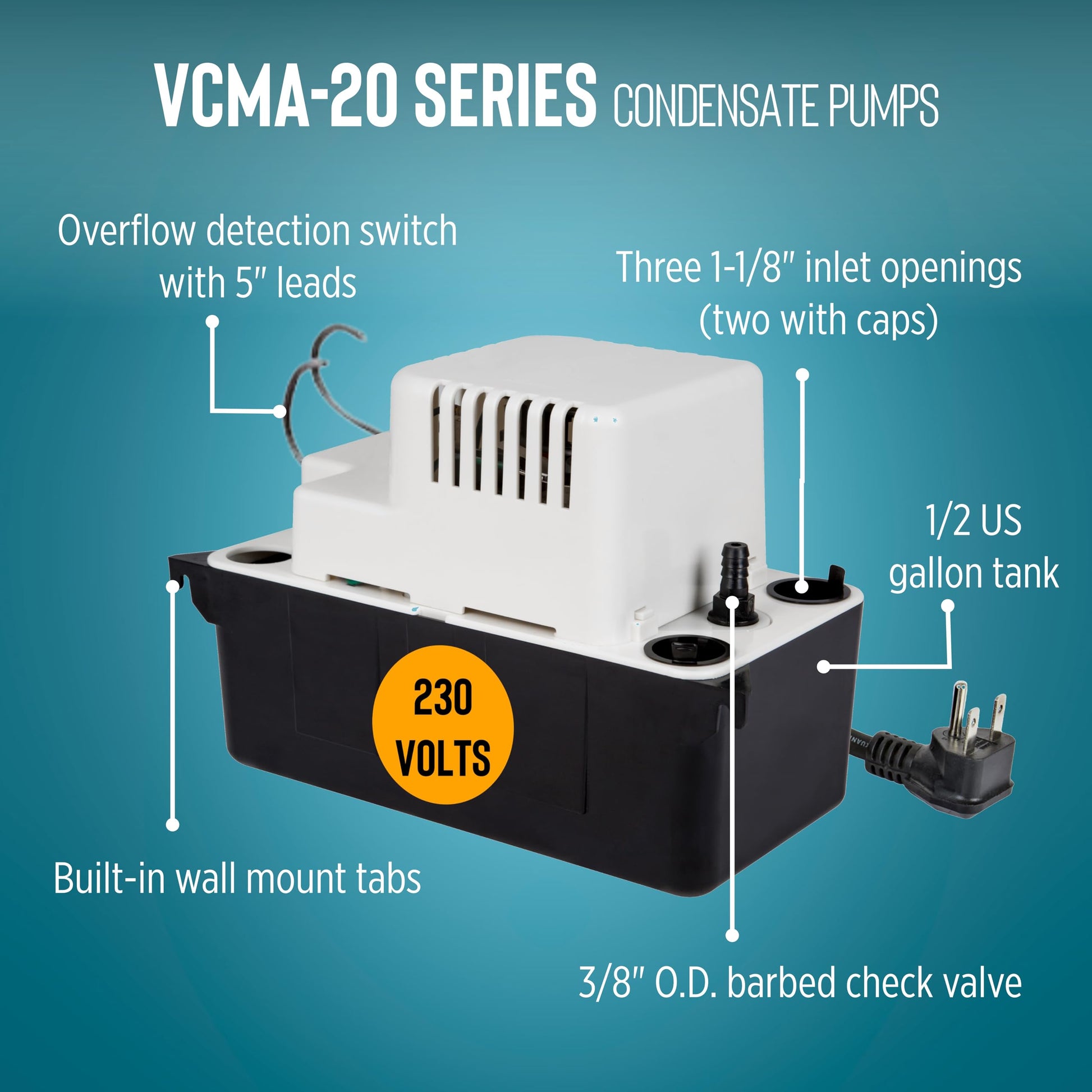

Details: The Little Giant VCMA-20ULST 230-volt condensate removal pump is a 1/30 hp pump that is designed for collecting, detecting and removing condensation from air conditioners, dehumidifiers and refrigeration equipment. Its robust design is also suitable for high-efficiency gas furnace condensate and condensing boilers. This unit includes a 1/2-gallon condensate holding tank, a 3/8" O.D. barbed discharge adapter with a built-in check valve, a 6' power cord with 230V 3-prong plug , 20' of 3/8" ID vinyl tubing, and an overflow detection switch. The overflow detection switch can be set to automatically shut the equipment off or be set to activate an audible or visual alarm (alarm not included); basic wiring knowledge is required. The high-performance 230-volt motor is equipped with thermal overload protection and is CSA certified to US and Canadian standards.

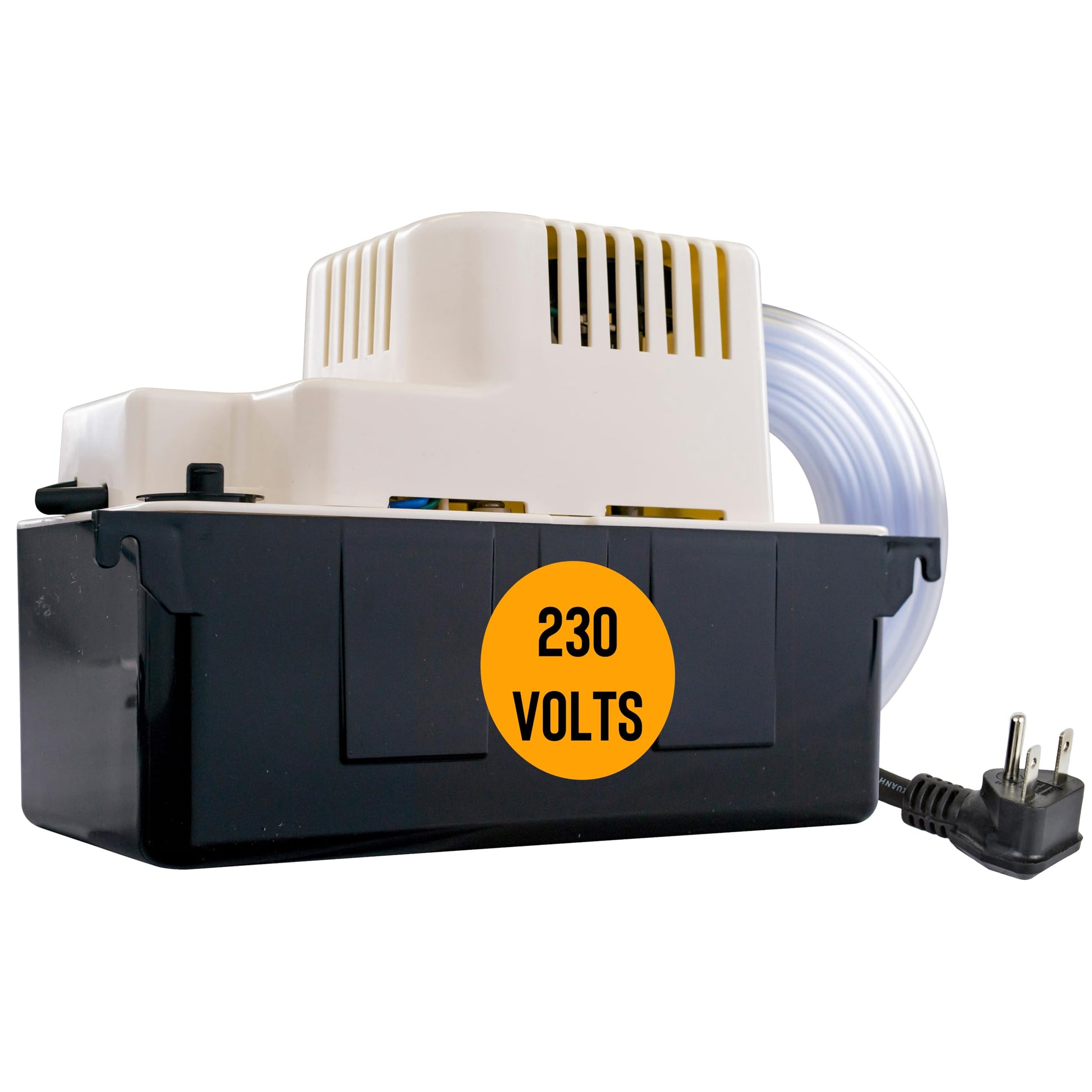

This unit is a 230-VOLT unit and comes with a 230-volt 3-prong plug. This plug will not fit standard 115-volt outlets. See images for more information.

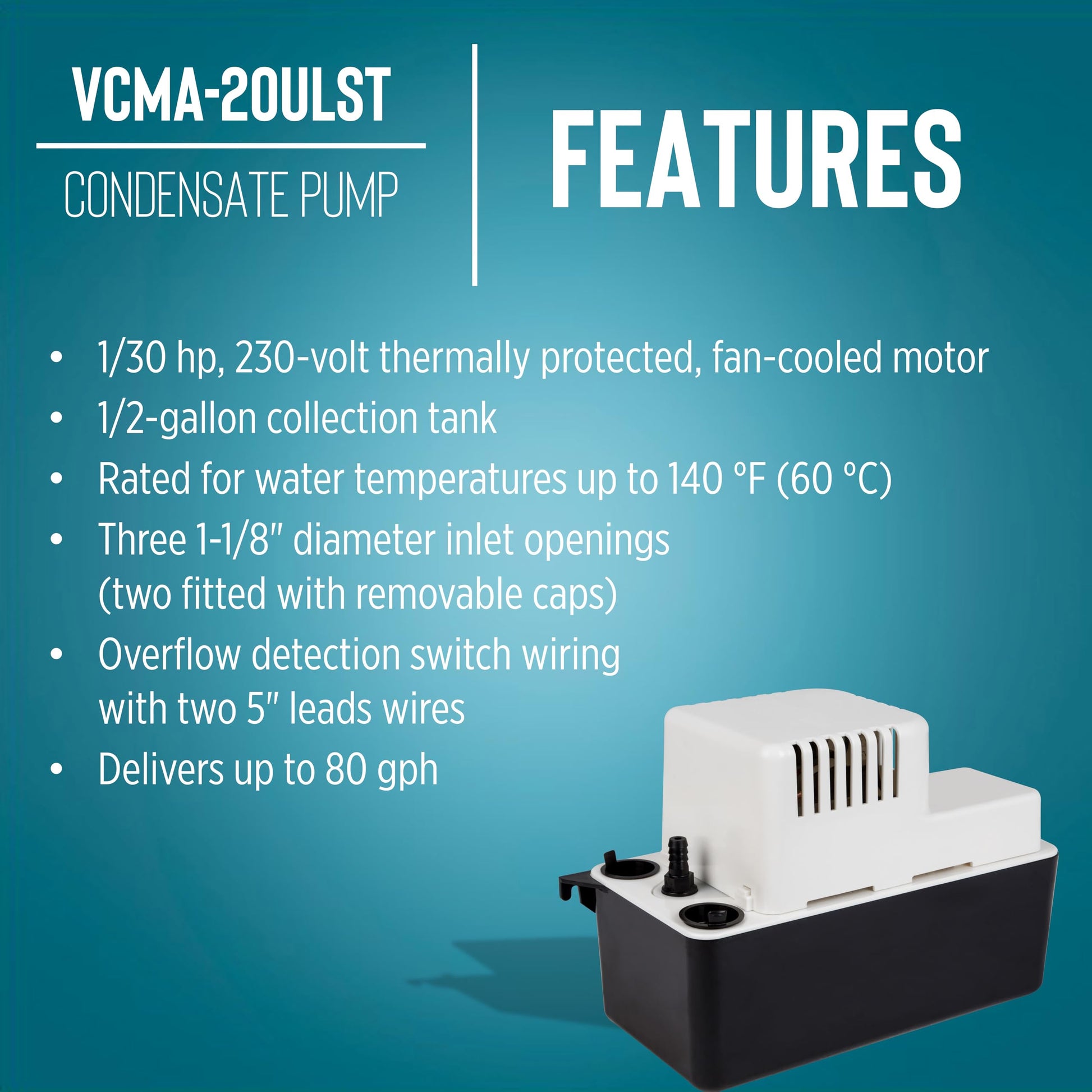

FEATURES & BENEFITS:

- 1/30 hp high-performance motor pumps 80 gallons of water per hour

- three 1-1/8" inlet openings - two with covers

- ABS, tank, motor cover and volute

- Stainless steel motor shaft

- 1/2-gallon tank capacity

INSTALLATION TIPS:

- This pump comes shipped with a cardboard insert marked "REMOVE". Please remove and discard this insert before operating pump. Failure to remove the insert will cause the pump to overflow.

- Check the tubing for obstructions or kinks. Clean or replace the tubing, if necessary.

This is an authentic Little Giant product. The Little Giant brand is owned by Franklin Electric Co., Inc.

EAN: 0010121544352

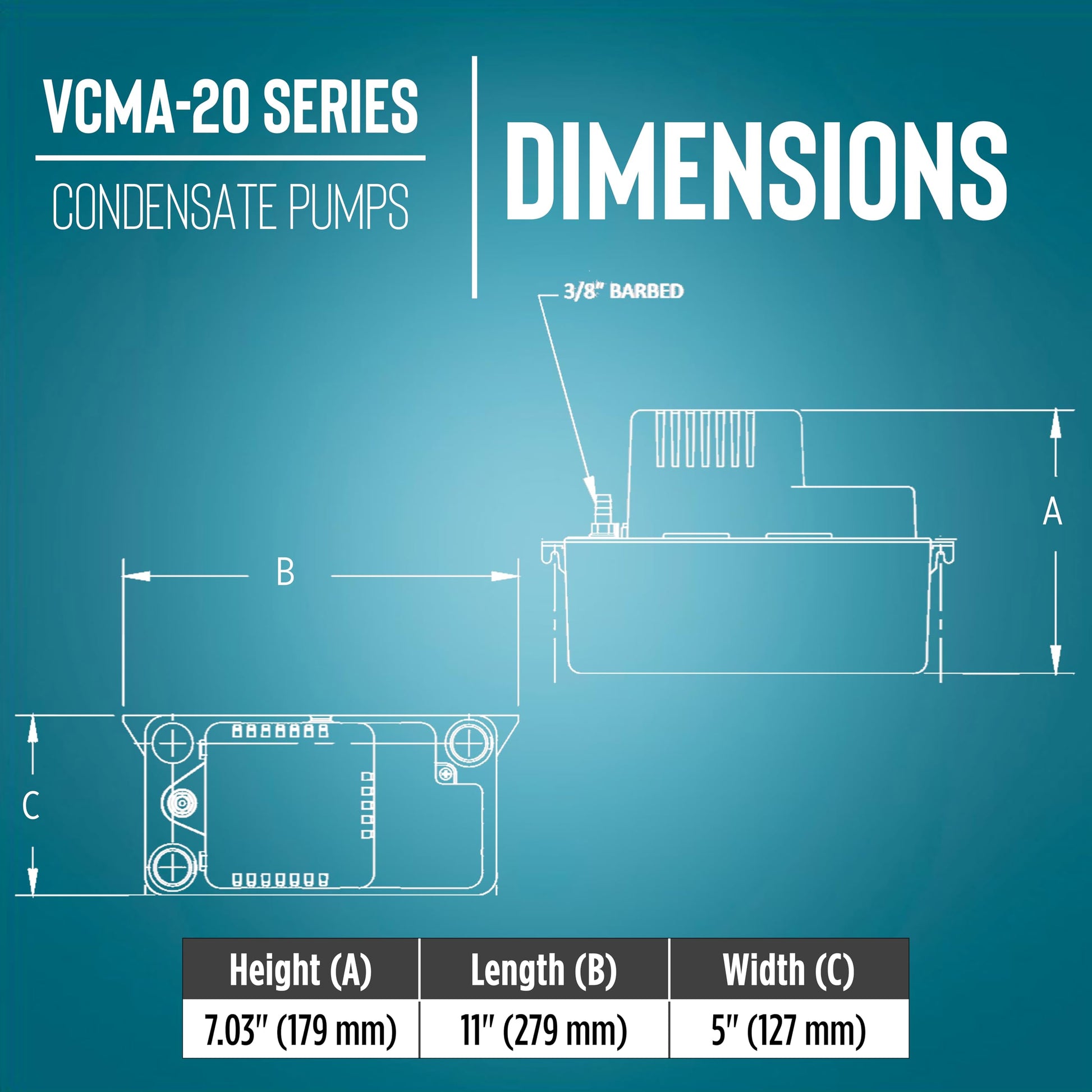

Package Dimensions: 12.2 x 7.8 x 7.6 inches
