LOTOS LTP5800D 58A Plasma Cutter, 5/8" Clean Cut (3/4" Severance), Non-Touch Pilot Arc, Up to 15% Faster Cutting, Dual Voltage 110/220V, LED Panel & Front Regulator, Portable Plasma Cutting Machine

Brand: LOTOS

Color: Brown

Features:

• 58A Power, Up to 15% Faster – 220/240V: 5/8" clean, 3/4" severance; 110/120V: 3/8" clean, 1/2" severance. Smoother edges, less slag on steel/stainless/aluminum/copper.
• Non-Touch Pilot Arc – Starts without tip contact to cut painted, rusty, or rough metal with less slag and reduced nozzle wear for cleaner, consistent results.
• App-Style LED Controls – Pilot-Arc Time 6–15s, Post-Flow 2–10s, plus Air-Pressure Range reminder to quickly dial in stable, high-quality cuts.
• 1-Minute Setup – Pre-installed NPT 1/4" D plug & air filter regulator; front regulator simplifies precise pressure set and leak checks. Includes NEMA 6-50.
• Safe, Portable, Low Cost – Uses non-hazardous compressed air; upgraded torch/consumables last longer. Ideal for home shop, auto-body, fabrication, farm, HVAC, metal art.
• Input Power & Air – Automatic dual voltage 110–125V / 215–245V; recommended breakers 50A at 120V / 40A at 240V; clean, dry air ≥70 PSI at 4.0 SCFM.
• Output & Cutting Capacity – 220/240V: 15–58A DC (up to 5/8" clean; 1" sever). 110/120V: 20–35A DC (up to 3/8" clean; 1/2" sever).

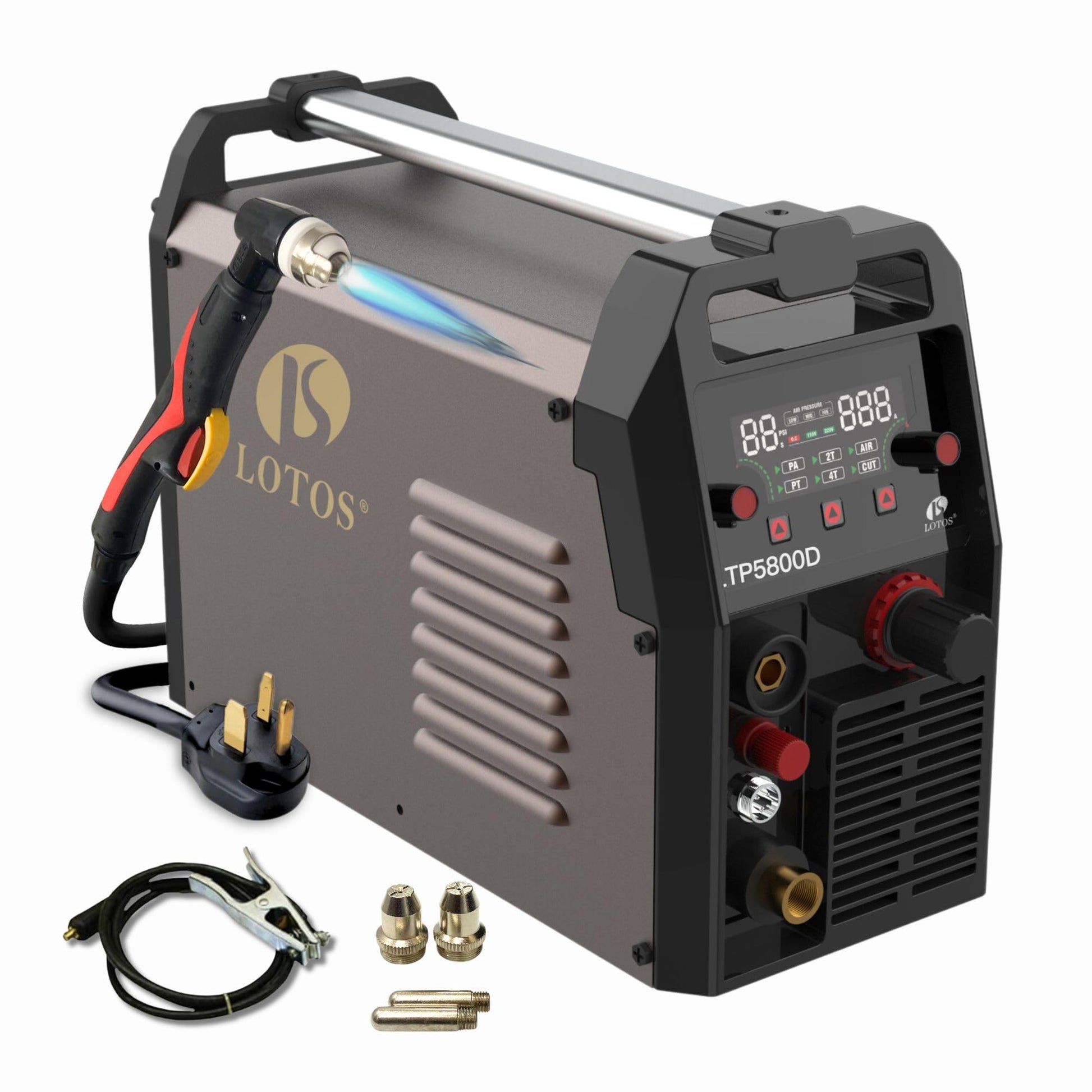

• Package Includes: 58A power supply, 13 ft / 4 m plasma torch, 6 ft / 1.8 m ground clamp, pre-installed NEMA 6-50 plug, NPT 1/4" industry-type D plug & air filter regulator, starter consumables, user manual.

model number: LTP5800D

Part Number: LTP5800D

Details: LOTOS LTP5800D 58A Non-Touch Pilot-Arc Plasma Cutter delivers fast, clean metal cuts with a compact, portable design. On 220/240V it achieves 5/8" (16 mm) clean cuts and 3/4" (20 mm) severance; on 110/120V it delivers 3/8" clean and 1/2" severance (10–35A). All-new LED control panel: adjustable Pilot-Arc Time 6–15s, Post-Flow 2–10s, plus an air-pressure range reminder to quickly dial in stable, high-quality cuts. Non-touch pilot arc starts without tip contact to cut painted/rusty/rough surfaces with less slag and less nozzle wear—improves cut quality and consumable life. 1-minute setup: pre-installed NPT 1/4" industry-type D plug and air filter regulator; includes NEMA 6-50 (50A) plug. The front-mounted regulator makes precise pressure setting and leak checks easy. Multi-metal capable: stainless steel, alloy steel, mild steel, copper, aluminum. Uses non-hazardous compressed air for safer, lower-cost operation. Built for real jobs: home shop projects, auto-body repair, fabrication, farm/ranch upkeep, HVAC service, and metal art. Key Specs Input power: 110/120V or 220/240V, single-phase Output current: 10–58A (220/240V); 10–35A (110/120V) Cutting capacity: 5/8" clean & 3/4" severance (220/240V); 3/8" clean & 1/2" severance (110/120V) Torch/ground leads: torch 13 ft (≈4 m); ground clamp 6 ft (≈1.8 m) Plug: NEMA 6-50 (50A) Air: external compressor required (not included)
Performance varies with material, thickness, air supply, and setup. “Up to 15% faster” based on internal comparisons and may vary by application.

EAN: 0856117006714

Package Dimensions: 19.4 x 13.6 x 10.9 inches
