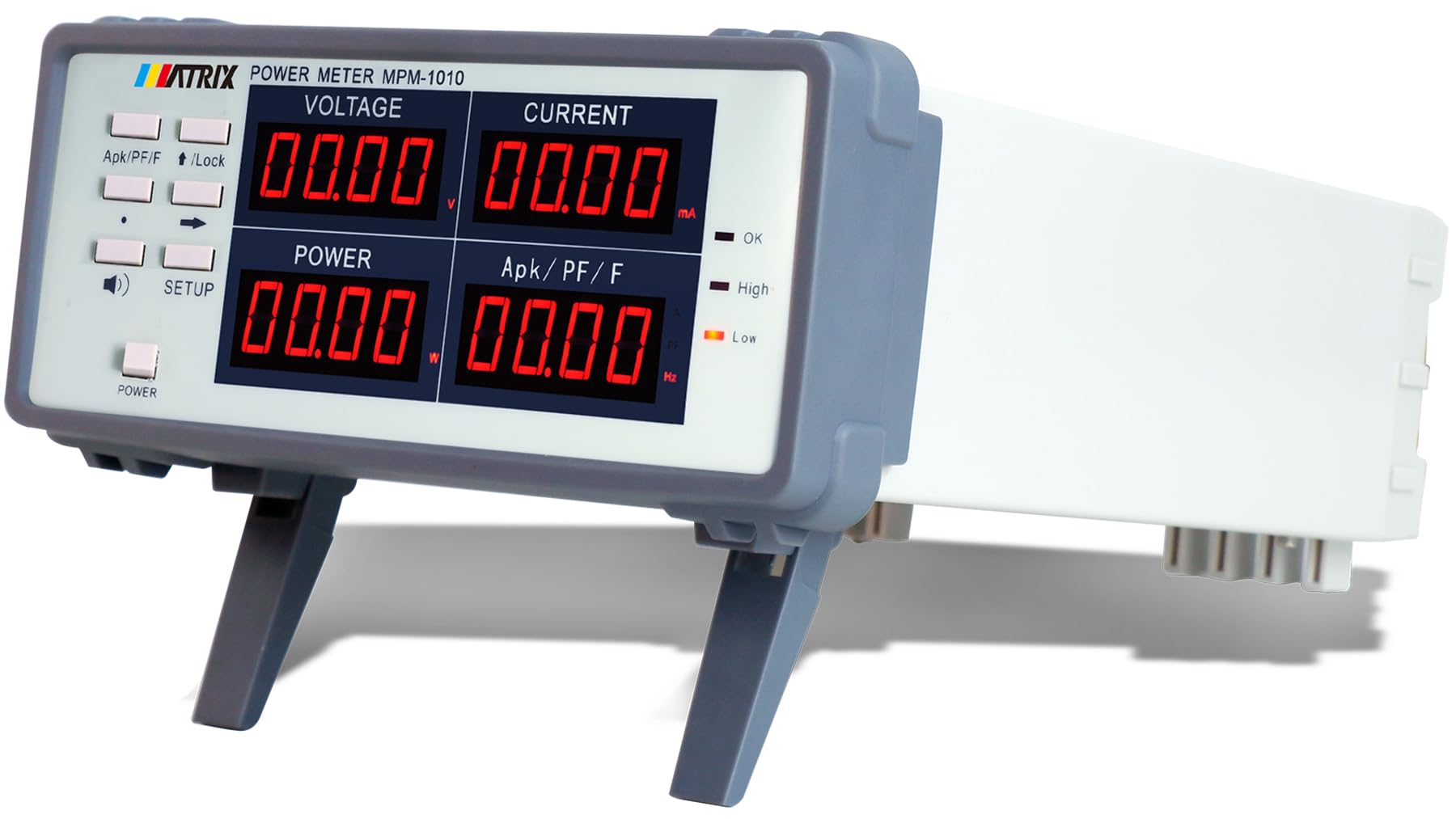

MATRIX MPM-1010 High Precision Bench Digital AC Power Meter - Voltage Current Power Factor and Frequency Meter with Upper and Lower Limit Set and Sound Light Alarm

Brand: MATRIX

Color: Gray

Features:

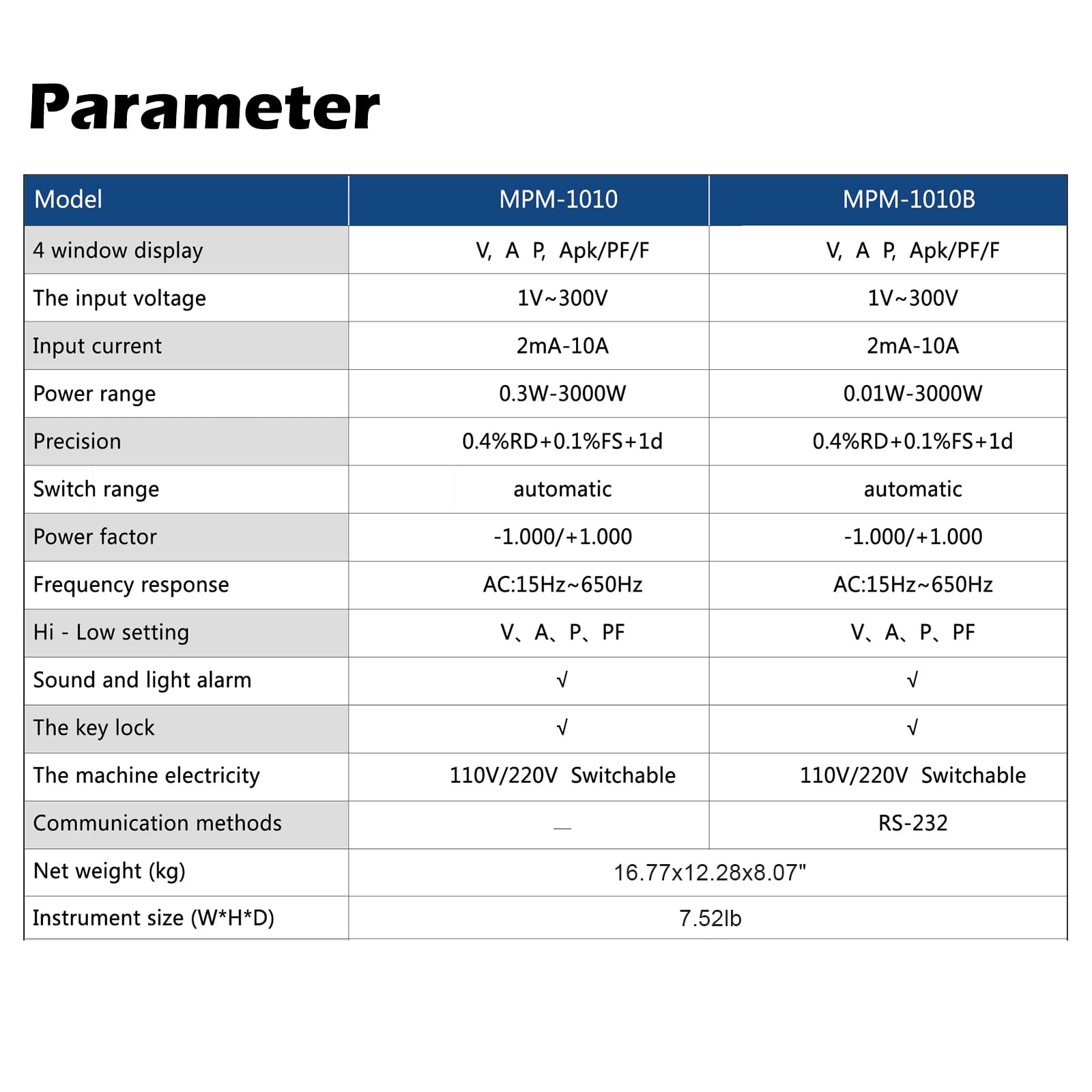

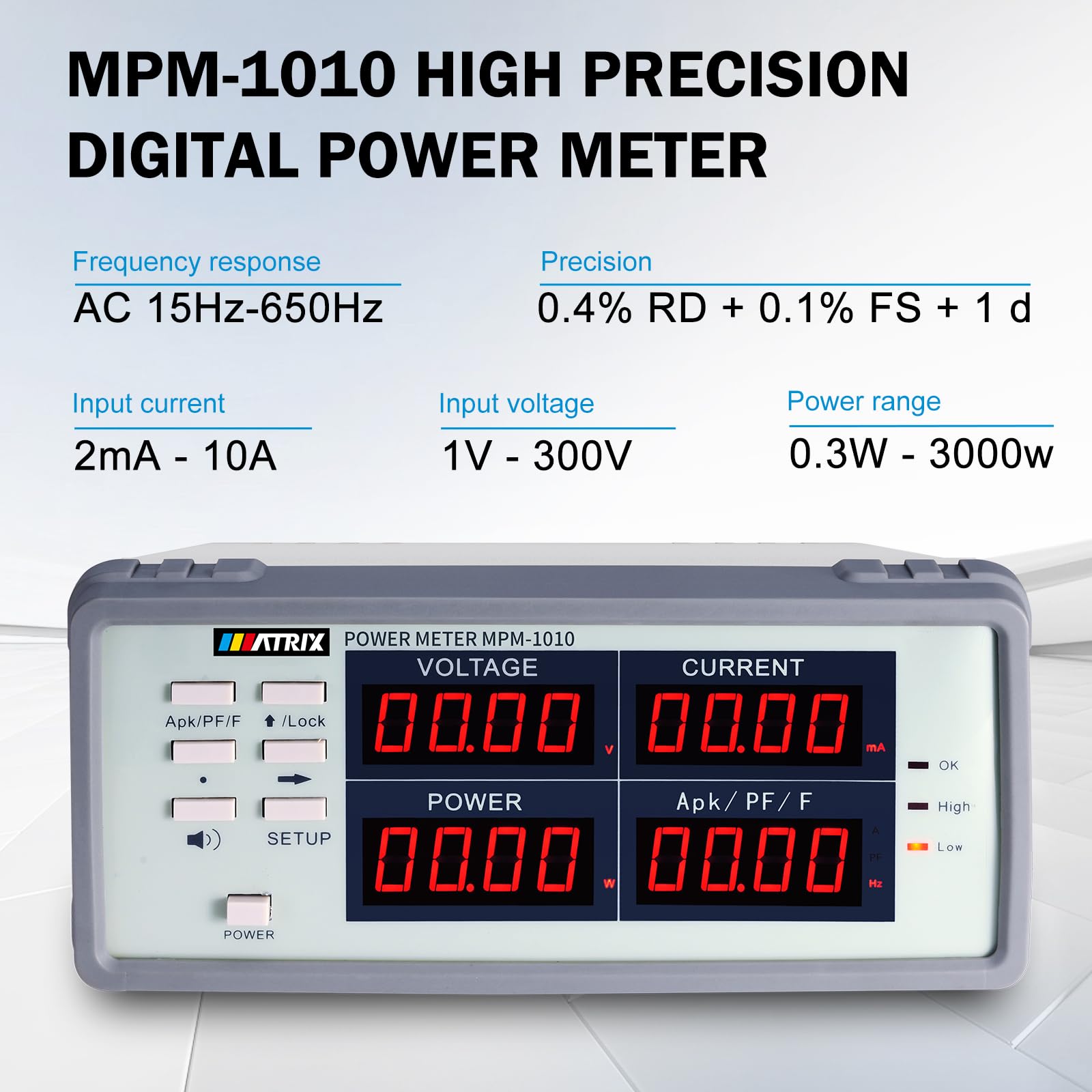

• HIGH PRECISION DIGITAL POWER METER SPEC: MATRIX MPM-1010 power meter can provide input of 1V - 300V, 2mA - 10A, 0.3W - 3000W, and a frequency response of AC 15Hz - 650Hz. Accuracy is 0.4%RD + 0.1%FS + 1d. Power factor -1/+1. Built-in high-speed processor, measuring accuracy is not affected by waveform
• 6 POWER MEASUREMENT PARAMETERS: MPM-1010 digital electrical parameter measuring instrument provides 6 parameters V, A, P, PF/Apk/F. 4 windows simultaneously display RMS voltage, RMS current, power, peak current, power factor, frequency. When measuring below 100V, the voltage is shown in 3 digits, the rest is a 4-digit measurement display
• FEATURES: The digital AC power meter can set the upper and lower limit of power factor, current, and power. And there is a sound light alarm, suitable for production line batch tests

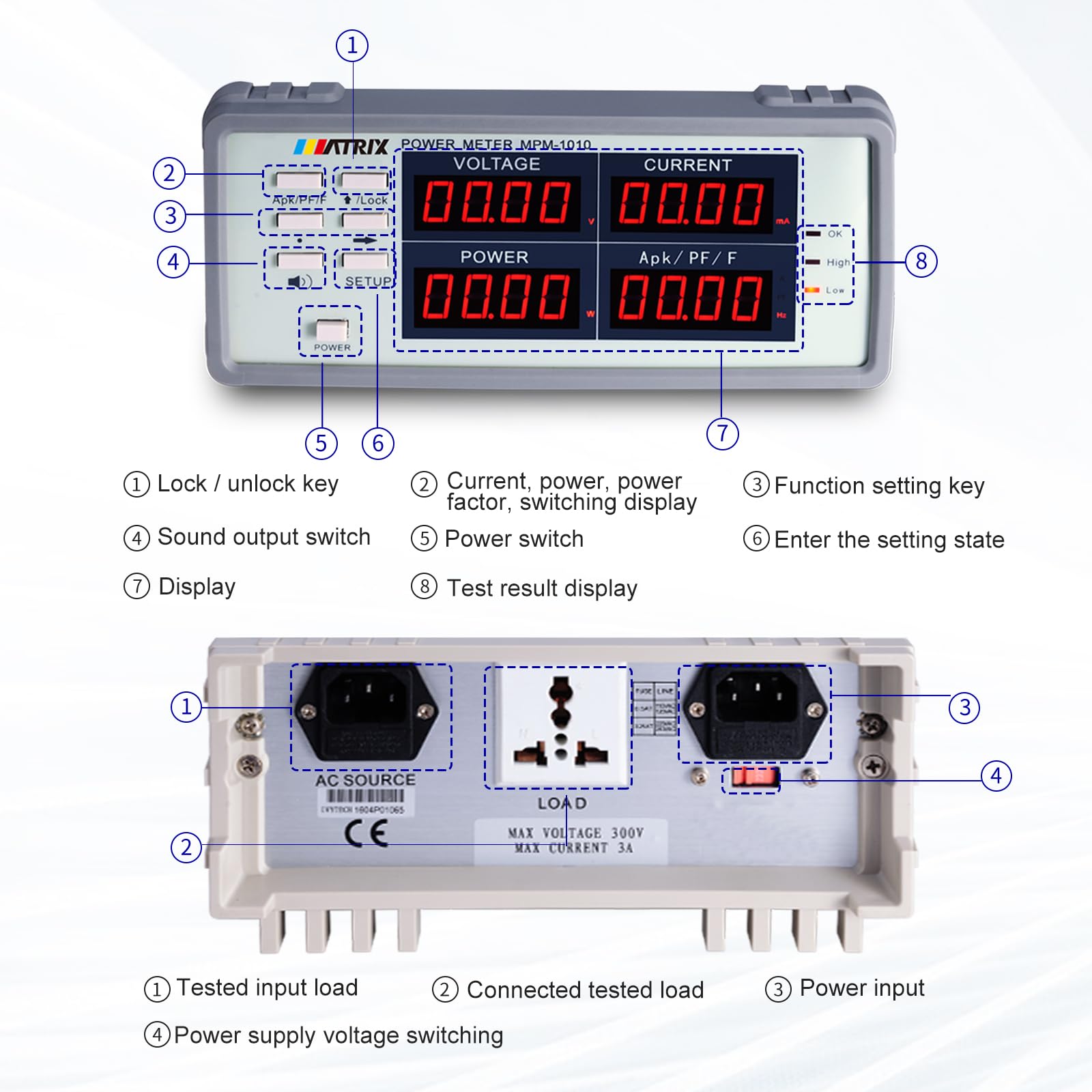

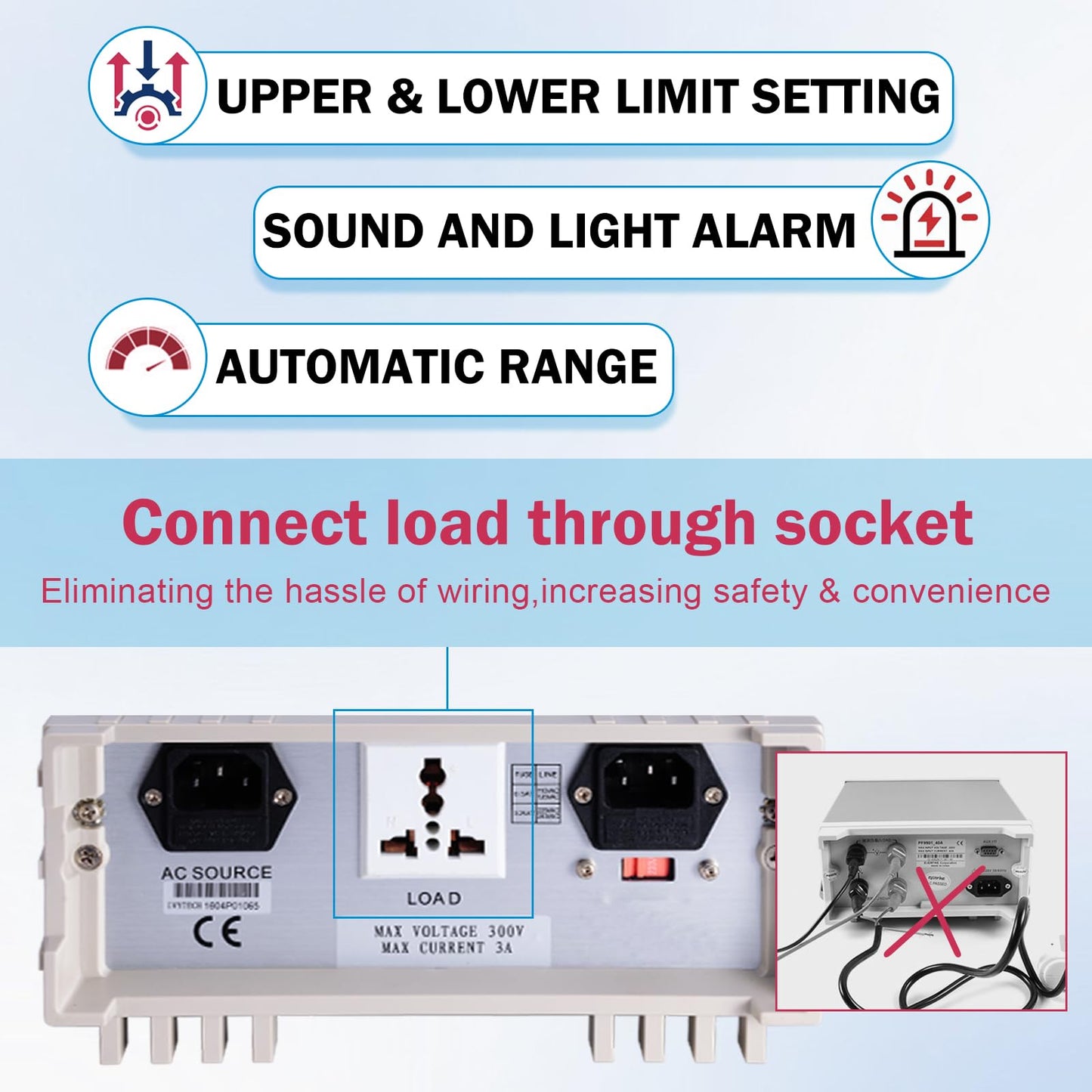

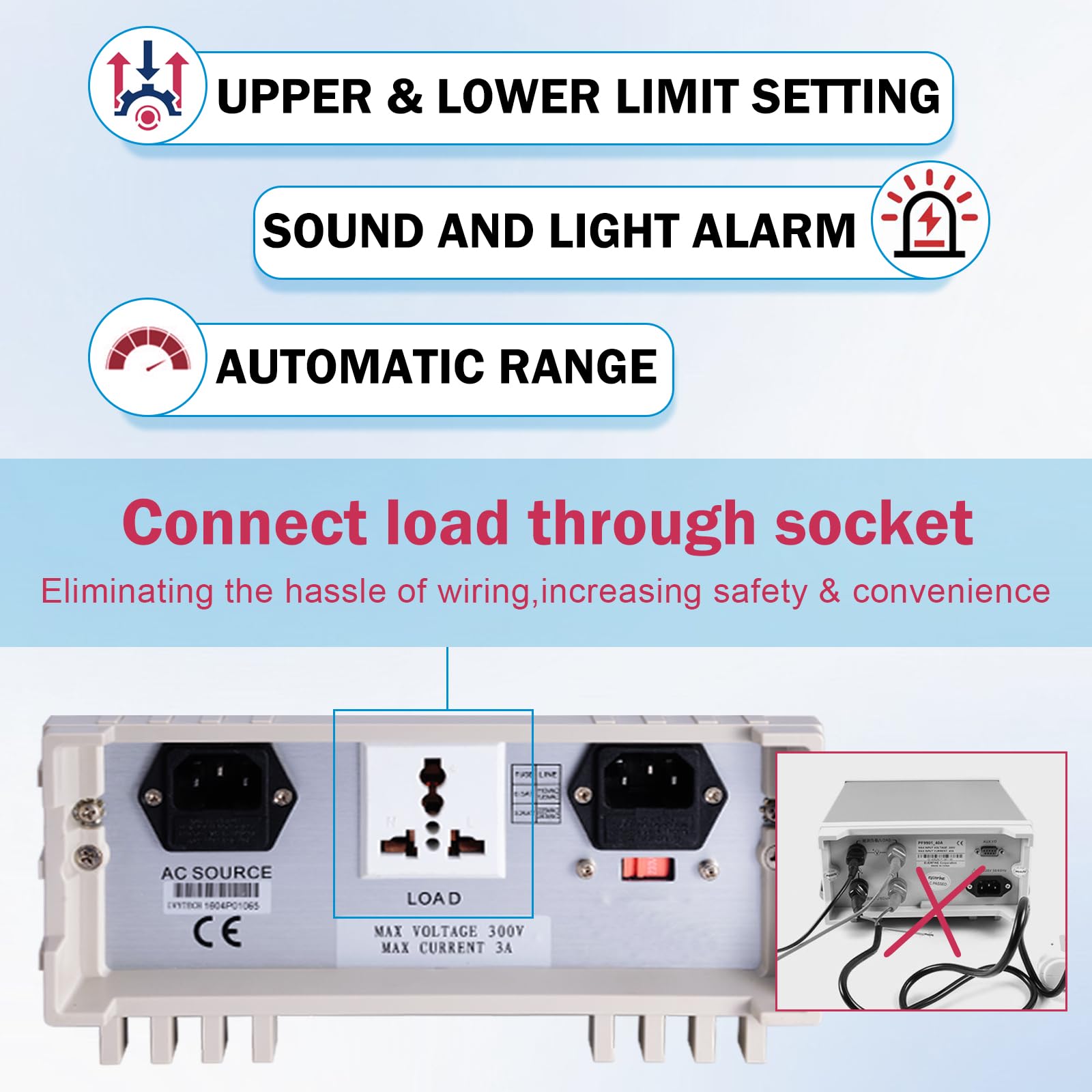

• UNIQUE DESIGN: MPM-1010 bench power watt meter connect of loads applies direct plug mode instead of traditional terminal posts, saving the trouble of wiring and improving safety and convenience. Precision resistance direct sampling instead of traditional transformer sampling, ensures the original data is undistorted and improves the accuracy of the instrument
• WIDLY USES: MATRIX MPM-1010 digital power meter is specially adapted to some half wave and other various waveform measurements of DC components, testing full wave resistance, the distorted wave, half wave, symmetrical and unsymmetrical square wave, triangle wave, sawtooth wave, and other special waveform under AC mode. Widely used in mobile phone chargers, adapters, switch power, household appliances, transformers, and other industries

model number: MPM-1010

Part Number: MPM-1010

Package Dimensions: 16.8 x 12.3 x 8.1 inches
