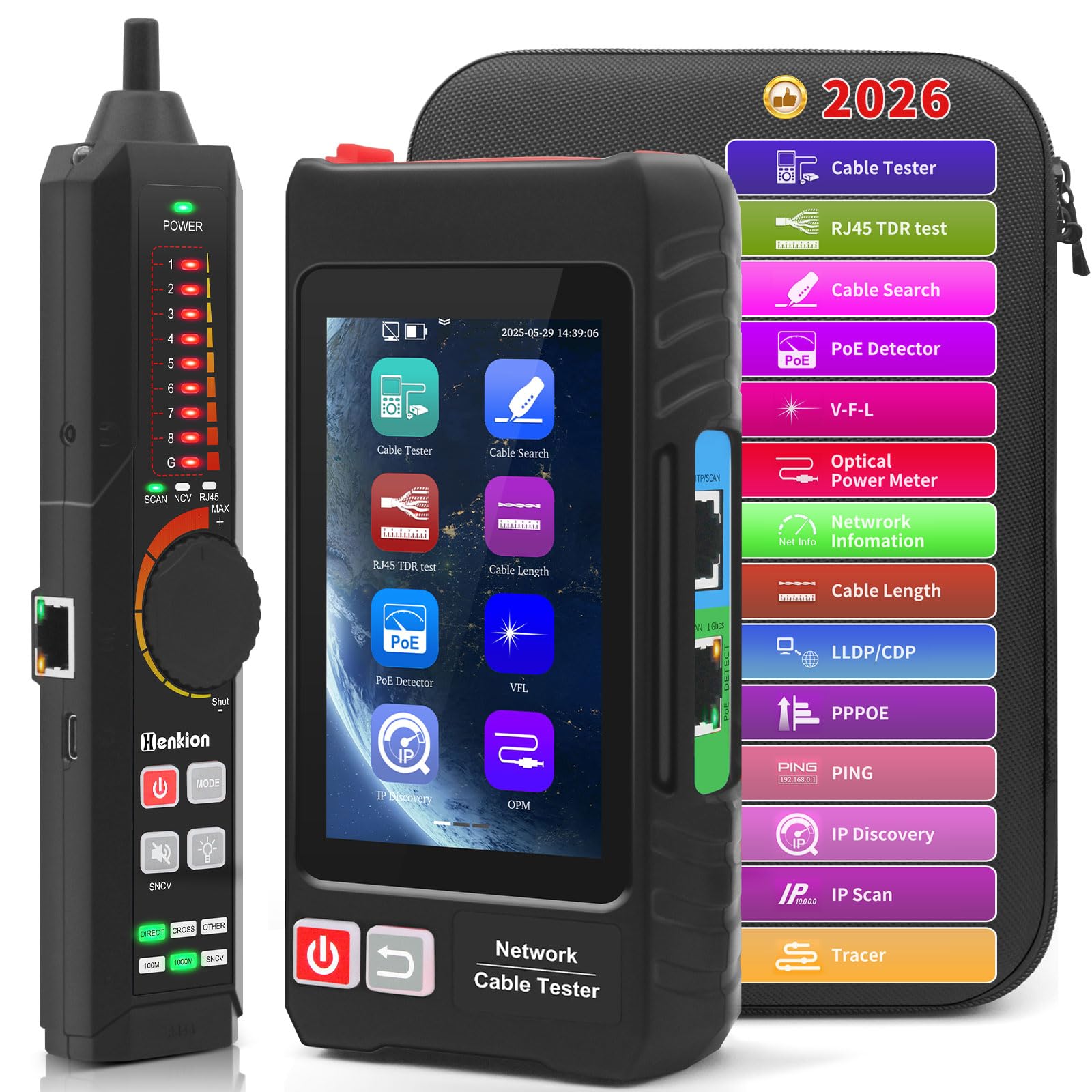

Multifunction RJ45 Network Caber Tester, 4" IPS Touch Screen UTP Cable Tester,Rechargeable Ethernet Cable Tracer,Support Network Tools, POE++ Detect,Cable Length Meter,RJ45 TDR Test,NCV,FTP (LT-600S)

Brand: Henkion

Color: Black

Features:

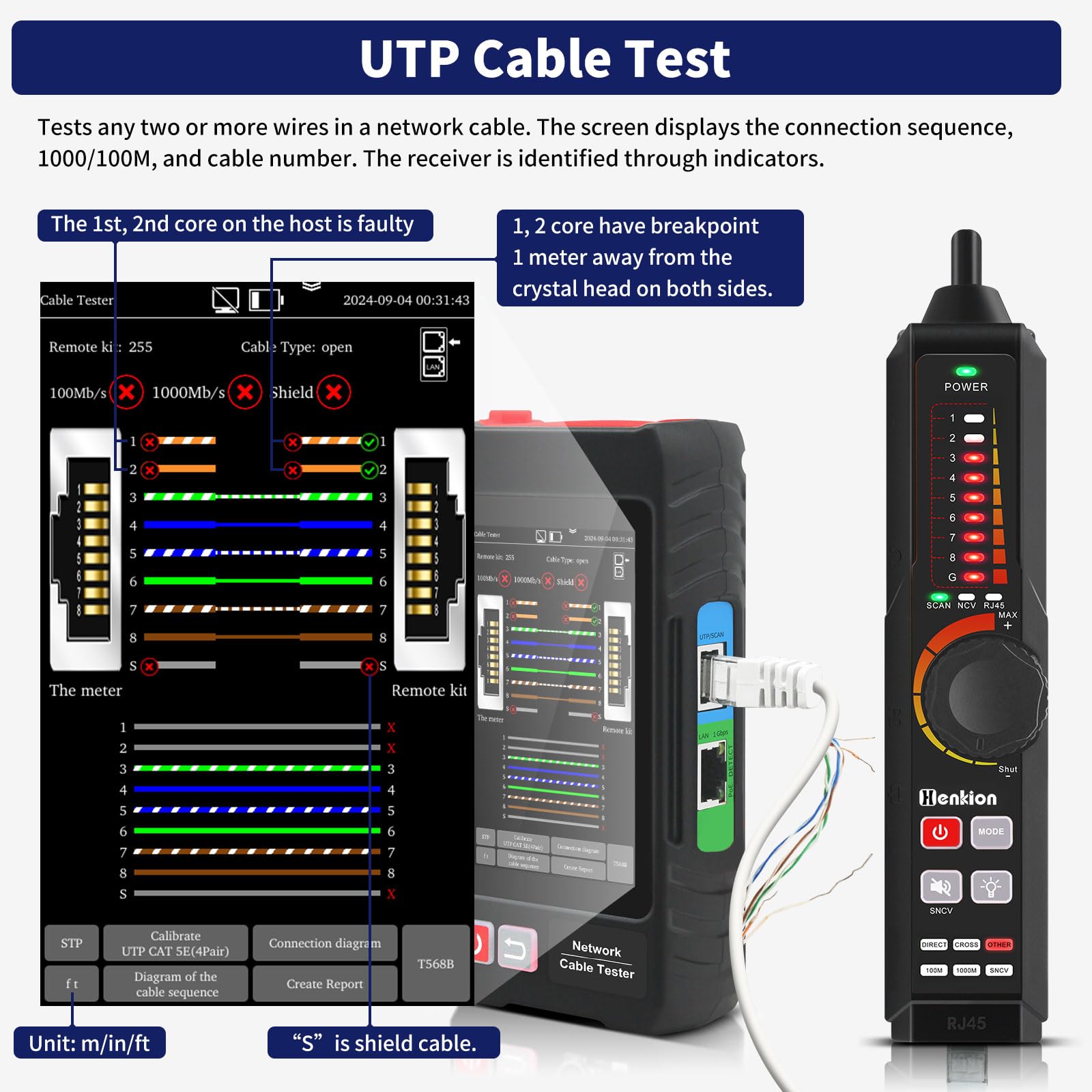

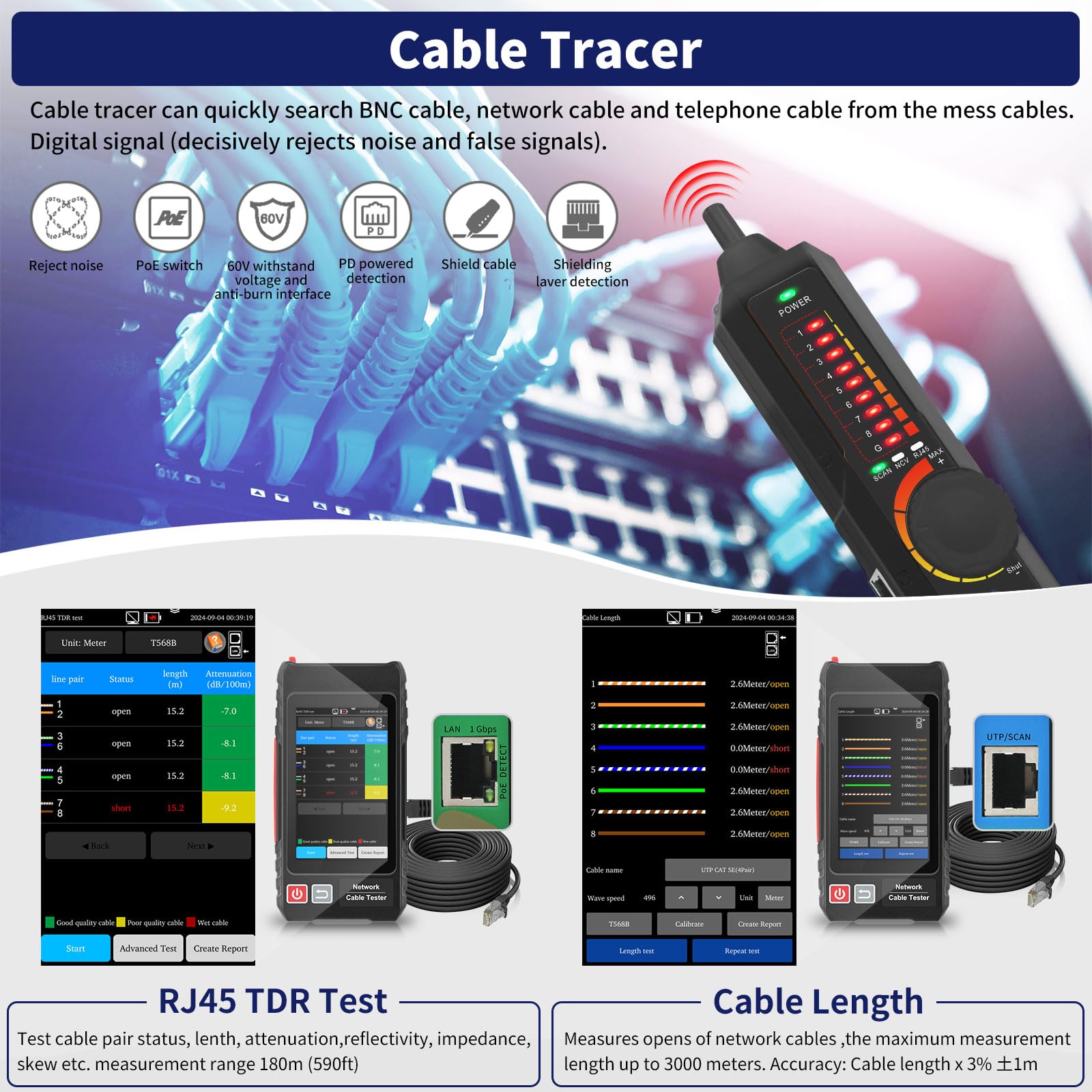

• 【Upgrade Network Cable Tester&Tracer LT-600S】Advanced UTP cable test,test UTP cable's sequence,type and remote kit,quickly detect the near-end,mid-end and far-end fault point of RJ45 cable connector.Digital signal ethernet cable tracer can quickly find out the target cable(BNC cable,network cable and telephone cable and other various metal) from the mess cables.Decisively rejects noise and false signals,RJ45 tracer and UTP at the same interface,accurately locate the cables to avoid misjudgment.

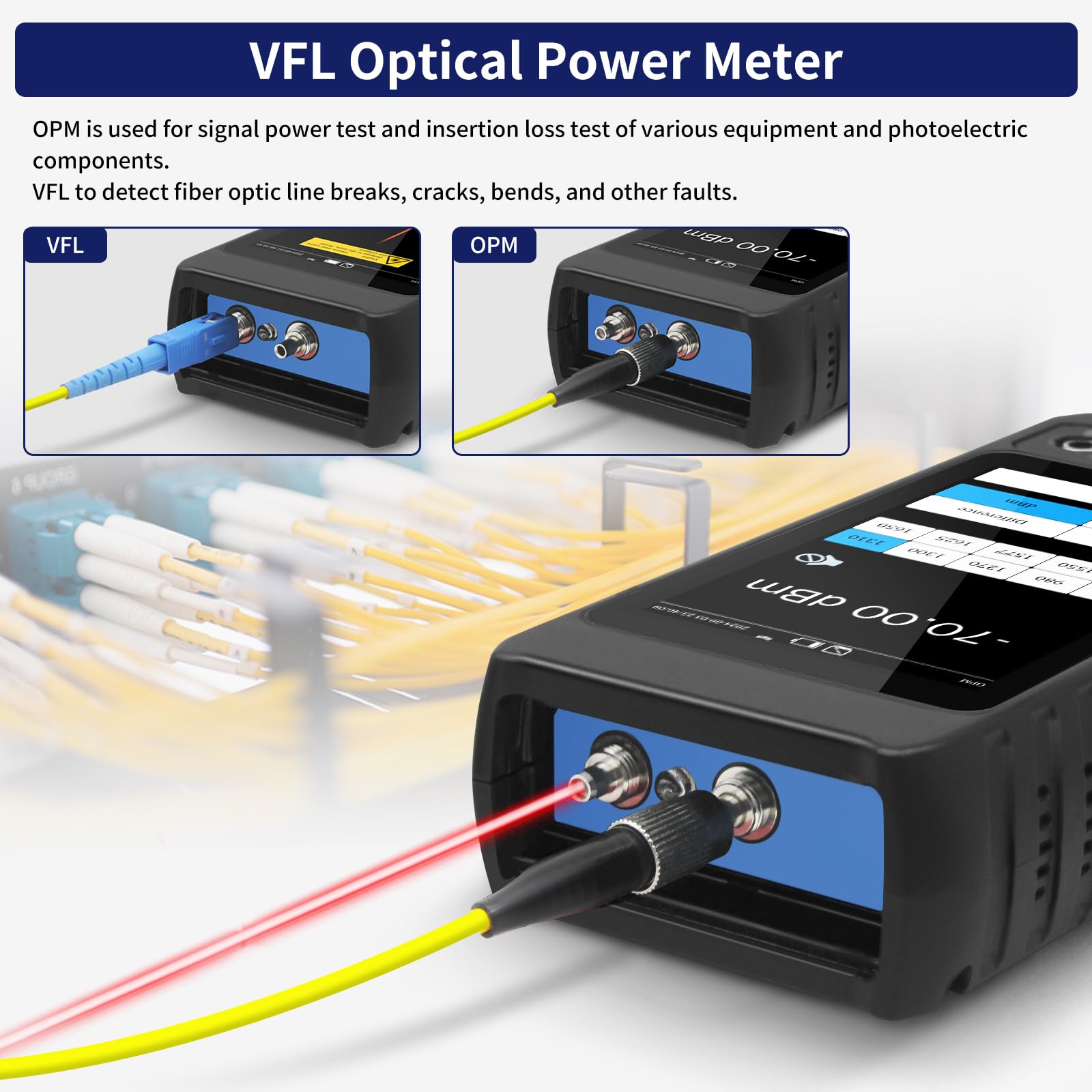

• 【OPM/VFL】Optical power meter--It is used for signal power test and insertion loss test of various equipment and photoelectric components. VFL--the position of optical fiber fault point can be easily and accurately determined.

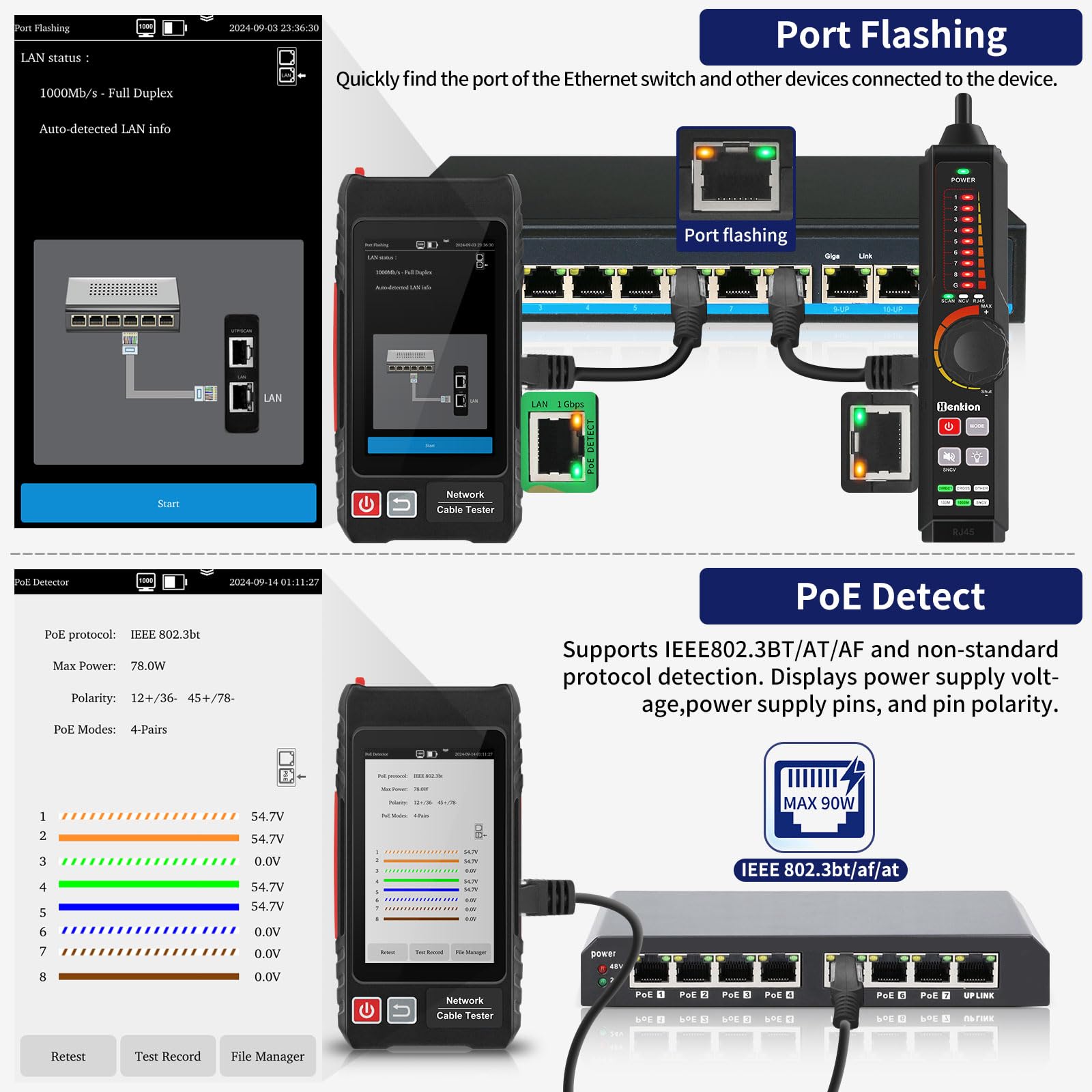

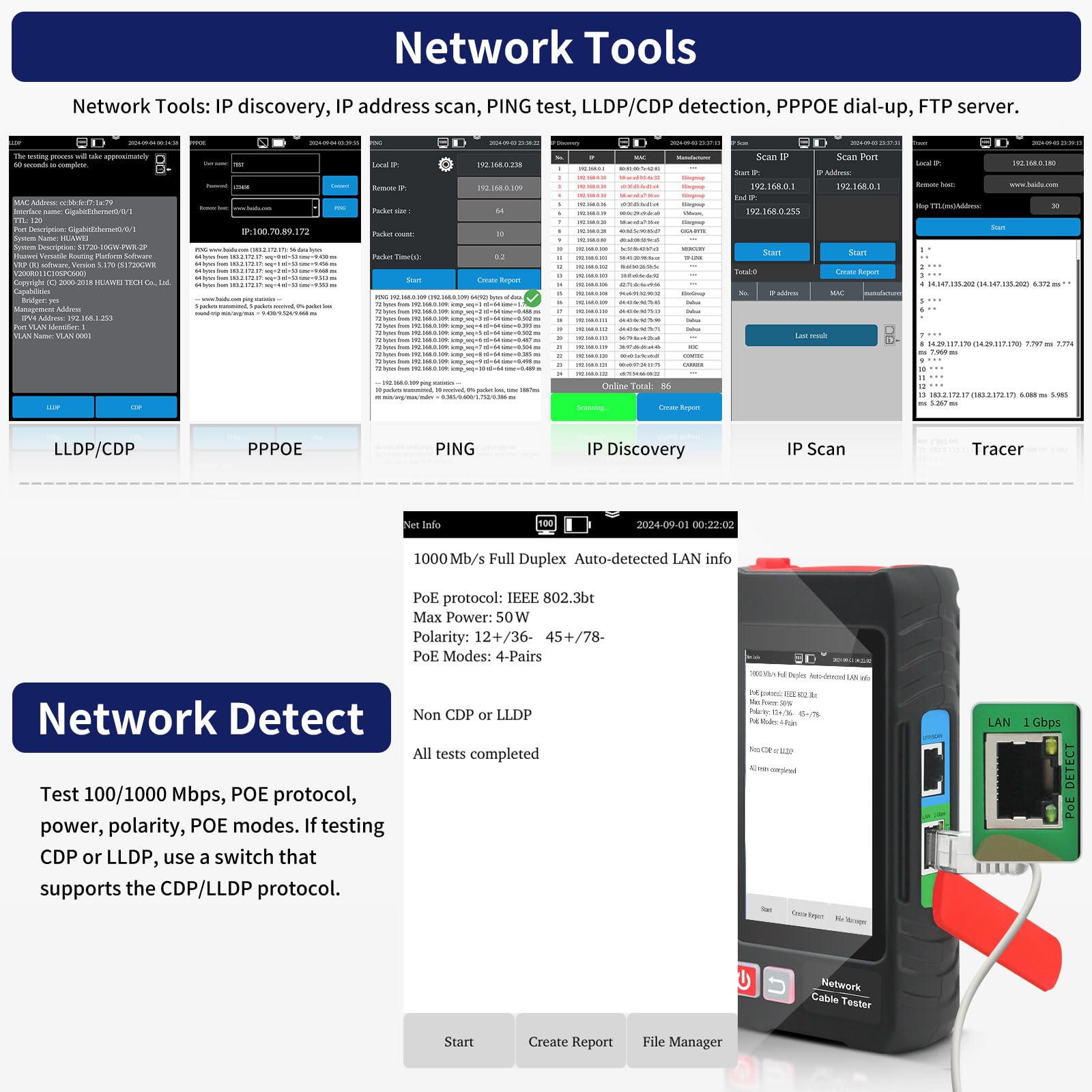

• 【POE++ Detect/Network Tools】Rj45 POE Tester supports IEEE802.3BT/AT/AF and non-standard protocol detection. Displays power supply voltage, power supply pins, and pin polarity. Furthermore, network tester built-in 1000M network port, A bunch of network tools, such as IP discovery, IP address scan, PING test, LLDP/CDP detection, Port flashing, PPPOE dial-up.
• 【RJ45 TDR Cable Test & Length Measurement】Cable tester is eaily to test cable’s pair status, length, attenuation reflectivity, impedance, skew, and other parameters. Also, you can measure opens of network cables, max measurement length up to 3000 meters. To length test, pls choose the correct cable type for more accurate results. Accuracy: Cable length x 3% ± 1m. Support Creating test report. Creating test report.
• 【PD Power Detection & NCV Detection & FTP】PD power test can detect whether the power output of the POE switch is normal, and detect the pins used for power supply. Inductive NCV scan function. Sound and light dual alarms, supporting the distinction between live and neutral wires. The FTP function enables users to copy test report and data via network FTP.

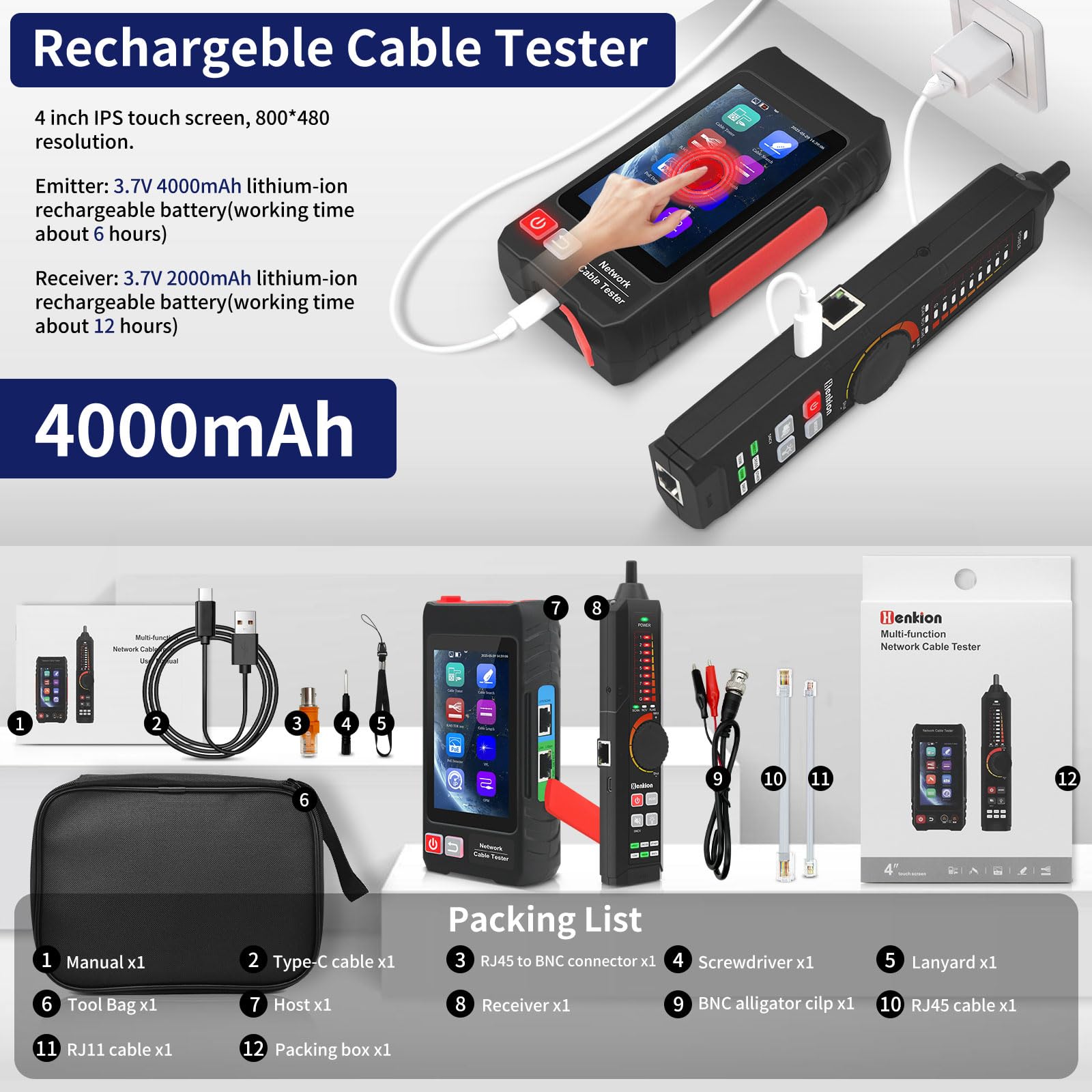

• 【Battery & Service】4 inch IPS touch screen, 800*480 resolution. The emitter and receiver both built-in rechargeable battery, (max 3.7V 4000mAh lithium-ion.)Powerful battery life and you don't need to replace the batteries. Of cause,We will do our best to provide the best service we can, so you don't need to worry about anything.

model number: LT600S

Part Number: LT-600

Package Dimensions: 10.0 x 7.6 x 2.1 inches
