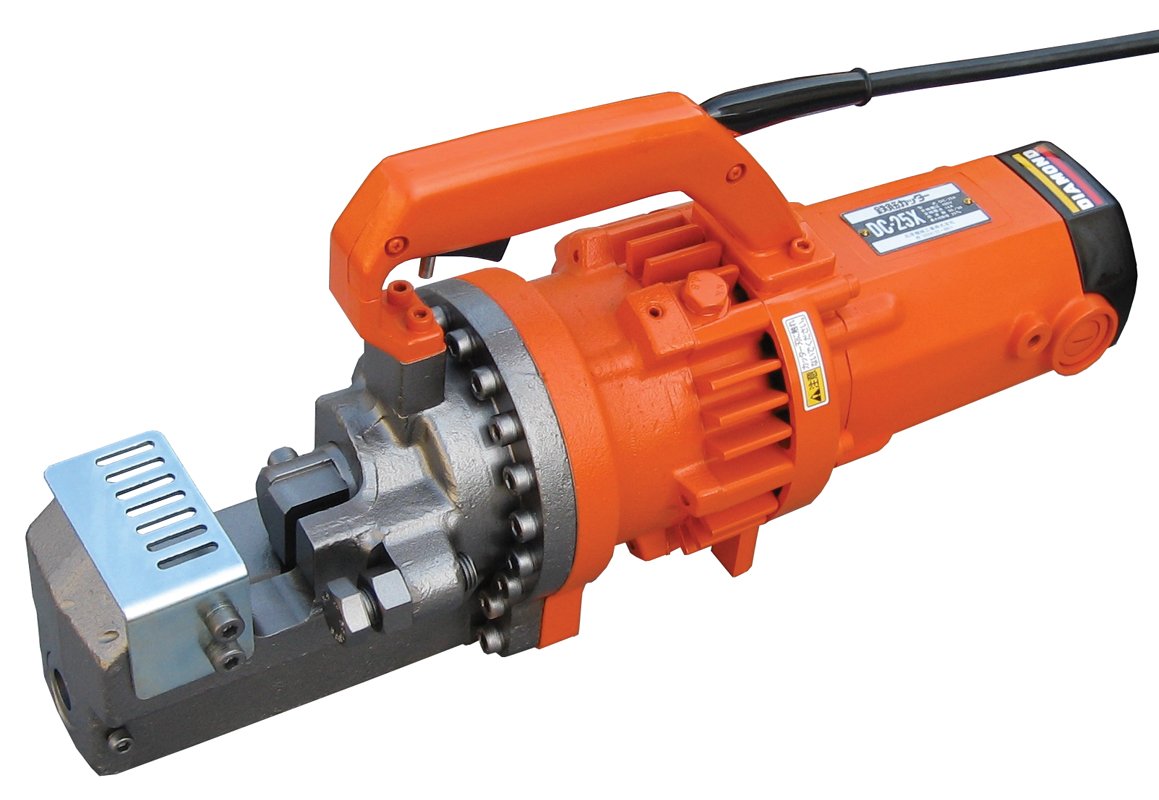

Portable Electric Heavy Duty #8 Rebar Cutter

Brand: Benner-Nawman, Inc.

Features:

• Cleanly cuts up to #8 (1", 25mm) Grade 60 rebar
• Cutting Speed - 5 seconds
• Powerful electric/hydraulic rebar cutter
• Features include long life alloy cutting blocks, locking trigger switch, pressure relief valve, precision-balanced armature, extra-hardened piston, superior forged housing, and a double insulated electrical motor
• 1 Year Manufacturer Warranty

model number: DC-25X

Part Number: DC-25X

Details: DC-25X Features: -Cold-cutting shear - no sparks or flame.-Works great on epoxy coated rebar.-Self-contained electric/hydraulic unit.-Locking trigger switch: enable cutter to be operated with a foot pedal switch and our GFI protected electrical outlet.-Also cuts chains, bolts and rods.-No trailing hoses to snare equipment or workers' feet.-Safety relief valve for retracting piston.-Cutting guard.-Steel carrying case.-Tool kit & hydraulic oil.-Maximum Cutting Diameter: 1 #8 Rebar (25mm) Grade 60.-Cutting Speed: 5 Seconds.-Cutting Pressure: 30 Tons.-Sturdy design with a 12-gauge heavy-duty galvanized sheet metal worktop.-The rebar cutter can be mounted in a stationary position in the WorkStation or easily removed for use in any portable application (just unbolt & unplug).-Modular design allows for other WorkStations to be bolted together.-Shipped partially assembled complete with hardware and instructions.-Rebar cutters and foot operated switch are sold separately.-DC-25X Rebar Cutter Tune-Up Kit.-A set of cutting blocks.-The cap bolts and washers for fastening the cutting blocks.-A quart of hydraulic oil.-Stopper Bolt with spring.-A set of the electrical motor carbon brushes.-Handling instruction booklet.-Set of two for DC-25X Portable Electric Heavy Duty #8 Rebar Cutter (no cap bolts).-Set of two Grade 75 cutting blocks for DC-25X (no cap bolts). Includes: -Includes an electrical duplex & foot pedal outlet for hands free rebar cutter operation with an optional foot pedal (1BR5130 foot pedal sold separately).-Rebar Cutter Mounting: Two Heavy-duty U-bolts and Hardware Included. Specifications: -Ideal for small fabrication shop, especially if used with the CWS-2025 Work Station.-Voltage/Amperage: 115V 50/60 Hz/12 Amps.-Designed for stationary mounting of the DC-20WH or DC-25X rebar cutters.-Power Box Supplied: Electrical Outlet 115v 15 Amp Duplex. Dimensions: -Weight: 49.6 lbs (22.5 kg).-Dimensions: 20 L (515mm) x 5.9 W (150mm) x 9.8 H (250mm).-Assembled Weight: 125 l

Package Dimensions: 23.0 x 12.0 x 9.0 inches
