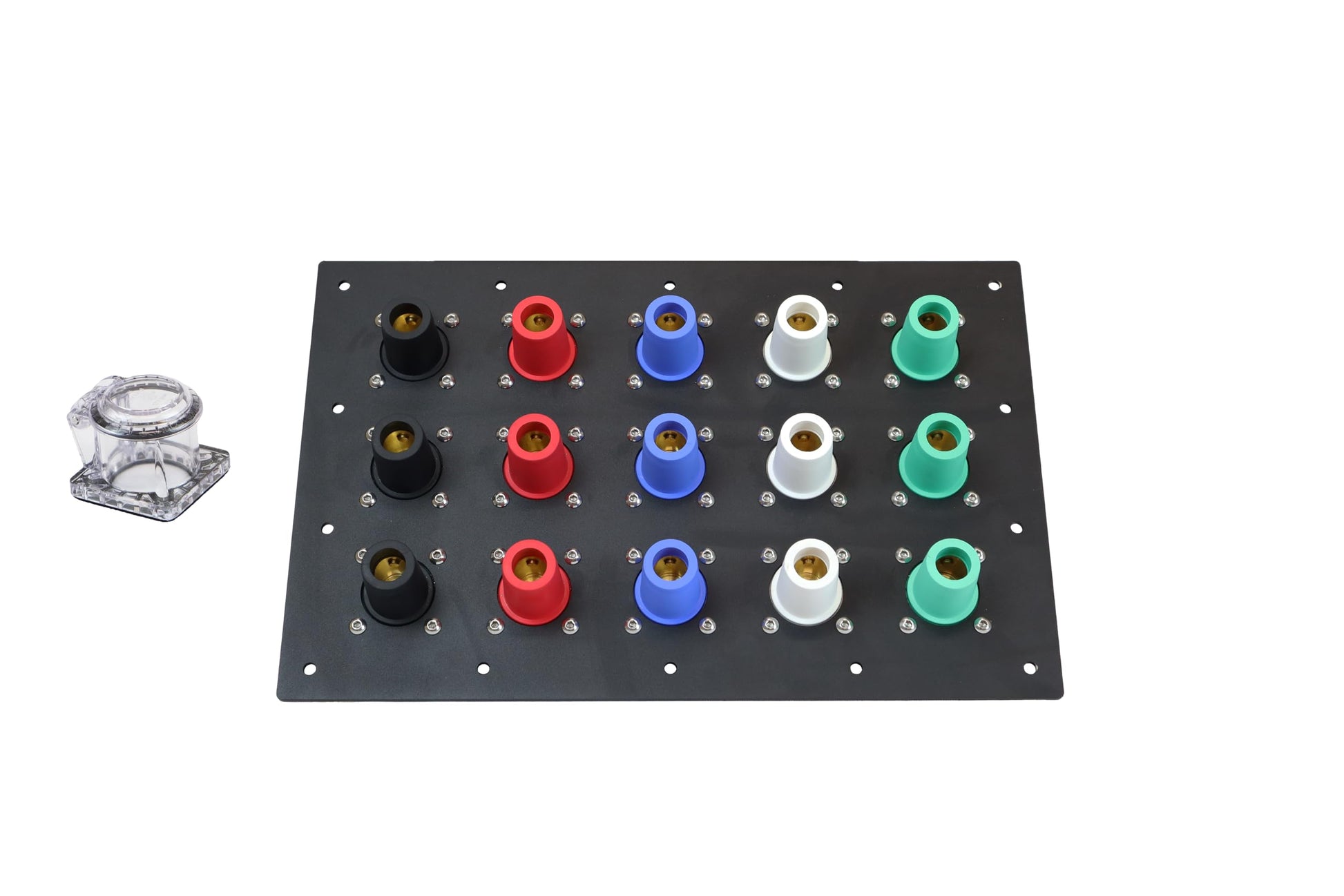

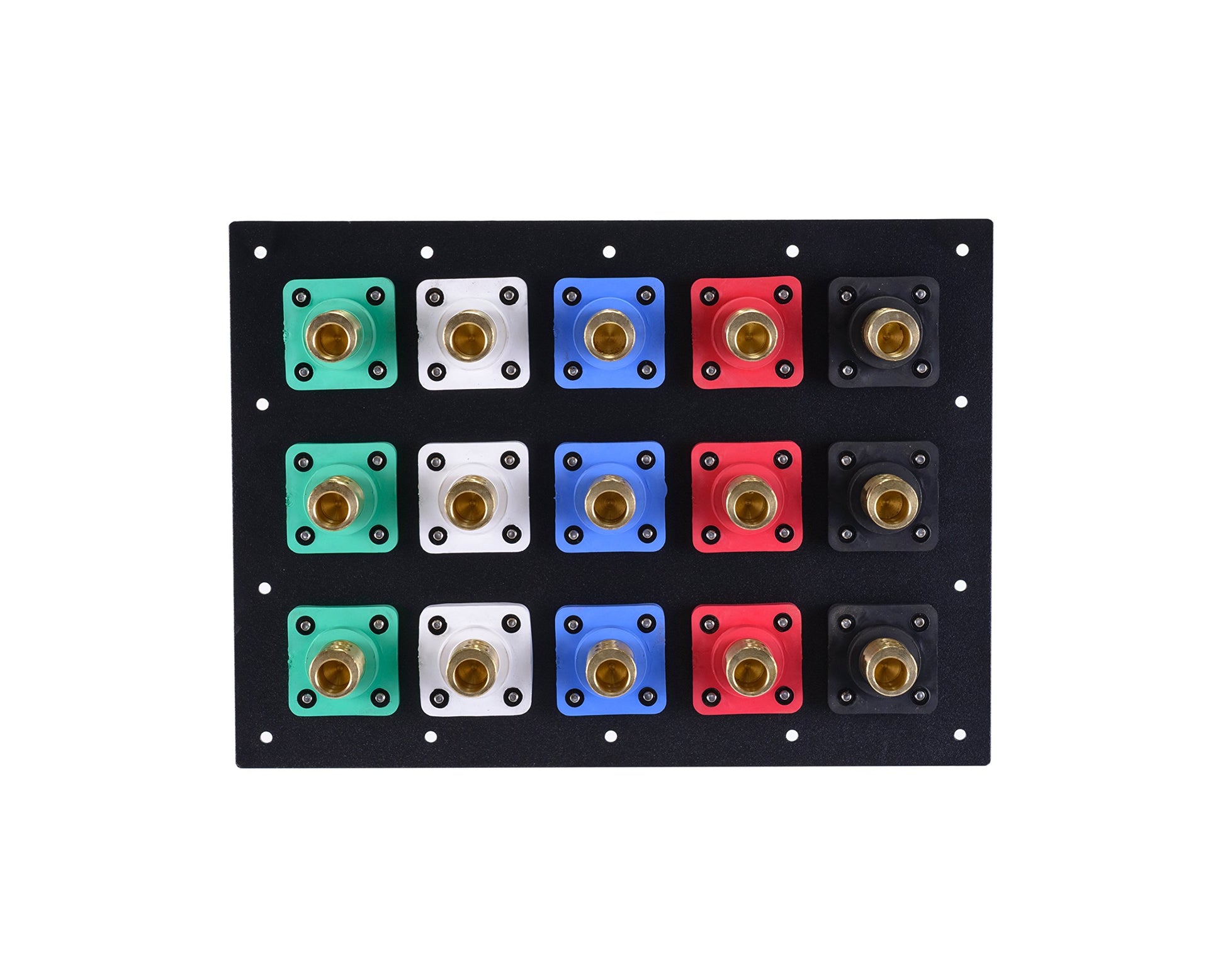

Power Assemblies 15 Position CAM Lock Panel, 1200 Amp, 3 Phase 120/208V, Female, 90°, Double Set-Screw Connections with NEMA 3R Clear Snap-Back, Series 16 CAM Connectors, Power Distribution Panel

Brand: Power Assemblies

Color: black

Features:

• CAM Panels are shipped pre-assembled, reducing labor time and costs for installation - no more cutting individual holes for panel-mounted CAMs
• High density configuration allows more connections per square foot
• Standard panel configurations offered to meet most temporary power applications
• 1/8" powder coated aluminum is non-ferrous and minimizes eddy currents
• Use Series 16 CAM connections to distribute power. Each row of CAMs allows the distribution of 400 amps of power.

model number: 9d859b8e-c65a-4ea6-84b1-1d68d2980fa5

Part Number: PNL15ACDBE90DSFCS

Details: CAM Panels are power distribution panels utilizing industry-standard series 16 CAM connections. They are installed onto machinery, equipment, or part of a facility to allow faster power connections using the CAM connectors. CAM panels are shipped pre-assembled reducing labor time and costs for installation with high density configurations, which allows more connections per sq./ft.
Standard panel configurations available to meet most generator connections and other temporary portable power applications. Panel construction is comprised of 1/8 inches powder coated aluminum and non-ferrous which minimizes eddy currents.

Specifications:
Amperage: 1200
Positions: 15
CAM Type:Female
Voltage:3 Phase 120/208 Volt
CAM Angle:90 Degree
Termination Type:Double Set-Screw Connection (UL Listed,Type 3R and 4)
NEMA 3R Cap:Clear-Snap Cover - Weather protective covers (UL and cUL Listed)

**PLEASE NOTE: The Pictures shown are for illustration purposes only. Actual product may vary based on the specification selected.
