QIIRUN OTDR Fiber Optic Tester SM 1310/1550nm 32/30dB, Optical Time Domain Reflectometer with 0.8m Dead Zone 160km Range, 7-inch Touchscreen, OPM VFL OLS Event Map, Multifunctional Test Kit

Brand: QIIRUN

Color: Blue

Features:

• 32dB High Dynamic Range & 0.8m Dead Zone – With 32dB/30dB dynamic range at 1310/1550nm, this professional-grade single mode OTDR detects signals along fiber runs up to 160km with 128,000 sampling points for high-resolution fault location. The 0.8m event dead zone (half the 1.5m of standard OTDRs) means you can detect splices and connectors very close to the launch point—critical for high-density data center cabling, GPON/EPON access networks, and carrier-grade backbone fiber.

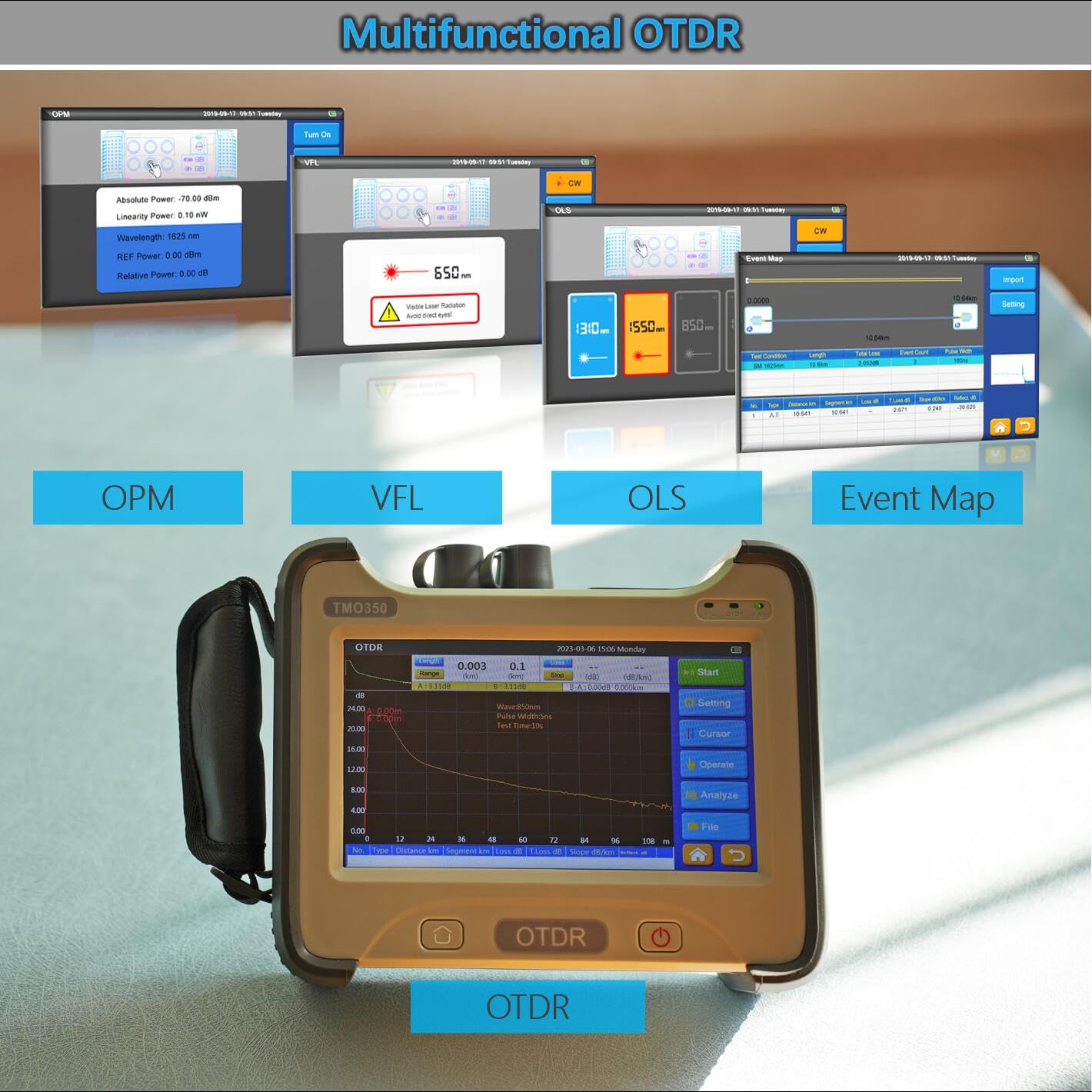

• Multifunctional All-in-One Fiber Test Platform – Integrates OTDR + Optical Power Meter (OPM, -70~+10dBm, 6 calibration wavelengths) + Visual Fault Locator (VFL, 10km / 650nm) + Optical Light Source (OLS, 1310/1550nm) + Event Map in a single handheld unit. Eliminate the need to carry multiple instruments for construction, commissioning, and maintenance workflows. FC / SC / ST / LC adapters included for universal connector compatibility.

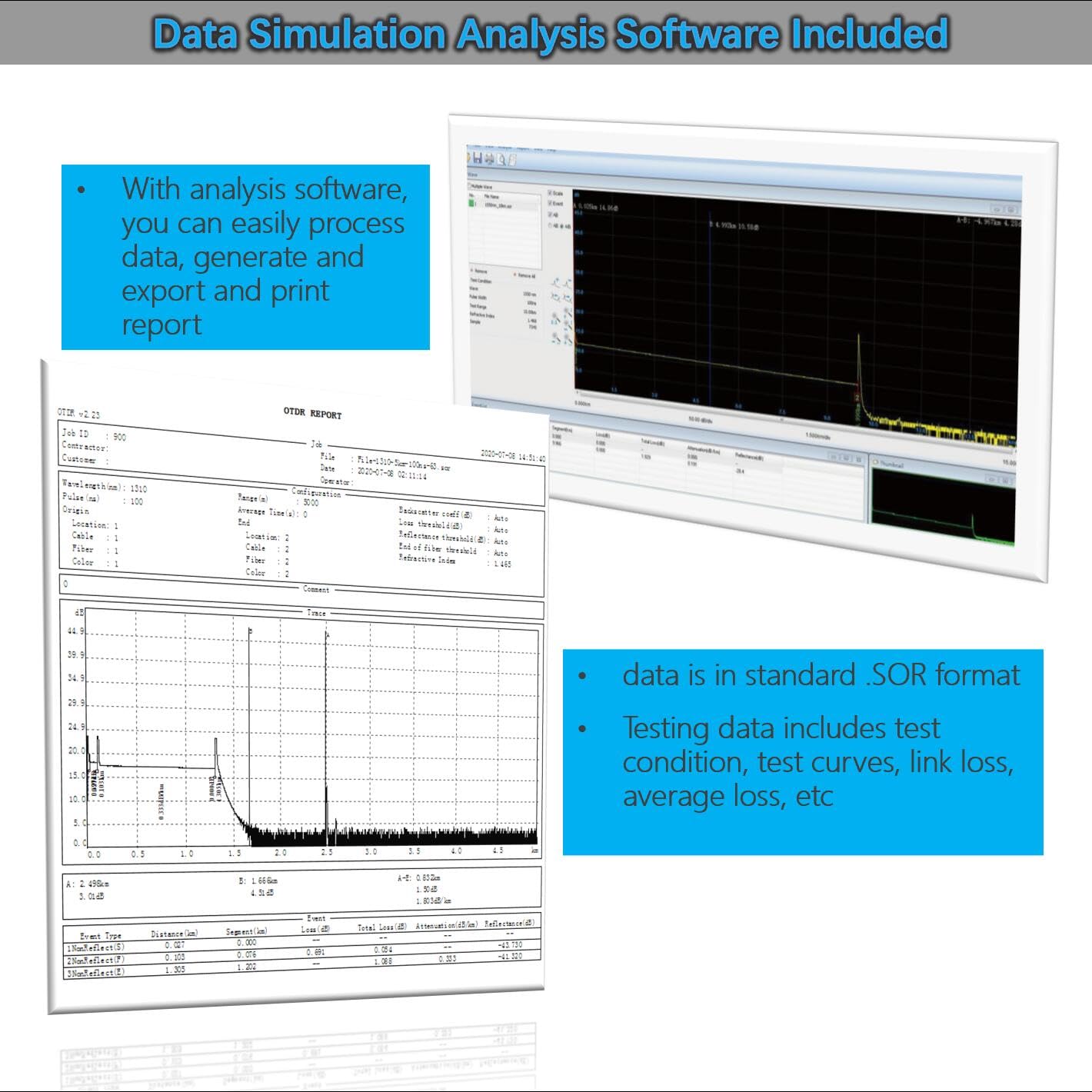

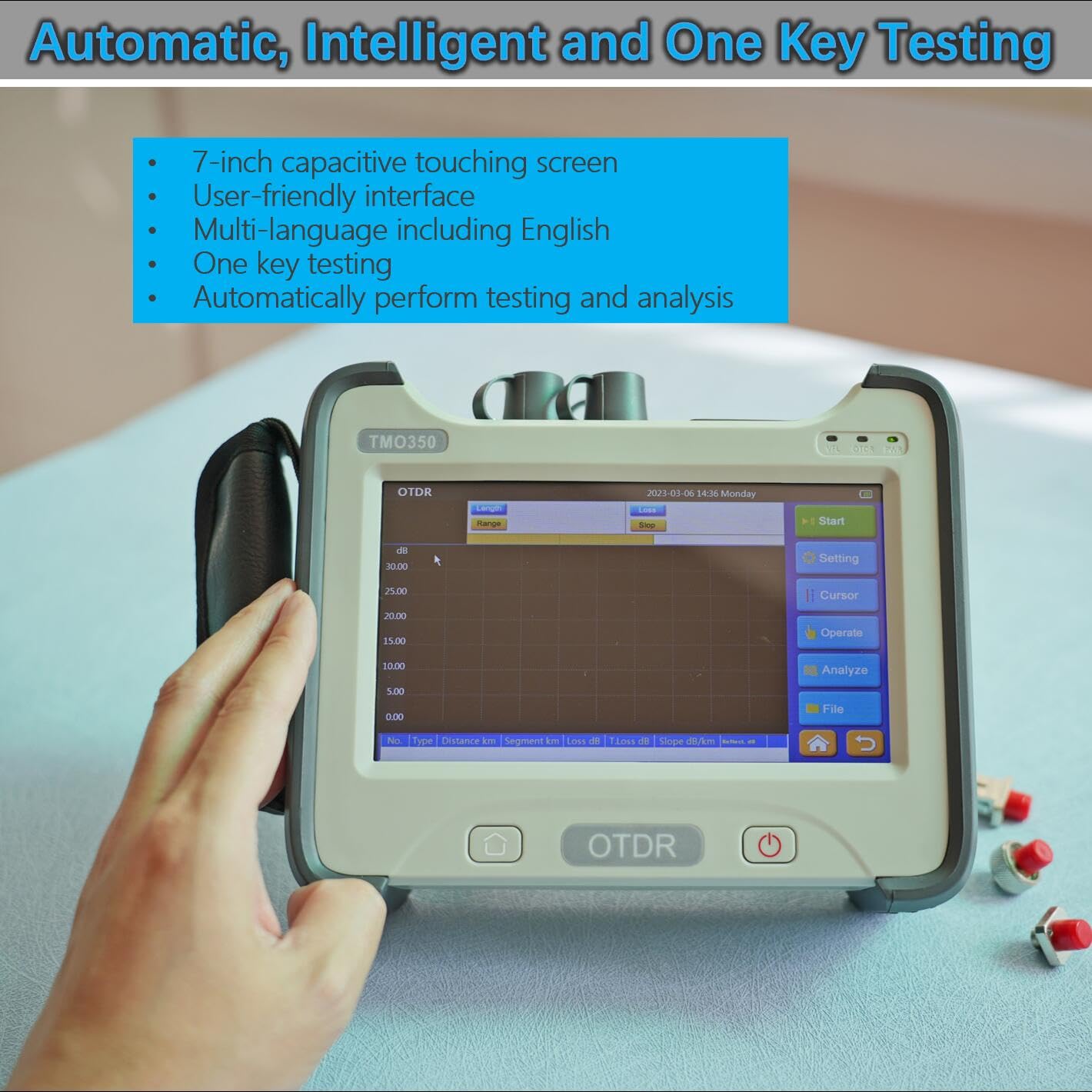

• 7-inch Capacitive Touchscreen & One-Touch Auto Testing – The large 7-inch touch display gives engineers a clear full-resolution view of OTDR traces—ideal for field analysis without squinting at a 4-inch screen. Event Map delivers automatic one-key testing with Pass/Fail judgment, dual-wavelength 1310nm & 1550nm simultaneous measurement, and multi-curve comparison for splice loss and ORL analysis. SOR-format files are PC-compatible for offline analysis, report generation, and printing.
• 160km Long-Range Test with 128,000 Sampling Points – Supports test ranges from 500m to 160km with 14 pulse widths (3ns to 20μs), suitable for short-haul FTTH/FTTX cables as well as long-haul trunk fiber. With 128,000 sampling points and 0.001dB loss resolution, every splice, bend, and connector shows up on the trace. Built-in 8G storage saves up to 80,000 curves. Operates at -10°C to +50°C—fully field-ready in both winter construction and summer outdoor environments.

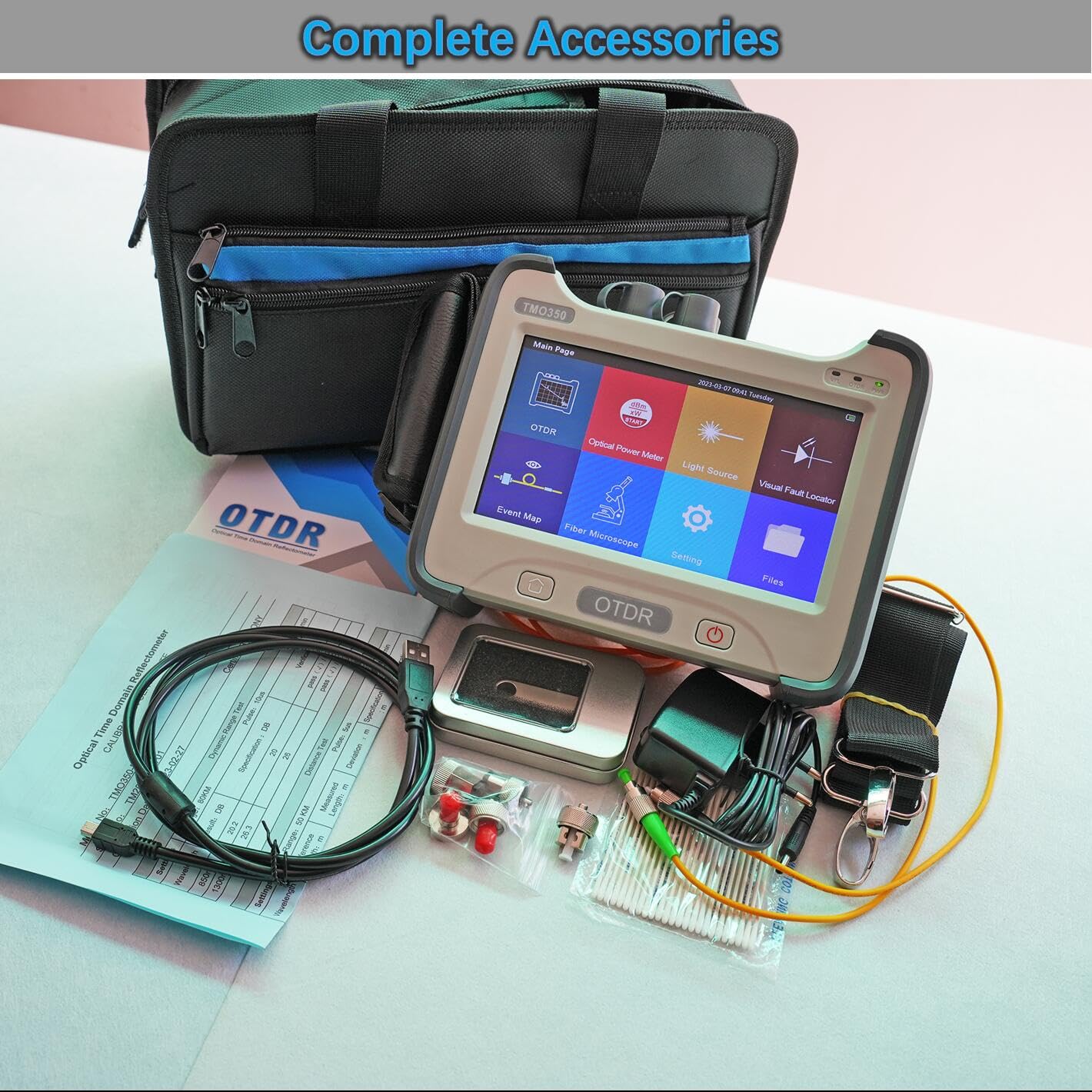

• 8–10 Hour Field Battery & Professional-Grade Build – The large 7.4V / 6.6Ah lithium battery delivers 8–10 hours of continuous operation, covering a full day of site work on a single charge. The rugged 230×185×70mm housing weighs just 1.5kg for easy carry. Package includes: OTDR unit, SC/FC/ST/LC adapters, USB data cable, AC charger, 8G storage, carry case, user manual, and calibration certificate. Ideal for fiber ISPs, telecom contractors, enterprise network teams, and cable plant engineers.

Details: QIIRUN 350T is a professional-grade Single Mode OTDR designed for engineers who need precision, range, and all-in-one convenience in a single field instrument. OTDR PERFORMANCE: 32dB/30dB dynamic range at 1310/1550nm. Event dead zone 0.8m. Attenuation dead zone 4m. Test range 500m to 160km. Sampling points: 128,000. Loss resolution: 0.001dB. Linearity: ≤0.05dB/dB. Pulse widths: 3ns to 20μs (14 settings). INTEGRATED TOOLS: Optical Power Meter (-70~+10dBm, calibration wavelengths: 850/1300/1310/1490/1550/1625nm). Visual Fault Locator (10km, 650nm, CW/2Hz). Optical Light Source (1310/1550nm, ≥-5dBm). Event Map with Pass/Fail auto judgment. DISPLAY & DATA: 7-inch capacitive touchscreen. Dual-wavelength simultaneous measurement. Multi-curve comparison. SOR standard file format. 8G internal storage, 80,000 curve capacity. PC software for offline analysis and report printing. FIELD READINESS: 8–10 hours battery life (7.4V/6.6Ah). Operating temperature -10°C to +50°C. Weight 1.5kg. Dimensions 230×185×70mm. CONNECTORS: FC/SC/ST/LC (SC/FC/ST/LC adapters included). APPLICATIONS: GPON/EPON/PON access networks, FTTH/FTTX construction and maintenance, enterprise LAN/WAN backbone, telecom carrier trunk fiber, data center fiber plant, cable acceptance testing. Q: Does this OTDR support multimode fiber? A: No — this is a Single Mode instrument (1310/1550nm). For multimode fiber testing, please check our separate MM OTDR models. Q: Is a fiber microscope included? A: The fiber endface inspection function is not included in this unit. A separate fiber microscope probe is available as an optional accessory.

EAN: 0631384994823

Package Dimensions: 13.3 x 8.7 x 5.2 inches
