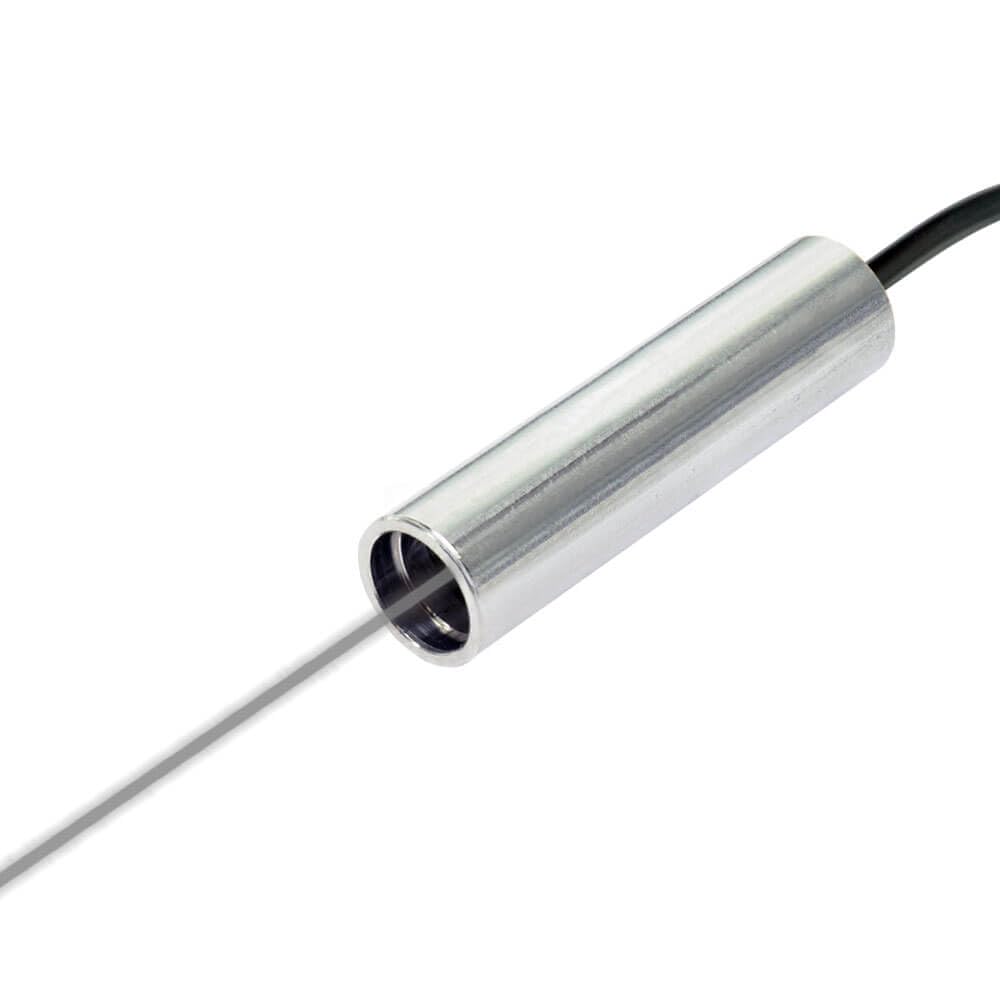

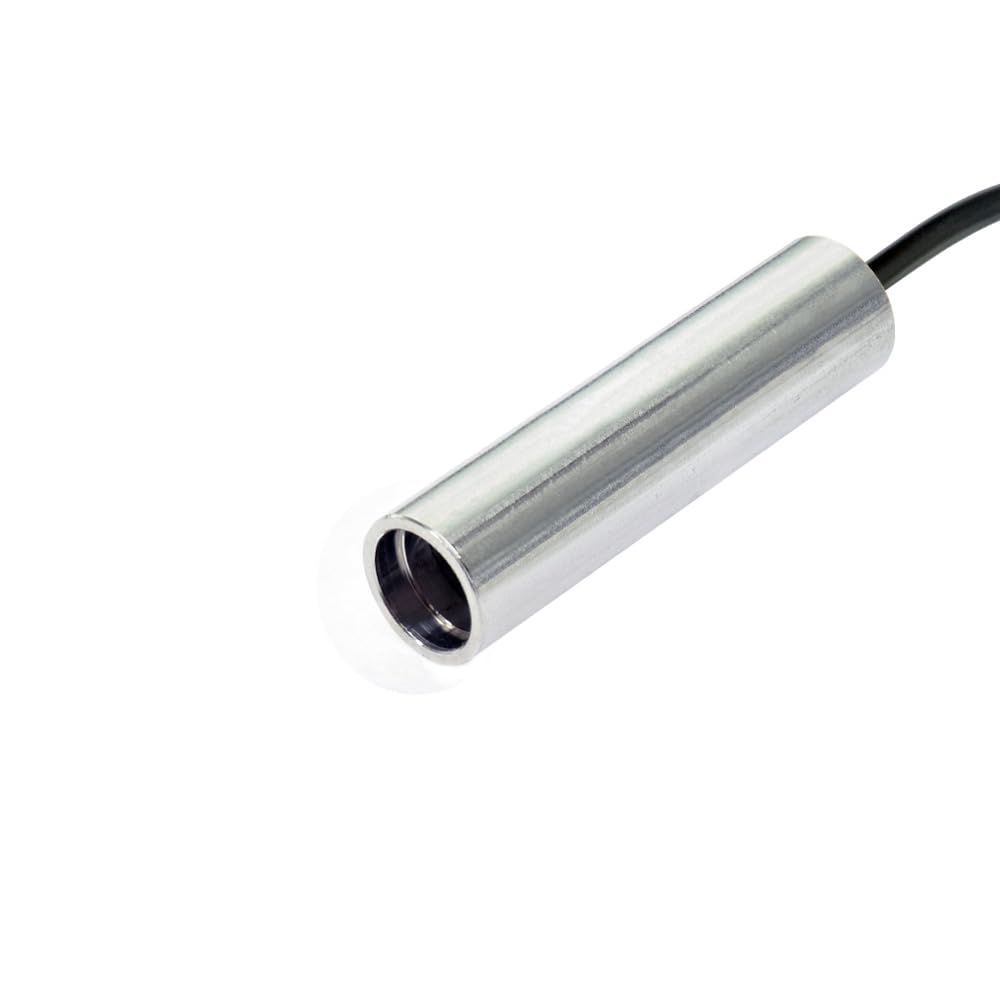

Quarton IR Circular Dot Laser Module, 1050nm Class 1, 3~6VDC, 0~1 meter working distance, VLM-1050-60 LPO - Industrial Laser for Medical, Laboratory, Machine Vision

Brand: Quarton

Features:

• SHORT-RANGE IR DOT LASER: VLM-1050-60 LPO produces an extremely small and sharp circular infrared laser dot optimized for precision alignment within 1 meter. Provides a precision laser spot for applications such as tool path indication, component positioning verification, optical sensing alignment, calibration reference in inspection systems.

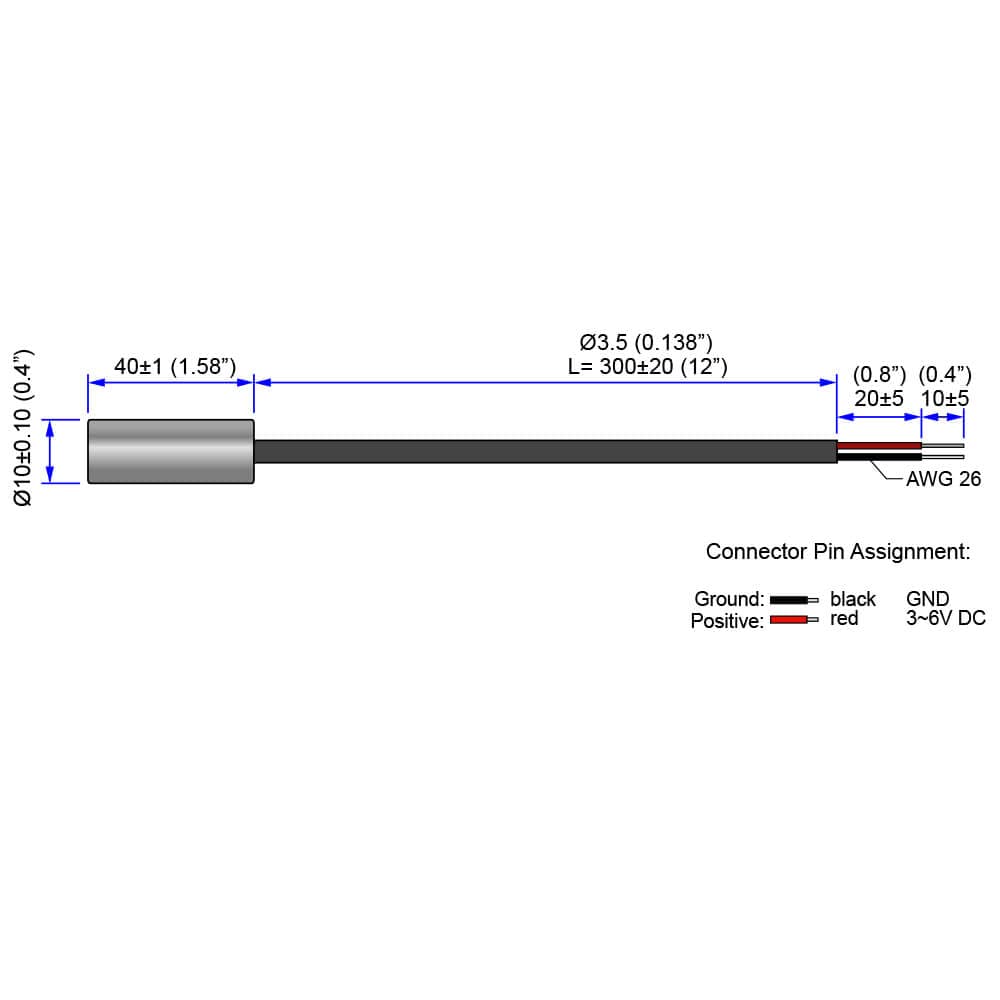

• SUPERIOR PRECISION & DURABILITY: Constructed with a stainless steel housing (Ø10 × 40 mm) and a high-quality aspherical glass lens, ensuring stable beam profile, optical clarity, and long-term reliability in continuous-use industrial environments.

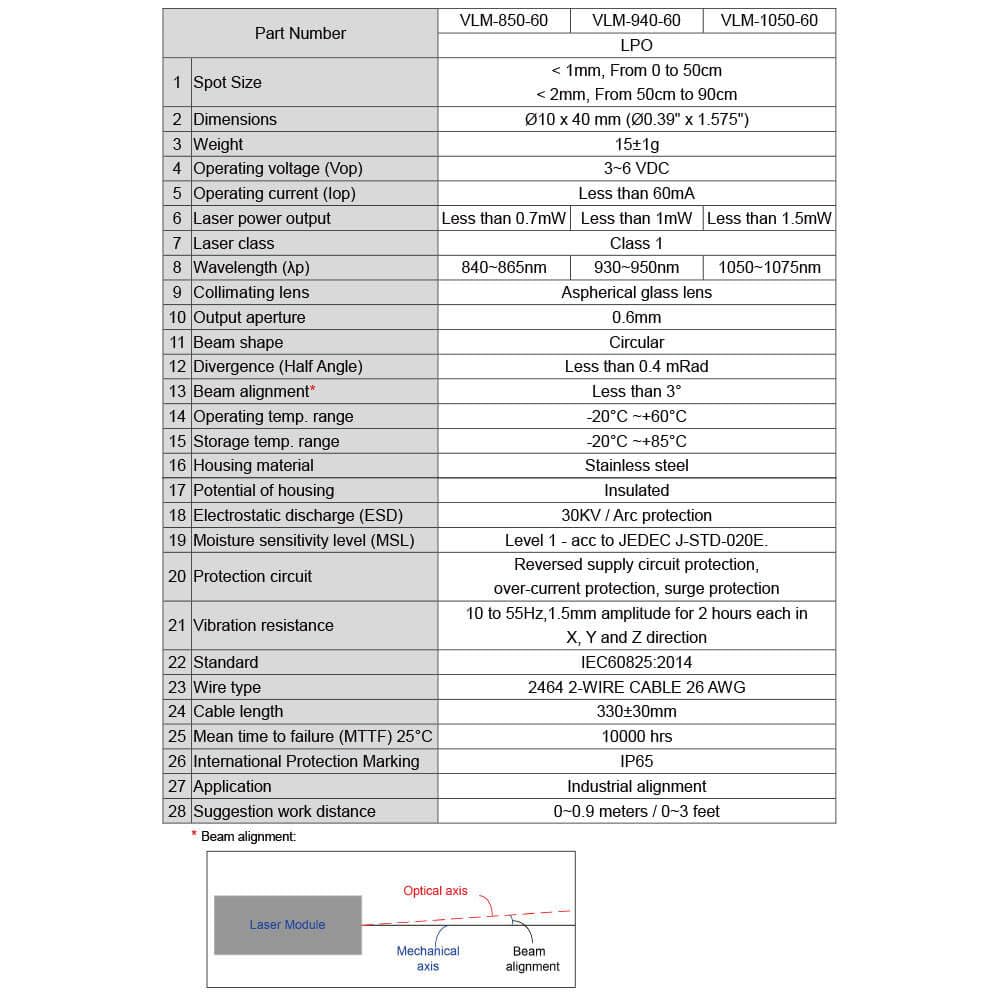

• ENGINEERED PERFORMANCE SPECIFICATIONS: Class 1 laser output (<1.5 mW) ensures eye-safe operation under normal conditions. Operating voltage: 3~6 VDC. Beam divergence <0.4 mRad provides a concentrated dot with consistent spot size within 1 meter. Since the laser dot is very small and focused within 1 meter, it will appear very bright.
• INDUSTRIAL-GRADE DURABILITY: Engineered for long-term reliability, the 1050 nm module is tested for vibration resistance (10~55 Hz, 1.5 mm amplitude) and built with an insulated housing to ensure electrical safety. It operates consistently from -20°C to +60°C, making it ideal for demanding environments such as manufacturing automation, inspection stations, CNC systems and industrial tooling applications.

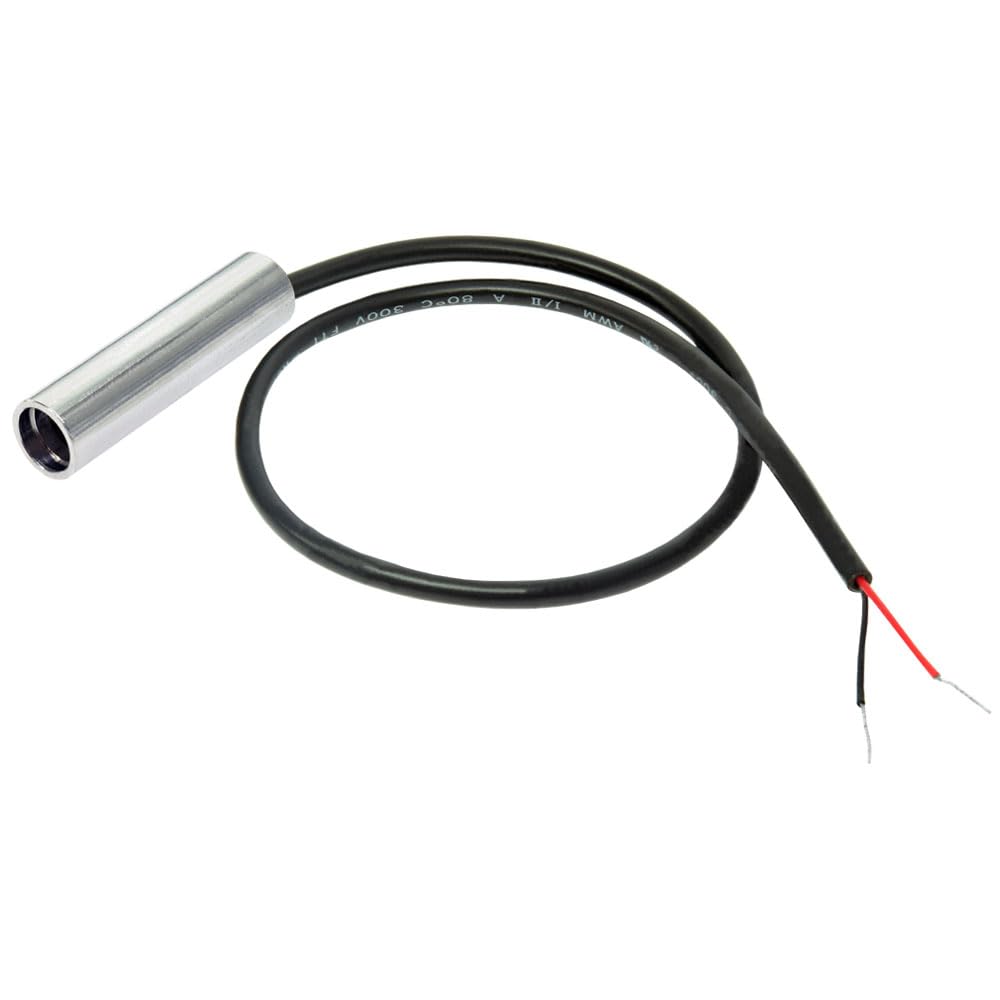

• Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.

model number: VLM-1050-60 LPO

Part Number: VLM-1050-60 LPO

Details: 1050 nm Laser (SWIR): Fully invisible, operating in the short-wave infrared (SWIR) band. Offers deeper penetration through materials such as silicon wafers, glass, and plastics, with reduced scattering—making it highly suitable for advanced inspection and imaging. Note: Detection requires InGaAs sensors, as standard silicon detectors are not compatible. Typical Applications: Wafer and material inspection, spectroscopy, industrial sensing, and biomedical imaging.

EAN: 0705702460229

Package Dimensions: 7.1 x 4.7 x 0.4 inches
