1/2 HP SHALLOW WELL JET PUMP: can draw up to 7.4 GPM; ideal for cottages or homes with one bathroom; design for wells down to 25 feet

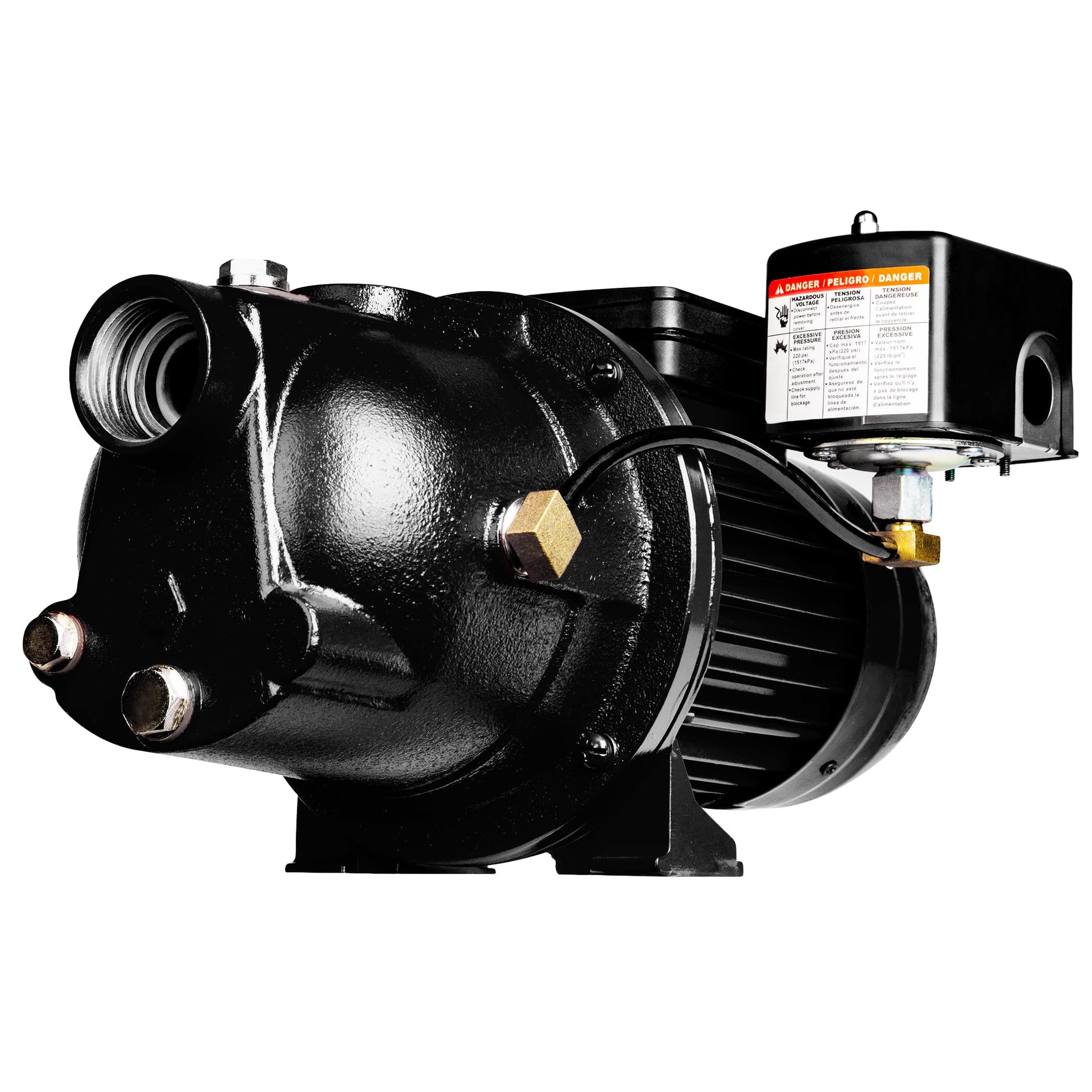

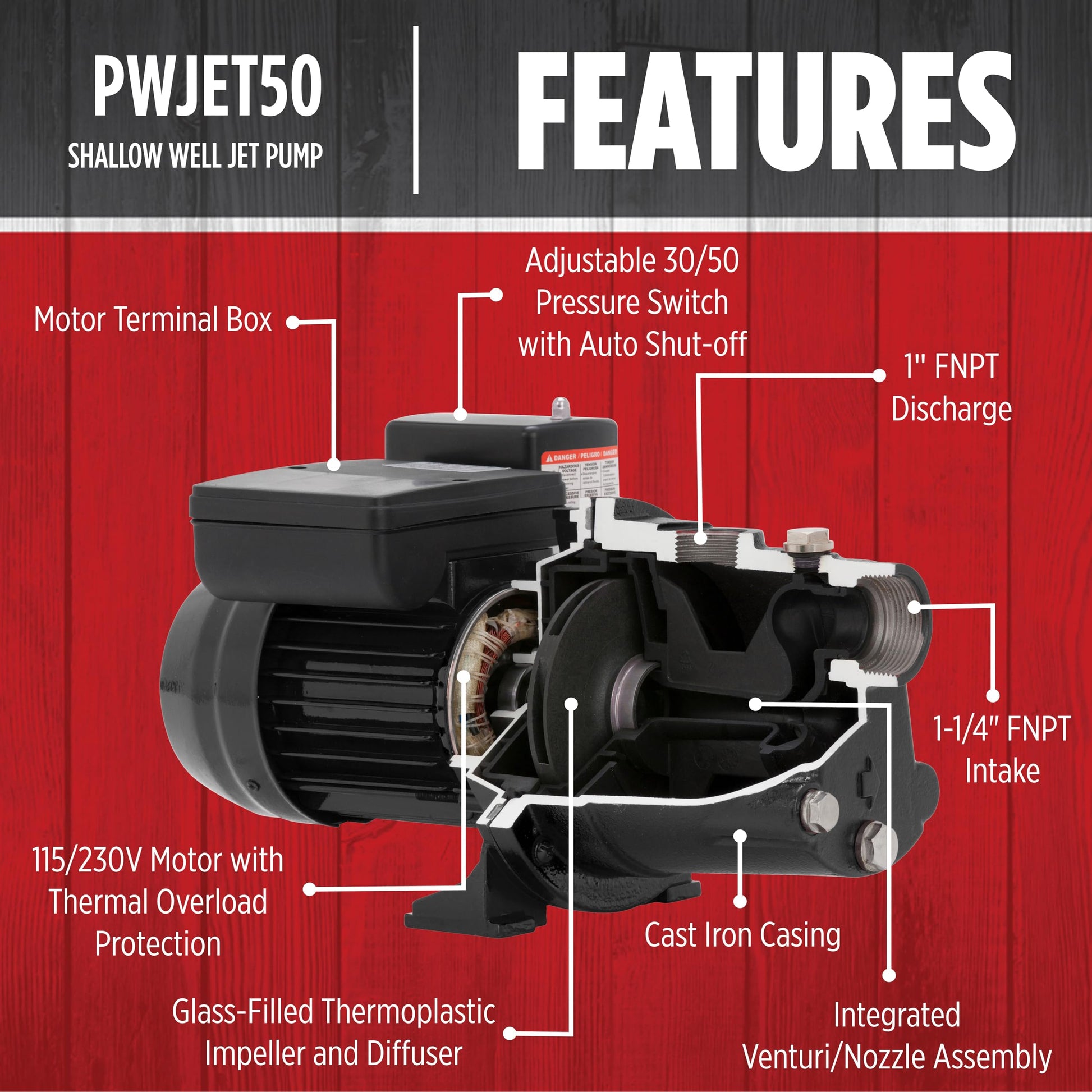

BUILT TO LAST: RUGGED cast iron casing and volute for long life; glass-filled thermoplastic impeller and diffuser for durability
DUAL VOLTAGE: runs on either 115 or 230 volts; voltage must be selected to match incoming power source; CSA listed in the USA and Canada; certified for potable water
INCLUDES: a factory pre-set 30/50 pressure switch that produces a working maximum pressure of 50 PSI; note pressure gauge not included

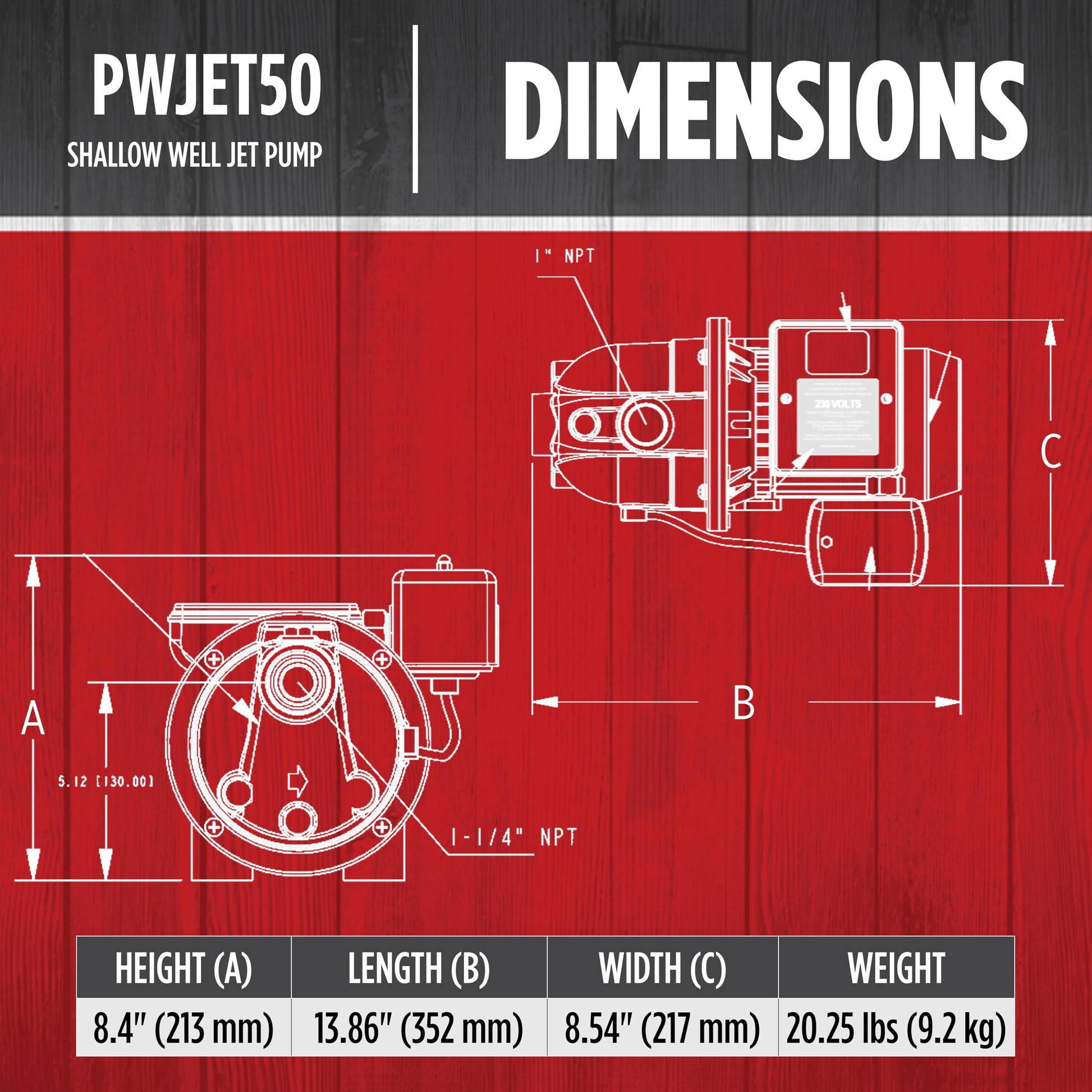

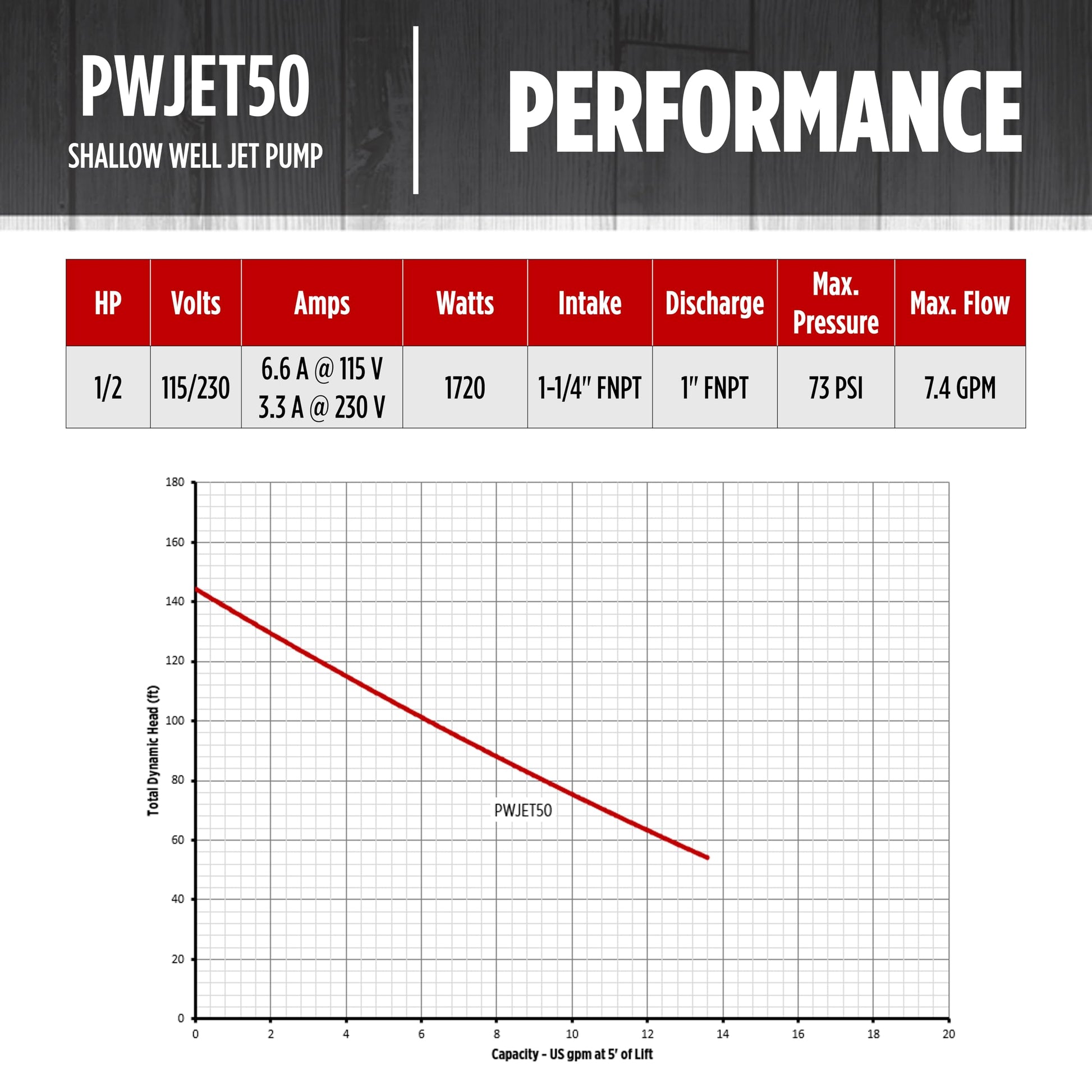

SPECIFICATIONS: 1/2 HP, 6.6 Amps at 115V; 3.3 Amps at 230 V; 1-1/4-inch FNPT intake; 1-inch FNPT discharge; 7.4 GPM at 30 PSI (5-ft. suction lift); Maximum pressure = 63 PSI; Maximum head = 145-ft
model number: 97080501
Part Number: 97080501

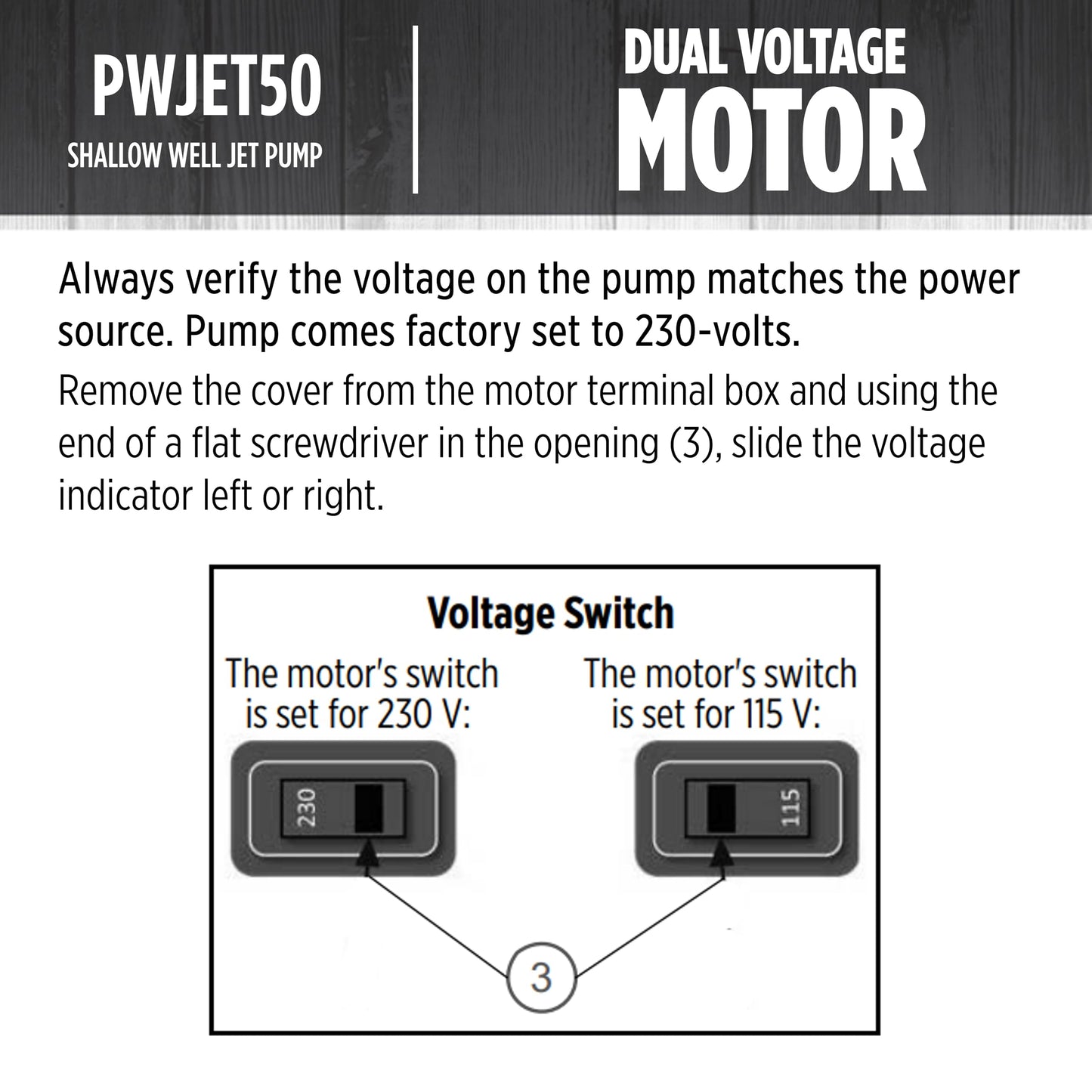

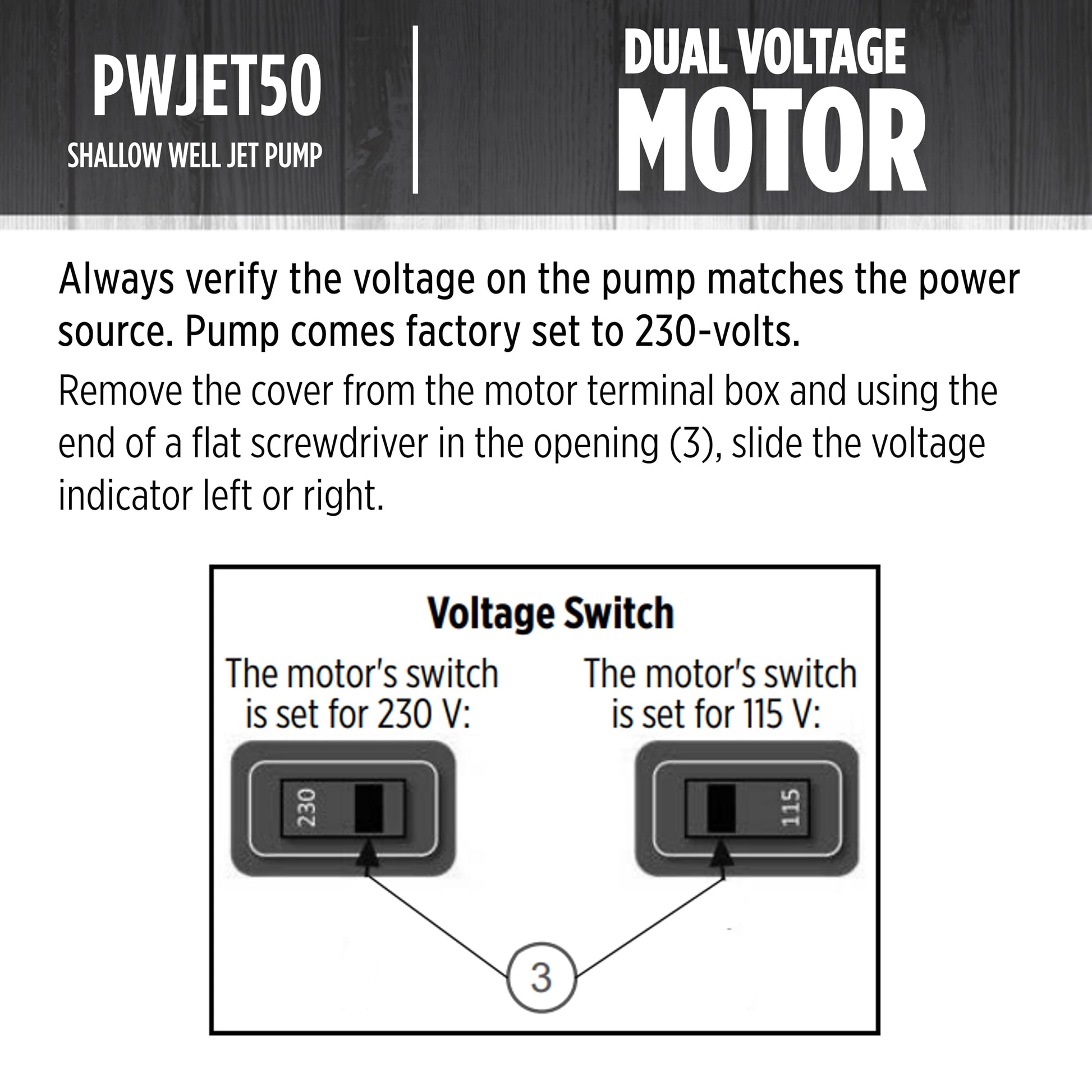

Details: The PumpWorks shallow well jet pump from the makers of Red Lion products is ideal for small homes or cottages with one bathroom and wells down to 25-feet deep. This pump includes a factory pre-set 30/50 pressure switch producing up to 50 psi with automatic shut-off. 15/230 Volt motor is factory set for 230 Volts but can easily be changed to 115-Volts - follow the instructions in the owner's manual. Please ensure the voltage on the pump matches the power source voltage otherwise the pump will not operate at full power.
