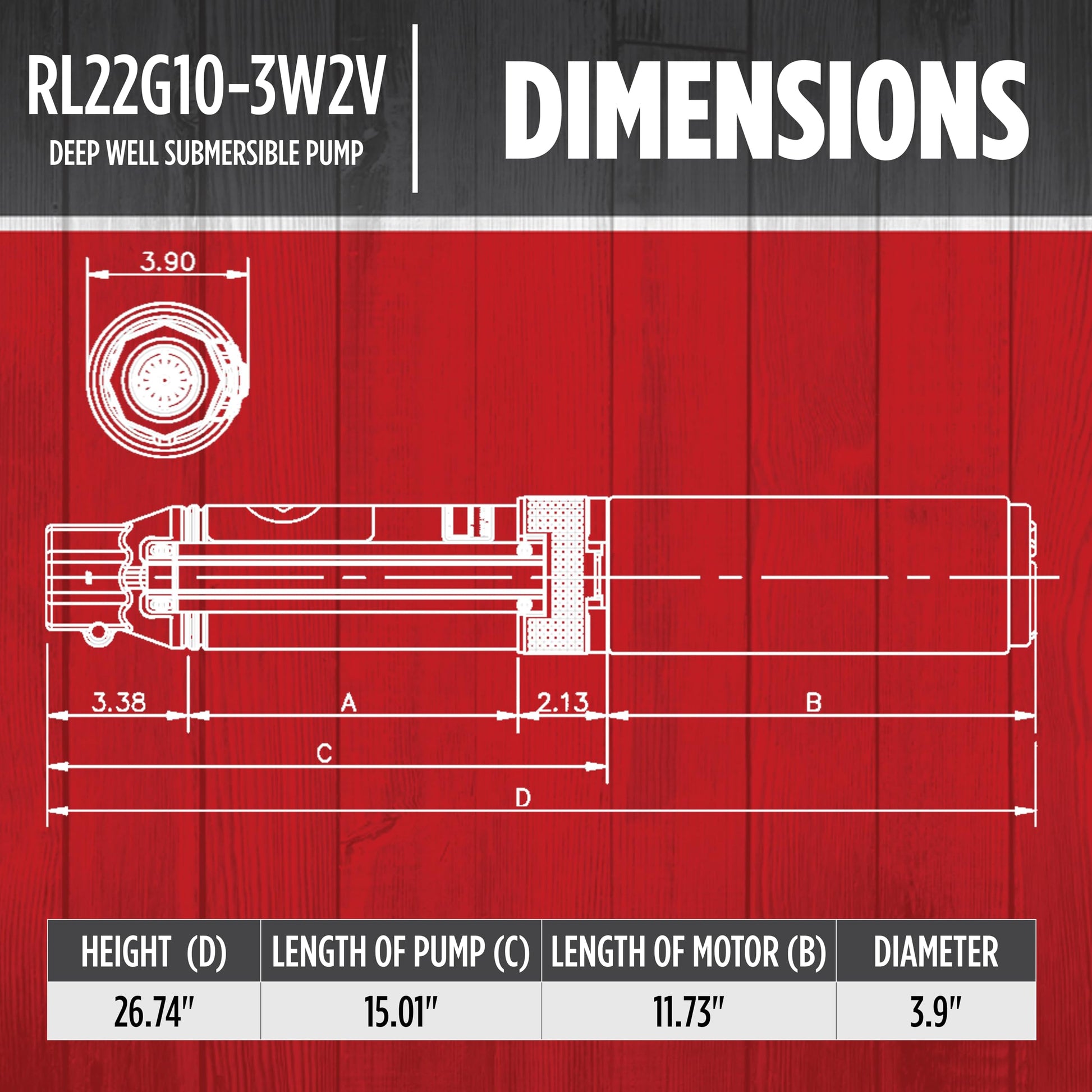

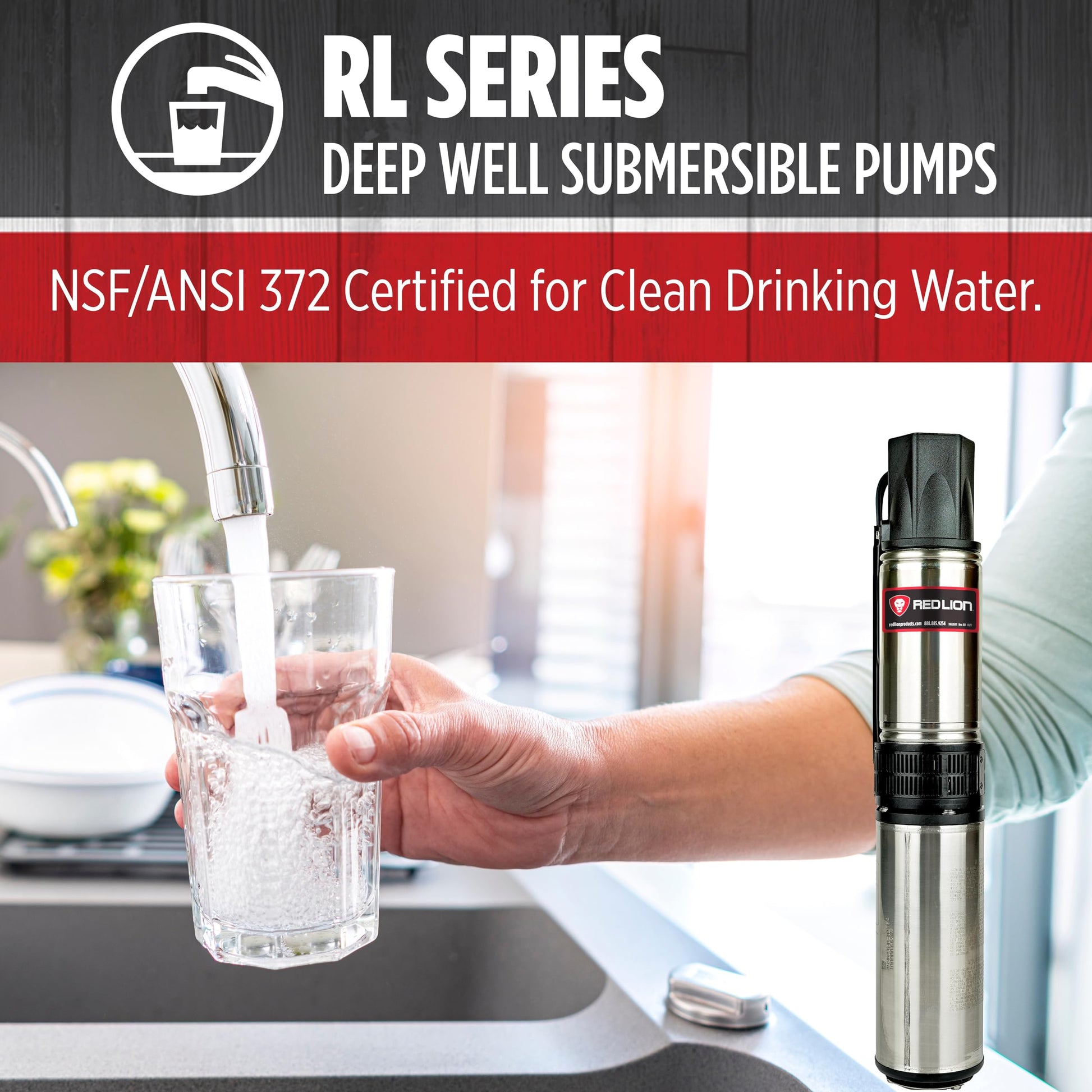

SUBMERSIBLE DEEP WELL PUMP: 3.9-inch diameter well pump fits 4-inch diameter driven wells or larger; NSF/ANSI 372 certified for potable water

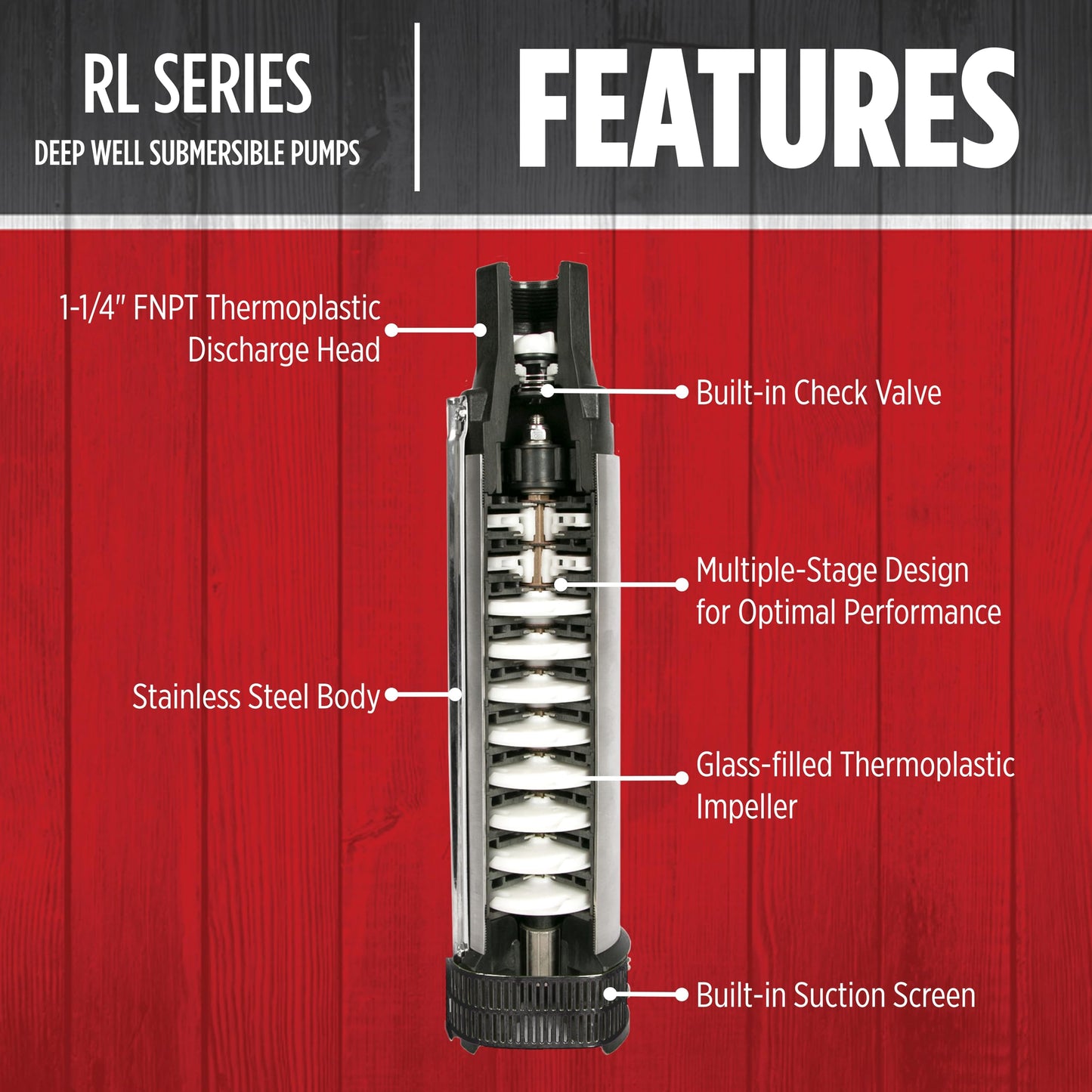

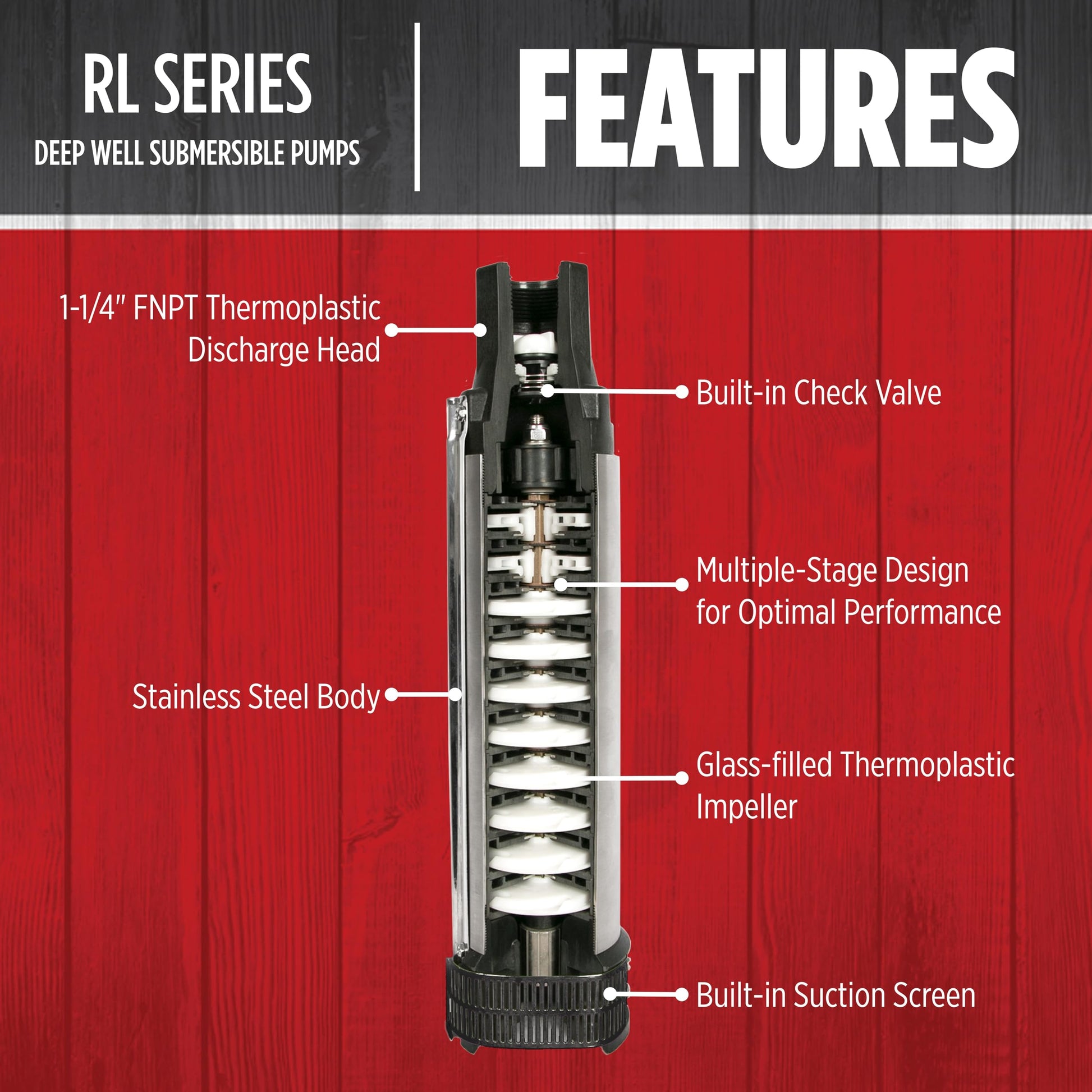

BUILT-INS: built-in check valve help keep pump from rapid cycling and extends the motor life; built-in suction screen helps keep debris out protecting the impellers

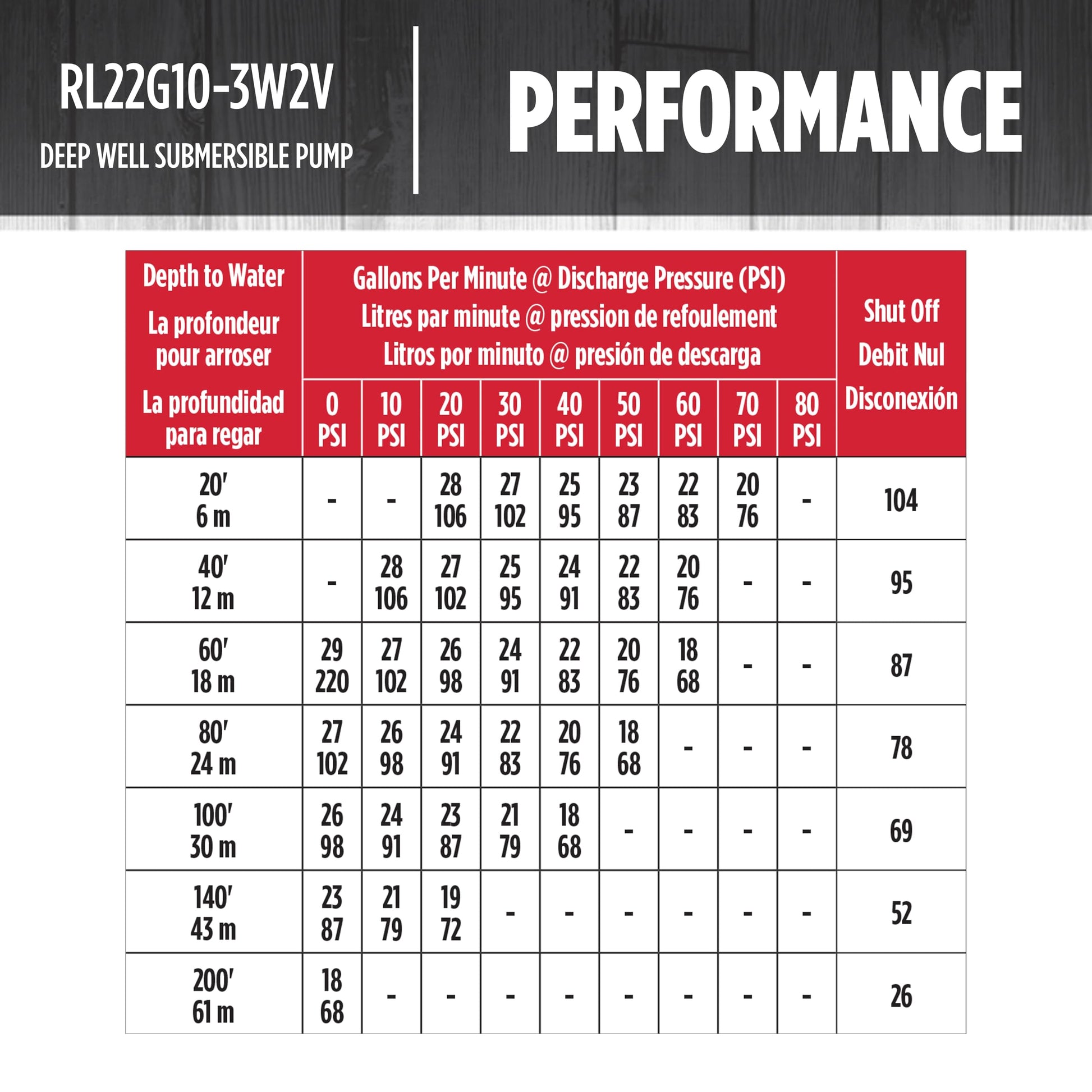

RATED FOR 22 GPM: at 30 PSI it can deliver 22 GPM at a depth of 80-ft.; 260-ft. shut-off

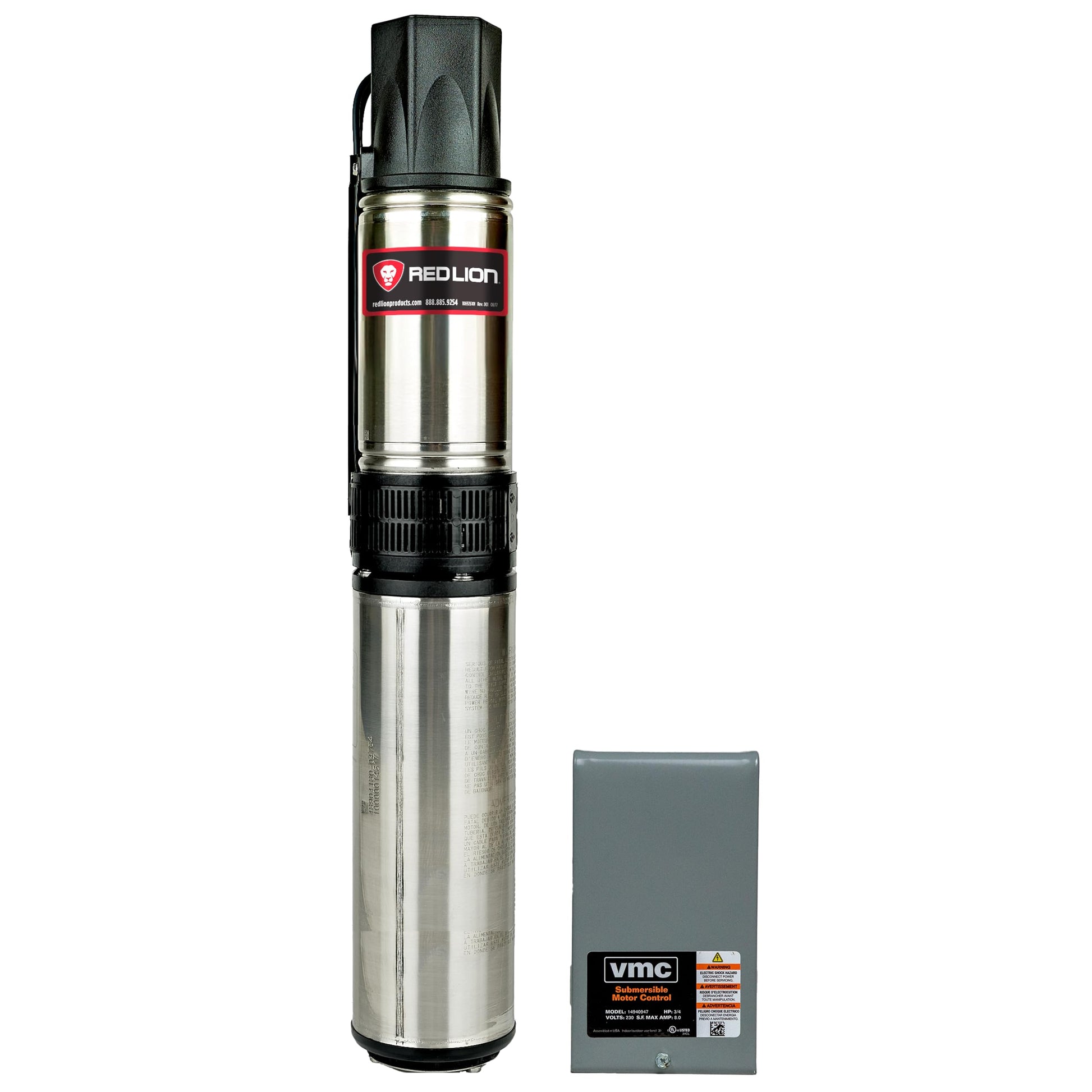

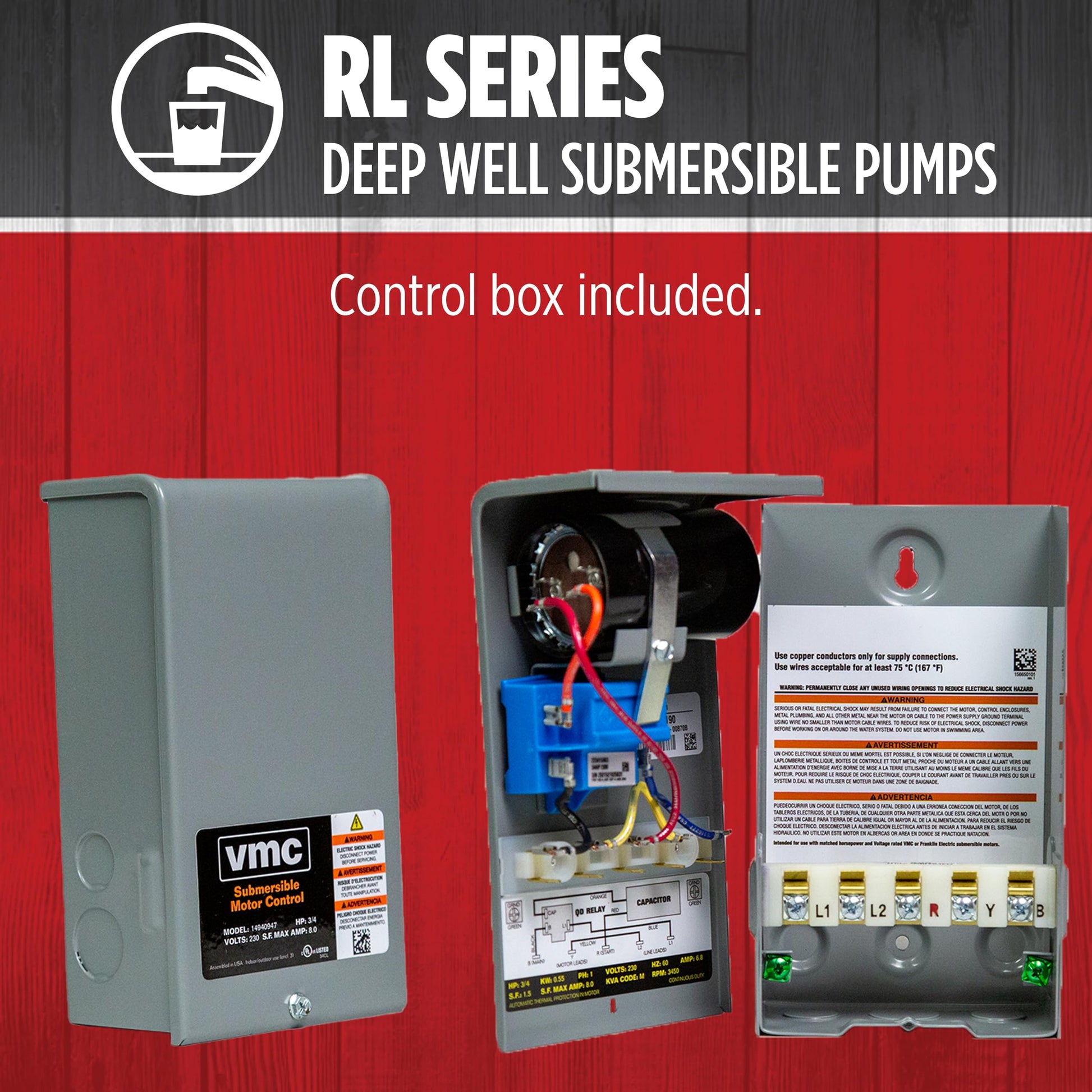

CONTROL BOX INCLUDED: Red Lion/VMC branded 1 HP, 0.75 KW, 230 Volt, 60 Hz, 10.4 running Amps, single phase, enclosure 3 indoor/outdoor use rated, UL listed in Canada and the USA
SPECIFICATIONS: 1 HP; 22 GPM; 3-Wire, 230 Volt, 10.4 running Amps; 1-1/4-inch FNPT discharge; stainless steel housing with thermoplastic discharge and motor bracket
model number: 14942409
Part Number: 14942409
Details: Product Description
The Red Lion RL22G10-3W2V 1 HP, 3-wire, 230-volt submersible deep well pump, delivers up to 22 GPM and a maximum shut-off of 260 ft. See specification sheet for performance details. This pump has a stainless steel pump casing, thermoplastic discharge and motor bracket and comes with a built-in suction screen and check valve. This 3-wire, 230 volt motor requires a control box which is included.
From the Manufacturer
This submersible deep well pump is ideal for 4-Inch I.D. or larger wells. It features a built in check valve, 22-GPM and built in suction screen.
