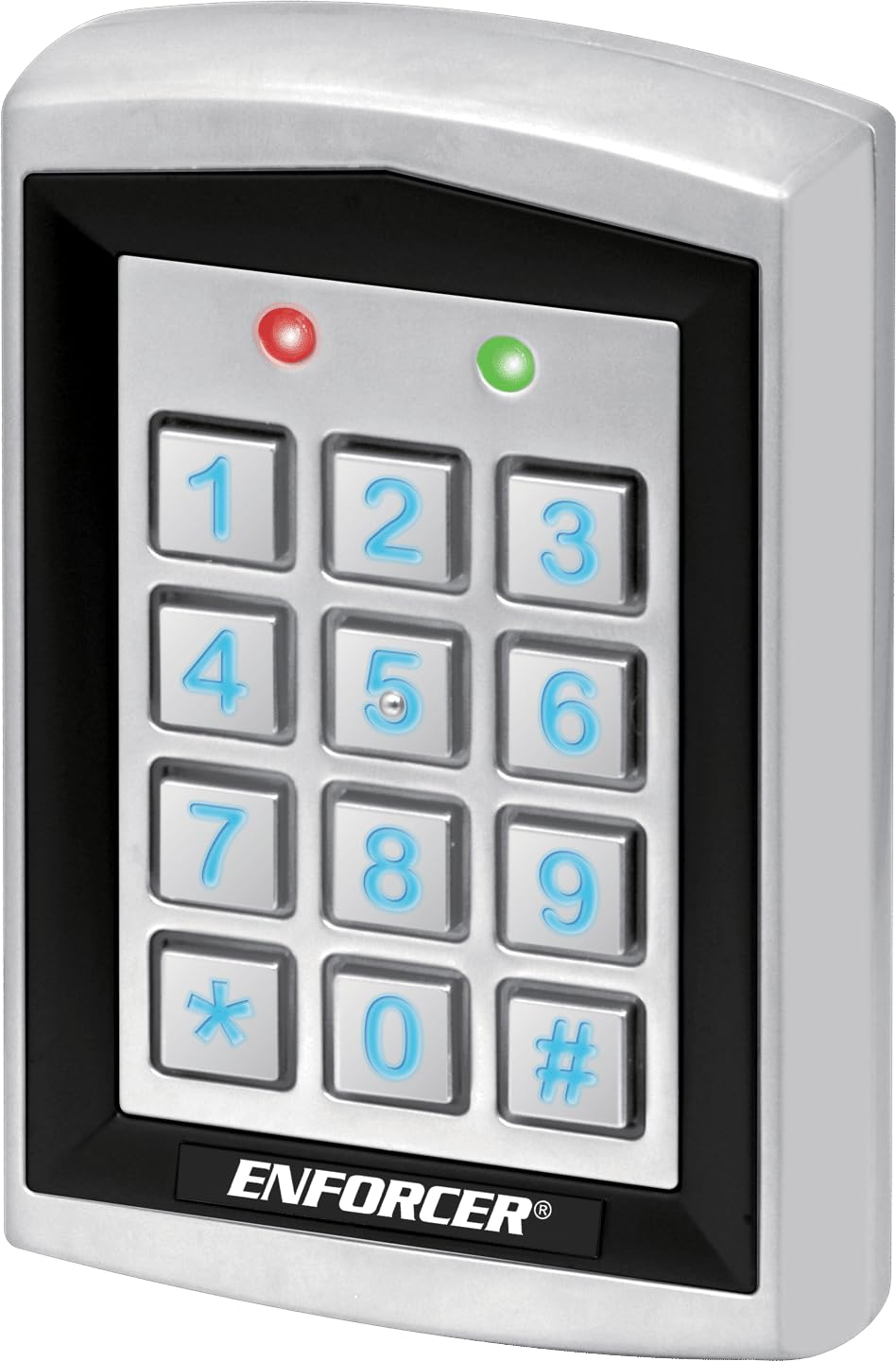

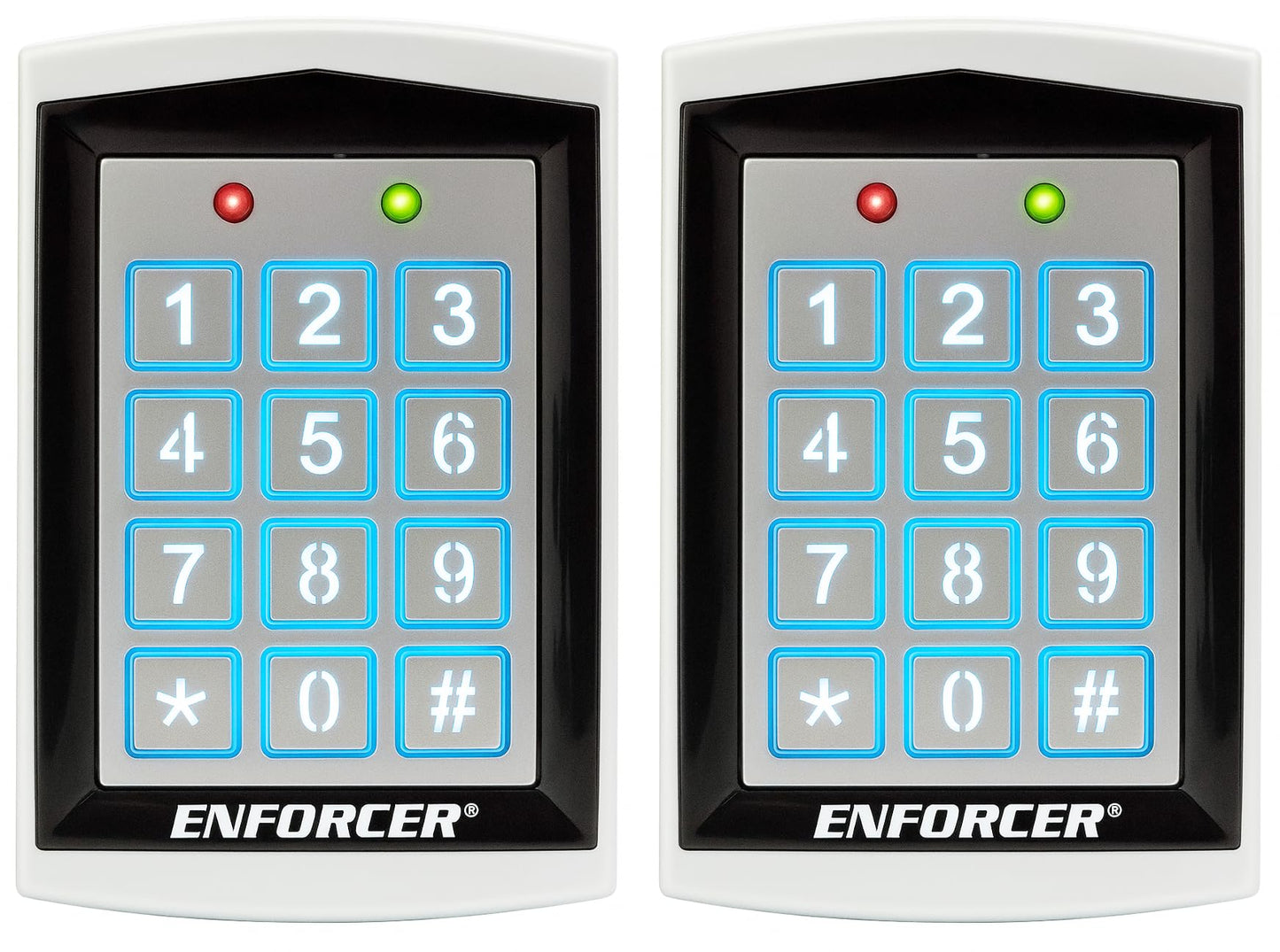

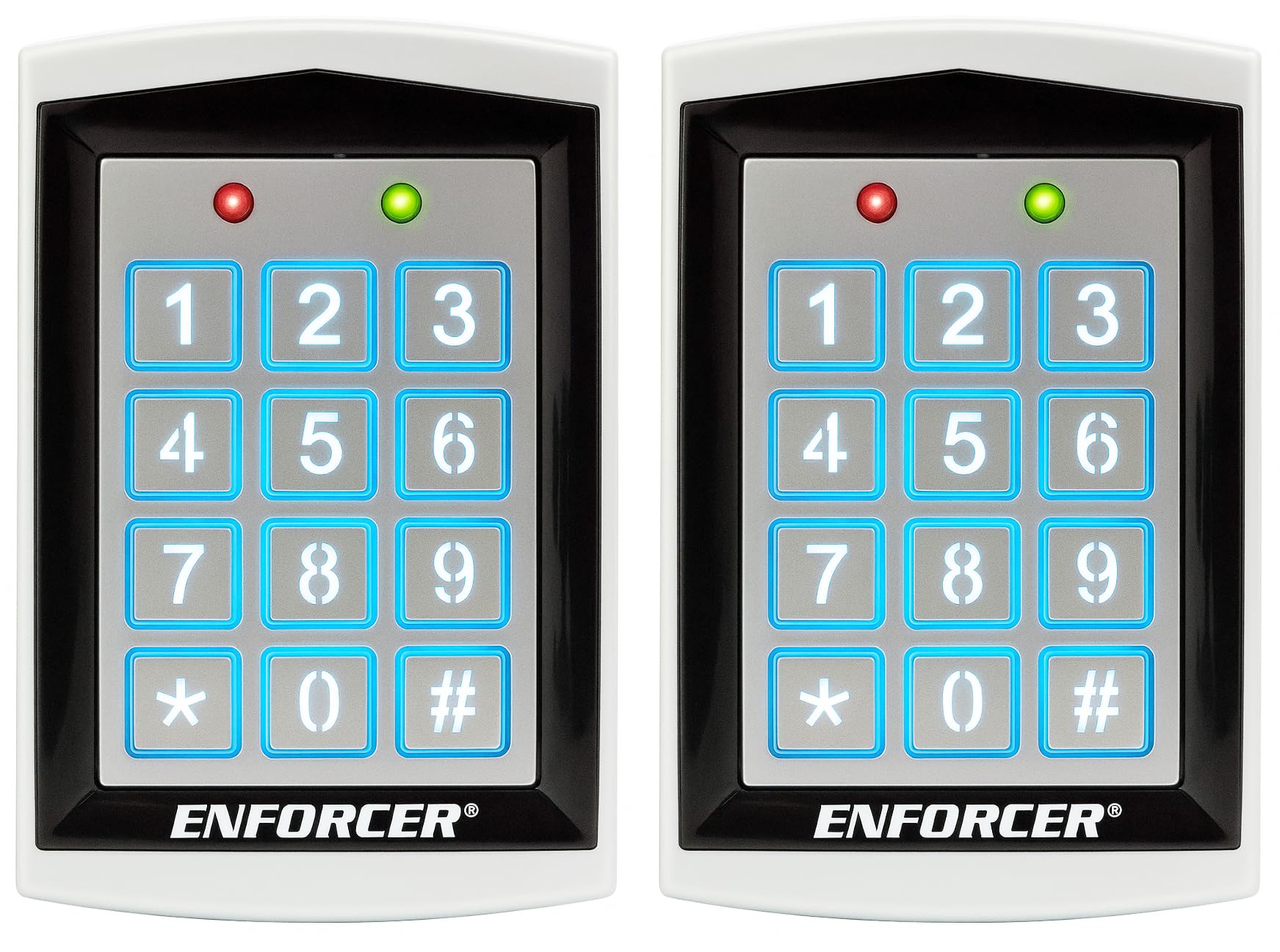

Seco-Larm SK-1323-SPQ Pack of 2 Enforcer Standalone Proximity Card Reader and Keypad, Access Control System, 1000 Users Capacity, 26-bit Output, Backlit Keys, IP66, Adjustable Relay Output, 12-24V DC

Brand: Seco-Larm

Features:

• Versatile access control: Designed for secure entry with both proximity card and keypad code access options
• High user capacity: Supports up to 1,000 users with individual PINs or proximity credentials for efficient management
• Dual operating modes: Functions as a standalone unit or as a Wiegand output reader connected to an external controller
• Durable outdoor design: IP66-rated weatherproof enclosure ensures reliable performance in indoor and outdoor installations
• Flexible voltage input: Operates on 12-24V DC for compatibility with a wide range of power systems
• Secure and configurable: Adjustable relay output time, programmable lockout, and anti-passback functions for enhanced protection
• User-friendly interface: Backlit numeric keypad and LED indicators provide visual feedback for easy operation day or night
• Compact and sleek: Slim metal housing fits seamlessly into standard door frames or access panels
• Wide temperature tolerance: Performs reliably in -40°F to 140°F environments, suitable for industrial and commercial use

model number: SK-1323-SPQ

Part Number: SK-1323-SPQ

Details: Seco-Larm SK-1323-SPQ Pack of 2 Enforcer Standalone Proximity Card Reader and Keypad, Access Control System, 1000 Users Capacity, 26-bit Output, Backlit Keys, IP66, Adjustable Relay Output, 12-24V DC
The Seco-Larm SK-1323-SPQ is a secure and durable standalone access control keypad and proximity reader designed for commercial and industrial use. With a capacity of up to 1,000 users, it supports both card and PIN credentials, delivering flexible and reliable access management in any environment. Key Features: Supports both proximity card and PIN code access options Accommodates up to 1,000 users with unique credentials Works as a standalone unit or with Wiegand 26-bit output Reliable outdoor and indoor performance Operates from 12 to 24V DC power sources Adjustable relay output time and anti-passback Illuminated keys for easy use in low-light conditions Fits standard access control installation points Operates from -40°F to 140°F for harsh environments
Specifications: Number of User Codes: Up to 1,010 Operating Voltage: 12~24 VAC/VDC Current Draw - Standby: 64mA@12VDC Current Draw- Active: 92-120 mA@12VDC Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC Egress Inputs: 2, N.O. Ground Door Sensor Input: N.C. Ground Tamper Sensor: Optical Keypad LED Life: 60,000 hours (over 6.8 years) Proximity Reader Sensing Distance: 1.93 inches IP Rating: Weatherproof IP65 Dimensions: 4.75 x 3 x 0.87 inches

EAN: 0767637321693

Package Dimensions: 6.5 x 4.5 x 4.5 inches
