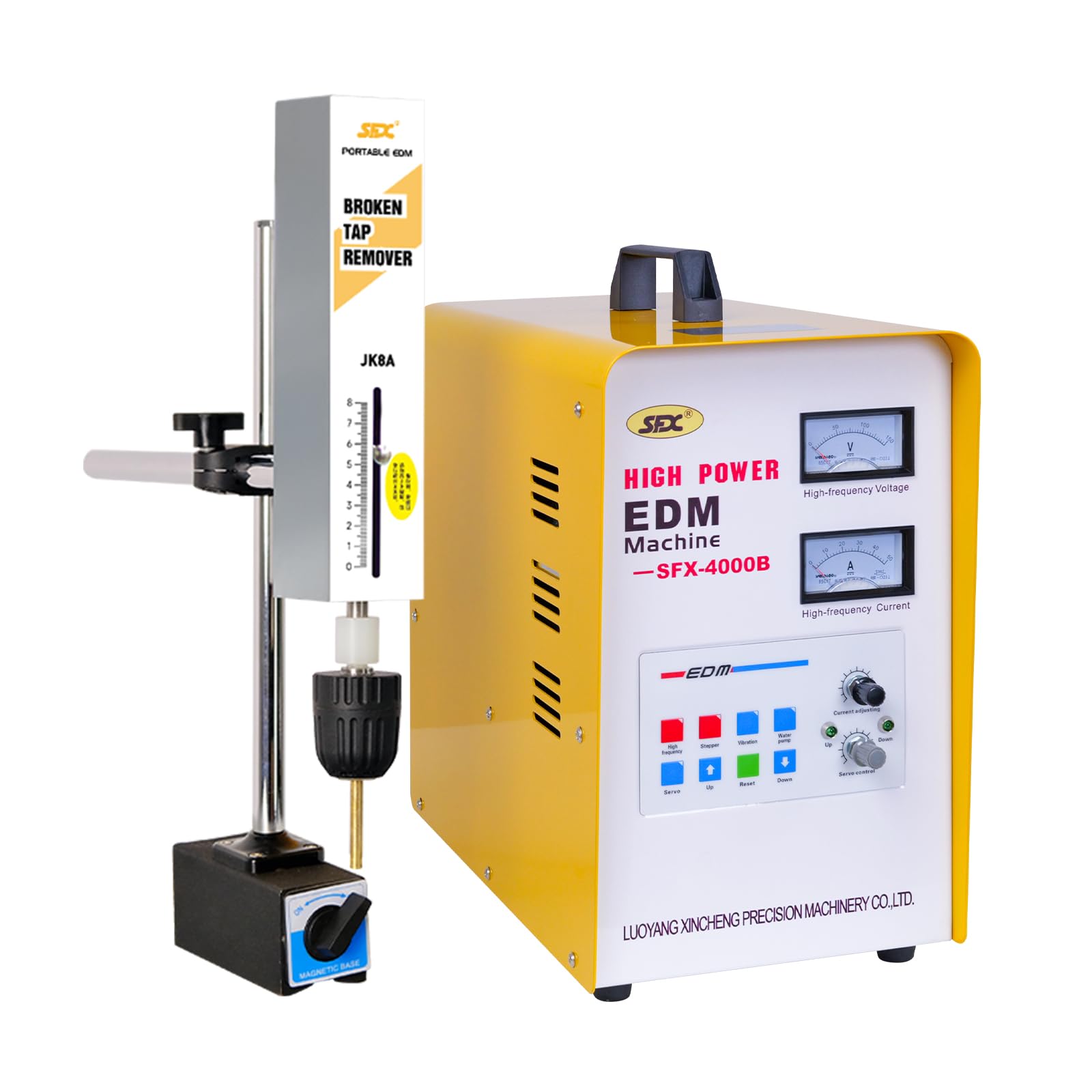

SFX 3000W Portable EDM broken tap remover tap eroder tap removal tool tap burner tap disintegrator fast remove 5/64'' to 1-57/64'' broken drills, taps, reamers, bolts (Depth setting for blind hole)

Brand: SFX

Features:

• [No damage to threads] Spark erosion principle, can fast remove broken taps, drills, screws,bolts from work pieces without damage to the threads.
• [Depth setting] Depth setting for blind hole. Auto retract and alarm. Reset button for stuck spindle.
• [Flexibility] Working head is separated from the machine and could rotate in any direction.
• [Portability] Small Size, light weight, easy to carry; Easily process on large or heavy work pieces.

model number: SFX-4000B

Part Number: SFX-4000B

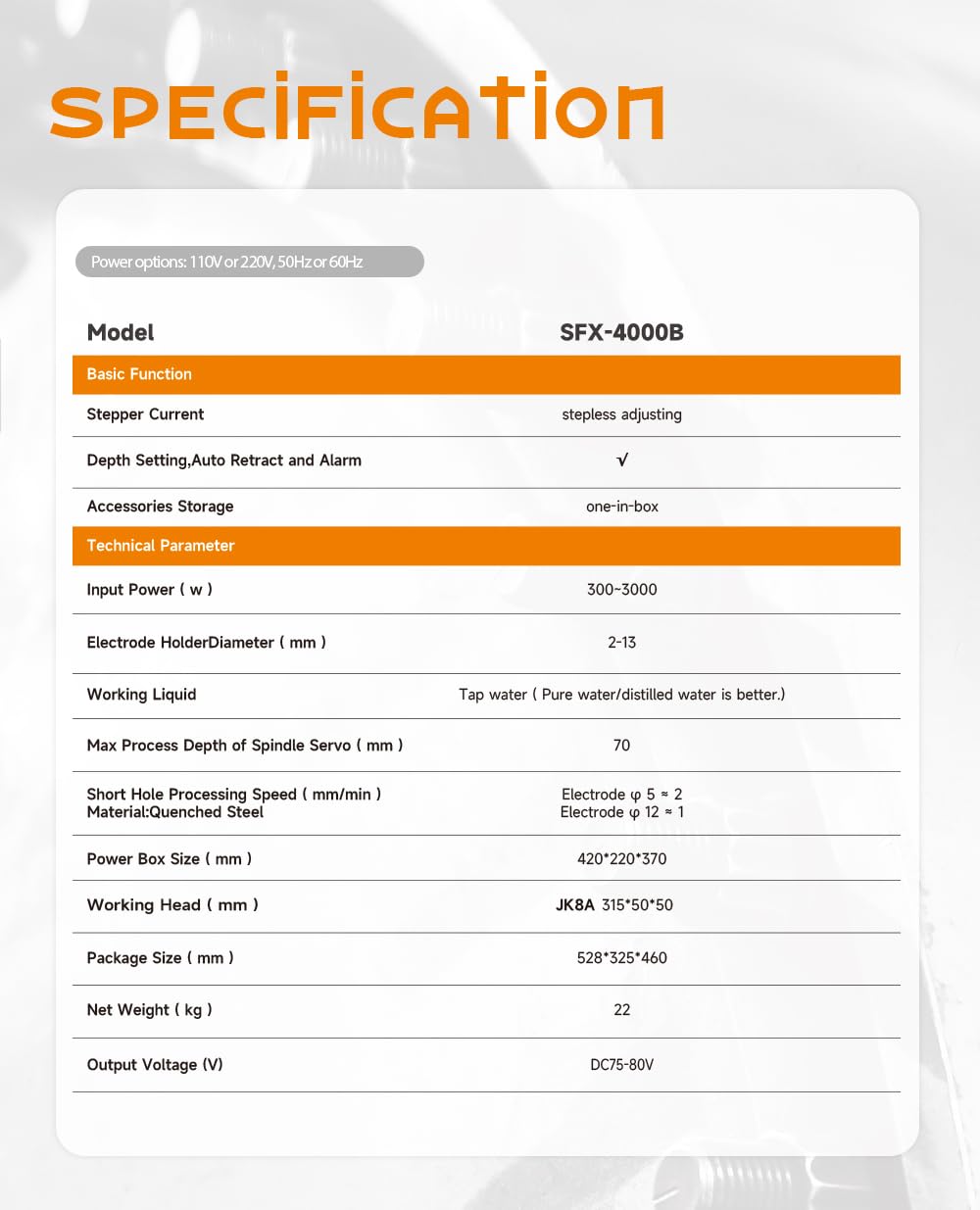

Details: Stepper Current------Yes

Depth setting, auto reatract and alarm------Yes
Input Power------300~3000Ww
Electrode chuck diameter------2~13 mm
Working Liquid------Tap water
Automatic spindle travel(Z axis)------70mm
Short Hole Processing Speed------2mm/min
Power Box Size------420*220*370mm
Model and size of working head------DK8 315*50*50 mm
Packing Size------528*325*460 mm
Net Weight------22 Kg
Gross Weight------26 Kg
Removing Size: M2-M48 (0.07874'' to 1.8898'')

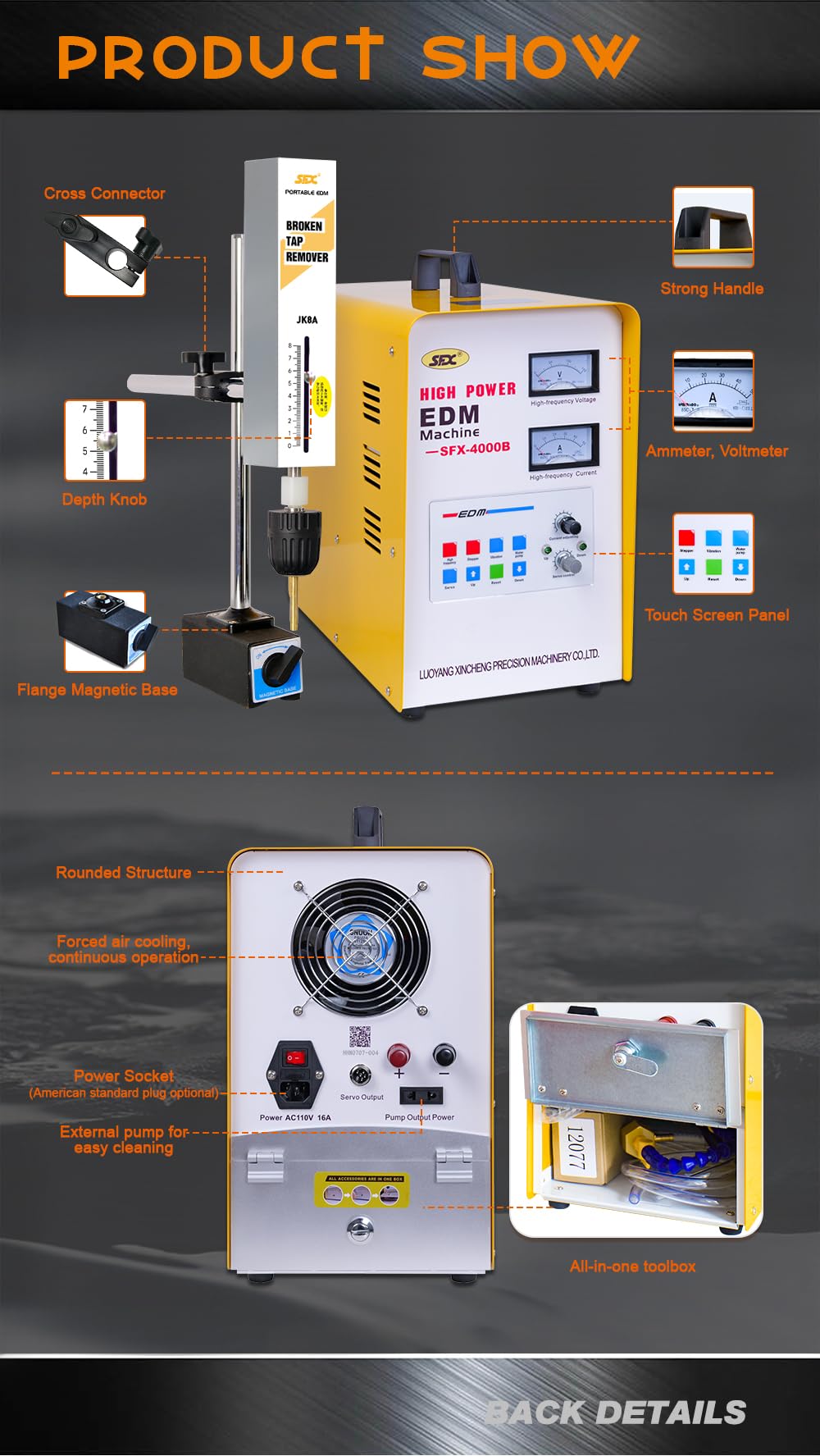

Features: Input power 3000W Light, small, portable, and compact design allows the SFX-4000B tap remover to be moved and used anywhere in the shop. High speed and efficiency at a low cost. Simple set up and operation allows easy removal of taps anywhere. Power source choices 110V/220V, 1PHASE, 50HZ/60HZ Dielectric Machine uses ordinary tap water as dielectric liquid. Electrodes Uses any brass rod or tube as an electrode.(ø1,ø2,ø3,ø4,ø5,ø6,ø8,ø9,ø10,ø11,ø13,ø16,ø18 ) Note: ø1~ø11 are round brass rod, ø13,ø16,ø18 are hexagonal brass rod) Small size and magnetic base allow machining even on large work pieces. Removes taps with no damage or stress to the work piece. Additional applications include cutting tungsten carbide or any other conductive material
Machining Functions: Auto Feed Depth setting (stops at a specific depth) Selectable arcing timer Auto retract Swiveling work head Alarm messages: depth arrival, arcing, over-temp.

EAN: 8011579340482

Package Dimensions: 22.0 x 20.0 x 14.0 inches
