TECPEL DCM-040 AC Leakage Clamp Meter 10 μA high Resolution on 40mA Range

Brand: Tecpel

Color: Black

Features:

• TECPEL DCM-040 AC Leakage Clamp Meter 10 μA high resolution on 40mA range

Part Number: DCM-040

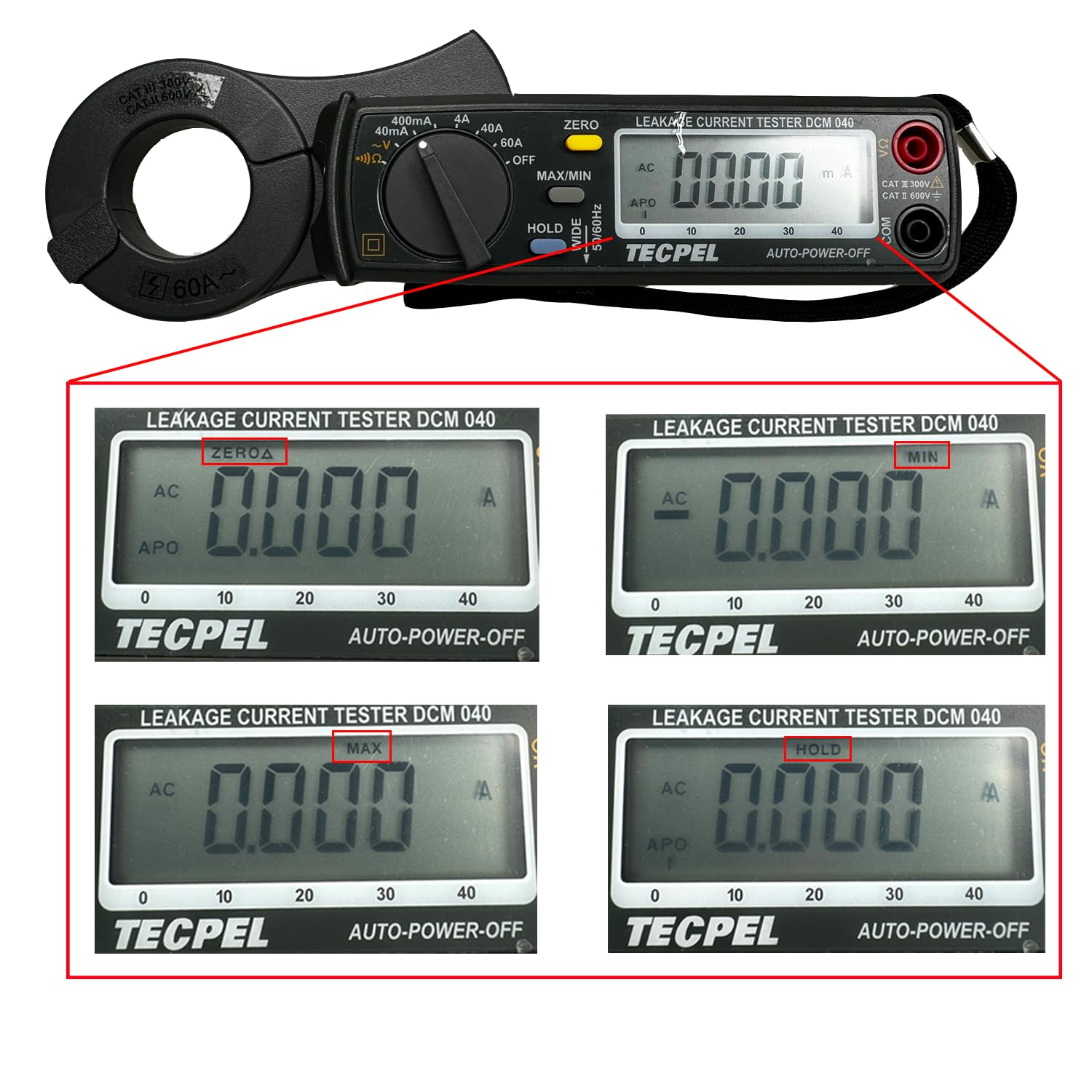

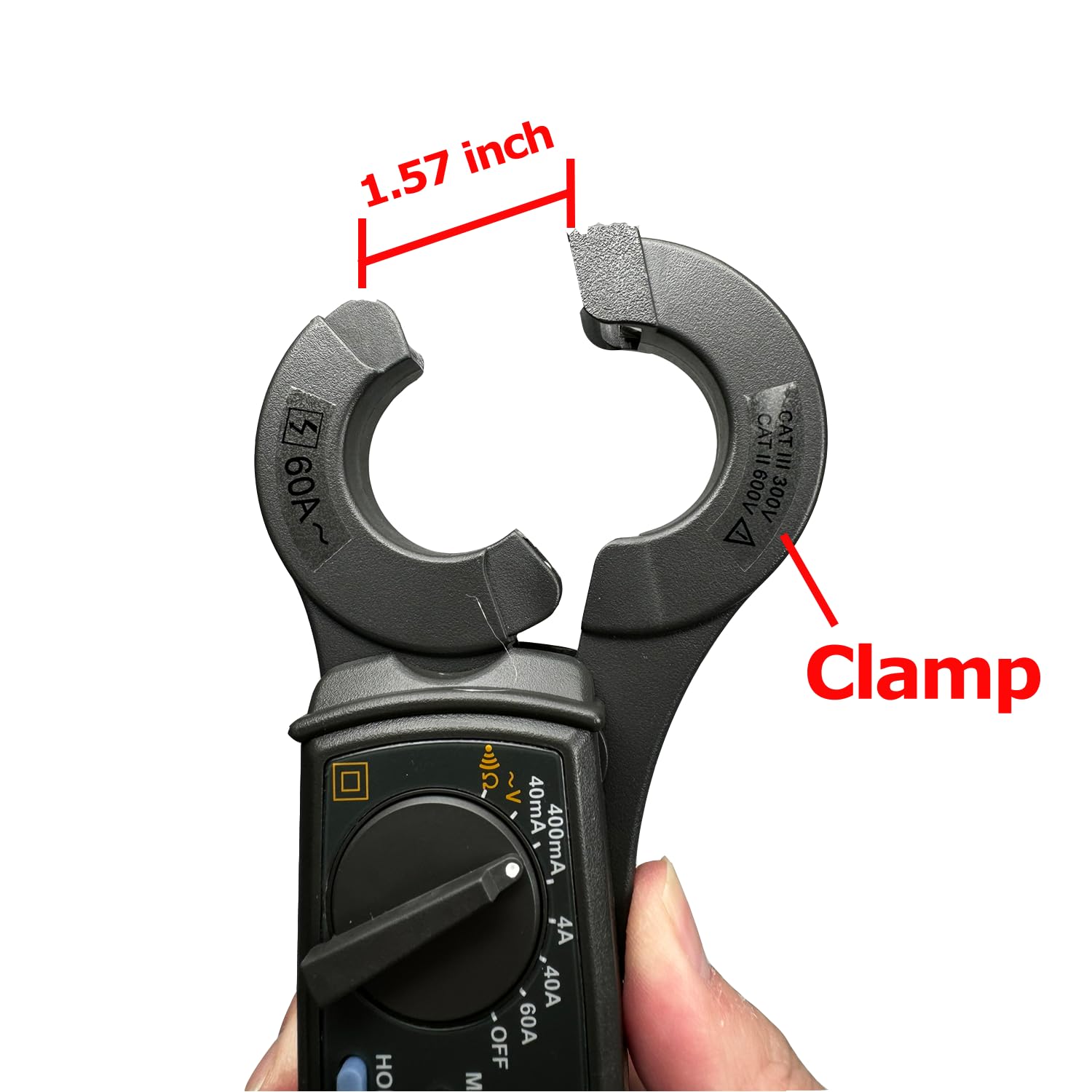

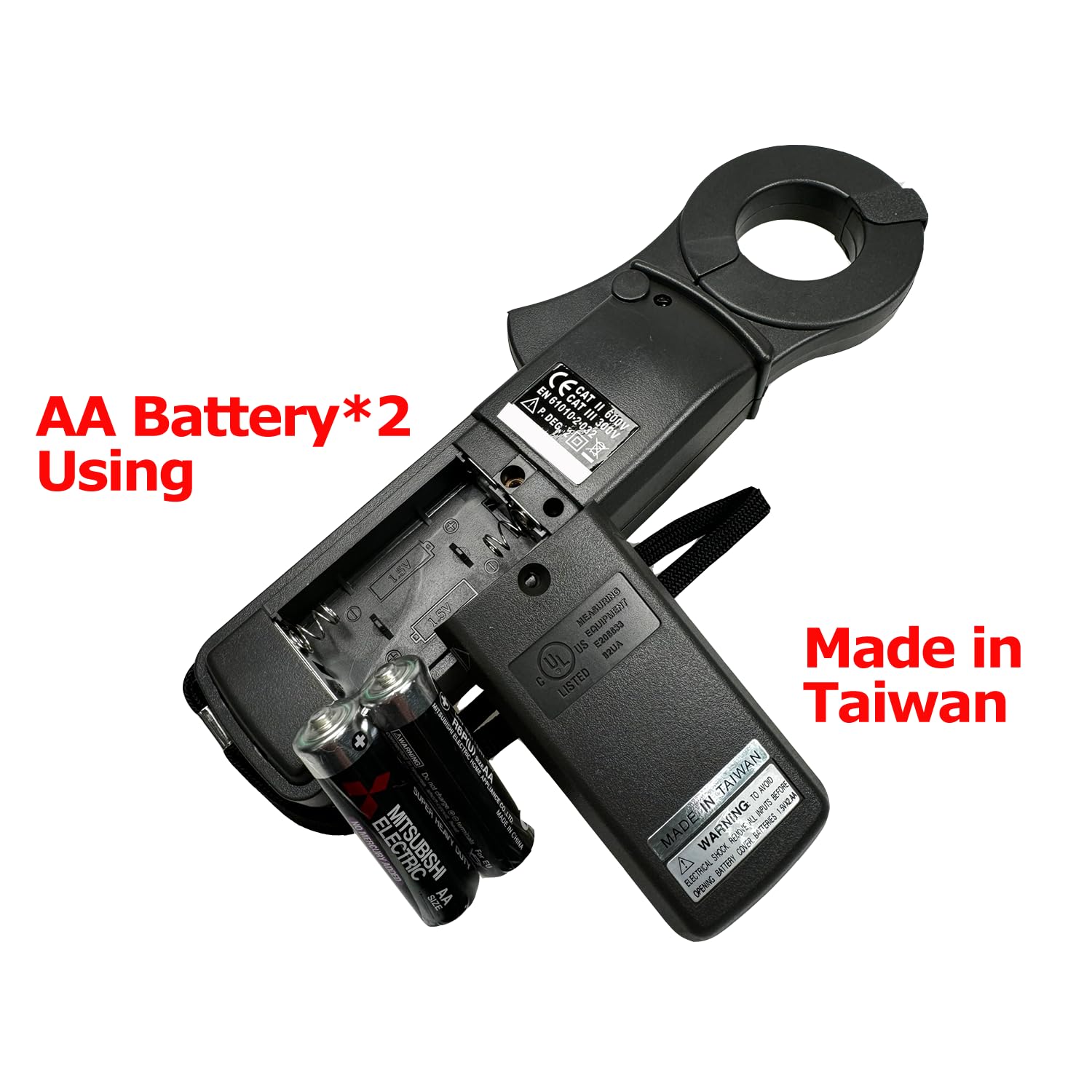

Details: Product ID: DCM-040 AC Leakage Clamp Meter DCM-040 Features 1. Accurate AC digital clamp meter for leakage current measurement. 2. 10 μA high resolution on 40mA range. 3. Shield transformer jaws to minimize the effect of external stray magnetic field. 4. Large jaw with 30 mm diameter. 5. Five Ranges (40mA, 400mA, 4A, 40A, 60A) for all application. 6. A filter circuit is designed to eliminate the effect of high frequency noise and harmonics for AC current measurement. 7. Large 3 3/4 digits LCD 8. Fast bargraph display (20 times/sec.) for transient observation. 9. Continuity and frequency measurements. 10.Max/Min, Data Hold functions, and Relative Measurement. 11.600V overload protection for ohm measurement. 12.Easy single rotary switch for any function selection. General Specification Size: 30mm max. (approx.) Battery Type: two 1.5V SUM-3 Display: 3 3/4 LCD with 40 seg. bargraph Range Selection: manual Overload Indication: left most digit blinks Power Consumption: 10 mA (approx.) Low battery Indication: Sampling Time: 2 times/sec. (display) 20 times/sec. (bargraph) Operating Temperature: -10°C to 50°C Operating Humidity: less than 85% relative Storage Temperature: -20°C to 60°C Storage Humidity: less than 75% relative Altitude up to 2000M Dimension: 210mm (L) x 62.0mm (W) x 35.6mm (H) 8.3" (L) x 2.4" (W) x 1.4" (H) Weight: 200g (battery included) Accessories: Carrying bag x 1 Users manual x 1 1.5V battery x 2 Certificate: CE

EAN: 0615150726559

Package Dimensions: 9.1 x 4.7 x 2.6 inches
