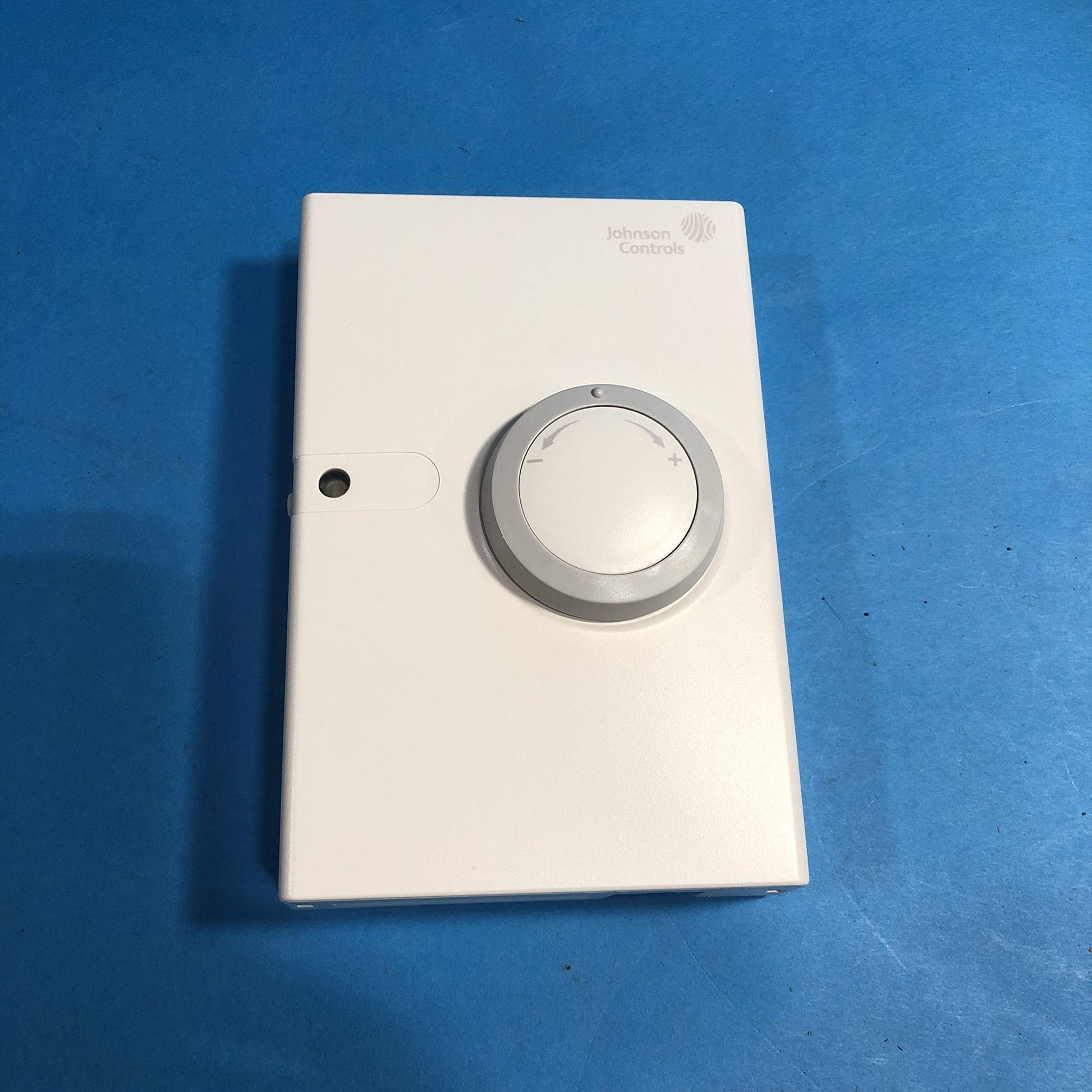

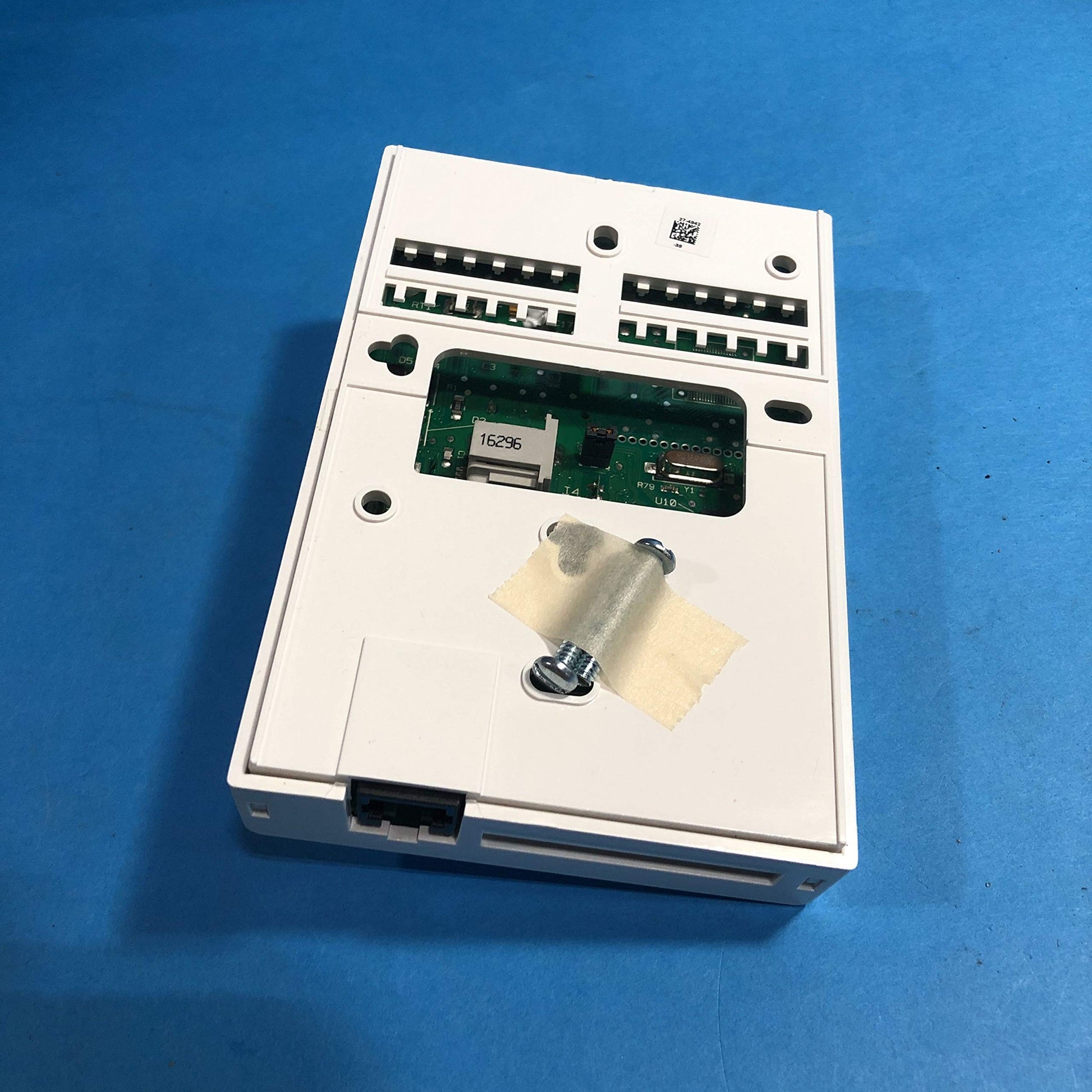

Temp Network Sensor, 120mm x 80mm Size, with Logo, Without Display, Warmer/Cooler Dial, Without Scale Toggle, Without Fan Control, Without Switches, Without VAV Feature

Brand: Johnson Controls

Features:

• BAC net Master-Slave/Token-Passing (MS/TP) protocol communication—Provides compatibility with Metasys system field controllers and Facility Explorer programmable controllers in a proven communication network

model number: NS-BTP7001-0

Part Number: NS-BTP7001-0

Details: The NS Series Network Sensor offering includes NS Series Network Zone Sensors and NS Series Network Discharge Air Sensors. The NS Series Network Sensors are designed to function directly with Metasys system Field Equipment Controllers (FECs), Input/output Modules (IOMs), VAV Modular Assembly (VMA16) Controllers, and Facility Explorer FX-PC Series Programmable Controllers (FX-PCGs, FX-PCVs, and FX-PCXs). The sensors are also compatible with Verasys and Johnson Controls Smart Equipment. The majority of NS Series Network Zone Sensors monitor room temperature; however, options are available to also monitor zone humidity, carbon dioxide (CO2), local temperature set point adjustments, and other variables. These data are transmitted to a controller on the Sensor Actuator (SA) Bus.

Package Dimensions: 5.7 x 4.1 x 3.7 inches
