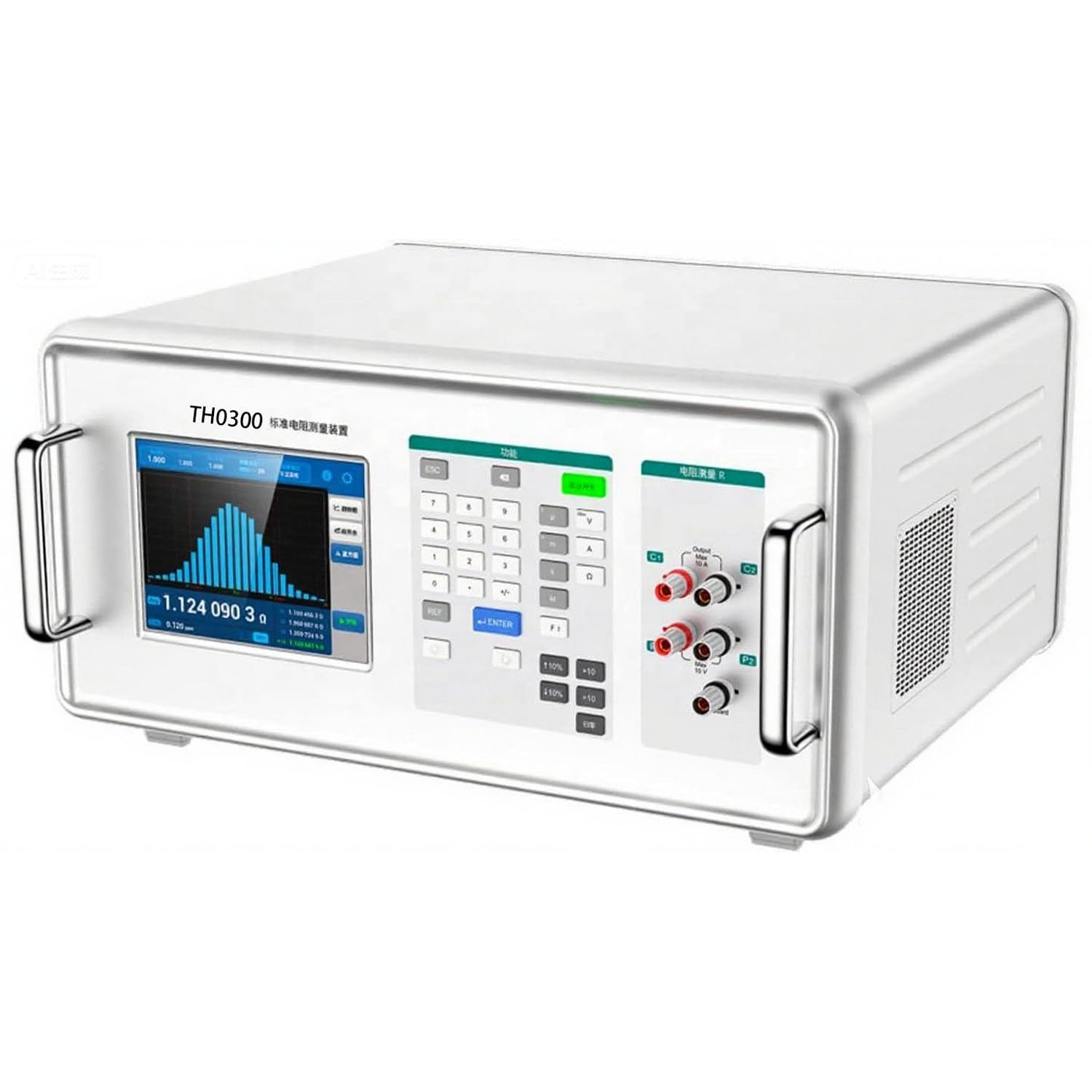

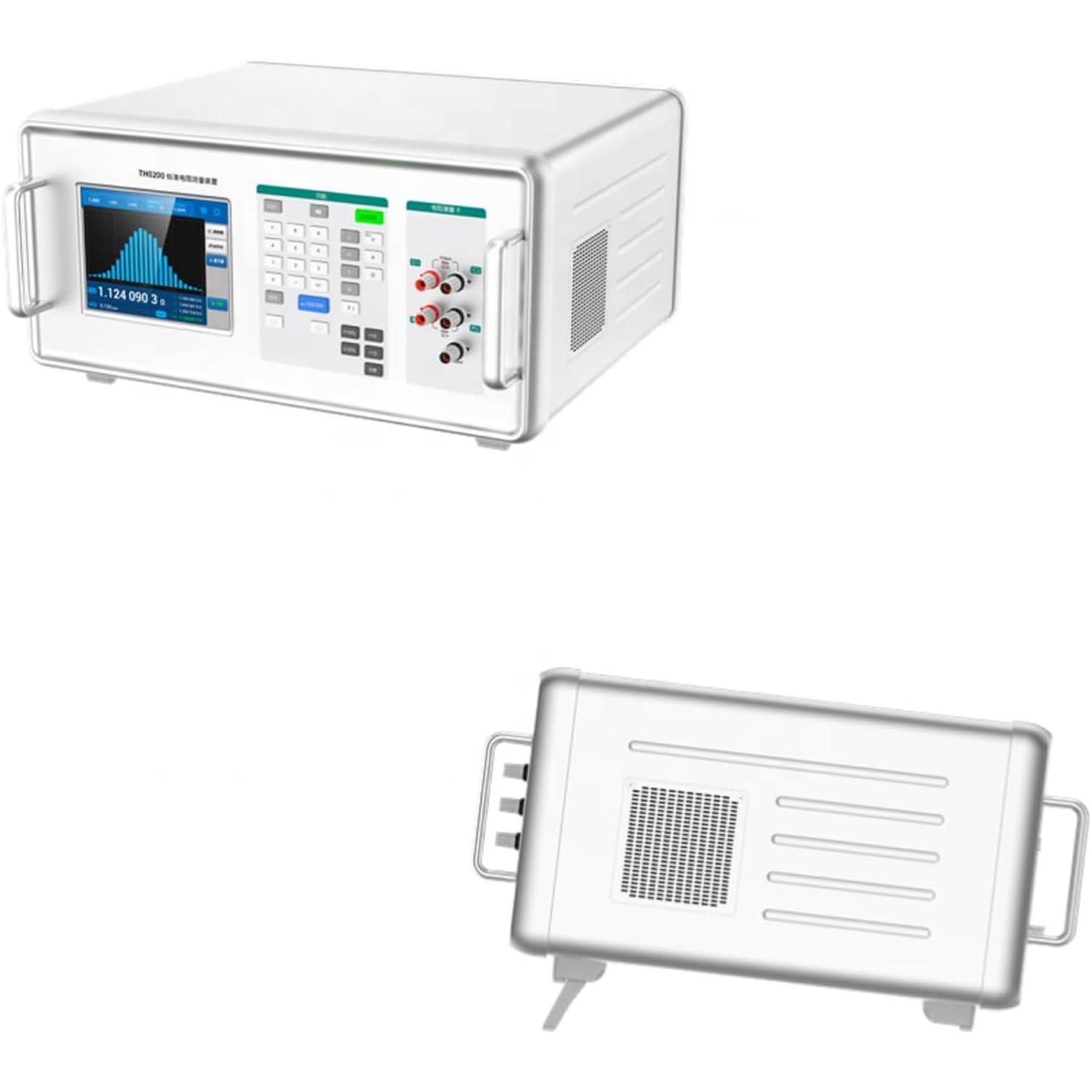

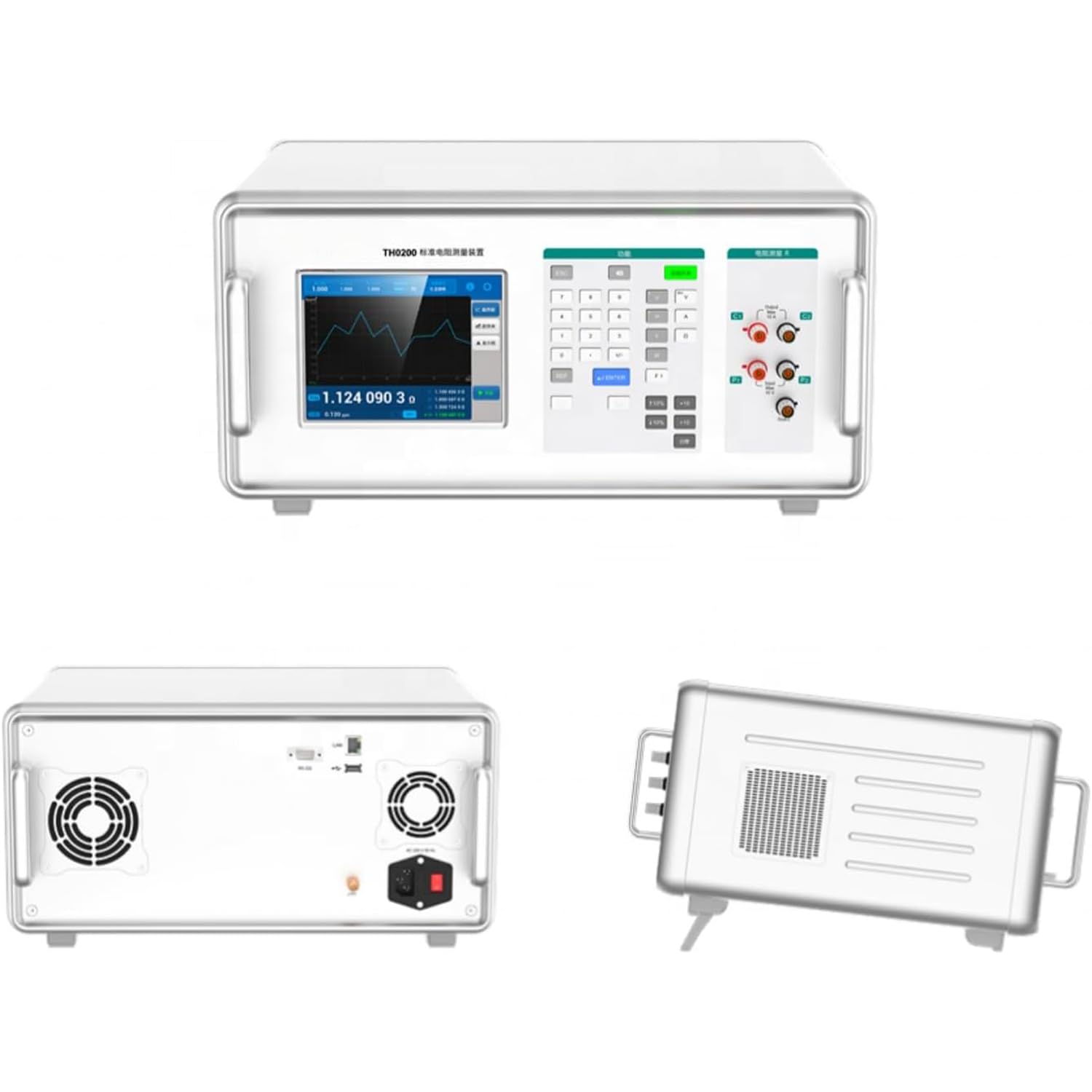

TH0300 High-Precision DC Resistance Tester for Standard Resistance Calibration and Measurement

Brand: Generic

Color: white

Features:

• Exceptional Precision: Boasts a current output range from 10 μA to 10 A, with an expansive resistance measurement span of 1 mΩ to 100 kΩ and a remarkable typical uncertainty of 8 ppm, ensuring ultra-accurate results for critical calibration tasks.
• Versatile Operation Modes: Equipped with a built-in high-precision standard resistance for reliable reference, and offers customizable measurement modes including Precision Mode for meticulous analysis and Quick Mode for rapid on-the-spot assessments.
• User-Friendly Interface: Features a responsive LCD touch screen that simplifies operation, and an RS232 interface enabling seamless data transfer to PCs or other devices, streamlining workflow efficiency.

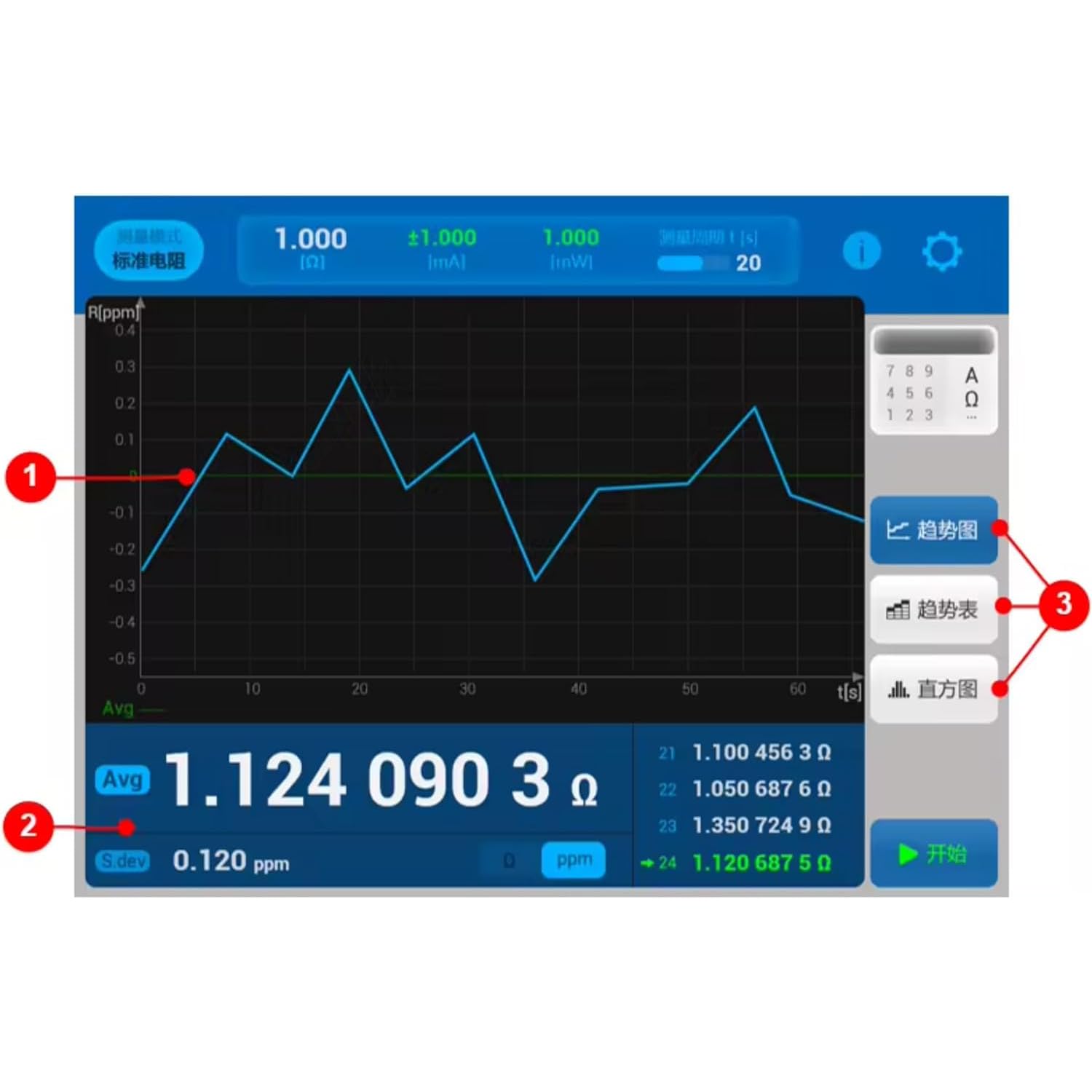

• Comprehensive Data Analysis: Empowers users to conduct in-depth statistical analysis, with the ability to visualize trends, review measurement values, and switch effortlessly between trend charts, tables, and histograms for detailed insights.

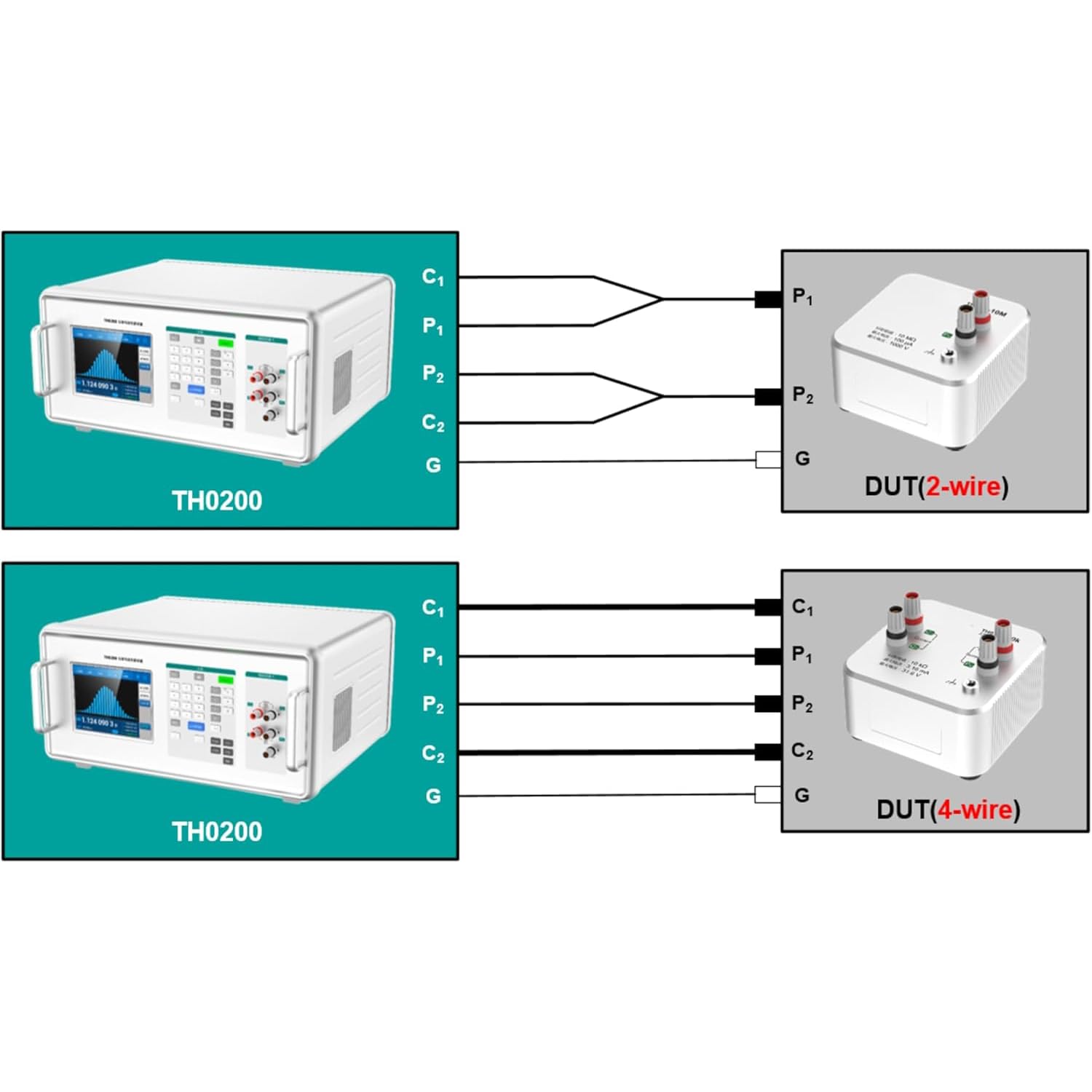

• Efficient Calibration Solution: Ideal for calibrating 2/4-wire resistors, and highly recommends the 4-wire mode for resistors ≤ 10 kΩ to eliminate contact resistance errors, ensuring the highest level of measurement accuracy.
• High Resolution & Low Power: Offers resolutions ranging from 100 pΩ to 10 mΩ, and optimized excitation currents coupled with intelligent test power management for precise measurements while minimizing power consumption.

Part Number: DZC500

Details: TH0300 High-Precision DC Resistance Tester for Standard Resistance Calibration and Measurement

Package Dimensions: 9.0 x 4.0 x 4.0 inches
