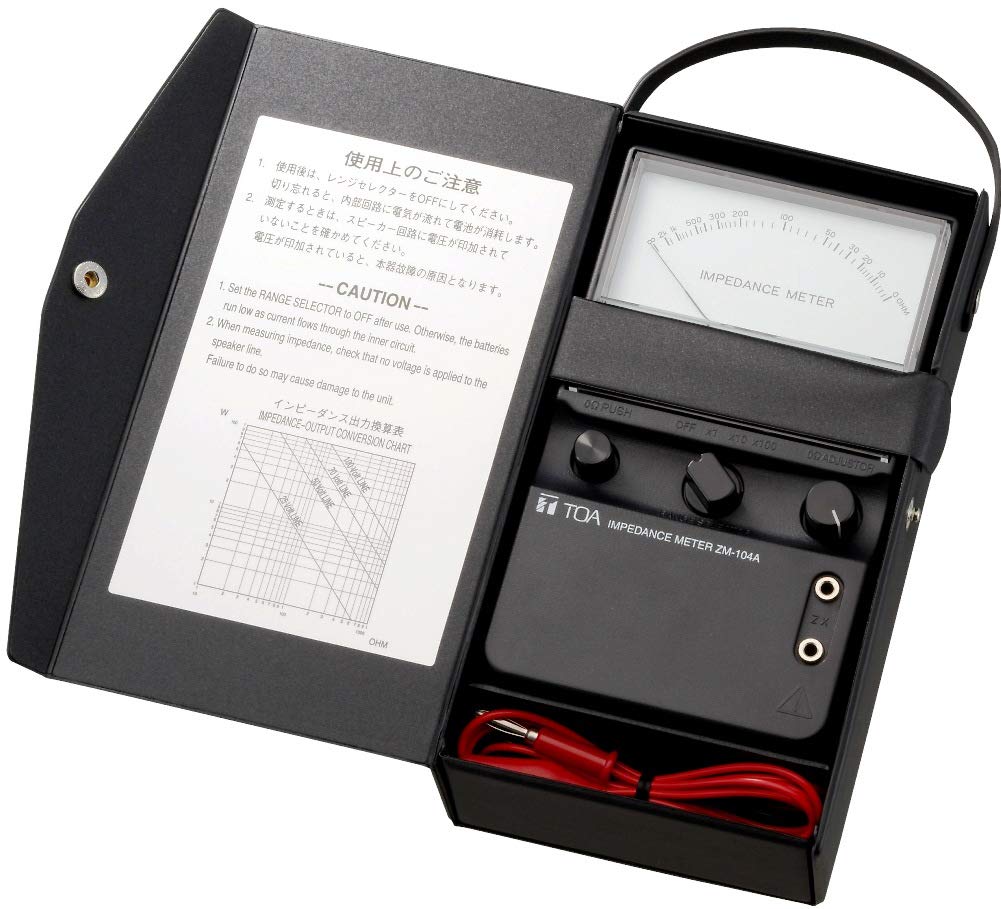

TOA ZM-104A Impedance Meter, Measures Impedance of Speaker Lines Up to 100k Ohms, Zero Adjustment for Accuracy On All Ranges, Easy to Read Meter Calibrates Directly in Ohms

Brand: TOA

Color: Black

Features:

• Impedance-to-Power Conversion Chart
• Measures Impedance of Speaker Lines Up to 100k Ohms
• Zero Adjustment for Accuracy On All Ranges
• Easy to Read Meter Calibrates Directly in Ohms
• Includes carrying case, test leads and impedance to power reference chart

model number: ZM-104A

Part Number: ZM-104A

Details: TOA ZM-104A Impedance Meter, Measures Impedance of Speaker Lines Up to 100k Ohms, Zero Adjustment for Accuracy On All Ranges, Easy to Read Meter Calibrates Directly in Ohms
The ZM-104A Impedance Meter can measure the impedance of speaker lines easily in the same manner as a circuit tester measures resistance. Key Features Impedance-to-Power Conversion Chart Measures Impedance of Speaker Lines Up to 100k Ohms Zero Adjustment for Accuracy On All Ranges Easy to Read Meter Calibrates Directly in Ohms Includes carrying case, test leads and impedance to power reference chart Specifications Power Source: R6 x 4 (1.5 V DC x 4) Current Consumption: 39 mA Reading: Direct reading meter, unit: Ω Measurement Range: x1 range: 5 Ω - 1 kΩ, x10 range: 50 Ω - 10 kΩ, x100 range: 500 Ω - 100 kΩ Accuracy: ±10 % Oscillation Frequency: 1 kHz, ±10 % Battery Life When Continuously Used: x1 range: 30 h, x10 range and x100 range: 60 h Operating Temperature: -5°C to +40°C (23°F to 104°) Dimensions: 120 x 220 x 63 mm (4.72" x 8.66" x 2.48") (carrying case)/110 x 180 x 58 mm (4.33" x 7.09" x 2.28") (unit only) Finish: ABS resin, black Weight; 700 g (1.54 lb) (including carring case, without batteries) Accessory: 1 Set Test leads Measurement Category: CAT I

EAN: 1686390290314

Package Dimensions: 10.1 x 5.3 x 3.0 inches
