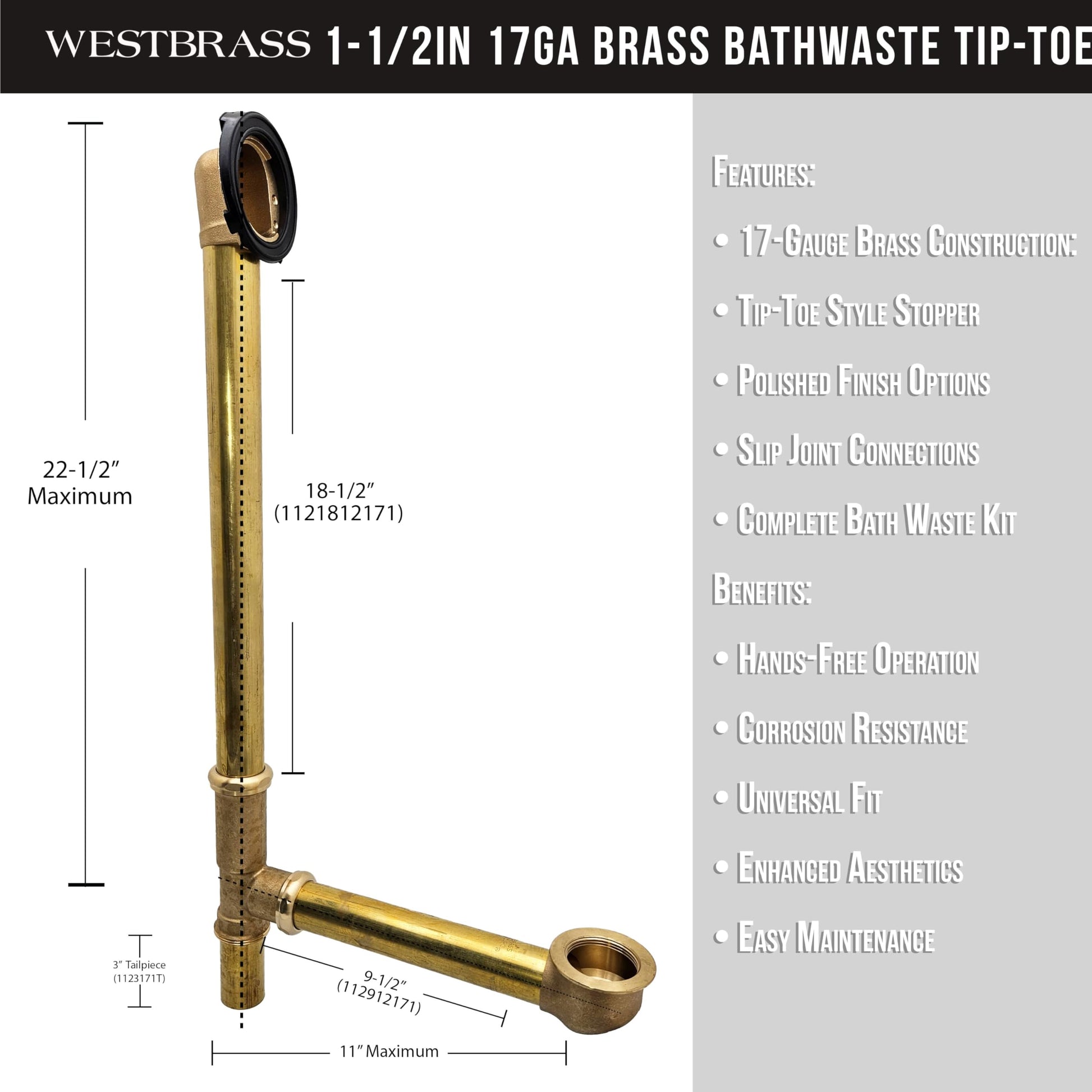

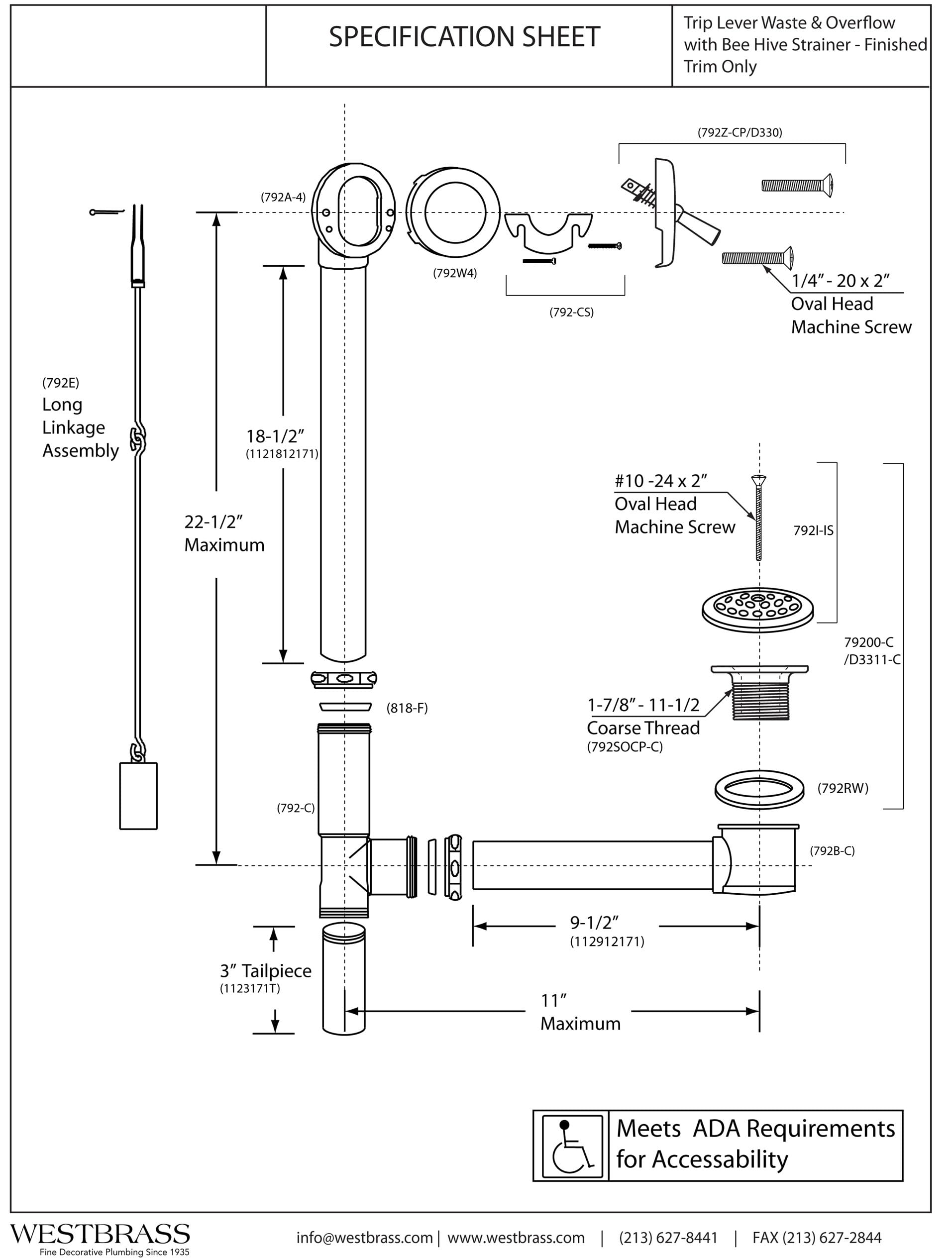

1-1/2 in. by 22-1/2 in. maximum make-up bath waste and overflow assembly with 17 gauge brass tubes

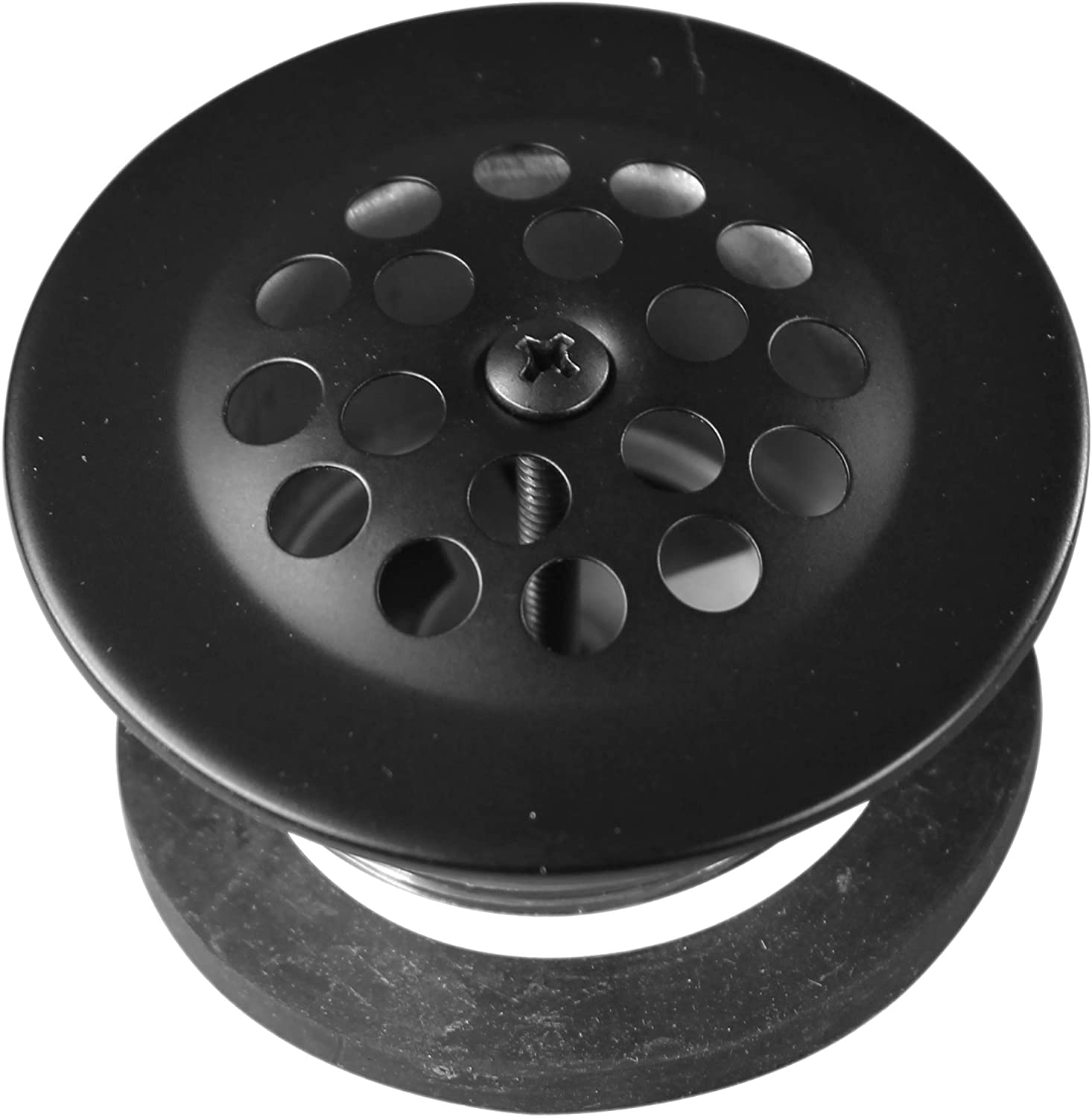

Bath tub drain shoe with beehive-shaped Gerber style grid and screw

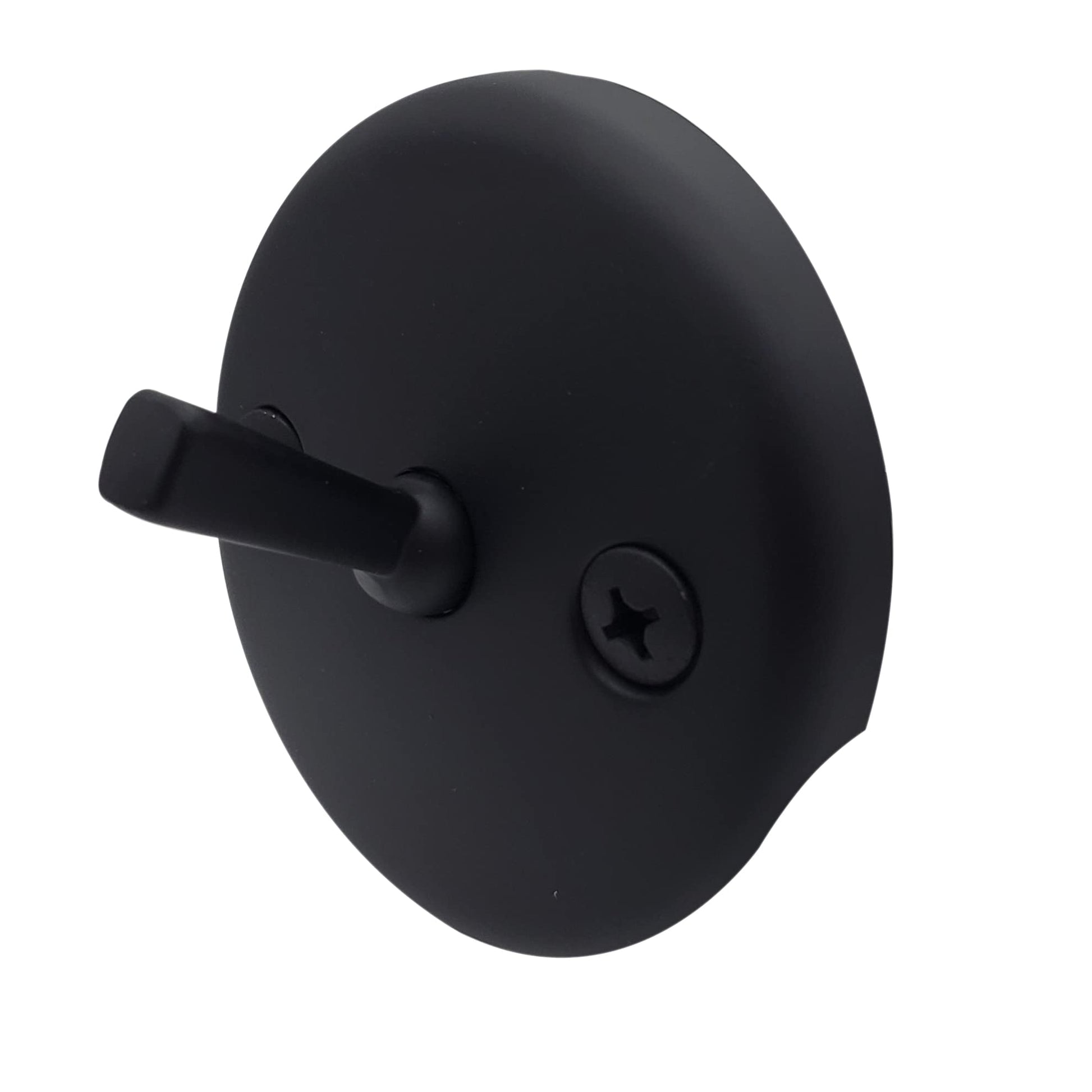

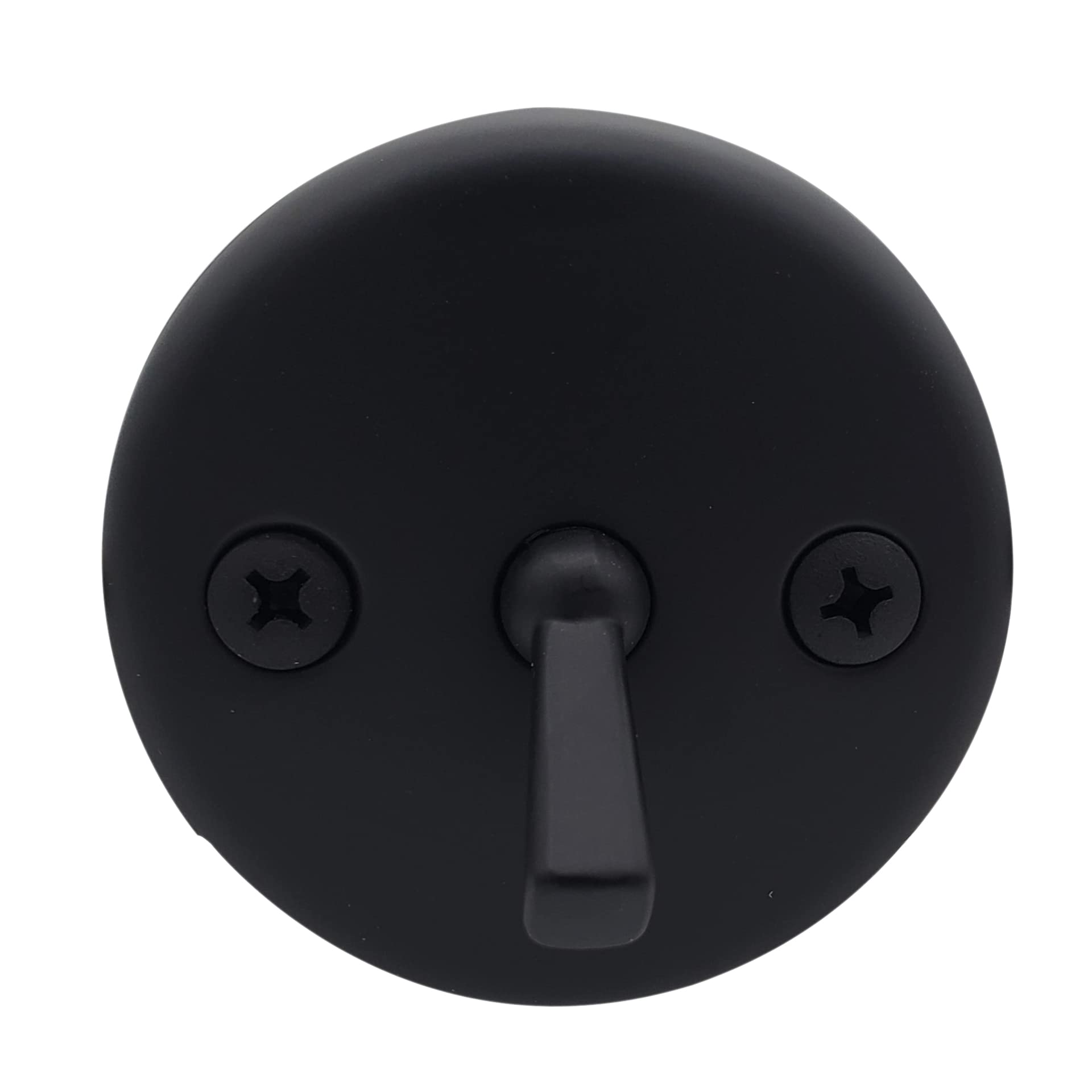

Two-hole trip lever faceplate with two (2) 1/4 in.-20 x 1-1/2 in. plated brass color matching screws
Two-hole elbow, shoe, and tee with half-ferrules included
Finished trim - unfinished rough-in
model number: A324-62
Part Number: A324-62

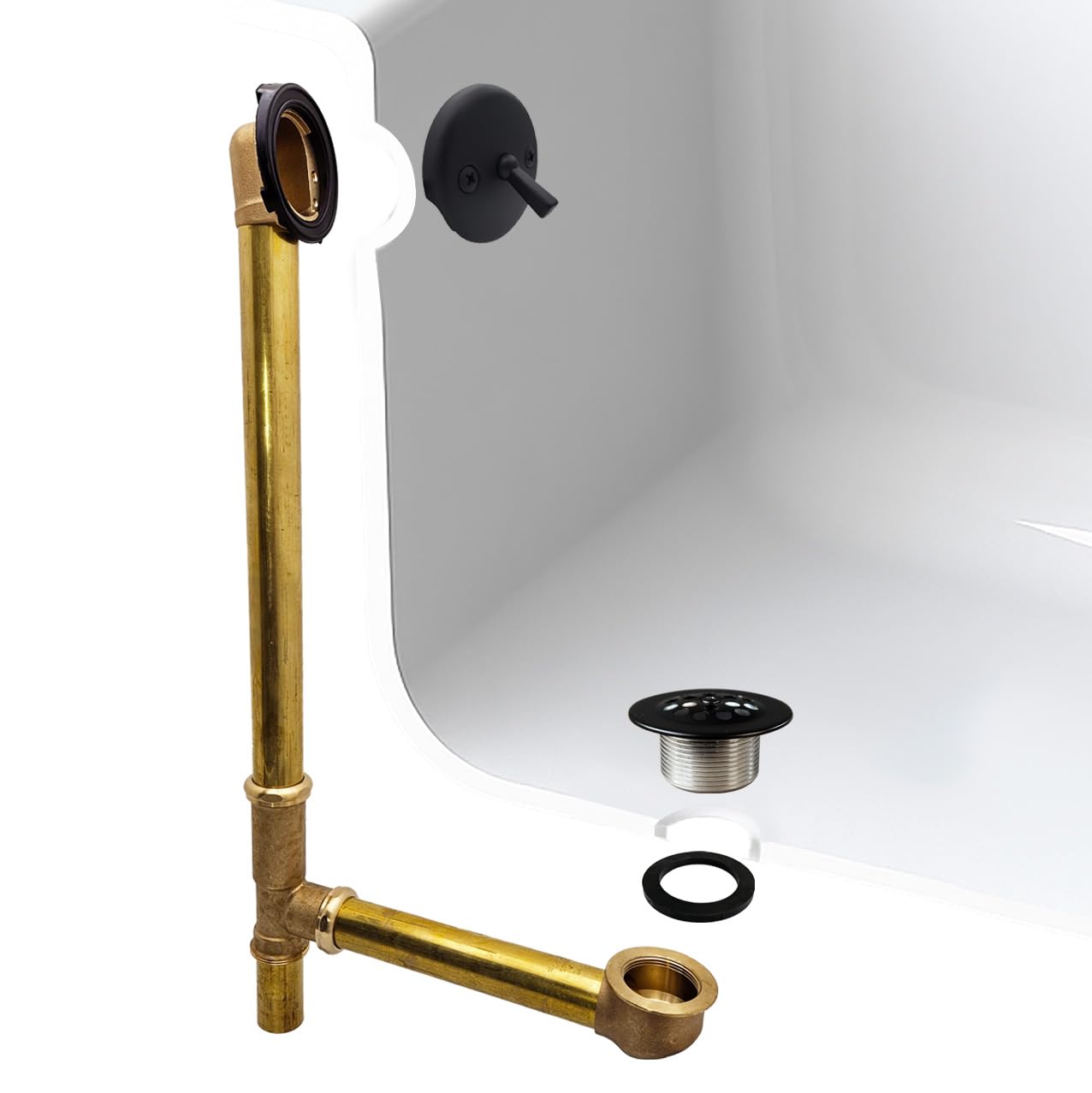

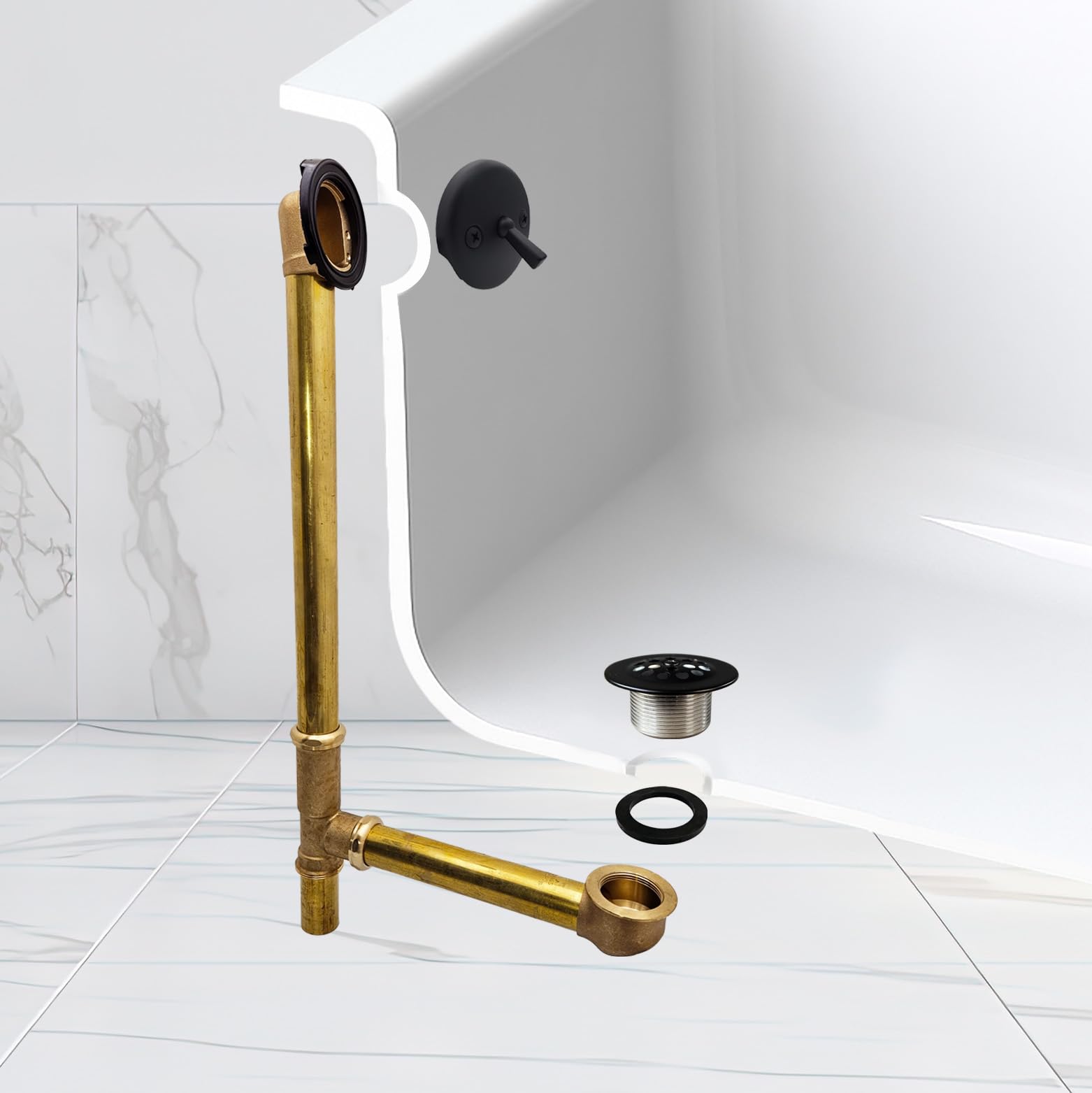

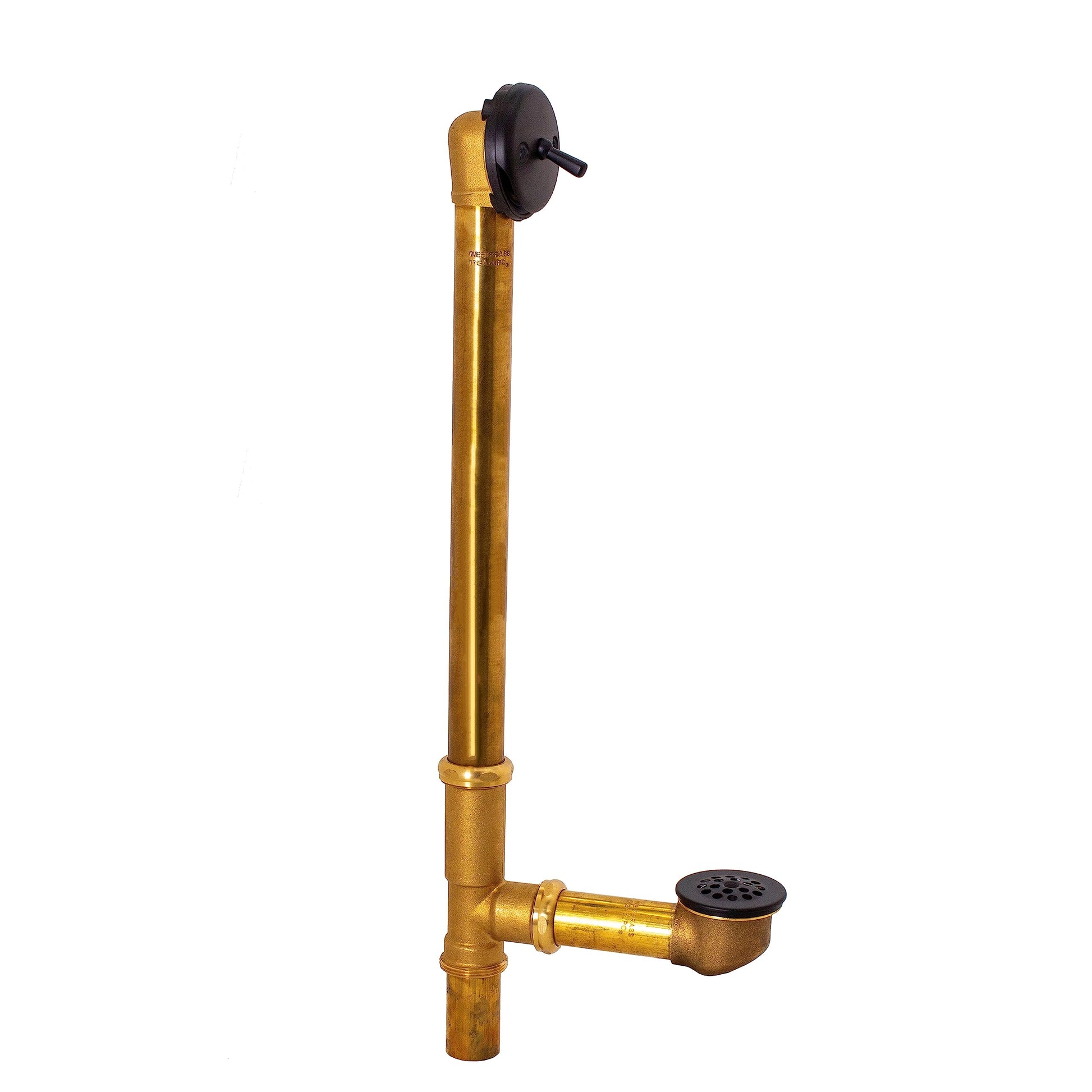

Details: This Westbrass Beehive Grid Bath Waste Assembly combines traditional style with robust brass construction for long-lasting performance in residential and commercial bathroom installations. Designed with a 22-1/2 inch maximum make-up, this 1-1/2 inch brass tubular assembly uses 17 gauge tubing for exceptional strength and durability. The bathtub drain shoe features a raised beehive-style Gerber grid that promotes rapid water drainage while preventing debris from entering the pipe system. A two-hole trip lever faceplate is included, mounted using two plated brass screws for reliable overflow control. The set also comes complete with a two-hole top elbow, tee, and shoe, along with solid brass half-ferrules for leak-resistant connections. Ideal for upgrading existing drains or new installs, this all-metal solution delivers both functionality and classic appeal. Be sure to check out our other model styles and VISIT OUR WESTBASS STOREFRONT for more Kitchen and Bath items to stylize your home with convenient functionality and beauty.
